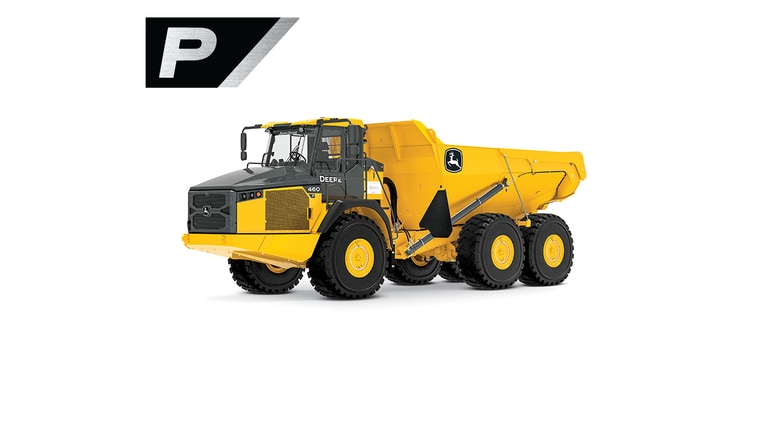

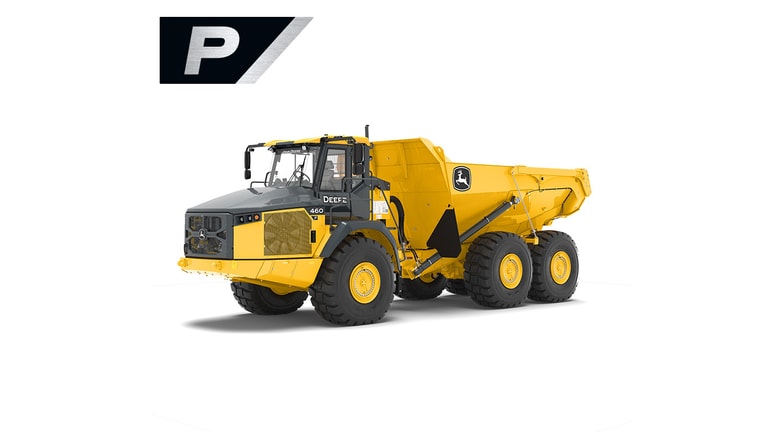

460 P-TierArticulated Dump Truck
- Net Power: 359 kW (481 hp) at 1,700 rpm
- Rated Payload: 41 820 kg (92,197 lb.)
- Heaped Capacity: 25.2 m3 (32.9 cu. yd.)
Features
Expand All
Collapse All
Eco Mode
New Drive Modes (Normal, Eco, and Traction)
Operator settings in the monitor
460 E-II dumping dirt into a pile
Rendering of the updated routings
Improved Fuel Efficiency
Eco Mode
Overview
Reduced weight combined with 3 drive modes on 410 P and 460 P deliver improved fuel efficiency over the E-Series.
Benefits
- Up to 7 percent* fuel savings compared to E-Series, regardless of drive mode
- Eco mode delivers up to 12 percent fuel savings compared to E-Series normal mode
- When conditions allow, eco drive mode helps reduce fuel consumption by smoothing throttle input, reducing maximum rpm, and optimizing transmission response for those conditions
New Drive Modes
New Drive Modes (Normal, Eco, and Traction)
Overview
Available on 410 P and 460 P models, three new drive modes allow the operator to adapt to their situations and enhance the abilities of the articulated dump truck (ADT) to fit their applications. These new drive modes optimize features such as the automatic differential-lock system to reduce tire wear, improve traction in soft conditions, and reduce axle wear by automatically applying only when needed. Customers will find the new drive modes highly valuable for their ease of use, uptime, and ride quality.
Benefits
- Normal: For typical operation and performance similar to E-Series ADTs
- Eco: When conditions allow, helps reduce fuel consumption by smoothing throttle input, reducing maximum rpm, and optimizing transmission response for those conditions
- Traction: Enhances the ability of the ADT to maintain traction in soft and slippery underfoot conditions by applying additional control to the automated differential-lock system and powertrain
Standard Onboard Features to Help Ease Operation
Operator settings in the monitor
Overview
There are multiple owner and operator settings for features available in the monitor. Intuitive to use and easy to adjust, these features eliminate some of the operator inputs, allowing them to focus on more on moving more material efficiently. The best part is that all these features are standard on John Deere articulated dump truck (ADT).
Benefits
- Rollover protection - Alerts the operator to a potential unsafe dump angle and stops the dump cycle. Set at 15 percent from the factory this setting can also be user defined by accessing the owner setting in the monitor.
- Downhill dump protection - Automatically calculates the truck position to make sure the dump body doesn’t travel over-center when dumping downhill.
- Auto dump brake - With auto dump brake enabled and driveline assist active, the service brakes will latch when unloading the machine.
- Hill hold - When stopping on an uphill slope, the truck will automatically keep the service brakes applied while the operator moves their foot from the brake pedal to the throttle to keep the truck from rolling backward.
- Frame protection - If a dump is stopped before material is shed out of the bin, the truck will cushion the bin travel back to cradle to prevent a full bin from aggressively seating onto the frame.
- Shuttle shifting - The transmission may be shifted direction without the truck coming to a stop improving cycle times and eliminating operator abuse
- Descent control - When activated by the operator, this setting will help automatically control the truck speed when driving down a descent through automatic use of the transmission retarder. Check decal on window for speed and gear limitations.
- Dump body limits - The maximum dump height can be restricted from full dump when working around low overhead obstacles.
- Transmission warm-up - At truck start up, the transmission will automatically begin a warm-up cycle. This improves not only ride and shift quality but also increases daily productivity by getting the transmission up to operating temperature quickly.
- Speed limits – Max speed limit can be set in the monitor to match jobsite conditions or site requirements, reducing complexity for the operator.
Redesigned Dump Body

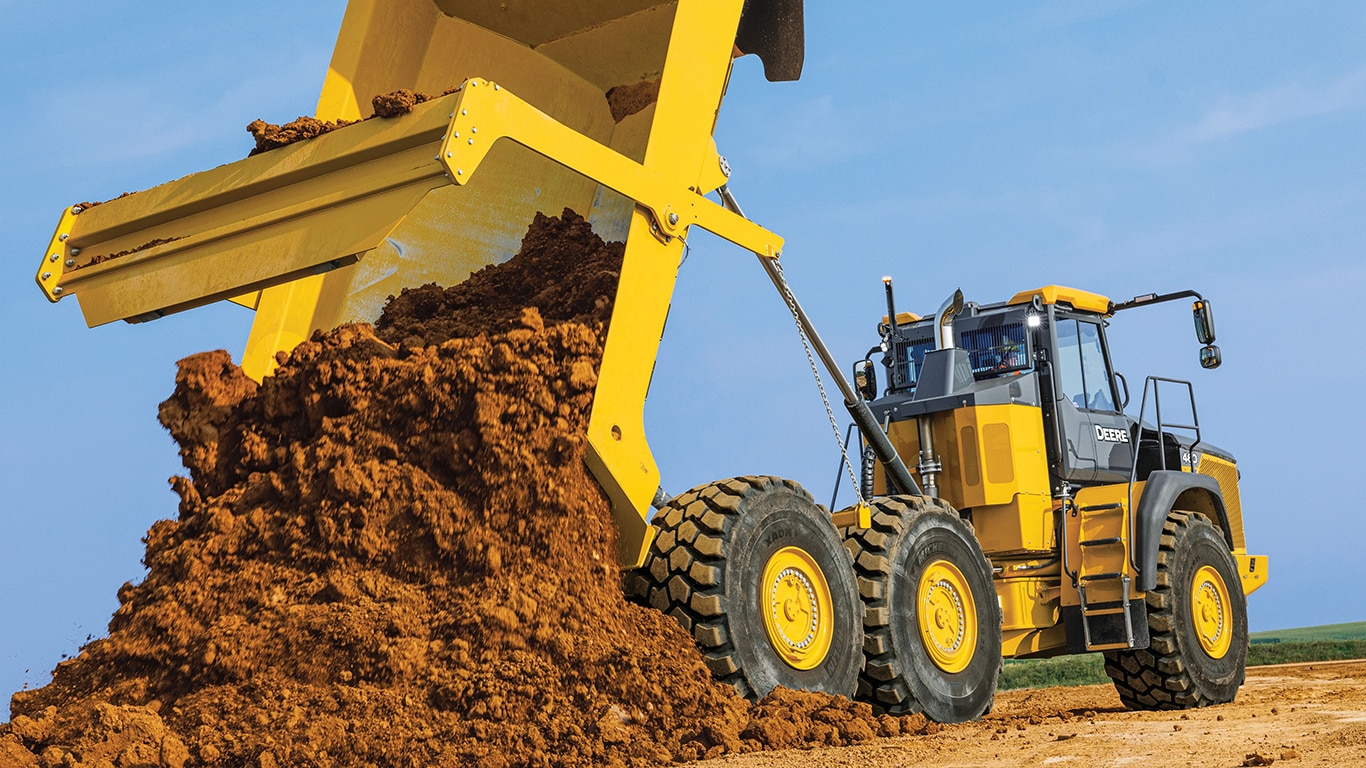

460 E-II dumping dirt into a pile
Overview
A completely redesigned dump body allows for improved material retention, lower loading height, lower center of gravity, and reduced transport width. Quarry and Aggregate customers will value the bin redesign and lower overall dump-body height (for easier loading and better material retention) for its increased uptime and cycle times.
Benefits

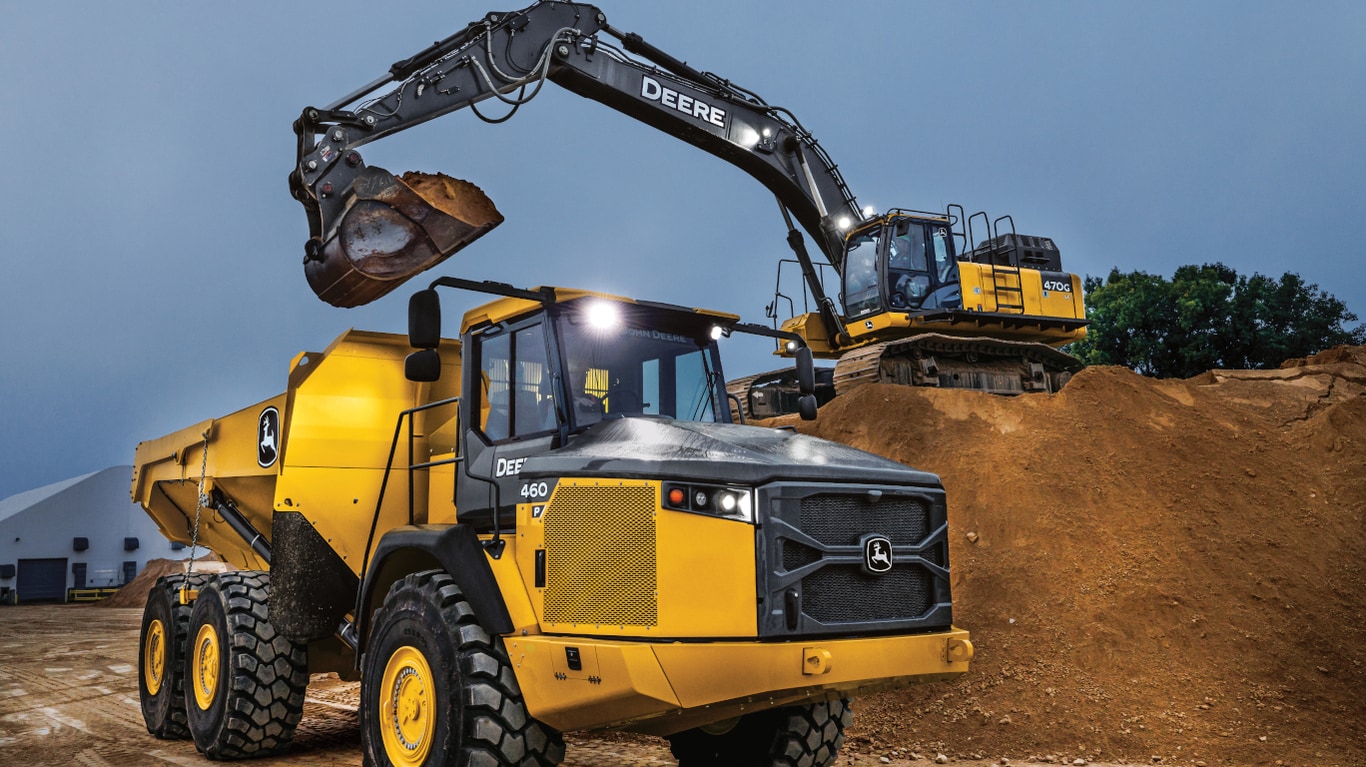

- Wider bin for better tire coverage and easier target while bench loading with an excavator
- New side-sheet design makes loading height the same from front to back
- Bin rail now features angled top, helping to reduce material spillage during travel
- Tailgate arms have been redesigned to maintain a transport width under 3.7 m (12 ft) (460 E-II & 460 P-Tier - 3.5 m (11 ft 7 in.))
- Changes to the headboard offer increased coverage of the articulation joint
- Lower center of gravity to improve stability
- Uniform bin floor width improves ease of cleanout
Redesigned electrical and hydraulic systems
Rendering of the updated routings
Overview
Enhanced reliability with updated machine sensors and improved routing of both hydraulic hoses and electrical harnesses. Lighter and more fuel efficient while beefing up reliability with more robust sensors and simplified hydraulic and electrical routing compared to E-Series. Roadbuilding and Aggregate customers will find the updated routings highly valuable for its increased uptime.
Benefits
- Improved electrical and hydraulic system routings reduces hose length and number of connections — 10 percent fewer than E-Series models — to minimize potential leak points, fittings, and hose friction points
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 460 P-Tier Articulated Dump Truck |
DESCRIPTION
| Air Conditioner | Yes | |||
|---|---|---|---|---|
| Steering wheel adjustment | Fully Adjustable | |||
| Telematics Available | Yes | |||
| Fleet Management | Yes |
DRIVELINE
| Engine Manufacturer | John Deere | |||
|---|---|---|---|---|
| Engine Model | PowerTech 6135 | |||
| Emission Rating | Tier 4 / Stage IV | |||
| Displacement, ltr (Inches³) | 13.5 (823.8) | |||
| Rated Speed, rpm | 1700 | |||
| Engine Output - Net, kW (hp) | 359 (481) | |||
| Transmission Manufacturer | ZF | |||
| Final Drive | Planetary - Outboard | |||
| Transmission Type | Countershaft | |||
| Steering Type | Articulated | |||
| Secondary Steering Type | Ground Driven Pump | |||
| Differential Lock | F: 100 / R: 100 | |||
| Tire size - Standard | 29.5 R25 | |||
| Front Suspension - Type | Semi-Independent Leading A-Frame | |||
| Front Suspension | Nitrogen/Oil-Filled Struts - Auto Levelling | |||
| Rear Suspension - Type | Pivoting Walking Beam | |||
| Rear Suspension | Rubber Suspension Blocks | |||
| Service Brake - Actuation | Hydraulic | |||
| Parking Brake - Type | Disc - Transmission | |||
| Retarder - Type | Hydraulic - Transmission |
DIMENSIONS
| Length - Overall, mm (ft/in) | 10640 (34 ft 11 in) | |||
|---|---|---|---|---|
| Height - Max, mm (ft/in) | 3890 (12 ft 9 in) | |||
| Width over Tires, mm (ft/in) | 3410 (11 ft 2 in) | |||
| Hoist - Type | Twin, 1-Stage | |||
| Power Down | Yes | |||
| Approach Angle, Degrees | 26 | |||
| Articulation Angle, ± Degrees | 45 | |||
| Turning Radius - Outside, mm (ft/in) | 8900 (29 ft 2 in) | |||
| Turning Radius - Inside, mm (ft/in) | 4630 (15 ft 2 in) | |||
| Turns lock to lock | 4 |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 609 (161) | |||
|---|---|---|---|---|
| Struck Capacity, m³ (yd³) | 19.5 (25.5) | |||
| Heaped Capacity, m³ (yd³) | 25.2 (32.9) |
PERFORMANCE
| Gears - Forward / Reverse | 8F - 4R |
|---|
WEIGHTS
| Net Weight, kg (lbs) | 31700 (69886) | |||
|---|---|---|---|---|
| Payload, kg (lbs) | 41820 (92197) | |||
| Gross Weight, kg (lbs) | 73520 (162084) |
