GR72B Rock GrappleCompact Equipment Attachments

GR Series Rock Grapples are designed to be a multipurpose tool for

land clearing
brush removal applications
jobsite clean-up

$6,177.00USD, PLUS ADDITIONAL CHARGES1

Order Online Download Product Brochure

Print

Optional accessories and attachments shown. See your dealer for available models, options, attachments and pricing. Product options and accessories may not be available in all regions.

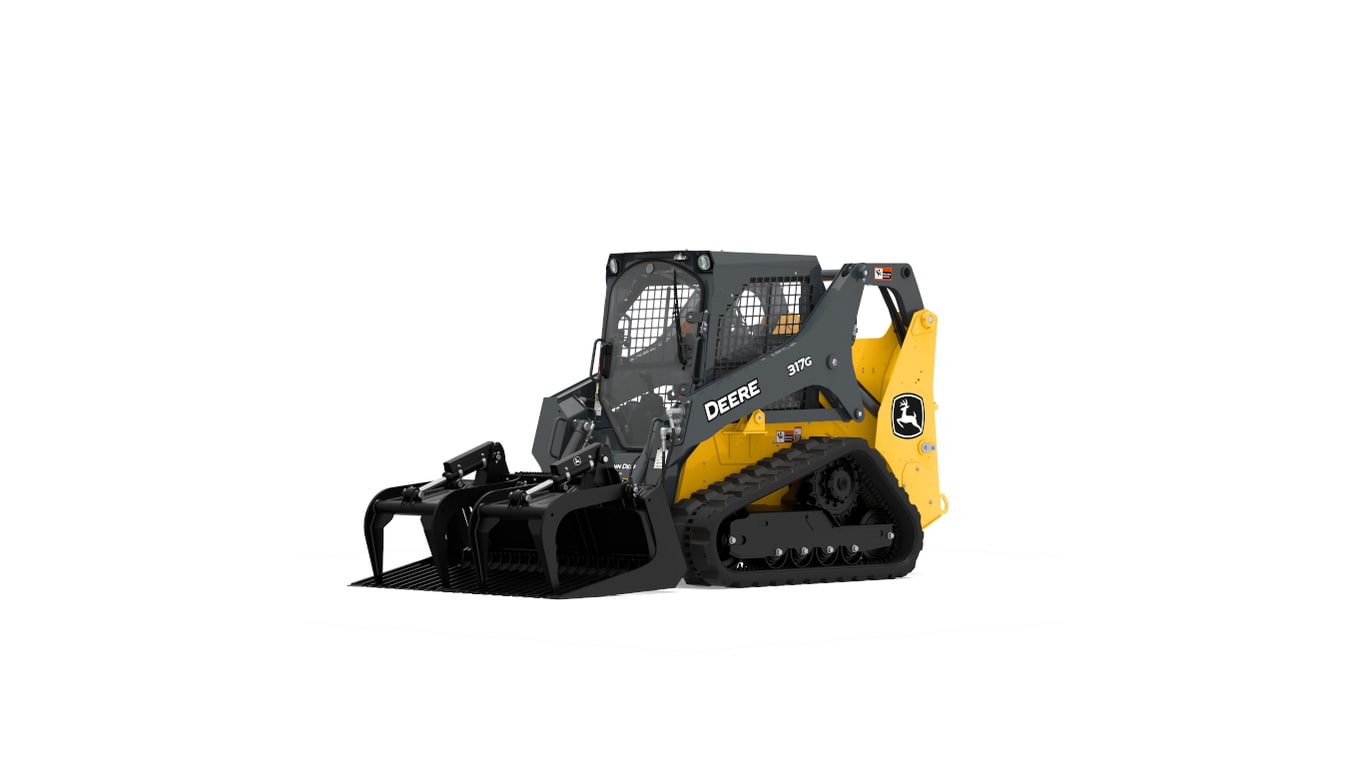

GR72B Rock Grapple

Features

Features

Expand All Collapse All

GR Series Rock Grapples are ideal for a variety of applications

Overview

GR Series Rock Grapples are designed to be a multipurpose tool for land clearing, brush removal applications, and jobsite clean-up.

Benefits

Each unit includes two independent-action grapples that allow for optimal clamping action when grappling objects with non-uniform sizes such as root balls, large rocks, or demolition debris.
Open sides on the rock grapple models allow easy grappling of material that is wider than the bucket
Specifically integrated design features allow the rock grapples to be used for grading a site after debris removal
Tine spacing allows for material sifting when used in the forward direction
The bucket heel profile allows for loose material to flow through or for scarifying of surfaces when grading in reverse
A weld-in serrated cutting edge supports each tine and provides superior material penetration capabilities
Greaseable and hardened 31.8-mm (1.25-in.) pins with increased cylinder specifications result in improved durability
An improved hose routing over the previous series grapples eliminates the need for grapple cylinder stops on large frame G-Series Skid Steers
Increased side cutter, side sheet, and backsheet plate thicknesses, combined with larger torque tubes result in heavy-duty bucket construction for the most demanding applications

Design improvements

Overview

Accomplish more with increased capacity and improved design.

Benefits

New rock grapple design

Tines are spaced three inches apart and fully supported on each side for maximum bend resistance
Weld-in serrated cutting edge easily penetrates difficult ground conditions
Solid backplate along the Quik-Tatch™ area protects hydraulic cylinder hoses and the machine from debris and damage
Thickened side cutter, side sheet, and backplate combine with large torque tubes for heavy-duty construction that meets the most demanding applications

Increased cylinder size

Cylinder size of 63.5-mm (2.5-in.) bore diameter and 35.56-mm (1.4-in.) rod diameter delivers high grapple forces to tackle even the most difficult materials
Grapple arms feature integrated mechanical stop to reduce cylinder load when open

Improved grapple capacity

619.76-mm (24.4-in.) wide grapple arm and grapple stances of 1539.24 mm (60.6 in.) on the GR72B and 1658.62 mm (65.3 in.) on the GR84B help grasp broad, cumbersome loads
Independent-action grapples enable different-sized objects to be picked up with each grapple

Improved hose routing

Durable 90-degree quick-couplers on the hydraulic cylinder hoses eliminate interference with the grapple
Standard low-profile cylinder guards simplify hose connections

Show More Show Less

Close up of the quik-tatch system for hooking an attachment to a machine

Quik-Tatch™

With our universal, self-cleaning Quik-Tatch easy-attachment system, you can switch from one type of attachment to another in no time flat.
