GS84B Scrap GrappleCompact Equipment Attachments
- scrap handling
- recycling center
- disaster cleanup
- jobsite cleanup applications
STARTING AT:
$7,428.00USD, PLUS ADDITIONAL CHARGES1
Optional accessories and attachments shown. See your dealer for available models, options, attachments and pricing. Product options and accessories may not be available in all regions.
Features
Expand All
Collapse All

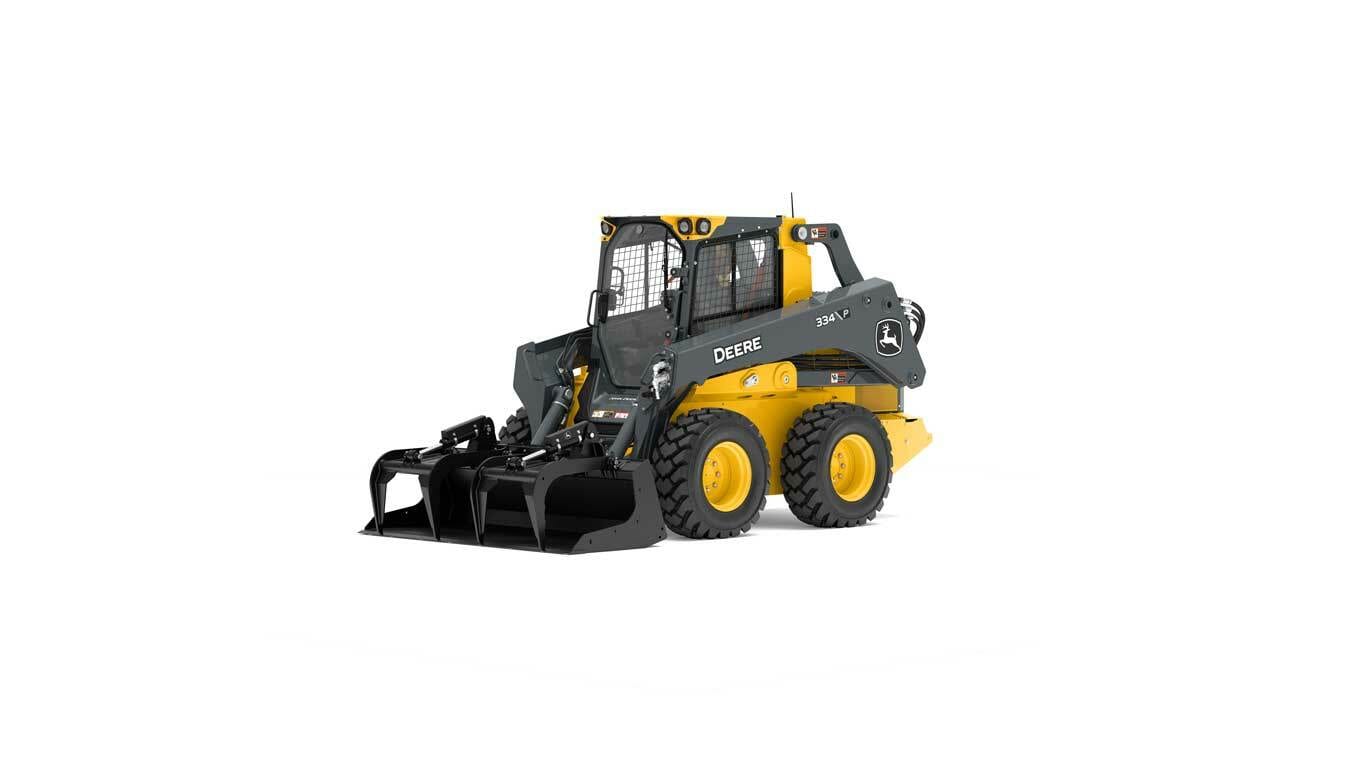

GS-Series Scrap Grapple
GS-Series Scrap Grapples are ideal for a variety of applications
Overview
GS-Series Scrap Grapples are designed for scrap handling, recycling center, disaster cleanup, and jobsite cleanup applications that require grappling power to handle material.
Benefits
- Each unit includes two independent-action grapples that allow different-sized objects to be picked up in each grapple Greaseable and hardened 35-mm (1.375-in.) pins with increased cylinder specifications result in improved durability
- An improved hose routing over the previous series grapples eliminates the need for grapple cylinder stops on large frame G-Series Skid Steers
- Open sides on the scrap grapple models allow easy grappling of material that is wider than the bucket.
- For scrap applications where containing the material is required, bolt-on side plates are available
- Increased side cutter, side sheet, and back sheet plate thicknesses, combined with larger torque tubes result in heavy-duty bucket construction for the most demanding applications
- Scrap grapples feature convenient pre-drilled holes on the cutting edges for optional bolt-on, replaceable edge
Design improvements
GS-Series Scrap Grapple
Overview
Accomplish more with increased capacity and improved design.
Benefits
Increased cylinder size
- Cylinder size of 63.5-mm (2.5-in.) bore diameter and 36-mm (1.4-in.) rod diameter delivers high grapple forces to tackle even the most difficult materials
- Grapple arms feature integrated mechanical stop to reduce cylinder load when open
Improved grapple capacity
A 620-mm (24.4-in.) wide grapple arm and grapple stance of 1540 mm (60.6 in.) on the 1676-mm or 1829-mm (66-in. or 72-in.) wide grapples or 1660 mm (65.3 in.) on 1981-mm or 2134-mm (78-in. or 84-in.) wide grapples that allow for easier grappling of wide, difficult material
Improved hose routing
- Durable 90-degree quick-couplers on the hydraulic cylinder hoses eliminate interference with the grapple
- Standard low-profile cylinder guards simplify hose connections
Quik-Tatch™
With our universal, self-cleaning Quik-Tatch easy-attachment system, you can switch from one type of attachment to another in no time flat.
