Whether you're looking for an efficient alternative to a wrecking ball on a big demolition job or need to break up materials for landscaping, trenching, recycling, or other applications, John Deere excavator-compatible hydraulic hammers deliver breakthrough performance. Optimized for Deere excavators, they are also compatible with most competitive models.
Model | Impact Energy Class | Weight | Operating Pressure | Impact Rate |
---|---|---|---|---|
HH90 Hammer |
1627 J (1,200 ft.-lb.) |
500 kg (1,100 lb.) |
10-14 MPa (1,450-2,030 psi) |
500-1,700 blows/min. |
HH115 Hammer |
3390 J (2,500 ft.-lb.) |
1,100 kg (2,430 lb.) |
13.5-14.5 MPa (1,960-2,105 psi) |
540-920 blows/min. |

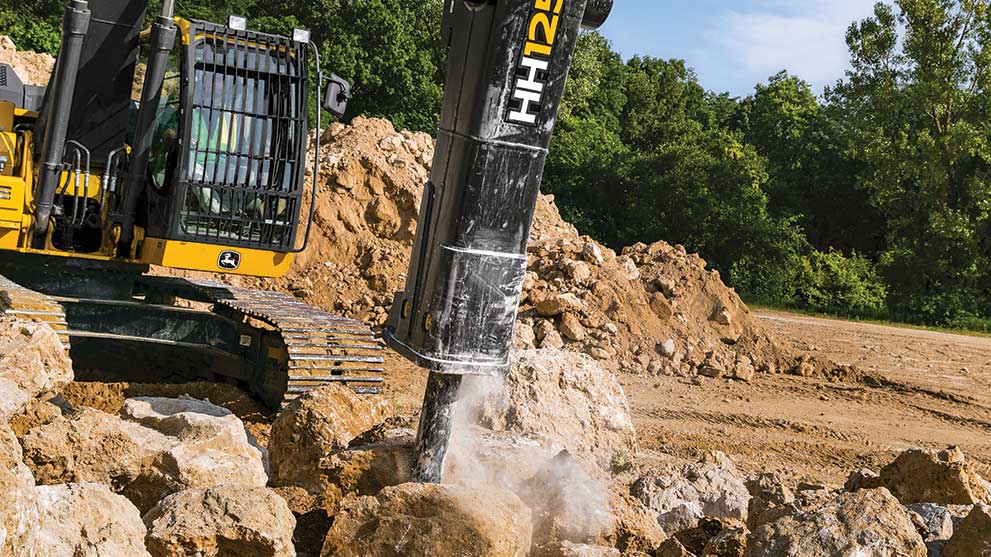

HH125 Hammer |
4745 J (3,500 ft.-lb.) |
1,360 kg (3,000 lb.) |
14-16 MPa (2,030-2,320 psi) |
430-790 blows/min. |
HH135 Hammer |
6779 J (5,000 ft.-lb.) |
1,670 kg (3,680 lb.) |
13.5-14.5 MPa (1,960-2,105 psi) |
450-750 blows/min. |
HH145 Hammer |
10 847 J (8,000 ft.-lb) |
2,350 kg (5,180 lb.) |
15-16 MPa (2,175-2,320 psi) |
37-630 blows/min. long stroke |
Whether you’re looking for an efficient alternative to a wrecking ball on a big demolition job or need to break up materials for landscaping, trenching, recycling, or other applications, John Deere excavator-compatible hydraulic hammers deliver breakthrough performance. Optimized for Deere excavators, they are also compatible with most competitive models.
Check out our complete line of mid-size and large equipment to pair with our attachments.
