Engineered for the toughest conditions
Make your felling head feel like new with the best saw teeth from Deere. Stronger metal and sharper edges to maximize efficiency and productivity. The broader selection lets you fine tune your equipment to each project.
It’s all within your reach with John Deere swing-to-tree, drive-to-tree or rotate-to-tree felling heads. Our felling head attachments are designed to match the high production rates of Deere tracked and wheeled feller bunchers and keep you #1 in the Woods.
Compare Forestry Felling Head Models
Drive to Tree
| Model | Weight | Cut Capacity | Accumulation Capacity |
|---|---|---|---|
|
FD22B |
3071 kg (6,770 lb.) |
55.9 cm (22 in.) |
0.48 m2 (5.2 sq. ft.) |
|
FD45 |
2424 kg (5,345 lb.) |
50.8 cm (20 in.) |
0.65 m2 (7.0 sq. ft.) |
|
FD55 |
2971 kg (6,550 lb.) |
58.4 cm (23 in.) |
0.63 m2 (6.8 sq. ft.) |
Swing to Tree
| Model | Weight | Cut Capacity | Accumulation Capacity | High Rotation Wrist |
|---|---|---|---|---|
|
FR21B |
3140 kg (6,920 lb.) |
54.5 cm (21.5 in.) |
0.46 m2 (5.0 sq. ft.) |
•
|
|
FS22B |
3550 kg (7,830 lb.) |
55.9 cm (22 in.) |
0.48 m2 (5.2 sq. ft.) |
|
|
FR22B |
3840 kg (8,470 lb.) |
55.9 cm (22 in.) |
0.48 m2 (5.2 sq. ft.) |
•
|
|
FR27 |
4220 kg (9,310 lb.) |
68.6 cm (27 in.) |
0.70 m2 (7.5 sq. ft.) |
•
|
|
FS50 |
3370 kg (7,430 lb.) |
50.8 cm (20 in.) |
0.64 m2 (6.9 sq. ft.) |
|
|
FR50 |
3660 kg (8,070 lb.) |
50.8 cm (20 in.) |
0.64 m2 (6.9 sq. ft.) |
•
|
Directional Felling
| Model | Weight | Cut Capacity | Maximum Capacity |
|---|---|---|---|
|
FL100 |
2995 kg (6,660 lb.) |
100 cm (39.3 in.) |
0.78 m2 (8.4 sq. ft.) |
Compatible Equipment
More Information
John Deere FL100 Felling Head | High-Capacity Versatility
John Deere FL100 Felling Head | High-Capacity Versatility
In the Field
-

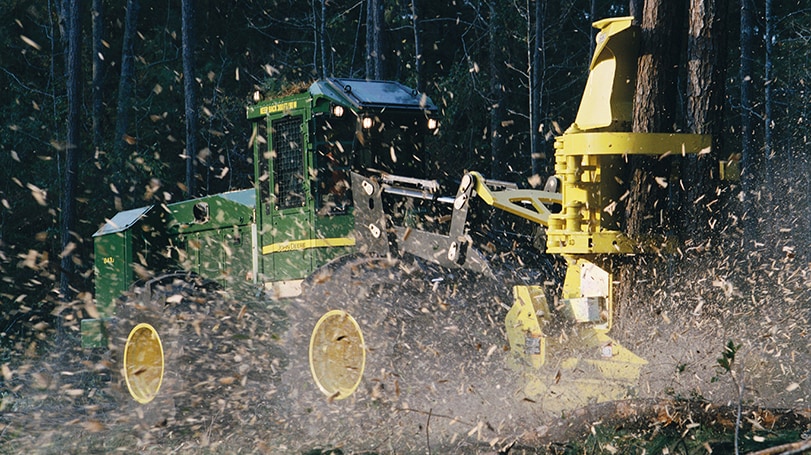

FD22B Felling Head
-

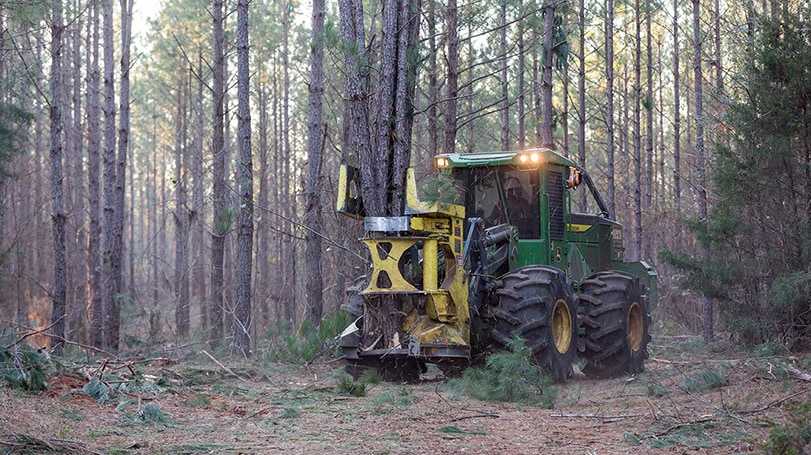

FD45 Felling Head
-

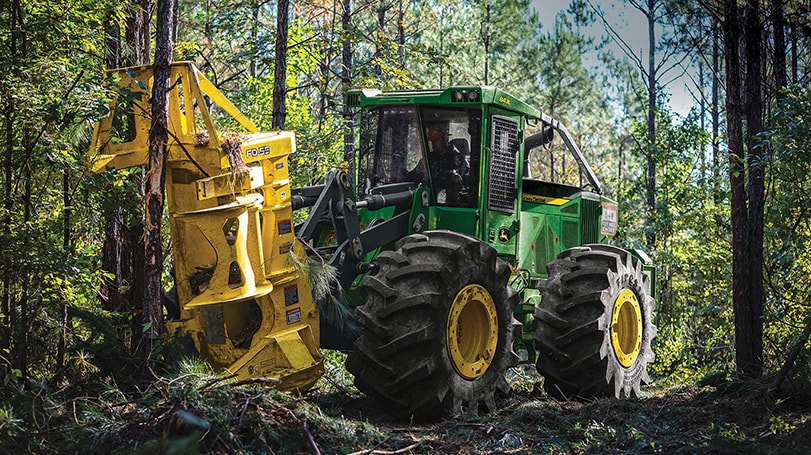

FD55 Felling Head
-

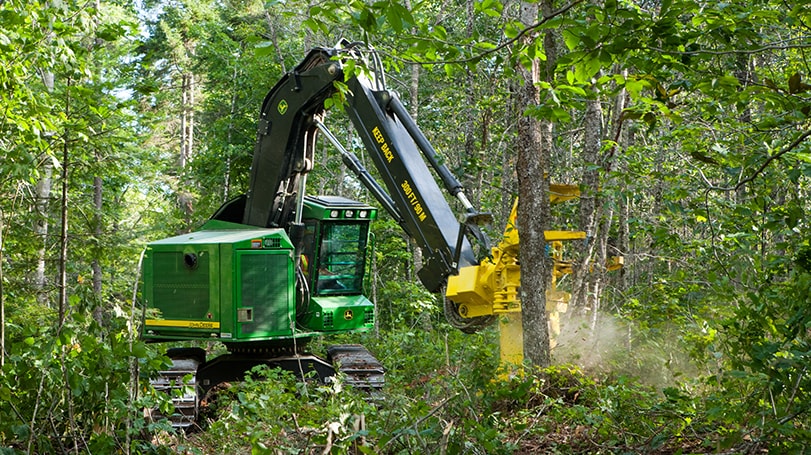

FR21B Felling Head
-
FR22B Felling Head
-

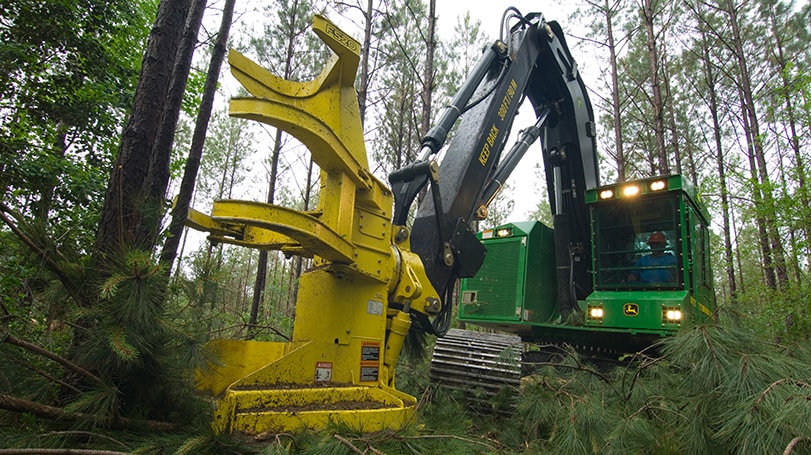

FS20 Felling Head
