RB20L SeriesRear Blades
- iMatchTM compatible
- Manually adjustable angle
- Reversible cutting edge
- Optional skid shoes
Features
Expand All
Collapse All
Frame on the RB10L and RB20L Series Rear Blades
Hitch is iMatch™ quick-hitch and Category 1 compatible
Turntable adjusts 360 degrees
Frontier™ rear blade cutting edge
Figure 1 Shown on RB24 Series
Heavy mast ensures rigidity
Frame on the RB10L and RB20L Series Rear Blades
A heavy, welded mast and 4x4 steel frame deliver added strength and rigidity for Frontier™ RB10L and RB20L Series Rear Blades. The full-radius moldboard is professional grade to handle heavy loads.
Hitch attaches quickly and efficiently
Hitch is iMatch™ quick-hitch and Category 1 compatible
The RB10L and RB20L Series Rear Blades are iMatch quick-hitch compatible with Limited Category 1 hitches. This provides a quick, efficient hookup.
Manually adjustable angle for added precision
Turntable adjusts 360 degrees
The turntable allows a complete 360-degree turning radius for leveling perfection when using the RB10L and RB20L Series Rear Blades.
Adjust the angle of the blade to three different positions in forward and three positions in reverse. Manually adjusting the angle and offset allows the blade to adapt to a variety of soil conditions, creating a precise finish.
Reversible cutting edge for longer wear life
Frontier™ rear blade cutting edge
All Frontier RB Series Rear Blade cutting edges are reversible, featuring bevels on both edges to give the blade twice the work life.
Optional skid shoes increase cutting edge life
Figure 1 Shown on RB24 Series
Skid shoes increase the life of the cutting edge on all RB Series Rear Blades and avoid damaging the work surface while cleaning corrals or plowing snow.
NOTE: Skid shoe style shown in image above used with RB2060, RB2072, and RB2084 models.
The skid shoe kits include one pair and allow the blade to ride on the shoes at a set height to allow the operator control of the blade depth.
The bundles listed below identify the rear blades they fit.
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere RB20L Series Rear Blades |
Dimensions
| Width in working position | 1.8 m 5 ft |
|||
|---|---|---|---|---|
| Moldboard length | 152.4 cm 60 in. |
|||
| Moldboard height | 27.9 cm 11 in. |
|||
| Moldboard thickness | 0.5 cm 0.1875 in. |
Weight
| Machine | 70.3 kg 155 lb |
|||
|---|---|---|---|---|
| Shipping per unit | 91.2 kg 201 lb |
Tractor requirements
| PTO hp (kW) | 25 hp Max: 18.6 kW |
|||
|---|---|---|---|---|
| Hydraulic offset kit (hoses and fittings included) |
Angle, tilt, offset, pivot
| Pivot angle degrees | 360 degree (angle) | |||
|---|---|---|---|---|
| Angle forward, number of positions | 0, 15, 30 degrees each side | |||
| Angle reverse, number of positions | 0, 15 degrees each side | |||
| Tilt positions/degrees | ||||
| Offset position left or right |
Hitch
| Type | Limited Cat. 1 (aftermarket Cat. 0 lift pins available) | |||
|---|---|---|---|---|
| Quick hitch compatibility | iMatch |
Reversible cutting edge
| Thickness | 1.3 cm 0.5 in. |
|||
|---|---|---|---|---|
| Height | 15.2 cm 6 in. |
Duty
| Type | Economy |
|---|
Parking stand
| Standard with machine | Standard |
|---|
Set-up time
| Labor hours |
|---|
Warranty
| Time period | 1 year |
|---|
Additional information
| Date collected |
|---|
-
BB20 Series Box Blades -
BB20L Series Box Blades -
BB21 Series Box Blades -

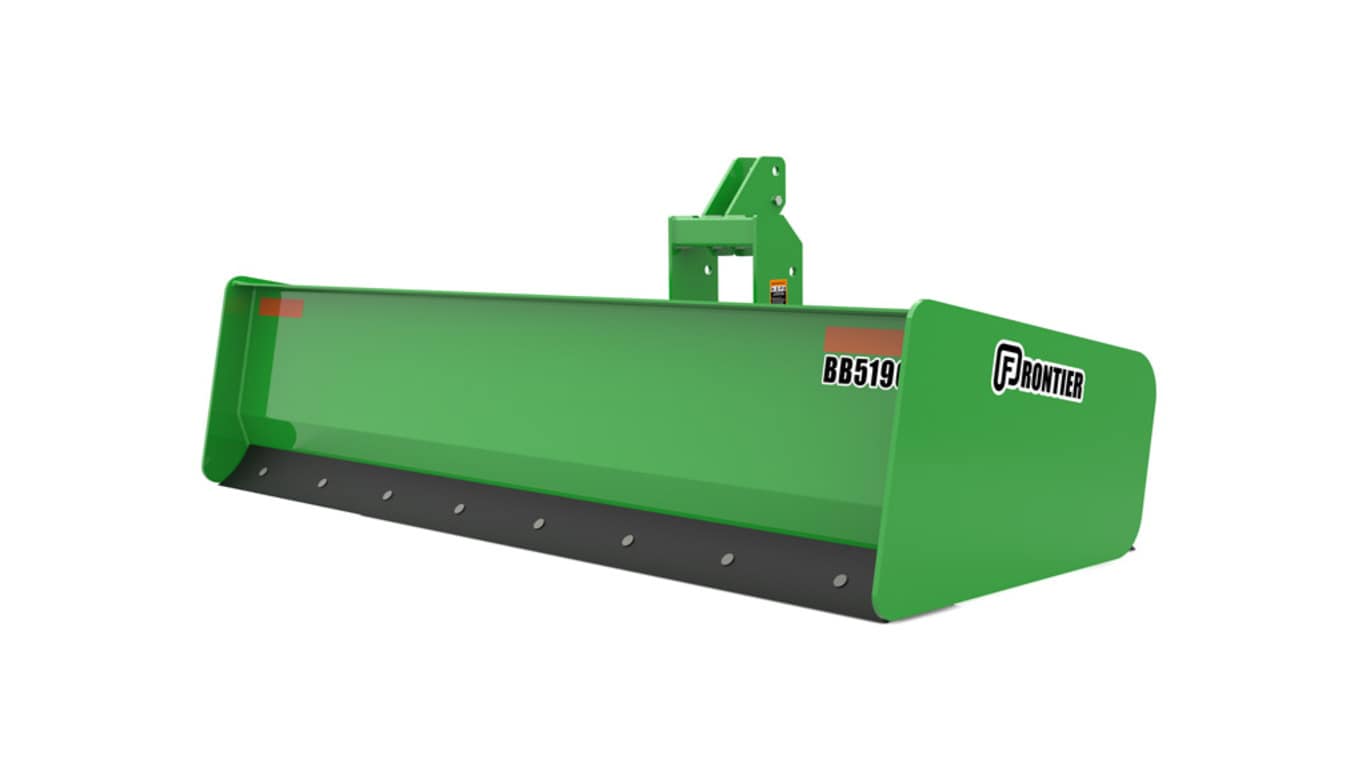

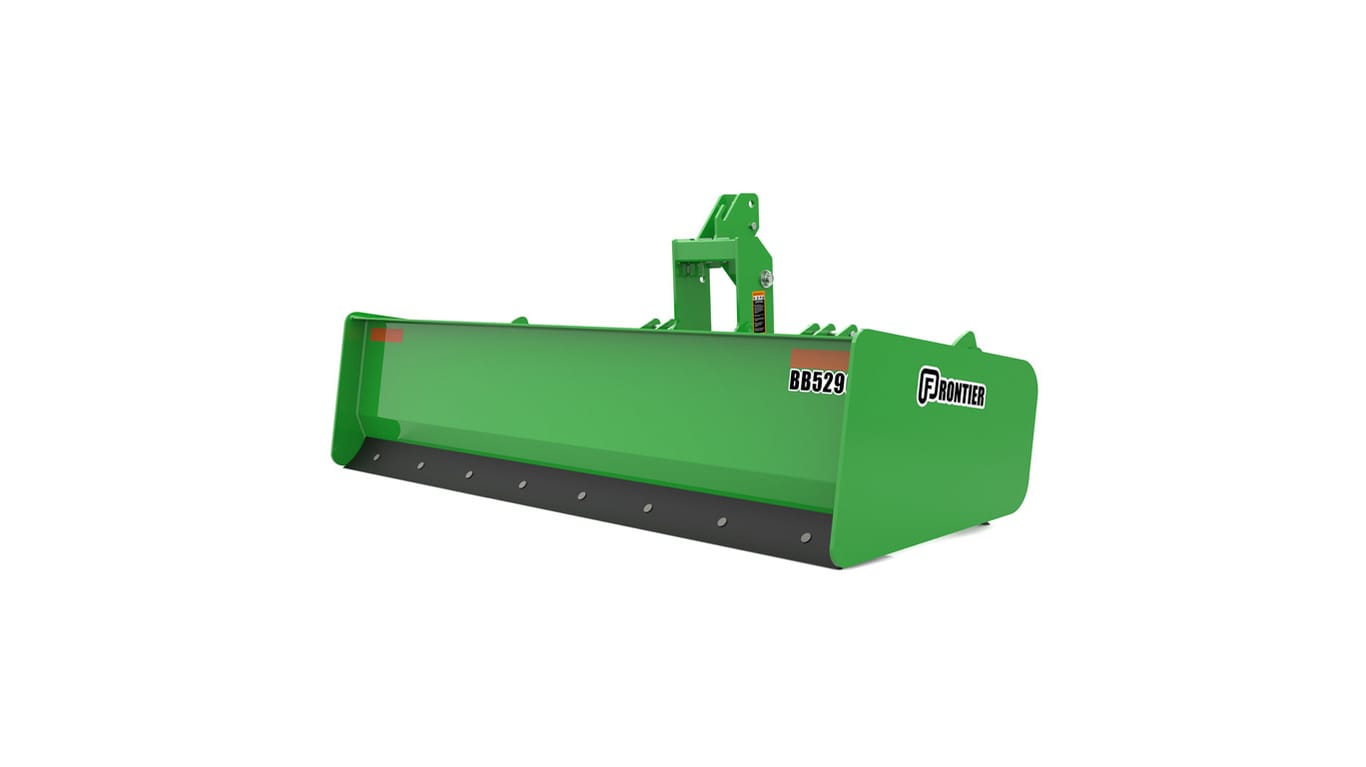

BB50 Series Box Blades -
