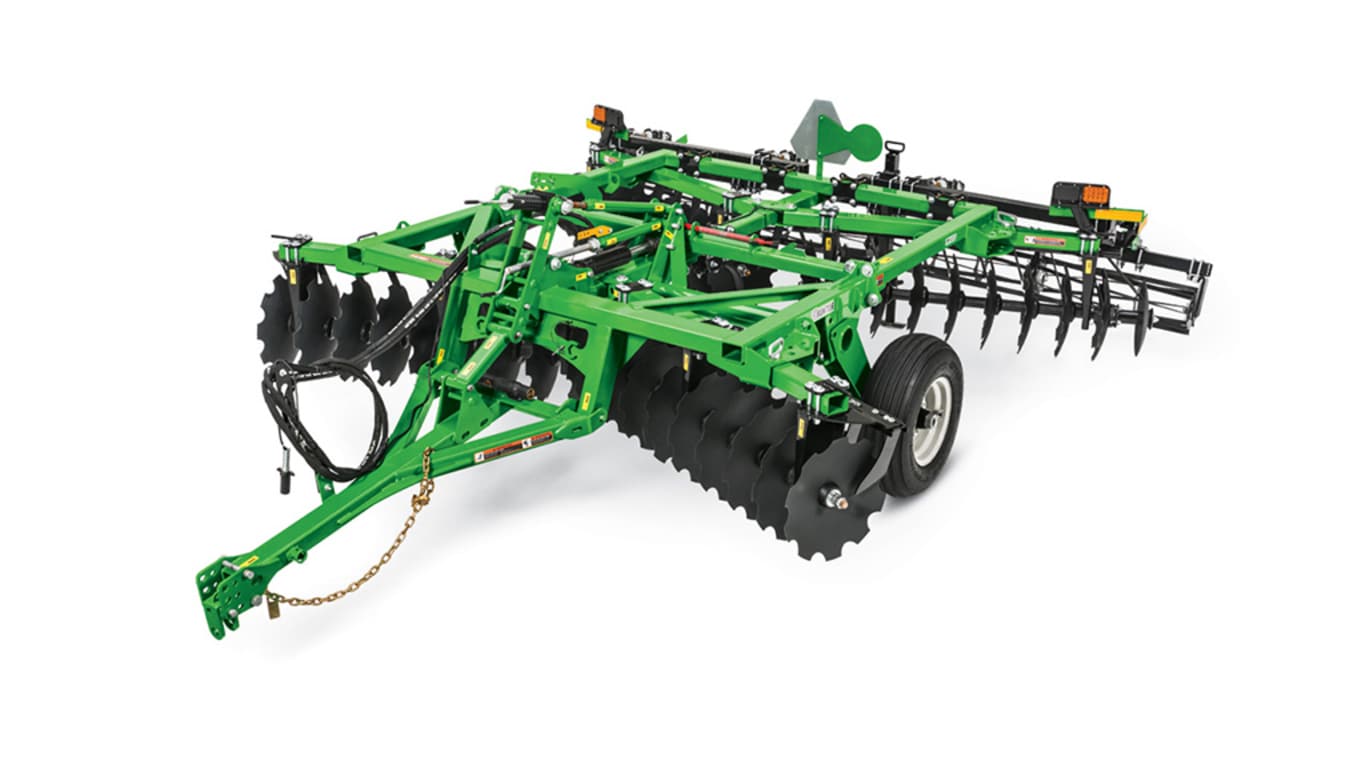

TM14D SeriesTandem Disk Harrows
- Gang Angles Designed for Easy Adjustments
- Rolling Basket for Improved Field Conditions
- Scraper Kit to Remove Soil Buildup
- Hydraulic Controls to raise & lower
Features
Expand All
Collapse All
Disk Blades for a Variety of Conditions
Notched Front Blades come standard on the TM13 Tandem Disk Harrow, delivering an aggressive cut and sizing of material.
Rear Blades are available in two different configurations:
Smooth Rear Blade
The smooth rear blades offer better control of soil for light to medium soils, slicing and mixing residue and reducing clumps for a finer field finish.
Notched Rear Blade
The notched rear blade is ideal for heavy to medium conditions and provides excellent soil penetration, which enables a deeper tilling depth in tough soil conditions delivering a more aggressive cut.
Disk Blades come with 9” spacings to promote deeper tilling depths and aggressive cuts, while allowing material to easily flow through in between disk blades resulting in consistent job quality.
Gang Angle Adjustments Made Easy
Each disk gang on the TM13 can be adjusted individually from outside of the frame.
Toolless gang adjustments improve operator ease by eliminating the need to reach into the middle of the frame for disk gang adjustments. Easier adjustments will make it more convenient to precisely set the disk angle to match changing soil conditions and the desired finish. Use a more aggressive angle to tear up and penetrate rough and uneven soil or reduce the angle for smoother final seedbed preparation.
In addition to the individual gang adjustments, the TM13 front and rear gang angles are mismatched to enable straighter tracking in the field for a smoother finish.
Rolling Basket for Improved Field Conditions
To help break up clods for improved levelness and uniformity of field finish, an 11 in. diameter rolling basket can be added to the TM13. With just a wrench, the down pressure of the rolling basket can be adjusted to suit the conditions.
Code |
Description |
9210 |
Rolling Basket |
Attachment |
Description |
5RDF0092 |
Rolling Basket for TM1395 |
Scraper Kit to Remove Soil Buildup
Improve disk blade performance by removing soil buildup from disk blades in wet, sticky soil types with the Scraper Kit.
Code |
Description |
9000 |
Scraper Kit |
Attachment |
Description |
5RDF0088 |
Scraper Kit for TM1395 |
Furrow Filler Kit
The Furrow Filler Kit provides additional smaller-diameter disk blades to mount onto the outermost rear disk gangs, helping to fill in the furrow and eliminate ridging that can be created by the outermost disk blade.
Code |
Description |
9010 |
Furrow Filler Kit |
Attachment |
Description |
5RDF0090 |
Furrow Filler Kit for TM1395 |
iMatch™ Compatible
The TM13 comes iMatch™ compatible, making it quick & easy to switch implements.
Specifications
| Specifications | ||||
|---|---|---|---|---|
| John Deere TM14D Series Tandem Disk Harrows |
Key Specs
| Approximate working width | ||||
|---|---|---|---|---|
| Transport - Width | ||||
| Recommended drawbar hp range | ||||
| Frame | ||||
| Disk blades | ||||
| Notched (front) Notched (rear) |
Transport
| Width | ||||
|---|---|---|---|---|
| Ground clearance with base blades | ||||
| Wheel hub bearings | ||||
| Height | ||||
| Length |
Working
| Approximate working width | ||||
|---|---|---|---|---|
| Maximum penetration |
Dimensions
| Working Width | 96 in. | |||
|---|---|---|---|---|
| Overall Width, in. (cm) | 98 3/8 (250 cm) | |||
| Overall Height, in. (cm) | 48 (122 cm) | |||
| Overall Length, in. (cm) | 72 3/4 (185 cm) | |||
| Height to Hitch Pins, in. (cm) |
Disks
| Disk Spacing | 9 in. (22.9 cm) | |||
|---|---|---|---|---|
| Disk Thickness | 4.0 mm | |||
| Disk Diameter, in. (cm) | 22 in. | |||
| Number of Disks | 20 | |||
| Front Gang Blade Type | ||||
| Rear Gang Blade Type | ||||
| Notched (front) / Notched (rear) | Optional | |||
| Notched (front) / Smooth (rear) | Optional |
Weight
| Net | ||||
|---|---|---|---|---|
| Weight per disk blade | ||||
| Operating Weight | 1346 lb | |||
| Shipping Weight | ||||
| Weight per Disc (Approx.), lb (kg) | 65 |
Tractor requirements
| Recommended PTO hp range | ||||
|---|---|---|---|---|
| Recommended drawbar hp range | ||||
| Engine HP Requirements | 45-100 | |||
| Engine HP Range (kW) |
Construction
| Gang / Frame Tubing | 4x3 Rectangle | |||
|---|---|---|---|---|
| Number of Blades | ||||
| Disc Diameter, in. (cm) | ||||
| Blade Thickness | ||||
| Front Gang Blade Type | ||||
| Rear Gang Blade Type | ||||
| Axle Diameter, in. | ||||
| Blade Spacing | ||||
| Front Gang Angles | ||||
| Rear Gang Angles |
Frame
| Type | ||||
|---|---|---|---|---|
| Duty | ||||
| Tube size |
Hitch
| Front hitch type | ||||
|---|---|---|---|---|
| Bolt-on rear hitch | ||||
| Style | ||||
| Category | Category 1 & Category 2 | |||
| iMatch / Quick hitch | Yes | |||
| Type | Integral | |||
| Height to Hitch Pins, in. (cm) | 20 in. |
Disk blades
| Spacing | ||||
|---|---|---|---|---|
| Quantity | ||||
| Type | ||||
| Blade concavity |
Available blade sizes
| Blade option one | ||||
|---|---|---|---|---|
| Blade option two | ||||
| Blade option three | ||||
| Blade option four | ||||
| Blade option five | ||||
| Blade option six |
Disk gangs
| Front angle | ||||
|---|---|---|---|---|
| Rear angle | ||||
| Furrow fillers | ||||
| Axle size | ||||
| Axle material | ||||
| Bearing type | ||||
| Bearing wear plates | ||||
| Bearing standards | ||||
| Scrapers |
Lighting and safety
| Markings | ||||
|---|---|---|---|---|
| Safety tow chain | ||||
| Lights |
Tires
| Type | ||||
|---|---|---|---|---|
| Size | ||||
| Wheel hub type |
Gang Axle
| Diameter, in. | 1-1/8 | |||
|---|---|---|---|---|
| Type | Square | |||
| Material | AISI 1045 |
Gangle Angles
| Front Gang Angles | 6, 11, 16, 21 degree (angle) | |||
|---|---|---|---|---|
| Rear Gang Angles | 4,9,14,19 degree (angle) | |||
| Adjustment |
Tubing
| Gang / Frame Tubing | 3x3 square |
|---|
Hanger Bearing
| Bearing type | 1 1/8 SQ with steel flanges | |||
|---|---|---|---|---|
| Material Thickness | 3/16 U-shape x 3/8 Top plate |
Set-up time
| Labor hours | ||||
|---|---|---|---|---|
| Approximate Assembly Time | 30 minutes | |||
| Scraper Kit | Option | |||
| Furrow Filler Kit | Option | |||
| Rolling Basket | Option |
Warranty
| Time period |
|---|
Additional information
| Date collected |
|---|
-
