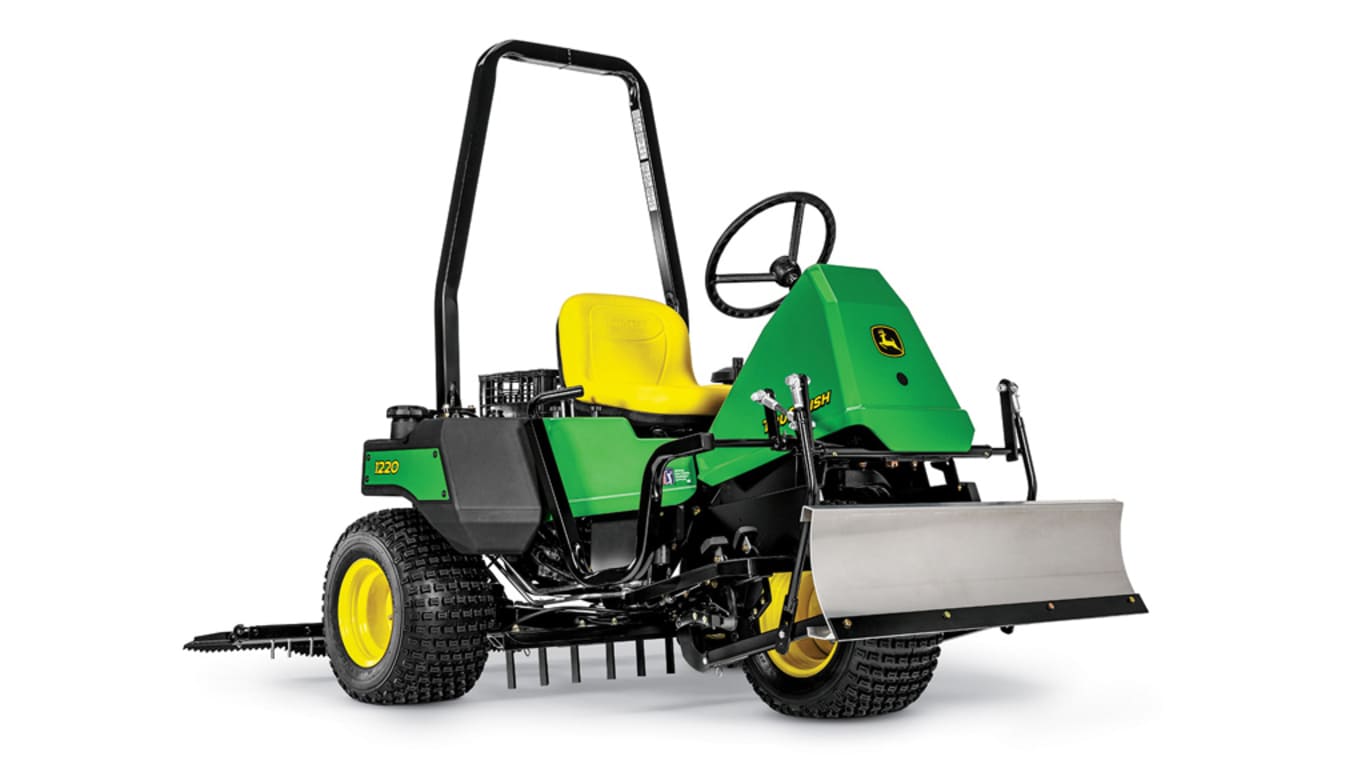

1200ABunker & Field Rake
- Mechanical drive system
- Less steering effort
- Standard power lift
- Adjustable seat
Features
Expand All
Collapse All
Drive system
Knobby tire option
Operator's platform
Instrumentation and controls
Forward and reverse foot control
Differential lock
Brake and throttle foot controls
Torque converter and transaxle design provides excellent traction and tight turning radius
Drive system
The torque converter and transaxle design delivers a 164-to-1 gear ratio for excellent pulling and pushing power. The belt from torque converter is permanently engaged, greatly reducing the potential of belt wear. A durable Kanzaki® transaxle with a differential lock allows for increased traction and reliability.
The rear differential design allows for the 1200A to turn on a tight 12-in. (305-mm) turning radius for outstanding maneuverability, yielding high productivity. Speeds are variable in forward and reverse from 0 mph to 12.6 mph (0 km/h to 20.3 km/h), providing excellent raking quality at reduced ground speeds without sacrificing quick transport from bunker to bunker.
Kanzaki is a U.S.-registered trademark of Kanzaki Kokyukoki Manufacturing Company.
High flotation tires with low ground pressure to minimize compaction
Knobby tire option
High flotation tires are inflated to a low 6 psi (41.4 kPa) to minimize ground compaction. Two tire treads are offered:
- Knobby is for increased traction in bunkers, two-ply design.
- Turf is for reduced marking in turf applications, such as spiking greens. This tread is also an excellent choice for baseball applications, four-ply design.
Both tire options feature a 22.5x10-8 front tire and two 25x12-9 rear tires.
The 41.5-in. (105.4-cm) wheelbase provides good stability on steep inclines.
Operator station design provides comfortable and productive operation
Operator's platform
The operator station for the 1200A Bunker and Field Rake was designed with comfort and productivity in mind. A large 14-in. (35.6-cm) diameter steering wheel with 8.3-to-1 gear reduction ratio provides for easy and responsive steering. An adjustable high back seat with spring cushion reduces operator fatigue. Wide running boards offer comfortable leg support across a wide range of operators.
All controls for cultivating and front blade operation are conveniently located to the operator's right hand side. The mechanical linkage design allows for easy operation of both attachments. An electrical lift/lower system for the rear-mounted attachments means effortless lifting and lowering. The switch is located on the dash for the ultimate in ease of use.
Convenient location of all instrumentation and operator controls on front dash for ease of use
Instrumentation and controls
All instrumentation and operator controls are located on the front dash for ease of use and premium visibility. These include:
- Hour meter to keep track of service intervals
- Voltage indicator to monitor for proper charging of the 12-V power circuit
- Ignition switch on right hand side of the console for quick and easy starting
- Easy-to-reach optional front light switch, mounted on the left side
- Choke control on left hand side of console for easier cold starts
- Easy access to the rear implement lift and lower switch, located on the right side of the dash
Easy-to-use foot controls for efficient operation
Forward and reverse foot control
The foot control design of the 1200A increases productivity with ease of operation. To change from forward to reverse, a convenient pedal system is located on the left side of the foot platform, allowing for quick and easy engagement with the touch of a toe.
To select the forward gear, simply press the front pedal forward. To switch to reverse, press the rear foot pedal rearward. Neutral position is required for starting, and can easily be located by utilizing the bar welded to the foot platform.
Differential lock
Also located to the left side is the lever for the differential lock. Simply engage by pressing down with the left heel.
NOTE: Differential lock should only be activated when the unit is at a complete stop or damage to the transaxle may occur.
Brake and throttle foot controls
The brake engagement is located on the right side of the foot platform. A foot-activated transaxle disc brake allows for quick and controlled stops. To activate the parking brake, simply step on the brake pedal and engage the retaining lever. To de-activate the parking brake, simply disengage the retaining lever by pushing forward with the right foot or toe.
Also located to the right side of the operator platform is the throttle pedal. To move the 1200A, simply select the direction of travel on the left hand side, disengage the parking brake, and press on the throttle pedal. The further the pedal is pushed, the faster you will go. The maximum speed is 12.6 mph (20.3 km/h).
NOTE: Revving the engine or failing to brake to a complete stop prior to changing from forward to reverse and vice versa will result in gear clash and may damage the machine.
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 1200A Bunker & Field Rake |
Key Specs
| Transmission type | Belt-driven torque converter with Kanzaki gear driven transaxle | |||
|---|---|---|---|---|
| Ground clearance @ rake attachment | 241 mm 9.5 in. |
|||
| Travel Speed (forward or reverse) | Variable: 0-20.3 km/h 0-12.6 mph |
|||
| Tank capacity | 13.6 L 3.6 U.S. gal. |
|||
| Displacement | 401 cc 24.5 cu in. |
|||
| Engine type | 4-cycle, air cooled | |||
| Horsepower | At 3600 rpm: 13.5 hp Engine manufacturer gross power tested in accordance with SAE J1995. The engine hp and torque information are provided by the engine manufacturer for comparison purposes only. Actual operating hp and torque will be less. Refer to the engine manufacturer’s website for additional information. |
Engine
| Manufacturer | ||||
|---|---|---|---|---|
| Type | 4-cycle, air cooled | |||
| Displacement | 401 cc 24.5 cu in. |
|||
| Horsepower | At 3600 rpm: 13.5 hp Engine manufacturer gross power tested in accordance with SAE J1995. The engine hp and torque information are provided by the engine manufacturer for comparison purposes only. Actual operating hp and torque will be less. Refer to the engine manufacturer’s website for additional information. |
|||
| Compression ratio | 8:4:1 | |||
| Lubrication | Full-pressure | |||
| Oil capacity | 1.3 L 1.4 U.S. qt |
|||
| Oil filter | Standard | |||
| Spark arrester muffler | Standard | |||
| Idle speed | Low speed: 1,175 (+/- 75) rpm fast speed: 3,100 (+/- 75) rpm |
Electrical System
| Type | 12 V regulated: 13 amp |
|||
|---|---|---|---|---|
| Battery | 12 V 38 hour amp |
|||
| Starter | Electric | |||
| Ignition | Transistor-type | |||
| Light kit | Available |
Fuel System
| Tank capacity | 13.6 L 3.6 U.S. gal. |
|||
|---|---|---|---|---|
| Fuel pump | Diaphragm-type | |||
| Fuel required | Regular leaded or unleaded gasoline |
Transmission
| Type | Belt-driven torque converter with Kanzaki gear driven transaxle | |||
|---|---|---|---|---|
| Fluid capacity | 2.3 L 2.5 U.S. qt |
Travel Speed
| Forward or reverse | Variable: 0-20.3 km/h 0-12.6 mph |
|---|
Brakes
| Type | Mechanically operated disc with parking brake |
|---|
Steering
| Type | 8:3:1 reduction ratio steering wheel: 35.6 cm 14 in. |
|---|
Tires
| Front | One 22.5x10-8, 2 PR high-flotation | |||
|---|---|---|---|---|
| Rear | Two 25x12-9, 2 PR high-flotation |
Dimensions
| Width | 1473 mm 58 in. |
|||
|---|---|---|---|---|
| Height | 1041 mm 41 in. |
|||
| Length | 1676 mm 66 in. |
|||
| Wheelbase | 1054 mm 41.5 in. |
|||
| Ground clearance @ rake attachment | 241 mm 9.5 in. |
|||
| Turning radius | 305 mm 12 in. |
|||
| Weight (approx.) | 263 kg 580 lb |
|||
| Rear-hitch towing capacity | 227 kg 500 lb |
Attachments
| Rake | Width 1981 mm 78 in. Weight 20 kg 44 lb Blades Five-section, bunker or field Prong rake Three section, 24 prongs, adjustment: 25-76 mm 1-3 in. Rear mount, powerlift control |
|||
|---|---|---|---|---|
| Cultivator | Width 1626 mm 64 in. Weight 20 kg 44 lb 10 blades, hand control w/ 5-position depth adjustment |
|||
| Front blade | Width 1016 mm 40 in. Height 152 mm 6 in. Weight 21 kg 46 lb Optional, hand control with lock-up position |
|||
| 60-in. aluminum front blade | Width 1524 mm 60 in. Height 263 mm 10.25 in. Weight 3.7 kg 8 lb |
|||
| Articulating front-mount core-removal blade | Width 1231 mm 48 in. Height 237 mm 9.25 in. Weight 10.9 kg 24 lb Optional, hand control with lock-up position |
|||
| Wide- and narrow-interval scarifier tines attachment | Width Wide - 1606 mm 63.25 in. Narrow: 1574.8 mm 62 Tines Wide - 20 tines, length: 89 mm 3.5 in. Narrow - 35 tines, length: 89 mm 3.5 |
|||
| Mid-mount 64.5-in. (164.9 mm) scraper blade attachment | Width 1649 mm 64.5 in. Height 144 mm 5.625 in. Weight 9.5 kg 21 lb |
|||
| Rear-mounted 60-in. field finisher | Width 1538 mm 60 in. Length 355.6 mm 14 in. Weight 19.5 kg 45 lb |
|||
| Hydraulic pump package | Couplers Two female, comply with ANSI ASAE S418 standard Activation Switch Weight 5.2 kg 11.5 lb |
