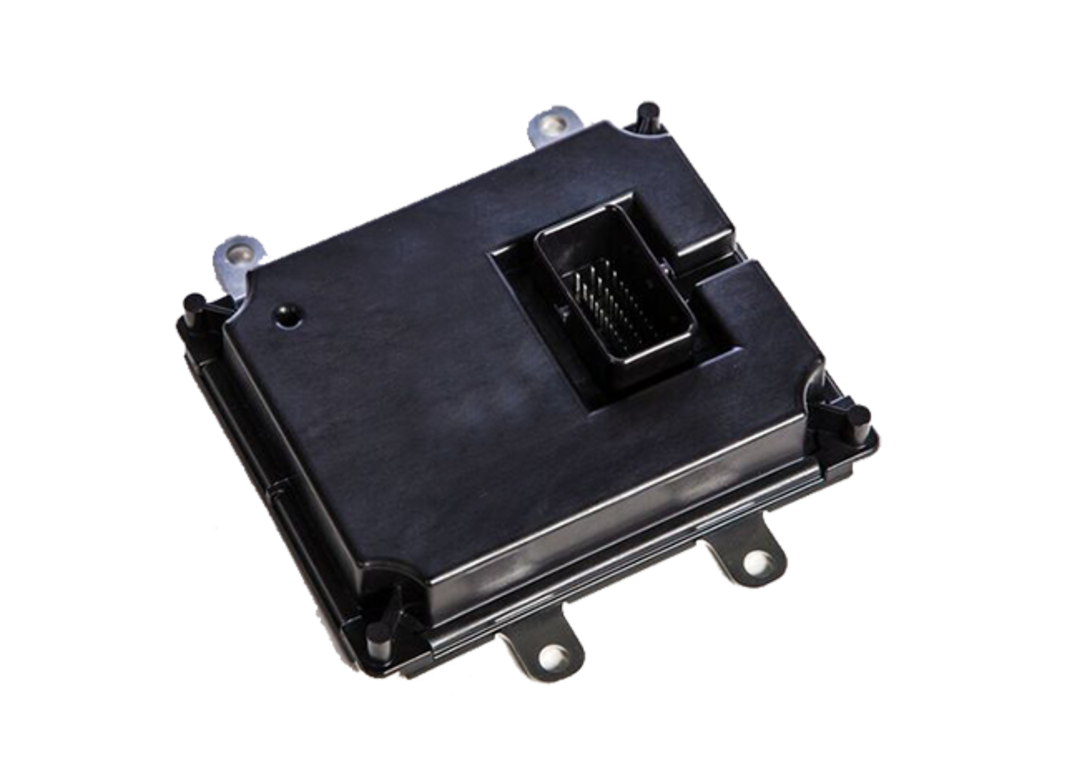

  • M50 Electronic Control

  • Communications: 2 CAN (11 or 29 bit) LIN
  • Micro: Infineon XC2287-96F66L  @ 64 MHz
  • Memory: Internal Flash – 768 kB
  • Internal Ram – 82 kB Serial EEPROM – 128 kb

Print

Preliminary I/O Specifications

Digital Inputs: 3 external switch inputs

  • 1 PD, 27 kΩ
  • 2 PD, 27 kΩwith interrupt

Digital Outputs: 2 frequency outputs

  • 2 each 0 to8 kHz PWM low side drive

Analog Inputs:  15external analog inputs with 2 pole low pass filter

  •  8 PD, 27 kΩ
  • 1 PD, 27 kΩwith wake-up
  • 6 Software selectable PU/PD (27 kΩ PU or 2 kΩ high currentPD)

High Side Driver Outputs: 6 High Side Drivers

  • 6 HSD 2.5 ampwith flyback protection

Other:  LIN serialline interface

General Specifications

  • Micro, Memory, Communications
  • Infineon XC2287-96F66L operating at 64 MHz
  • 2 CAN channels configurable as 11- or 29-bit.LIN
  • 768 kByte internal Flash
  • 82 kByte internal RAM
  • 128 kbit serial EEPROM Inputs and Outputs
  • 3 digital inputs
  • 2 digital (frequency) outputs
  • 15 analog inputs
  • 6 high side driver outputs Mating Connectors
  • Molex CMC 0643201319

Environmental Specification

  • Operating temperature -40°C to +85°C
  • Sealed to IP67
  • Vibration and EMC tested to strict off-road requirements.
  • Broad range of battery voltages (9-32 VDC)
