Gauge wheel quick-release pin in unlocked position
Power take-off (PTO) connection
To install the AutoConnect™ Mower Deck, the following steps are required.
Please refer to the operator's manual for complete details.
Rear lock bracket (locked position)
Rear lock bracket (unlocked position)
To remove the AutoConnect Mower Deck, the following steps are required.
NOTE: 3R Series Tractors equipped with PowrReverser™ transmission (PRT) do not have mid-power take-off (PTO) option, therefore are not compatible with mid-mount mowers.
3000 TWENTY Tractors equipped with PRT (serial numbers ending with 910000 and above) are not compatible with mid-mount mowers (for grooming).
All hydrostatic transmission (HST) tractors with serial numbers ending with 910000 (open operator station [OOS]) /940000 (cab) and above have reverse implement option (RIO) functionality.
Model Year 2017 and newer 2032R and 2038R Tractors are equipped with reverse implement option (RIO) functionality.
Mower deck power take-off (PTO)-drive shaft
Tractor power take-off (PTO) coupler
Spring-loaded forward lift link
The hydraulic independent lift system-of-cut system allows the mower to be raised and lowered independently of the rear implements. It can use either the dual selective control valve (SCV) (loader joystick) or third SCV (optional) to lift mower deck.
The forward lift link is installed on the deck. It is spring loaded, allowing the link to connect automatically to front hangers (installed on tractor).
The PTO-drive shaft design allows the shaft to automatically adjust as the female end of the PTO coupler engage with the male end of the gearbox coupler. The male end coupler has tapered guides to ensure engagement of both ends.
New designed instrument panel
CommandCut™ controls
The 2032R and 2038R tractors feature a newly designed, CommandCut™ mower deck lift system, which allows quick and accurate adjustments of the mower deck with the turn of a dial and the bump of a lever. Control callouts make operation simple and repeatable. The height of cut setting dial and raise/lower lever are conveniently located on the right-hand console and easily accessible by the operator. Some of the key benefits of this system are:
AutoConnect™ Decks are compatible with rear 3-point hitch attachments, backhoes, loaders, and a front hitch. The operator can keep these extra implements attached to the tractor while mowing, if desired.
3R and 3000 TWENTY Series Tractors are equipped with a dual mid SCV as standard equipment. The mid-mower hydraulic lift can use the dual SCV (loader joystick), or third SCV (optional), to lift the mower deck, giving maximum flexibility.
NOTE: For 3R Series Tractors, additional brackets are required for use with a front 3-point hitch and an AutoConnect Mid-Mount Mower in order to leave the front 3-point hitch on with a mid-mower deck. See LVB25820 front 3-point hitch/mid-mount brackets.
For use with a front 3-point hitch and an old 154.4-cm (60-in.) or 182.9-cm (72-in.) 7-Iron™ Mid-Mount Mower on 3033R-3046R and 3120-3720 Tractors, LVB24810 front 3-point hitch/mid-mount mower draft arms are required.
3R Series Tractors equipped with PowrReverser™ transmission (PRT) do not have mid-PTO option, therefore are not compatible with mid-mount mowers.
3000 TWENTY Tractors equipped with PRT (serial numbers ending with 910000 and above) are not compatible with mid-mount mowers (for grooming). All hydrostatic transmission (HST) tractors with serial numbers ending with 910000 (open operator station [OOS])/940000 (cab) and above have reverse implement option (RIO).
All model year 2017 and newer 2032R and 2038R Tractors are equipped with reverse implement option (RIO) functionality
Mid PTO
Mowers are driven by the tractor's mid PTO, providing the following advantages:
NOTE: To use the mid PTO for other front-mounted attachments, the operator will need to remove the quick-connect drive shaft and rear lift link by disconnecting the drive shaft and removing a couple of bolts.
3R Series Tractors equipped with PowrReverser™ transmission do not have mid PTO option, therefore are not compatible with mid-mount mowers.
3000 TWENTY Tractors equipped with PowrReverser transmission (serial numbers ending with 910000 and above) are not compatible with mid-mount mowers (for grooming).
All hydrostatic transmission (HST) tractors with serial numbers ending with 910000 (open operator station [OOS])/940000 (cab) and above have reverse implement option (RIO).
All model year 2017 and newer 2032R and 2038R Tractors are equipped with RIO functionality
HOC bracket
The height-of-cut (HOC) adjustment bracket starts at 3.8 cm (1.5 in.), with 1.3-cm (1/2-in.) increments. To adjust the HOC bracket, raise the deck, slide the pin out, slide bracket in or out to the desired position, and secure pin in place. The deck will mow to the set height.
To transport, pull HOC link fully forward and install the pin in either of last two holes to secure link in the highest position. It is recommended to use the last two holes for transport only.
NOTE: Before removing deck, ensure that the HOC bracket can move freely by removing the height lock pin.
Removable drive over ramp for servicing
Greaseable blade spindle
These mowers are designed with many serviceability and durability features. Some of these features are:
| Specifications | ||||
|---|---|---|---|---|

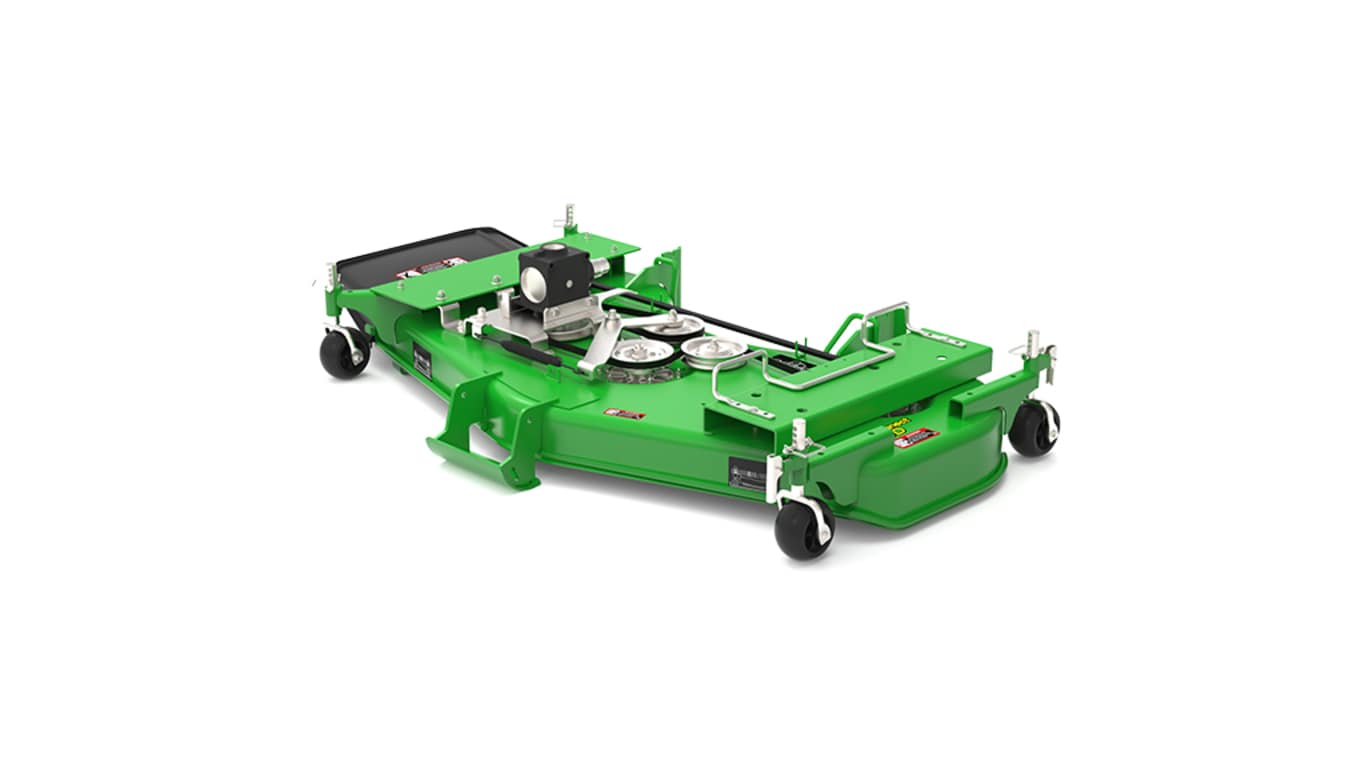

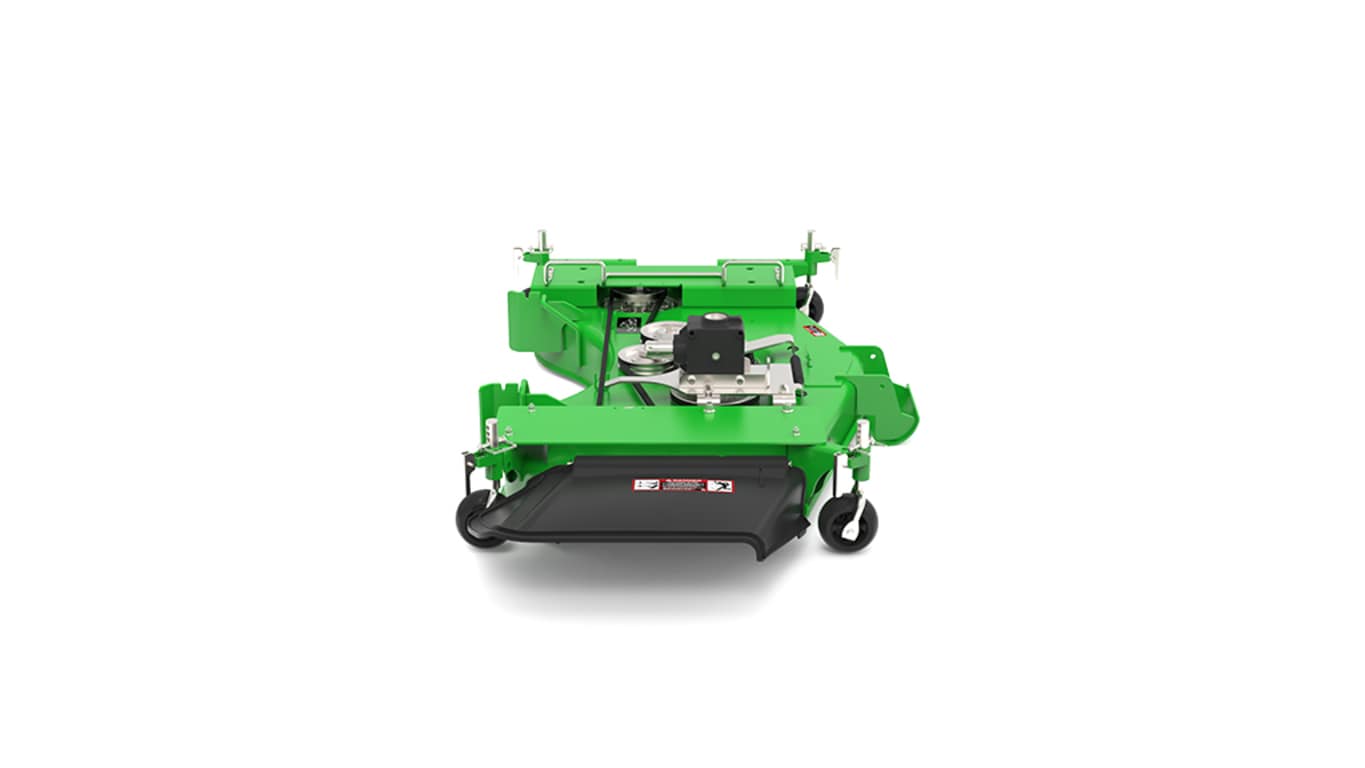

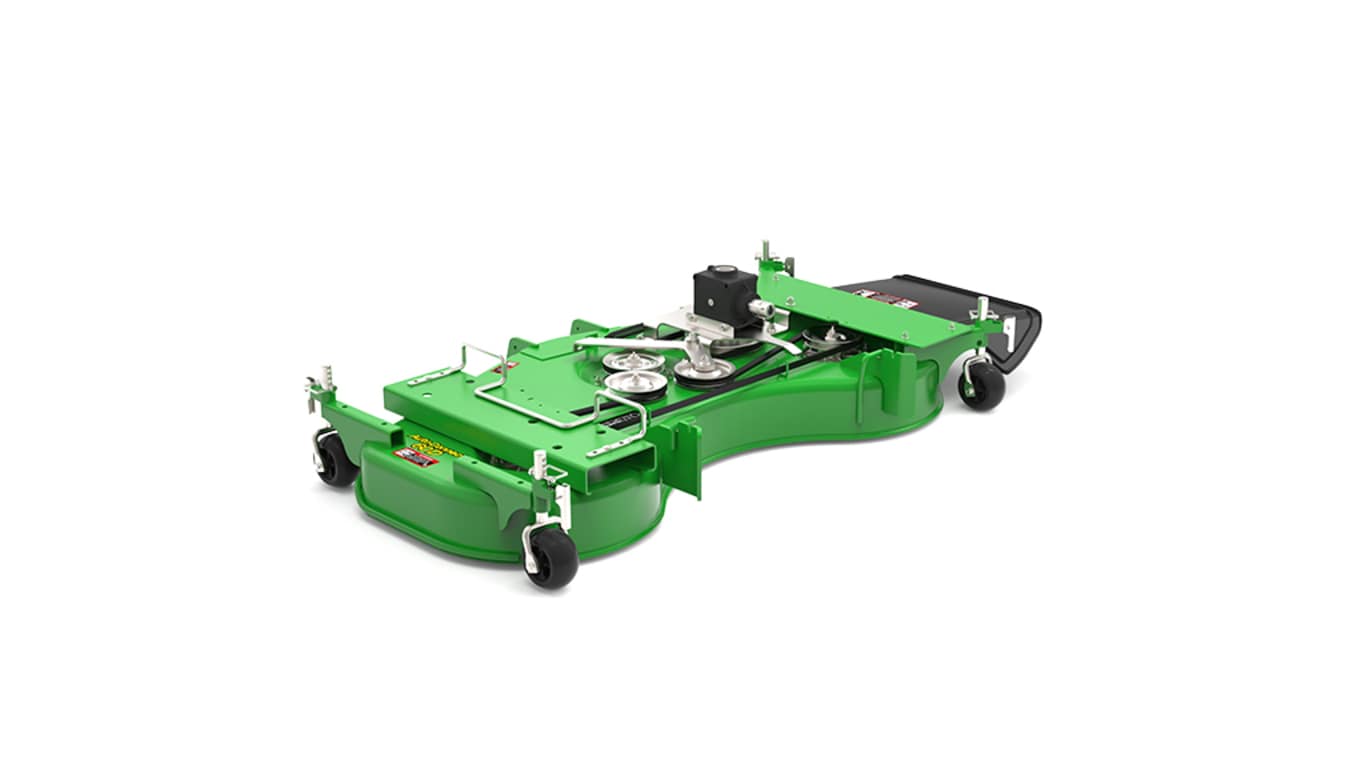

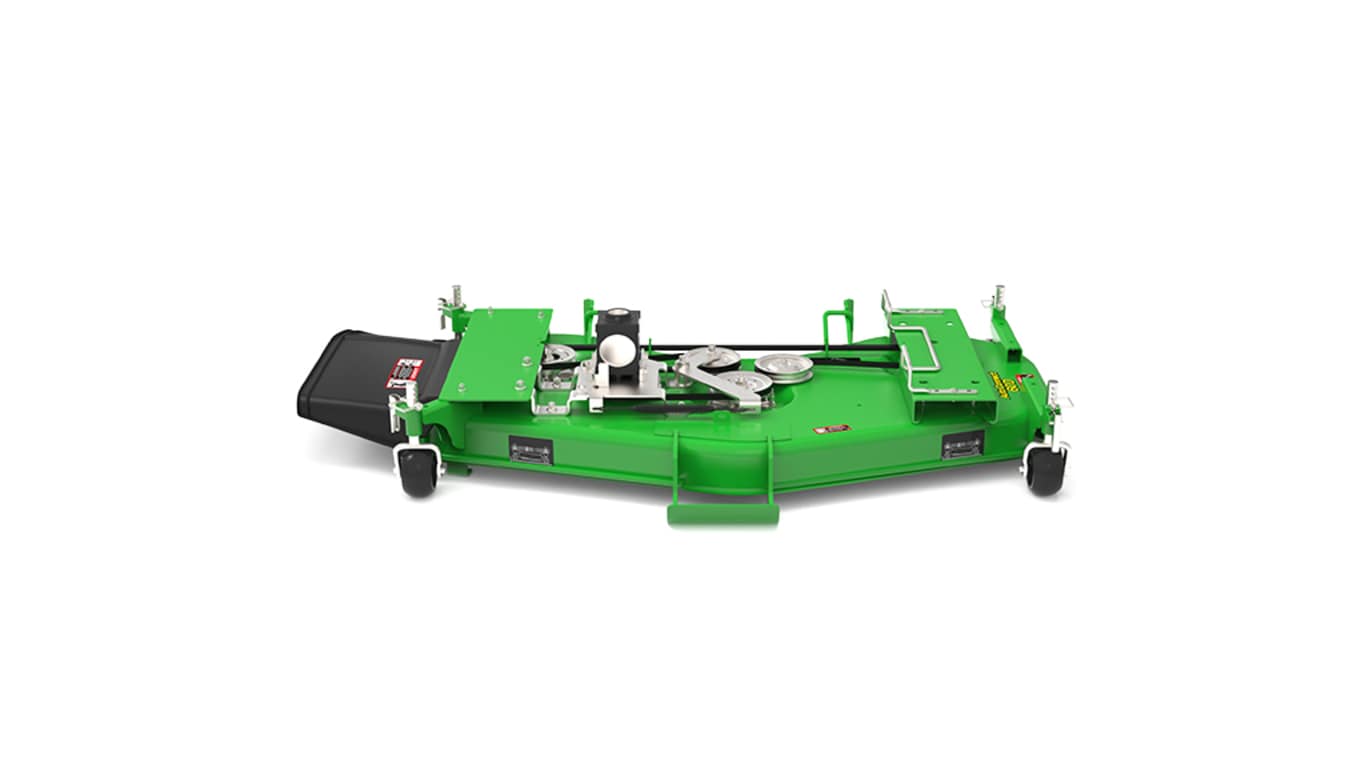

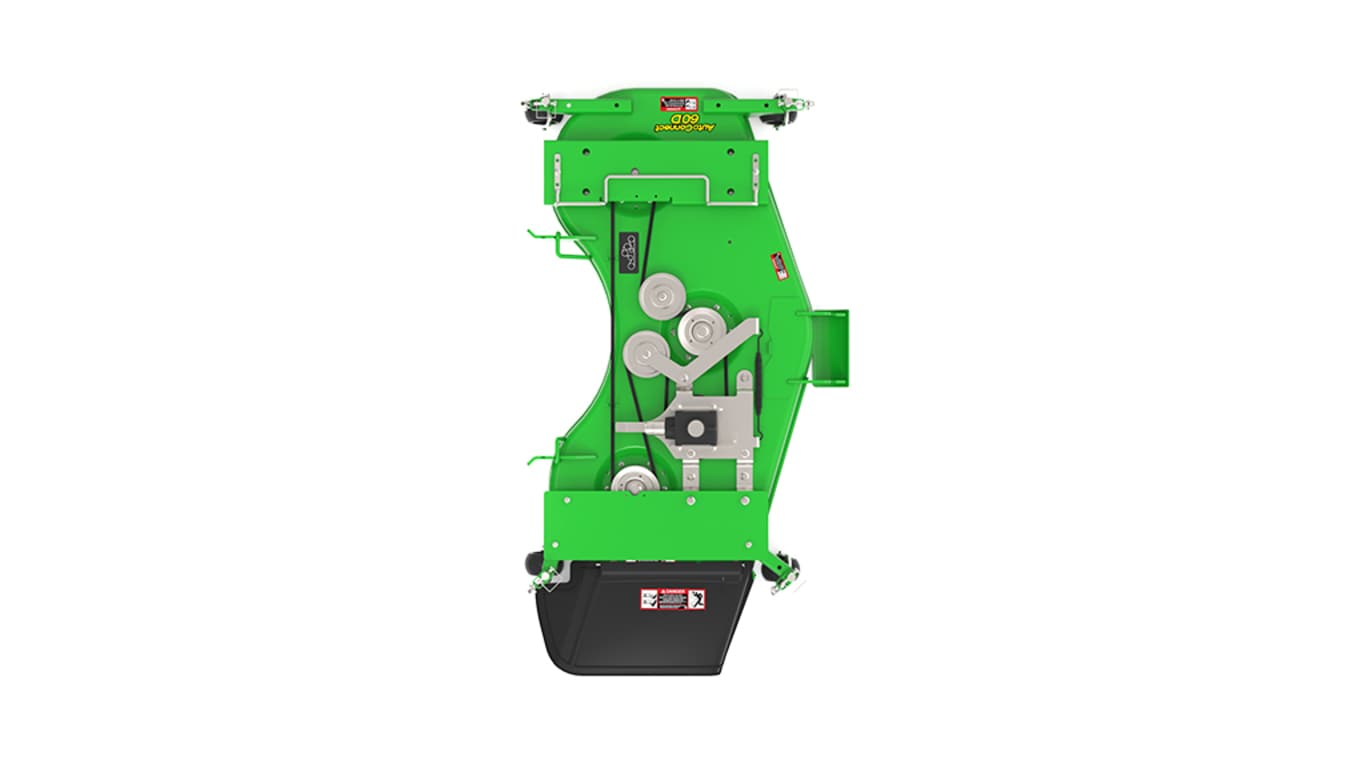

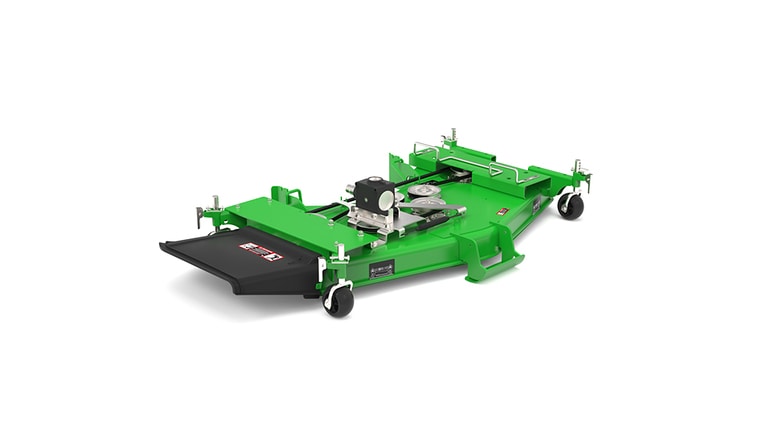

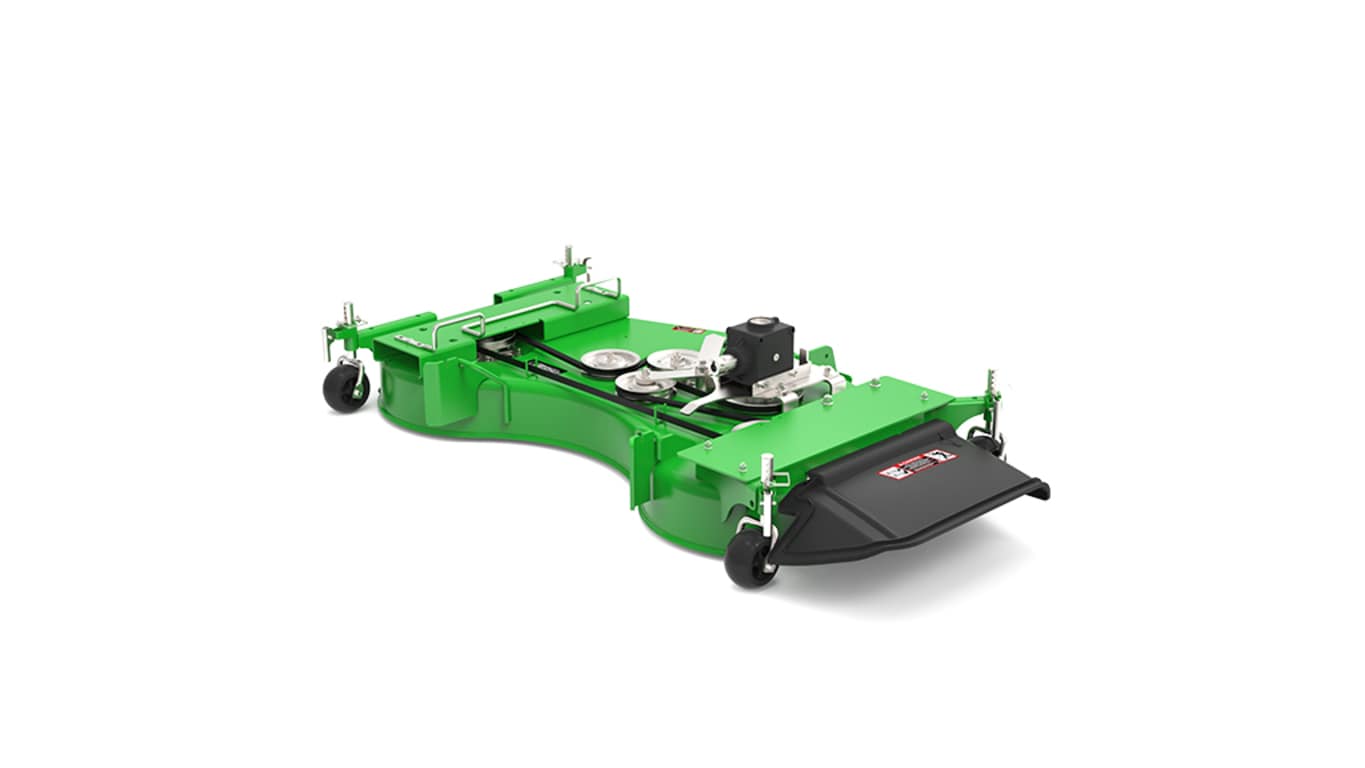

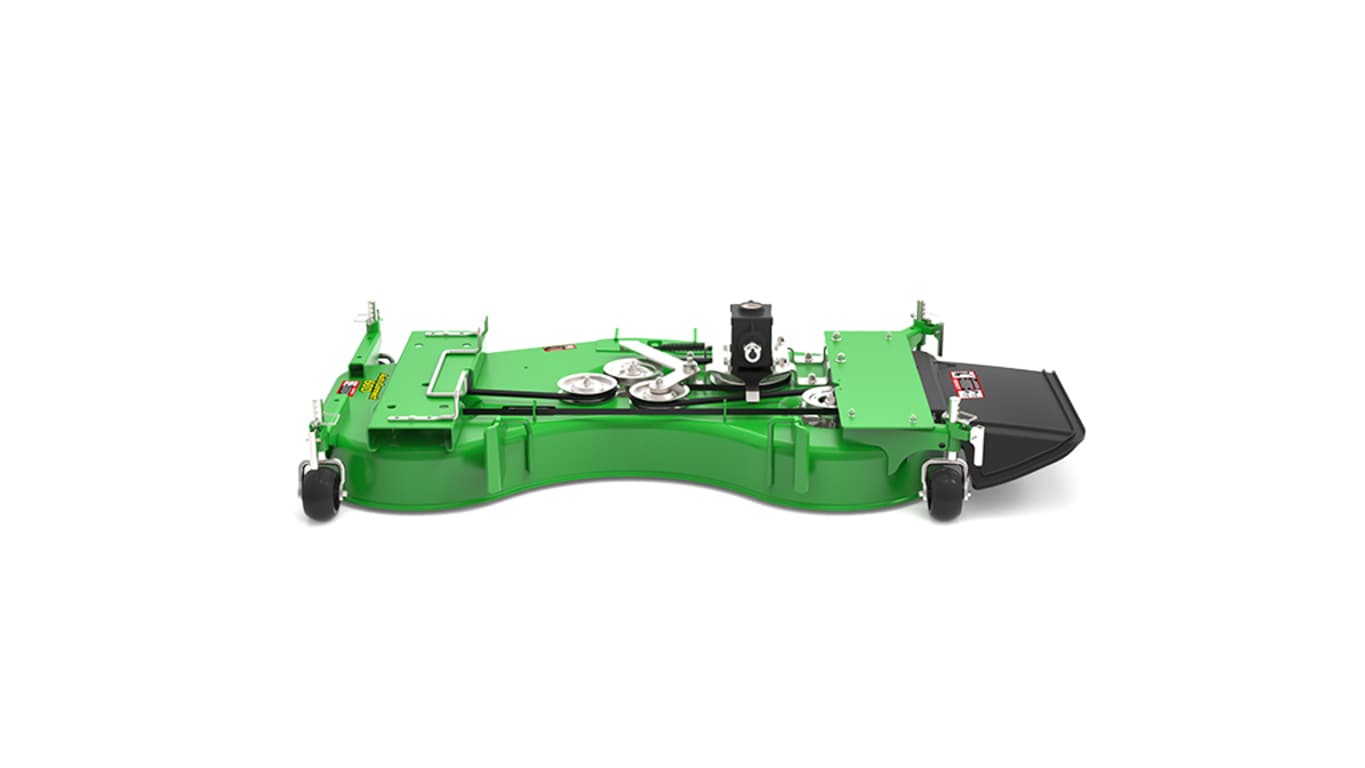

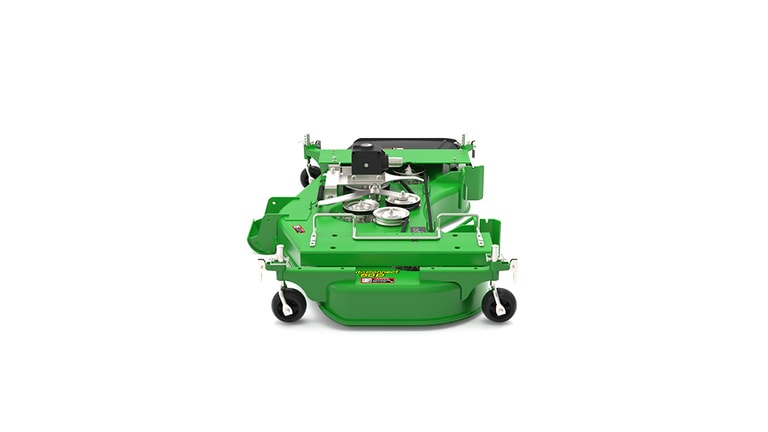

| John Deere 60D AutoConnect™ Mid-Mount Mower Deck |
| Compatible models | ||||
|---|---|---|---|---|
| Cutting width | 155 cm 60.9 in. |
|||
| Cutting height | 2.5 to 13.9 cm 1 to 5.5 in. |
|||
| Number of blades | Three | |||
| Weight | 147 kg 324 lb |
| Compatible models |
|---|
| Cutting width | 155 cm 60.9 in. |
|||
|---|---|---|---|---|
| Overall width | Deflector up: 159 cm 62.5 in. Deflector down: 185 cm 73 in. |
|||
| Cutting height | 2.5 to 13.9 cm 1 to 5.5 in. |
|||
| Deck thickness | 7 gauge 4.554 mm 01793 in. |
| Number | Three | |||
|---|---|---|---|---|
| Length | 53.5 cm 21.1 in. |
|||
| Thickness | 0.63 cm 0.25 in. |
|||
| Blade tip speed (at 2600 rpm) | 4,858.5 m/min 15,940 fpm |
|||
| Orientation |
| Diameter | 2.54 cm 1 in. |
|||
|---|---|---|---|---|
| Drive | ||||
| Number |
| Gauge wheel size: front | 12.7 cm 5 in. |
|||
|---|---|---|---|---|
| Gauge wheel size: rear | 12.7 cm 5 in. |
|||
| Front rollers | ||||
| Memory setting for mower wheels | ||||
| Number of mower wheels | ||||
| Wheel adjustment | ||||
| Wheels rotate for installation and removal |
| Type | Optional | |||
|---|---|---|---|---|
| 14-bushel-rear hopper | ||||
| High-performance PowerFlow blower |
| Approximate weight | 147 kg 324 lb |
|||
|---|---|---|---|---|
| Shipping weight |
