NOTE: Four-wheel drive and low gear required to install/remove deck. Please refer to the operator's manual before installation and removal for complete instructions and safety information.

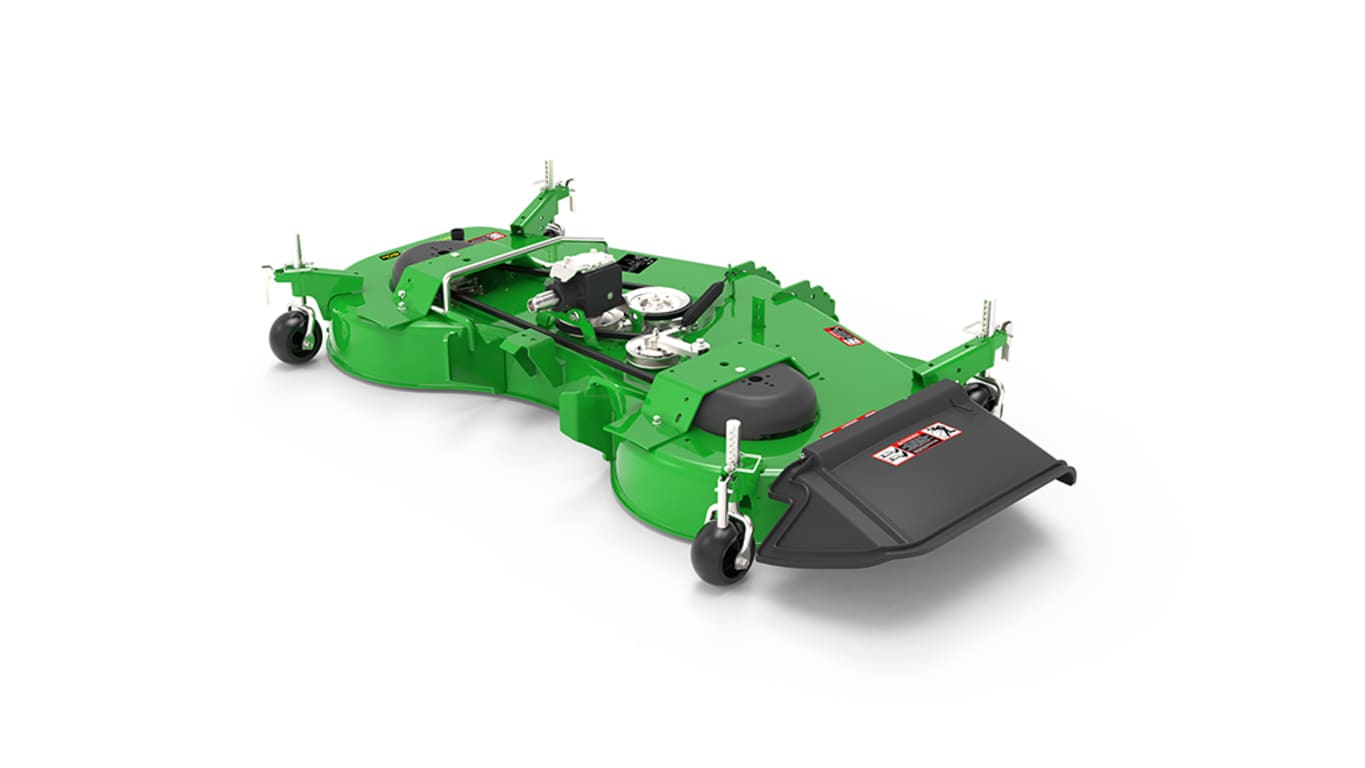

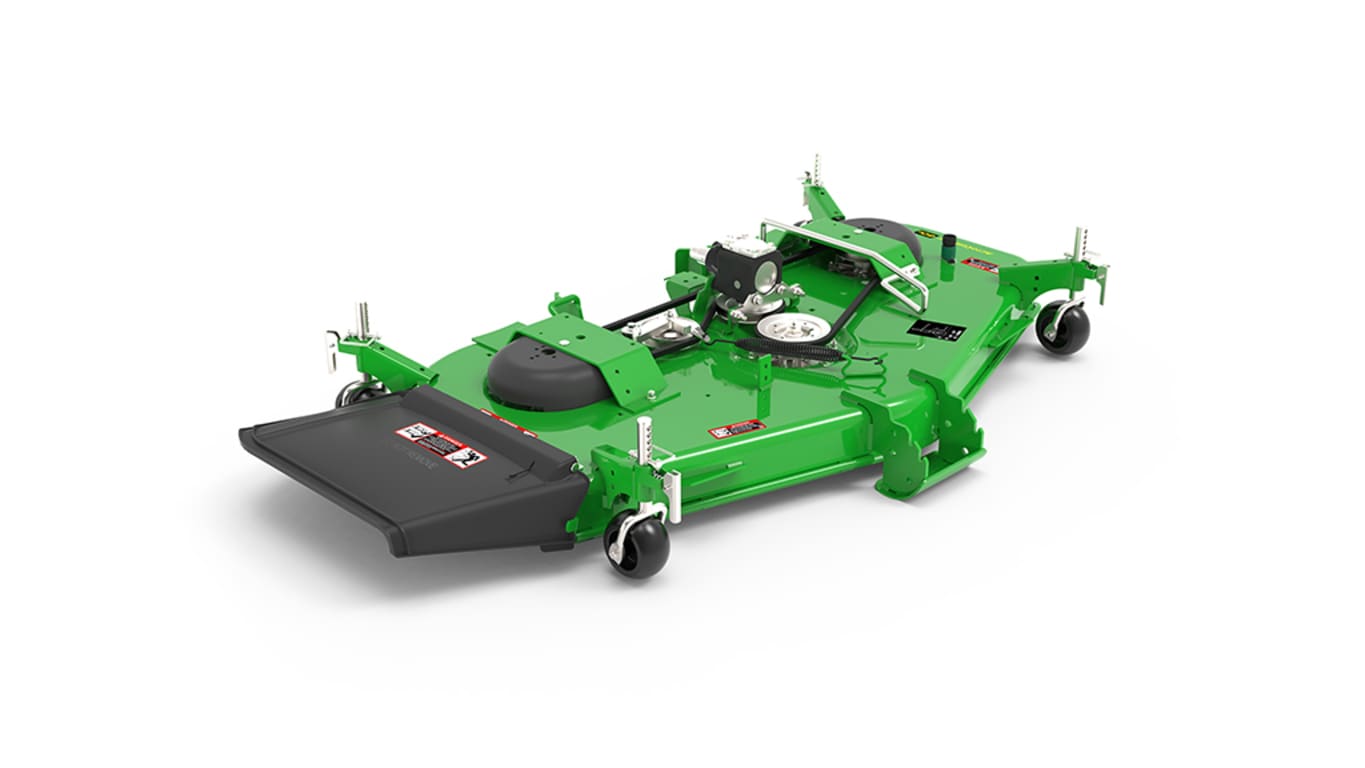

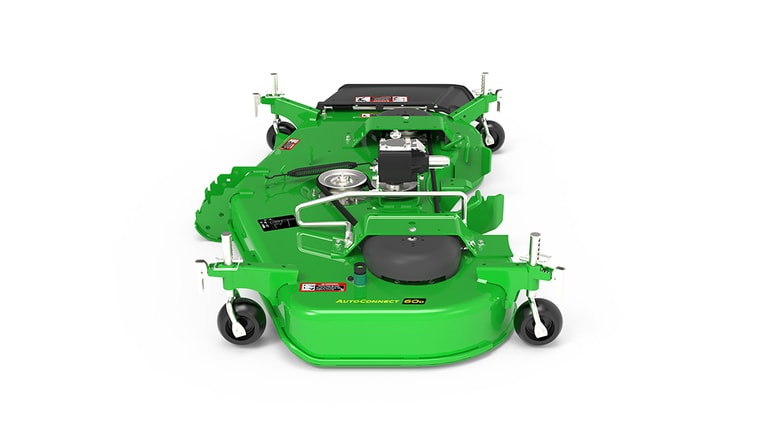

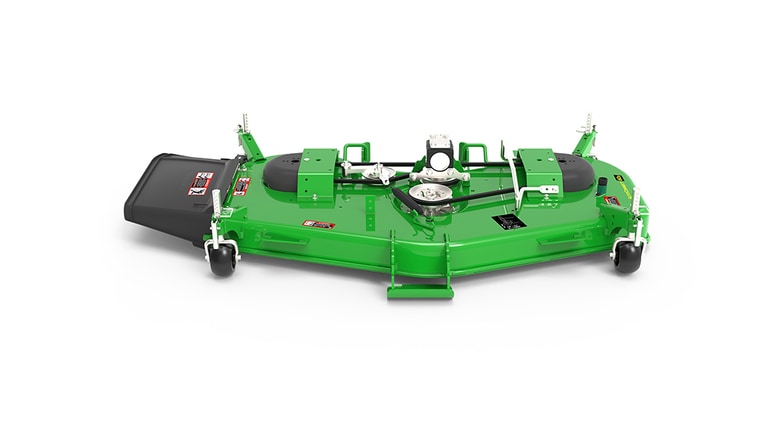

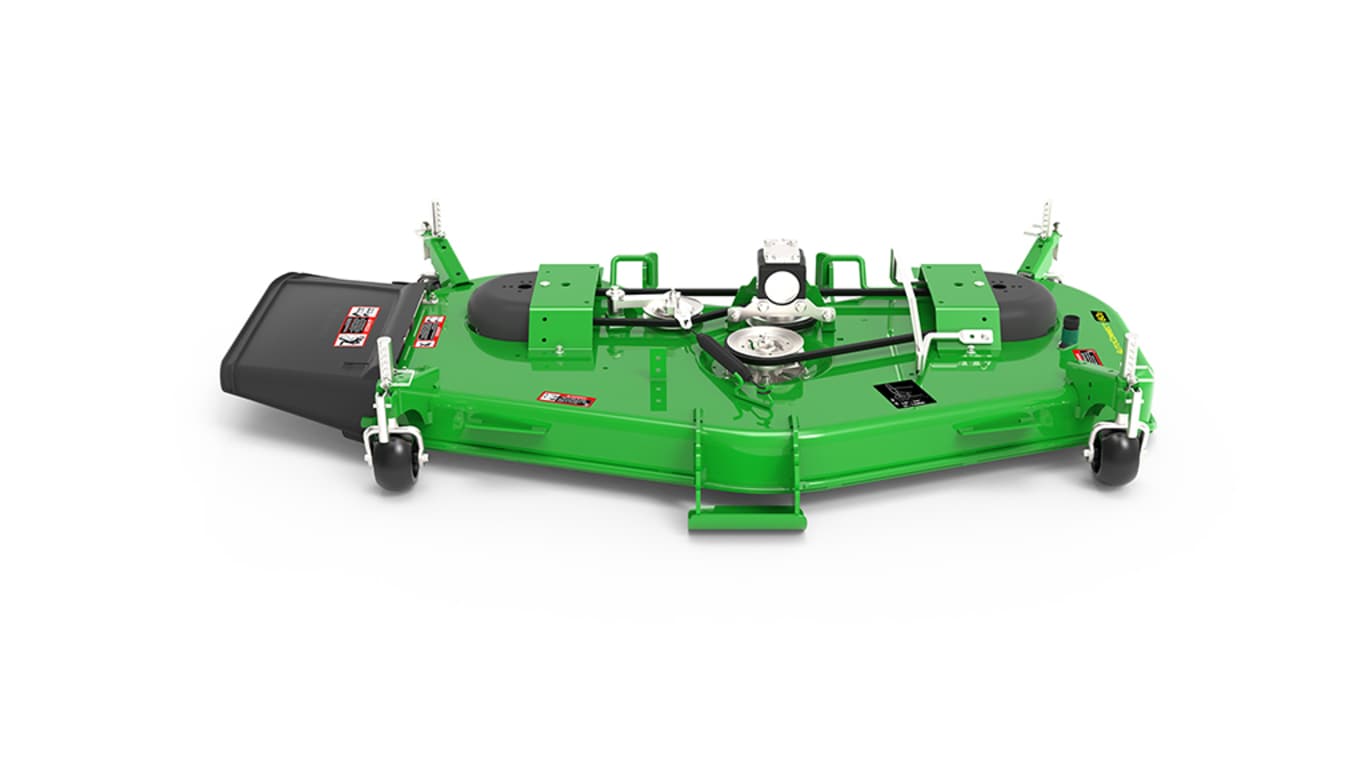

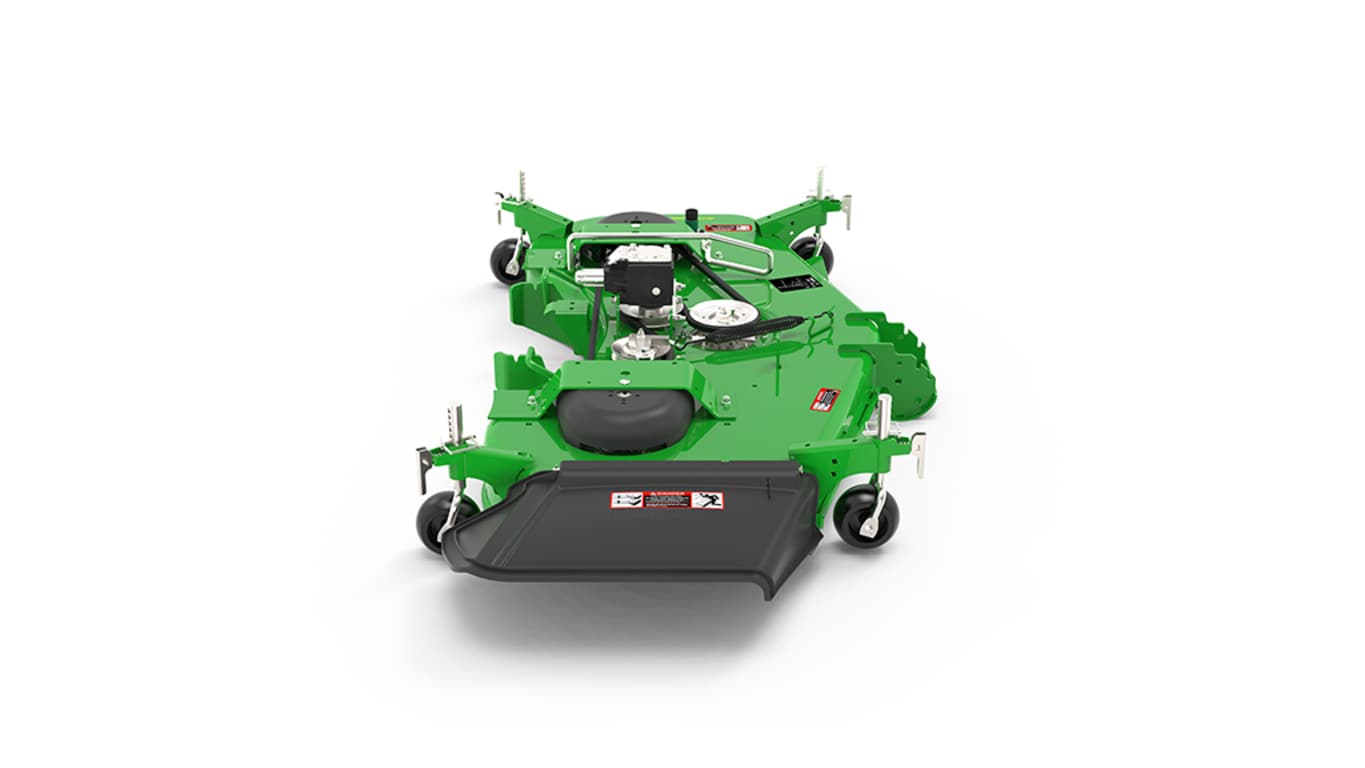

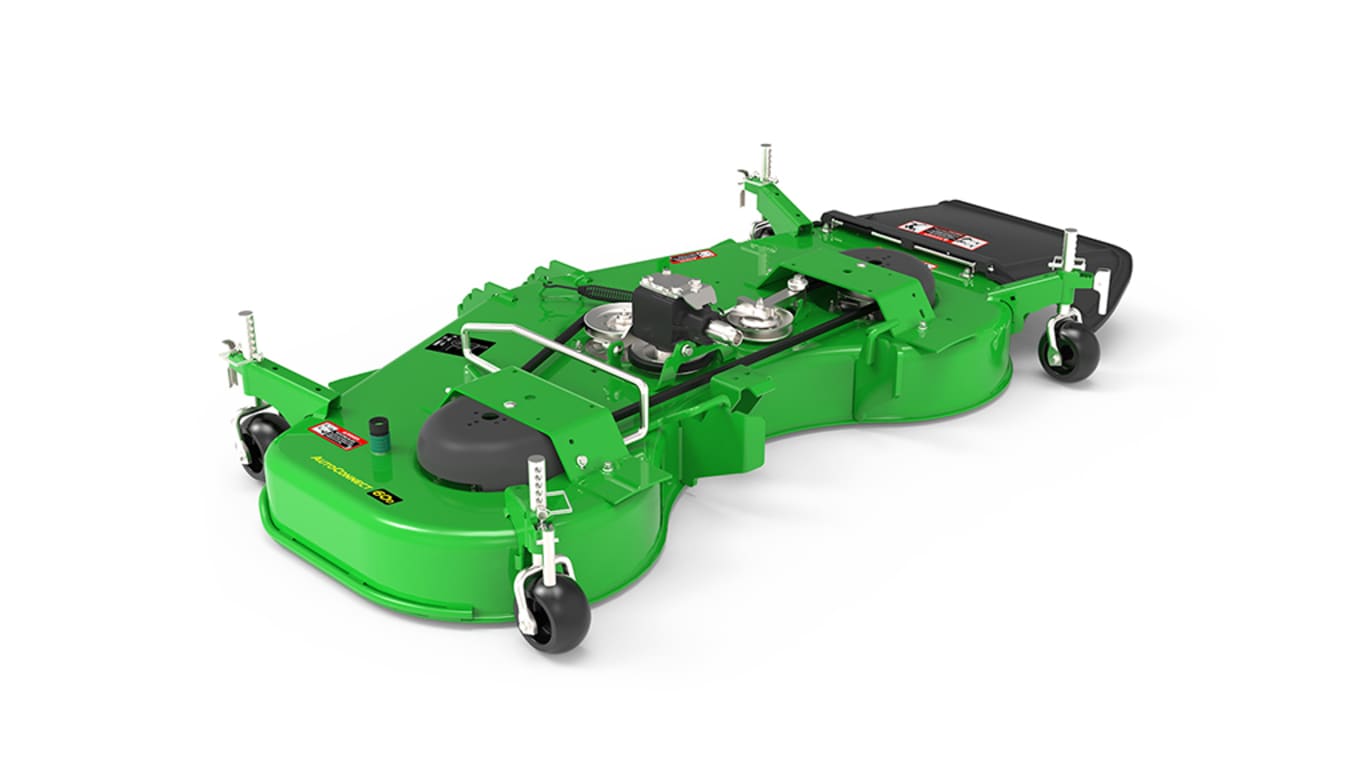

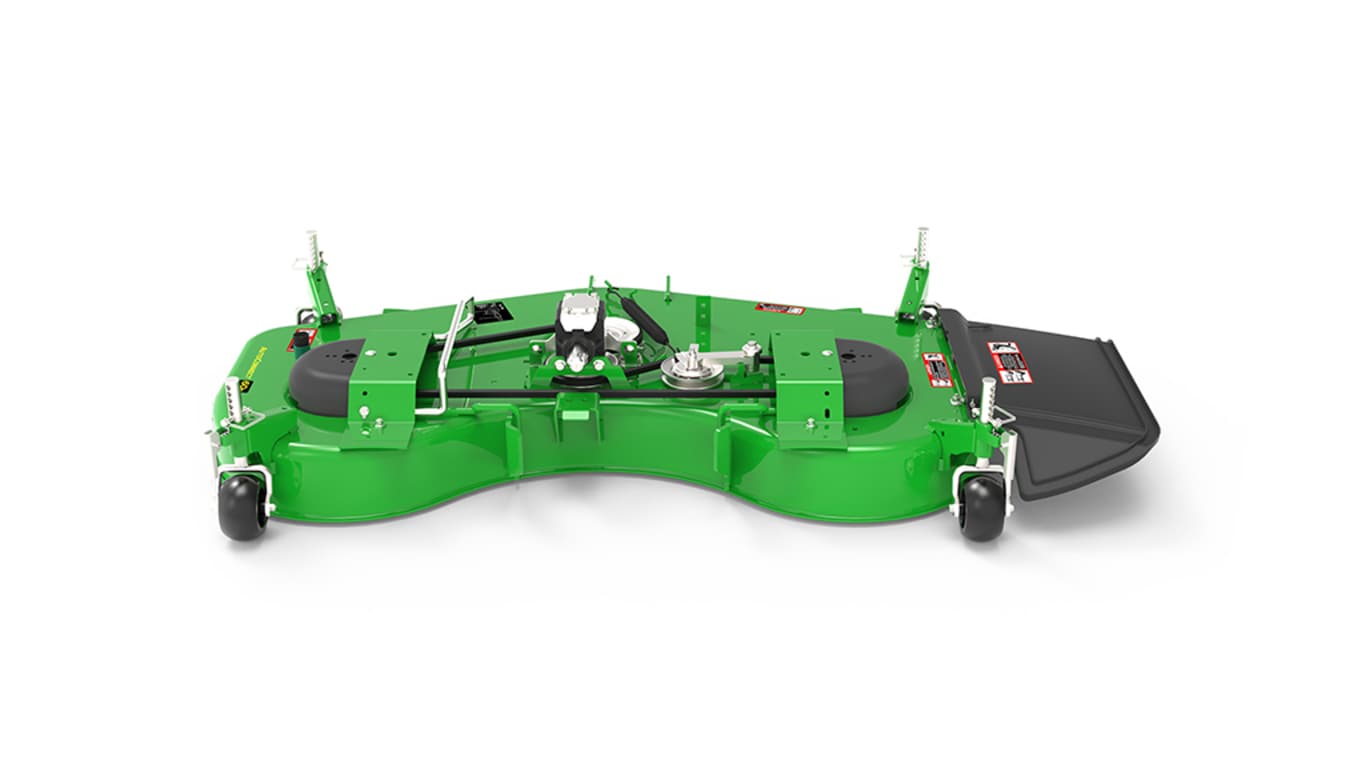

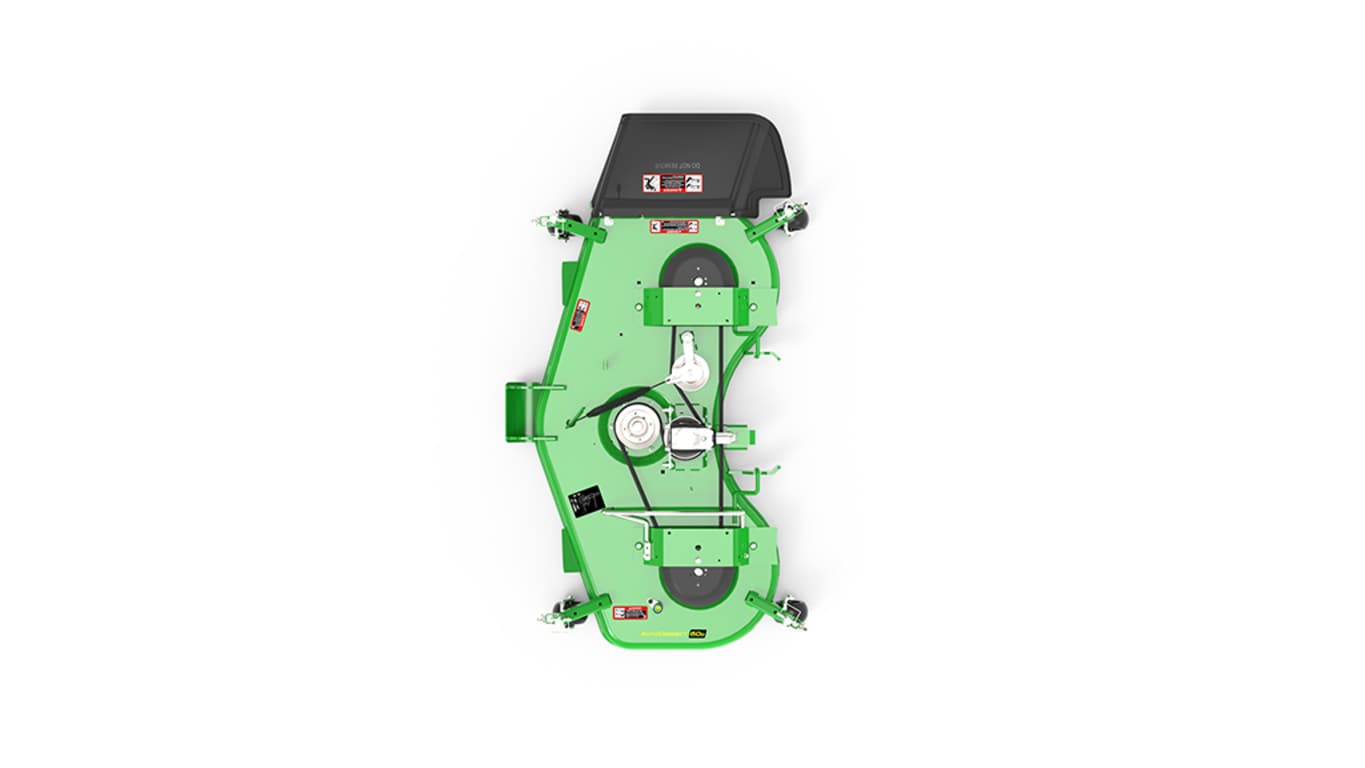

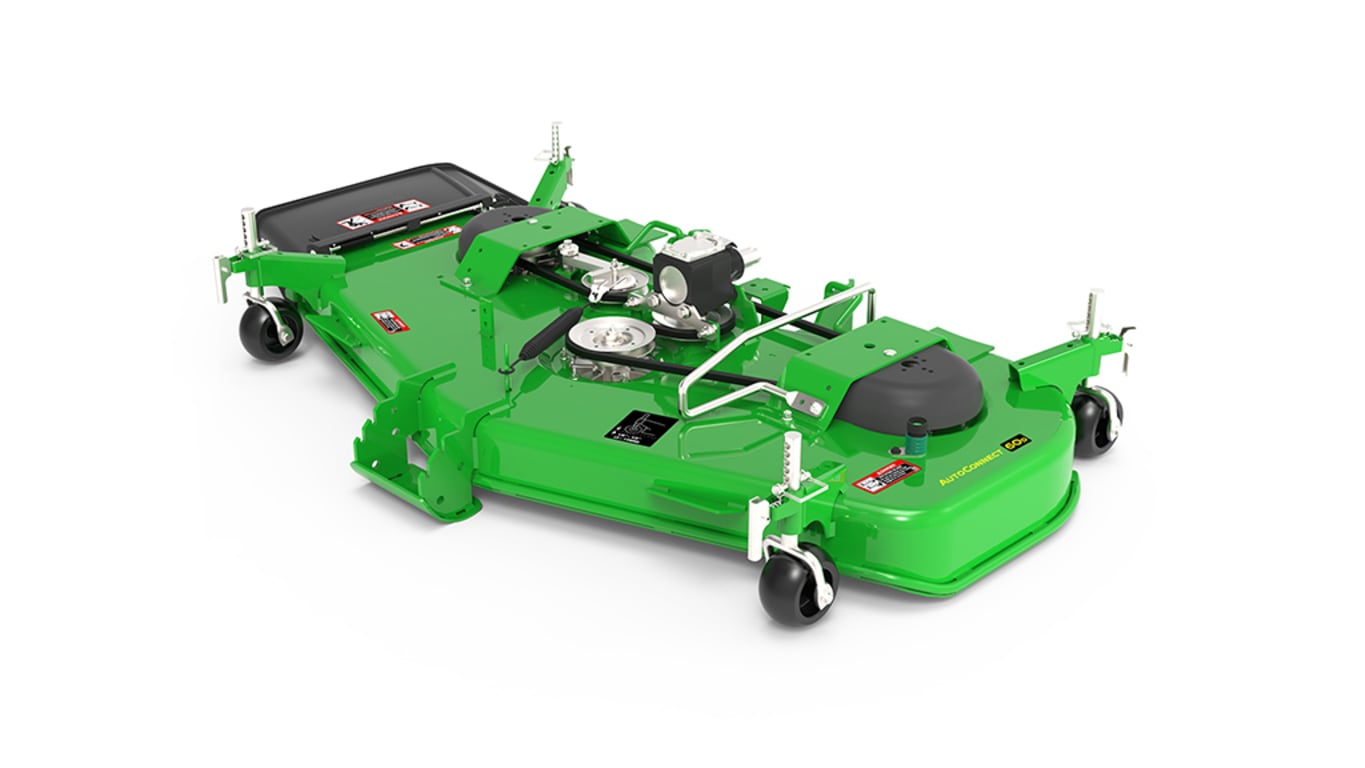

To install the 54D and 60D High-Capacity AutoConnect™ Mower Decks, the following steps are required.
1) Set the mower height of cut (HOC) to the install position.
2) Raise handles on the gauge wheels to release the lock.
3) Make sure the deck is on a firm, level surface.
4) Lower the mower lift arm using the rockshaft level control.
5) Slowly drive forward onto the mower deck while using the guide bar to maintain alignment.
6) Continue to drive forward until the latches in rear of deck snap into place.
With AutoConnect power take-off (PTO) connection:
7) Raise the mower deck and change the HOC setting from install position to desired height of cut.
8) Use quick-release pins to lock the gauge wheels at desired mowing height.
With manual PTO connection:
7) Turn off tractor and step down off the tractor.
8) Reach underneath tractor and manually connect the PTO shaft.
9) Raise the mower deck and change the HOC setting from install position to desired height of cut.
10) Use quick-release pins to lock the gauge wheels at desired mowing height.
Rear lock mechanism
NOTE: Four-wheel drive and low gear required to install/remove deck. Please refer to the operator's manual before installation and removal for complete instructions and safety information.
1) Park tractor on a level surface.
2) Release pin on all four gauge wheels making certain rear gauge wheels are in forward position.
3) Set HOC to the install position.
4) Lower mower to ground.
With AutoConnect PTO connection:
5) Flip locking levers forward.
6) Keep left-front tire next to guide bar and backup over deck.
With manual PTO connection:
5) Turn off tractor and step down off tractor.
6) Reach underneath the tractor and manually disconnect the PTO shaft.
7) Place PTO shaft in holding bracket for transport.
8) Flip locking levers forward.
9) Keep left front tire next to guide bar and backup over deck.
Power take-off (PTO) coupler
Mower deck PTO drive shaft
Mechanical lift kit
Hydraulic lift kit with third function
Independent hydraulic lift kit (Mechanical lift + Hydraulic lift cylinder + 3rd function)
The forward lift link is installed on the deck. It is spring loaded, allowing the link to connect automatically to front hangers (installed on tractor).
The PTO drive-shaft design allows the shaft to automatically adjust as the female end of the PTO coupler engages with the male end of the gearbox coupler. The male end coupler has tapered guides to ensure engagement of both ends.
Mower decks are equipped with a heavy-duty, double-sided locking latch to ensure rigidity and reliability.
Standard mechanical mower lift
The standard mechanical mower lift system moves the mower in conjunction with the rear implement and is controlled using the rockshaft lever.
Optional hydraulic mower lift
The optional hydraulic mower lift system allows the mower to be raised and lowered independently of the rear implements. It uses the dual selective control valve (SCV) (loader joystick) to lift the mower deck.
Optional independent hydraulic mower lift
The optional independent hydraulic lift system allows the mower to be raised and lowered independently of the rear and front implements. It operates using the third-function button on the loader SCV joystick and gives the operator full control of the mower deck in up and down directions. This feature allows for quick height changes on the go.
NOTE: This option requires third-function SCV to be installed on the tractor.
Dealer Use Only:
|
|
Tractor and mower deck model |
|
Lift option code |
Lift type |
2025R (Model Year 2017 and newer) |
Associated attachments |
54D and 60D (700ELV and 701ELV) |
|||
1995 |
Less lift kit |
--- |
|
1115 |
Less lift kit |
x |
|
1100 |
Mechanical |
x |
BXX10647 |
1101 |
Hydraulic for Single Point Hydraulic Connector (SPHC) equipped tractors from the factory |
x |
BXX10647, BLV11115, BXX11236 |
1102 |
Independent hydraulic without third function or SPHC from factory |
x |
BXX10647, BLV11115 |
1103 |
Independent hydraulic with third function SCV |
x |
BXX10647, BLV11115, BXX10846 |
1110 |
Hydraulic – MY25+ Tractor |
x |
BXX10647, BXX11287 |
1111 |
Independent hydraulic with third function SCV – MY25+ Tractor |
x |
BXX10647, BXX11103, BXX11287 |
PTO coupler
Mower deck power take-off (PTO) drive shaft
Mechanical lift kit
Hydraulic lift kit
Hydraulic lift kit (Mechanical Lift kit + Hydraulic Lift Cylinder)
Independent hydraulic lift kit (Mechanical lift kit + Hydraulic cylinder kit + 3rd function kit)
The forward lift link is installed on the deck. It is spring loaded, allowing the link to connect automatically to front hangers (installed on tractor).
The PTO drive shaft design allows the shaft to automatically adjust as the female end of the PTO coupler engages with the male end of the gearbox coupler. The male end coupler has tapered guides to ensure engagement of both ends.
Standard mechanical mower lift
The standard mechanical mower lift system moves the mower in conjunction with the rear implement and is controlled using the rockshaft lever.
Optional hydraulic mower lift
The optional hydraulic mower lift system allows the mower to be raised and lowered independently of the rear implements. It uses the dual selective control valve (SCV) (loader joystick) to lift the mower deck.
Optional independent hydraulic mower lift
The optional independent hydraulic lift system allows the mower to be raised and lowered independently of the rear and front implements. It operates using the third-function button on the loader SCV joystick and gives the operator full control of the mower deck in up and down directions. This feature allows for quick height changes on the go.
NOTE: This option requires third function SCV to be installed on the tractor.
Dual mid-selective control valve (SCV)
Optional third SCV
54D and 60D High-Capacity AutoConnect™ deck is compatible with rear 3-point hitch attachments, backhoes, and loaders. The operator can keep these extra implements attached while mowing.
1 Series and 2025R tractors are equipped with a dual mid-SCV as standard equipment. The mid-mower hydraulic lift can use the dual SCV (loader joystick), or third SCV (optional), to lift the mower deck, giving maximum flexibility.
Mid PTO
Mowers are driven by the tractor's mid PTO, providing the following advantages:
NOTE: To use the mid PTO for other front-mounted attachments, the operator needs to remove the quick-connect drive shaft and rear lift link. Several pins must be removed to allow removing the rear mower mounting linkage from the tractor. No tools are needed.
Height-of-cut adjustment
The height-of-cut (HOC) adjustment is located on the tractor and can easily be adjusted with the turn of the knob.
To install/remove mower deck, the HOC adjustment knob must be set in the install position.
Removable drive over ramp for servicing
Greaseable blade spindle
These mowers are designed with many serviceability and durability features. Some of these features are:

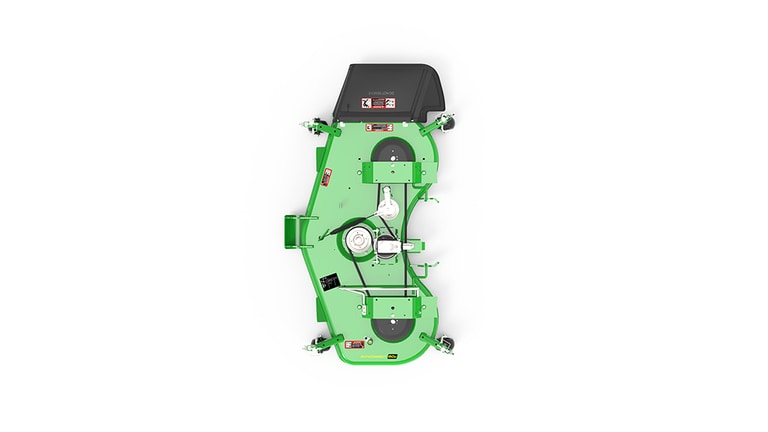

| Specifications | ||||
|---|---|---|---|---|
| John Deere 60D High Capacity AutoConnect™ Mid-Mount Mower Deck |
| Compatible models | 1023E, 1025R, 1026R, and model year 2017 and new 2025R Tractors | |||
|---|---|---|---|---|
| Cutting width | 152 cm 60 in. |
|||
| Cutting height | 2.54 to 10.16 cm 1 to 4 in. |
|||
| Number of blades | Three | |||
| Weight | 117 kg 258 lb |
| Compatible models | 1023E, 1025R, 1026R, and model year 2017 and new 2025R Tractors |
|---|
| Cutting width | 152 cm 60 in. |
|||
|---|---|---|---|---|
| Overall width | Deflector up: 159 cm 62.5 in. Deflector down: 185 cm 73 in. |
|||
| Cutting height | 2.54 to 10.16 cm 1 to 4 in. |
|||
| Deck thickness | 7 gauge 4.554 mm 0.1793 in. |
| Number | Three | |||
|---|---|---|---|---|
| Length | 53.5 cm 21.1 in. |
|||
| Thickness | 0.63 cm 0.25 in. |
|||
| Blade tip speed (at 2600 rpm) | 4,705.2 m/min 15,437 fpm |
|||
| Orientation |
| Diameter | 2.54 cm 1 in. |
|||
|---|---|---|---|---|
| Drive | ||||
| Number |
| Gauge wheel size: front | 12.7 cm 5 in. |
|||
|---|---|---|---|---|
| Gauge wheel size: rear | 12.7 cm 5 in. |
|||
| Front rollers | ||||
| Memory setting for mower wheels | ||||
| Number of mower wheels | ||||
| Wheel adjustment | ||||
| Wheels rotate for installation and removal |
| Type | Optional | |||
|---|---|---|---|---|
| 14-bushel-rear hopper | ||||
| High-performance PowerFlow blower |
| Approximate weight | 117 kg 258 lb |
|||
|---|---|---|---|---|
| Shipping weight |
| Date collected |
|---|
| Deck lock-up kit | ||||
|---|---|---|---|---|
| Independent lift | ||||
| Mechanical lift |
| Attaching time | ||||
|---|---|---|---|---|
| Removal time |
| Area covered | ||||
|---|---|---|---|---|
| Mower speed |
