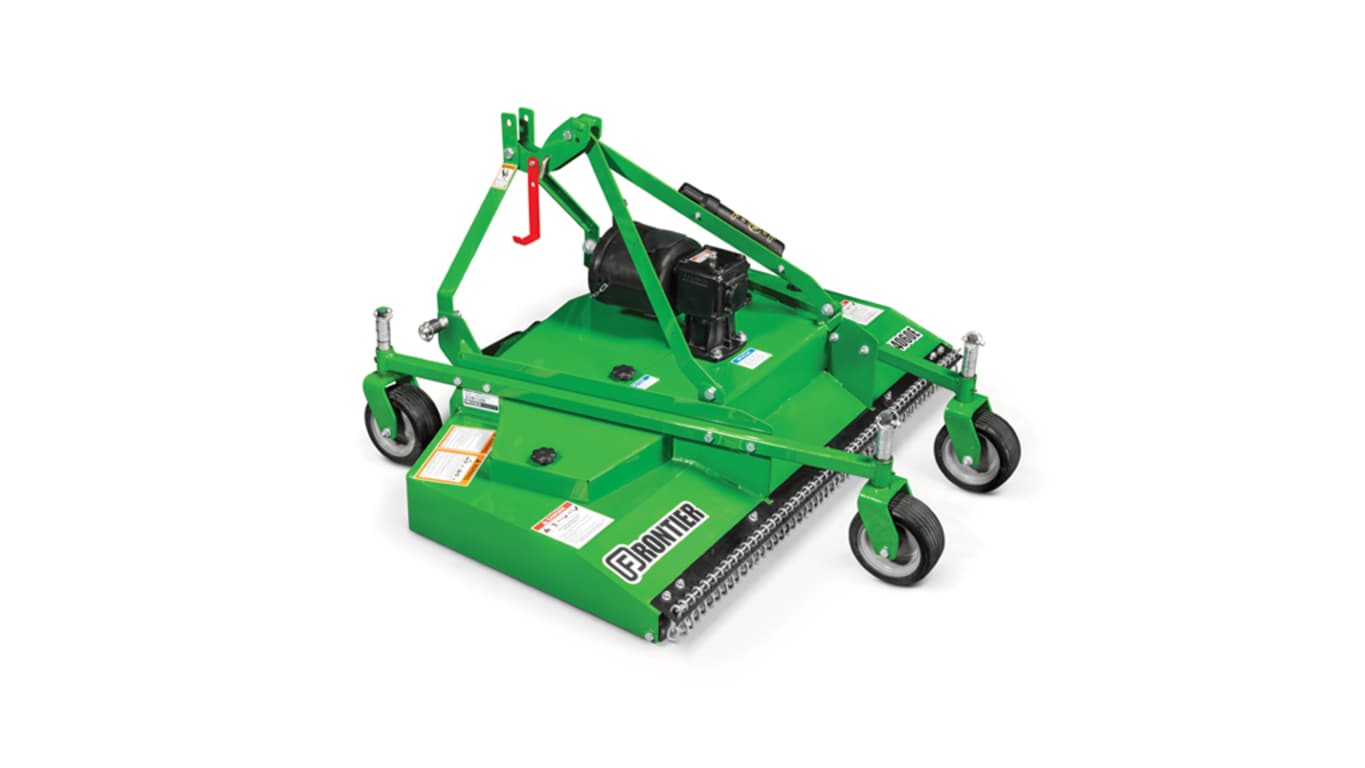

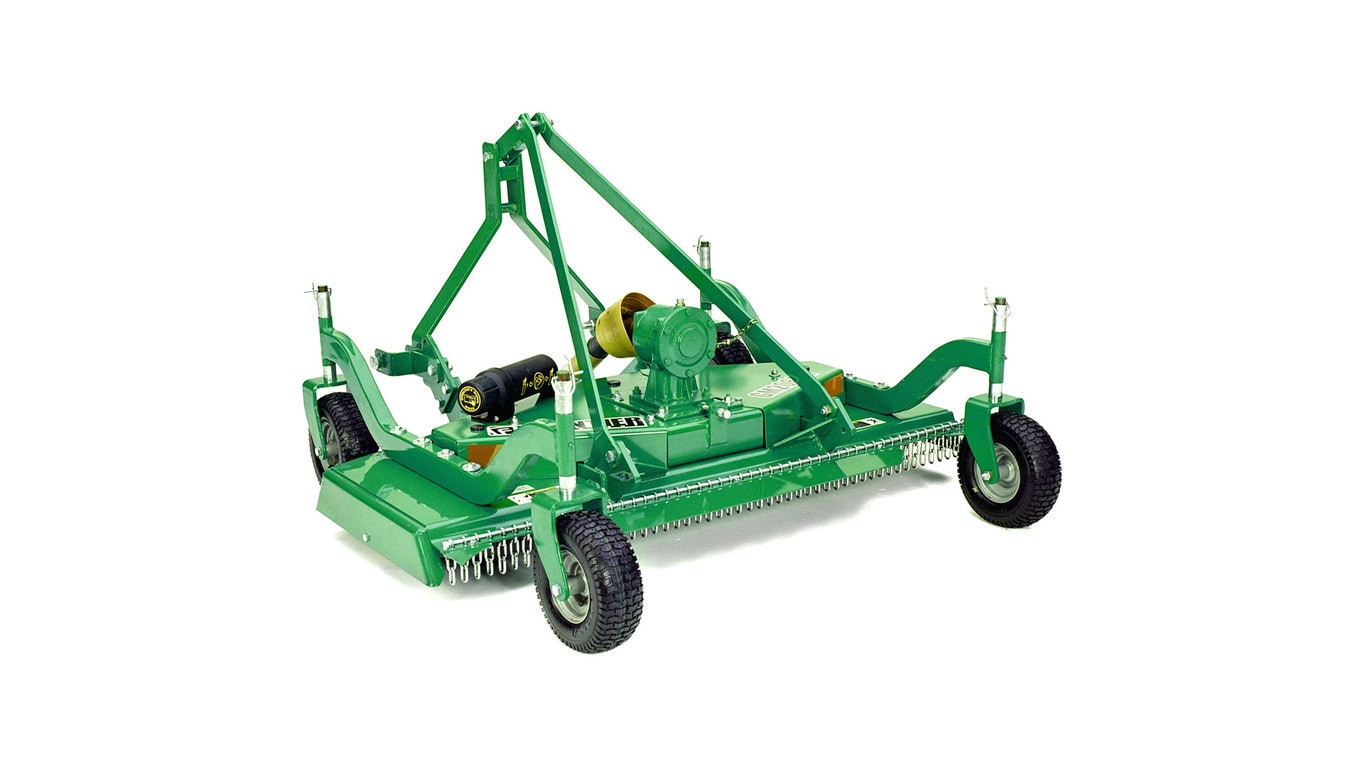

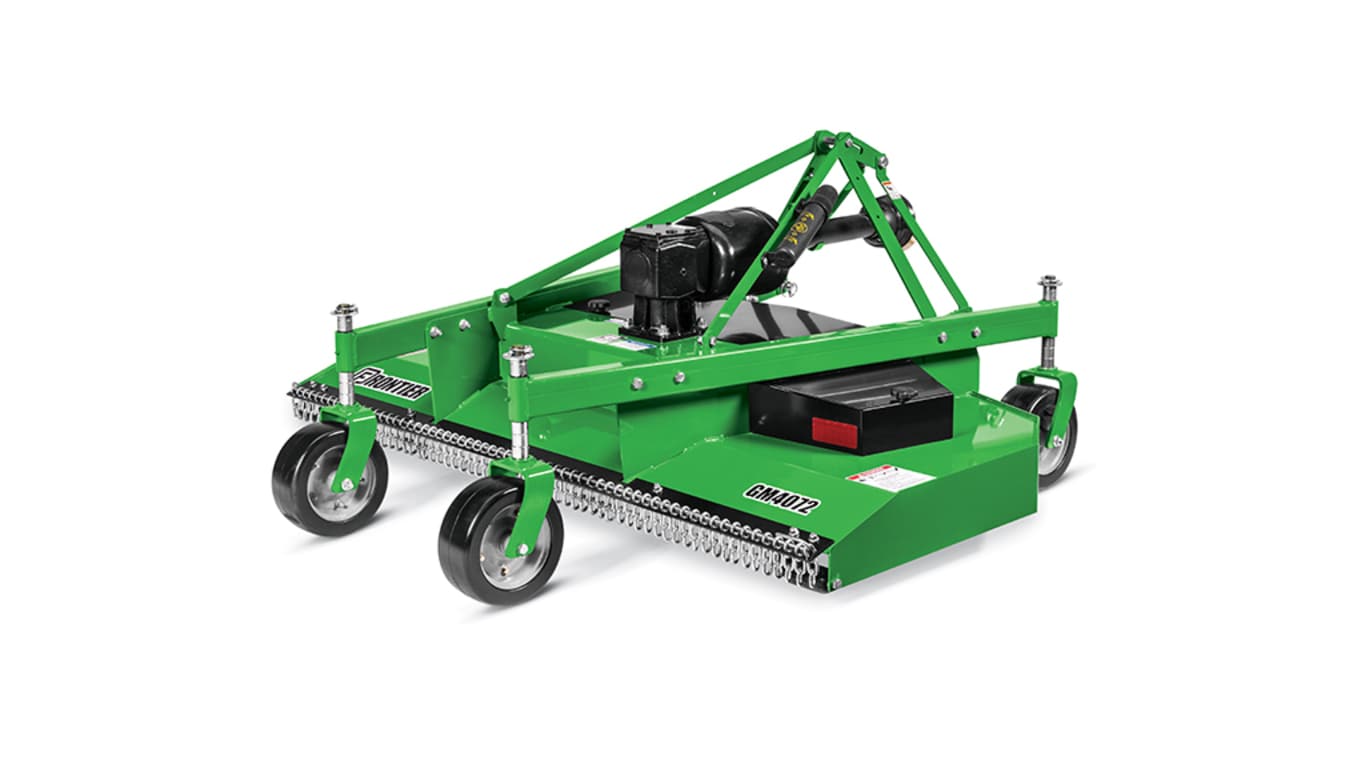

GM20 SeriesRear Discharge Grooming Mowers
- 4 - 9 ft. (1.2 - 2.8 m) cutting widths
- Single- or dual-belt drive
- High blade speed for thorough cutting and uniform distribution
- Cat. 1 iMatch compatible with kit
Specs & Compare | ||||
---|---|---|---|---|
Select up to 4 models to compare specifications | John Deere GM20 Series Rear Discharge Grooming Mowers |
Overall machine width | 188 cm 74 in. |
|||
---|---|---|---|---|
Cutting width | 182.9 cm 72 in. |
|||
Cutting height | 2.5-12.7 cm 1-5 in. |
Operational | 272.2 kg 600 lb |
|||
---|---|---|---|---|
Shipping | 306.6 kg 676 lb |
PTO horsepower | 14.9-37.3 kW 20-50 hp |
|||
---|---|---|---|---|
PTO rpm | 540 rpm |
Category | Category 1 | |||
---|---|---|---|---|
iMatch™ compatible |
Thickness | 8 gauge 4.176 mm 0.1644 in. |
|||
---|---|---|---|---|
Discharge | Rear |
Mower deck horsepower | 37.3 kW 50 hp |
|||
---|---|---|---|---|
Ratio | 1:3.1 |
Quantity | Three | |||
---|---|---|---|---|
Tip speed, average fpm | 5,099.91 m/min 16,732 fpm |
|||
Spindles | Quantity Three Composition Cast iron Bearing Shielded ball |
|||
Overlap | 2.9 cm 1.125 in. |
|||
Dimensions | 62.2x5.7 cm 24.5x2.25 in. |
|||
Composition | Heat treated alloy steel |
Quantity | Four | |||
---|---|---|---|---|
Solid | Size 25.4x8.1 cm 10x3.2 in. 27.94x10.16 cm 11x4 in. Yes |
|||
Pnuematic | ||||
Bearings | Shielded roller |
Type | 5VX, polyester/cogged | |||
---|---|---|---|---|
Quantity | Two | |||
Adjustment | Slotted track |
Labor hours |
---|
Machine | 1 year | |||
---|---|---|---|---|
Gearbox | 1 year |
Date collected |
---|
