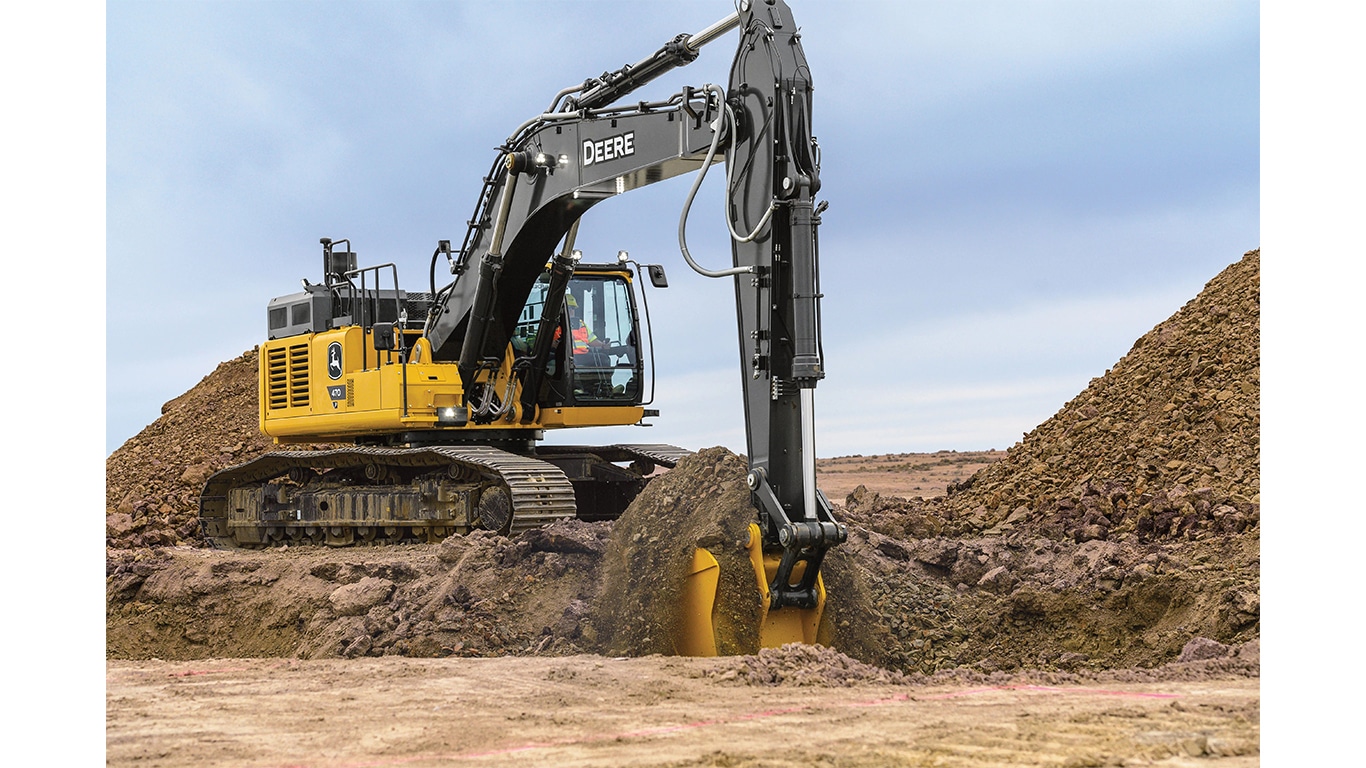

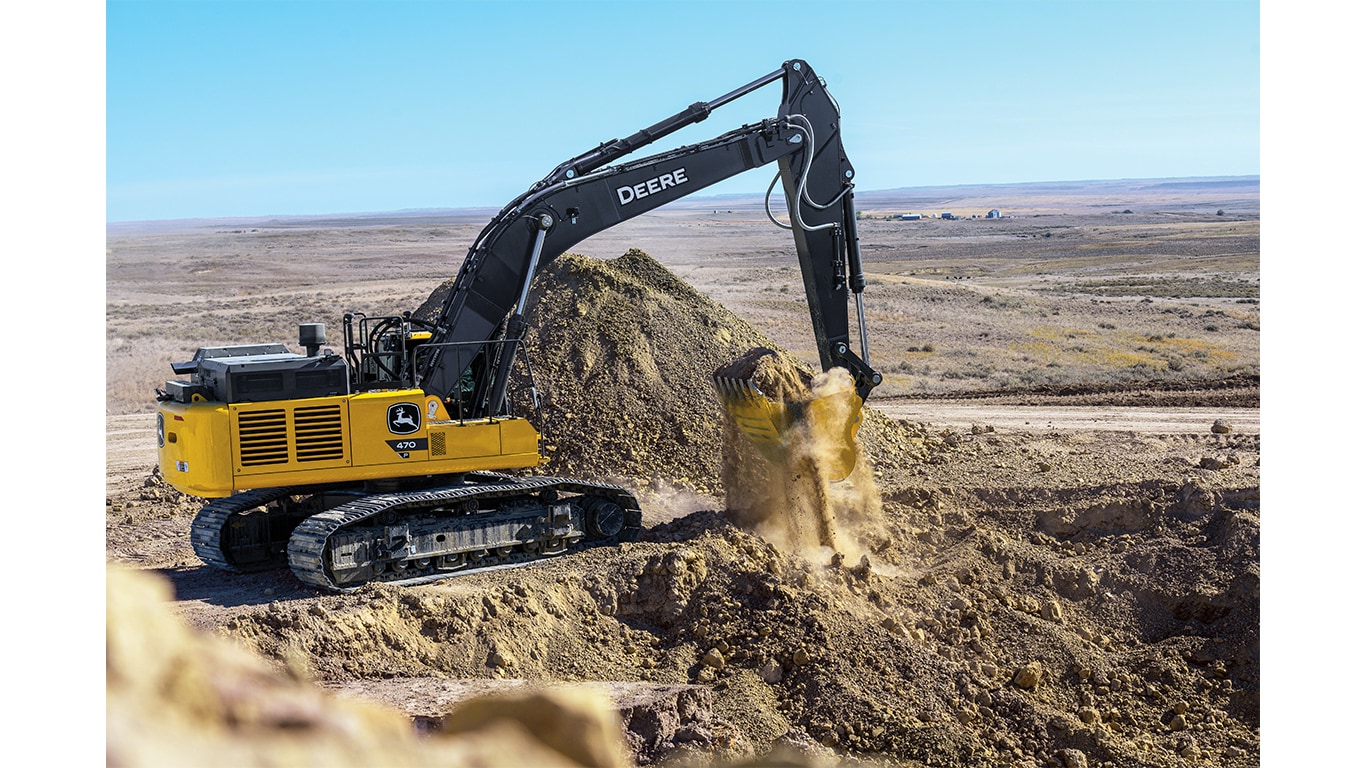

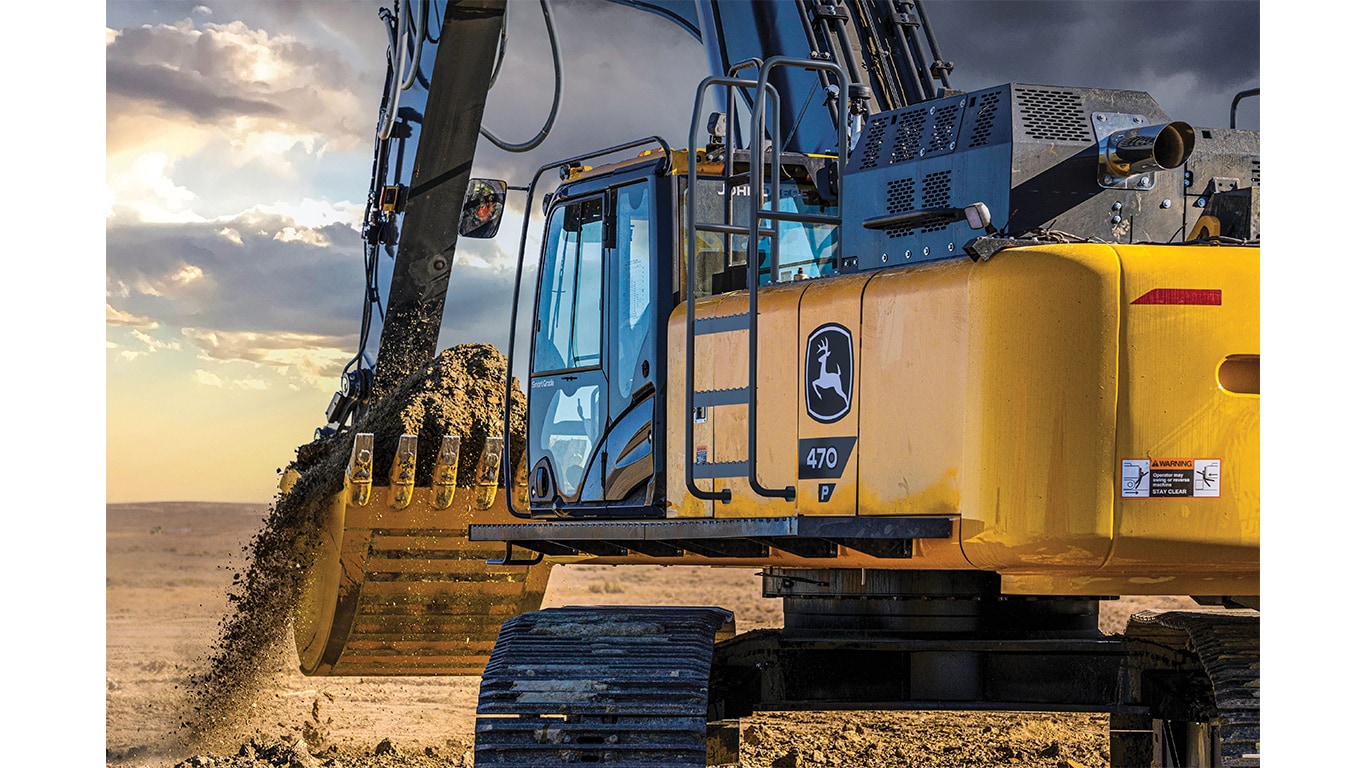

470 P-TierLarge Excavator
- Net Power: 274 kW (367 hp)
- Max. Digging Depth: 7.77–8.27 m (25 ft. 6 in.–27 ft. 2 in.)
- Operating Weight: 51 218 kg (112,916 lb.)
Optional accessories and attachments shown. See your dealer for available models, options, attachments and pricing. Product options and accessories may not be available in all regions.
Features
Expand All
Collapse All
SmartGrade™ Excavator
Right, rear, and left cameras with additional light-emitting diode (LED) surround lighting
Hydraulic coupler ready option
Coupler control switch on left side pilot tower
Coupler control switch
Full view of Option Code 7041
Arm View of Hydraulics/Controls
Cab/Boom View of Hydraulics and Controls
Central lubrication at arm tip
Internal view of central lubrication grease path
Two-piece front pipe clamping
SmartGrade™ technology
SmartGrade™ Excavator
SmartGrade™ technology is changing construction and revolutionizing the way you will run your operation. In the past, workers were prone to mistakes and required frequent grade checks to ensure the precision of their work. Now, with guidance and control to increase their speed and accuracy, operators of all skill levels can benefit from these new tools.
SmartGrade™ technology improves productivity with fewer mistakes and less downtime.
- Quickly and confidently achieve grade with fewer periodic grade checks.
- Improve accuracy and time to get to final grade for operators of all skill levels.
- Machine is equipped with elevation, eliminating the need for benchmarking or catching a laser.
- Upgrade kits allow you to adopt technology at your own pace.
No loss of investment and no need to purchase a new machine, you have precise accuracy when the time is right.
We know how over-grading, understaffing, and lack of time add up to rework. Especially given that the jobsite is never the same two days in a row. That is why our flexible grade-management tools are engineered to minimize rework or avoid it altogether while obstacle Intelligence uses cameras, radar, and machine learning to protect anyone in close proximity. Machine monitoring and Connected Support keep you updated with machine and fleet performance to boost productivity and keep your business humming.
Eliminate Rework
- Maintains set bucket angle for precise grading while operator controls machine position.
- Monitors elevation and slope information on any terrain.
- Fewer passes regardless of operator experience level.
Increase Efficiency
- Remote Diagnostics give real-time updates on machine service intervals and can prevent service visits to the jobsite.
- Machine telematics are shared with our Monitoring Center and your dealer via the cloud.
- Track key metrics, from individual machine productivity to total job progress.
Whatever you are up against, we have the tools to help you get the job done.
Work Confidently via Optional Cameras and Lighting
Right, rear, and left cameras with additional light-emitting diode (LED) surround lighting
Standard Right Rear and Left Camera system with additional LED surround lighting work together to provide the operator enhanced 270 degree visibility around the machine. All integrated into the main monitor.
- Work confidently with enhanced visibility even in low light conditions
- Powerful LEDs cast a pool of light surrounding 270 degrees of the sides and rear of the machine. Cameras display surroundings to the operator in the main monitor
- LED front work lights and rear camera are still standard equipment
Quickly Change Attachments with Integrated Hydraulic Coupler Ready Option
Hydraulic coupler ready option
Overview
Factory installed hydraulic plumbing all the way to the end of the arm. Coupler controls integrated into a switch in the cab. Quick and efficient coupler installation. Popular in the underground segment, couplers allow excavators to efficiently switch attachments and get more productive working hours each day.
- Ease of installation – pin on the coupler, connect the hydraulics, get to work.
- Compatible with multiple coupler manufacturers (see dealer for details).
- Mounting provisions: The excavator is pre-configured with mounting points and interfaces to easily attach a hydraulic coupler.
- Hydraulic lines and fittings: The excavator comes with pre-installed hydraulic lines, connections, and fittings to integrate the coupler with the hydraulic system.
- Electrical connections: The option includes electrical connections or wiring harnesses for activating and controlling the hydraulic coupler mechanism.
- Control switches: The excavator features controls in the cab for operators to engage and disengage the hydraulic coupler conveniently.
Addition Details:
Coupler control switch on left side pilot tower
Coupler control switch
Full view of Option Code 7041
Arm View of Hydraulics/Controls
Cab/Boom View of Hydraulics and Controls
Improved Front Joint Durability
Central lubrication at arm tip
Internal view of central lubrication grease path
Two-piece front pipe clamping
P-Tier updates build on the proven G-Series design. Take front joint durability to new levels compared to G-Series.
- The new tophat bushing and two-sided mud and dirt (2MAD) seals have proven as much as double the joint life when digging in sandy conditions which typically reduce pin and bushing life substantially.
- Grease point at arm tip for easy greasing and extended uptime
- Better torque retention at the clamp reduces the likelihood of front hydraulic pipes moving
- Hydraulic lines routed on top of the boom for added protection
- Redesigned boom foot bushings improve durability
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 470 P-Tier Large Excavator |
DRIVELINE
| Emission Rating | Tier 4 / Stage IV | |||
|---|---|---|---|---|
| Engine Manufacturer | John Deere Power Tech | |||
| Number Of Cylinders | 6 | |||
| Displacement, ltr (Inches³) | 13.5 (824) | |||
| Rated speed, rpm | 2000 | |||
| Engine Output - Net, kW (hp) | 274 (367) | |||
| Number Of Carrier Rollers - Each Side | 3 | |||
| Number Of Track Rollers - Each Side | 9 | |||
| Track Shoe Width, mm (inches) | 900 (35) |
DIMENSIONS
| Transport Length Mono Boom, mm (ft/in) | 12010 (39 ft 5 in) | |||
|---|---|---|---|---|
| Transport Height - Maximum, mm (ft/in) | 3500 (11 ft 6 in) | |||
| Overall Undercarriage Width, mm (ft/in) | 3290 (10 ft 10 in) | |||
| Track Length On Ground, mm (ft/in) | 4470 (14 ft 8 in) | |||
| Overall Undercarriage Length, mm (ft/in) | 5470 (17 ft 11 in) | |||
| Tailswing Radius, mm (ft/in) | 3670 (12 ft ) | |||
| Ground Clearance, mm (inches) | 740 (29) | |||
| Digging Reach - Mono Boom, mm (ft/in) | 12490 (41 ft ) | |||
| Ground Level Reach - Mono Boom, mm (ft/in) | 12280 (40 ft 3 in) | |||
| Dig Height - Mono Boom, mm (ft/in) | 11160 (36 ft 7 in) | |||
| Dump Height - Mono Boom, mm (ft/in) | 7770 (25 ft 6 in) | |||
| Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in) | 8140 (26 ft 8 in) | |||
| Dig Depth - Mono Boom, mm (ft/in) | 8270 (27 ft 2 in) |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 675 (178) | |||
|---|---|---|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 310 (82) |
PERFORMANCE
| Ground Bearing Pressure, kPa (PSI) | 61.3 (8.9) | |||
|---|---|---|---|---|
| Swing Speed, rpm | 9.5 | |||
| Swing Torque, kNm (lbf / ft) | 148 (109159) | |||
| Travel Speed - High, kph (mph) | 5.5 (3.4) | |||
| Tractive Force, kN (lbf) | 328.8 (73937) | |||
| Arm Tearout, kN (lbf) | 204 (45925) | |||
| Bucket Breakout, kN (lbf) | 301 (67564) | |||
| Gradeability, % | 70 | |||
| End lift - 7.5m Reach, kg (lbs) | 15690 (34010) | |||
| Side lift - 7.5m Reach, kg (lbs) | 9820 (21190) | |||
| Total Flow, lt/min (gallons (US) / min) | 800 (212) | |||
| Bucket Pressure, bar (PSI) | 319 (4627) | |||
| Boost Pressure, bar (PSI) | 353 (5120) |
WEIGHTS
| Operating Weight, kg (lbs) | 51218 (112916) |
|---|
