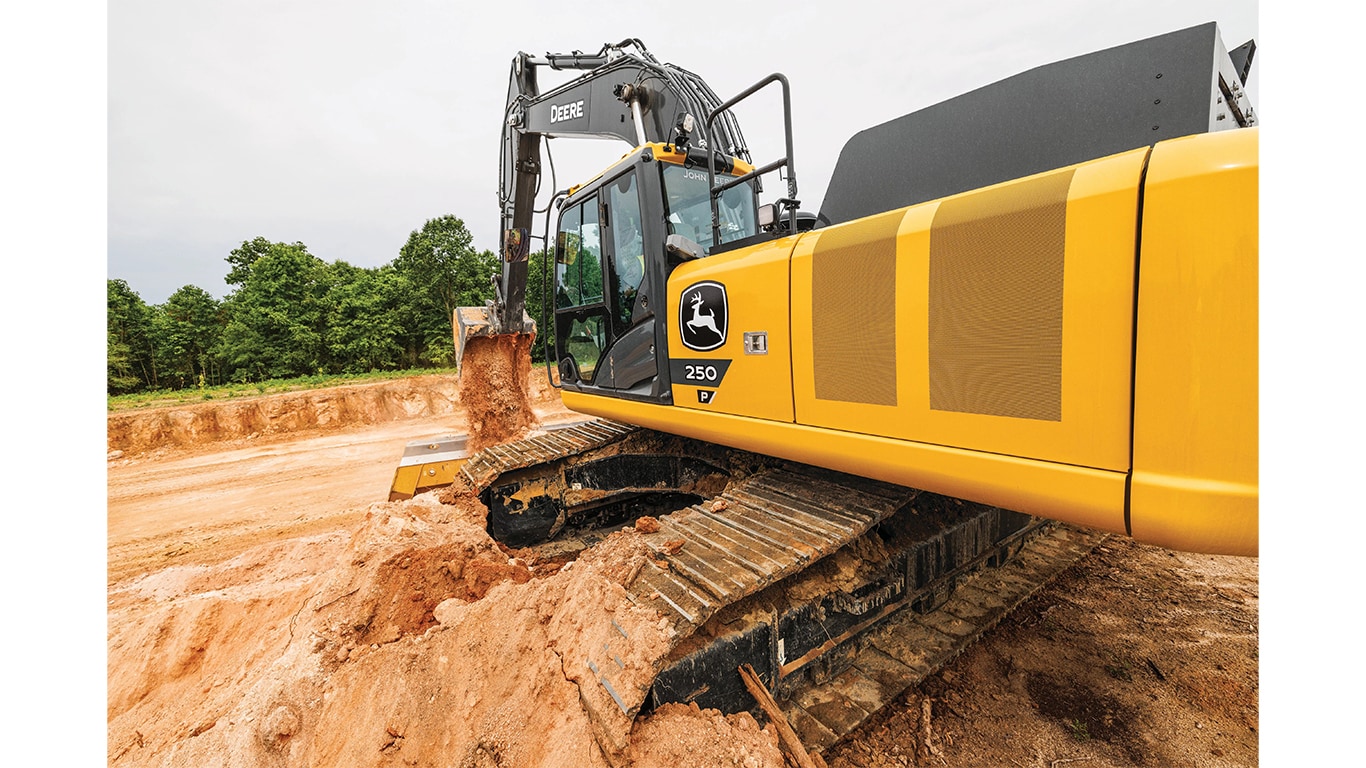

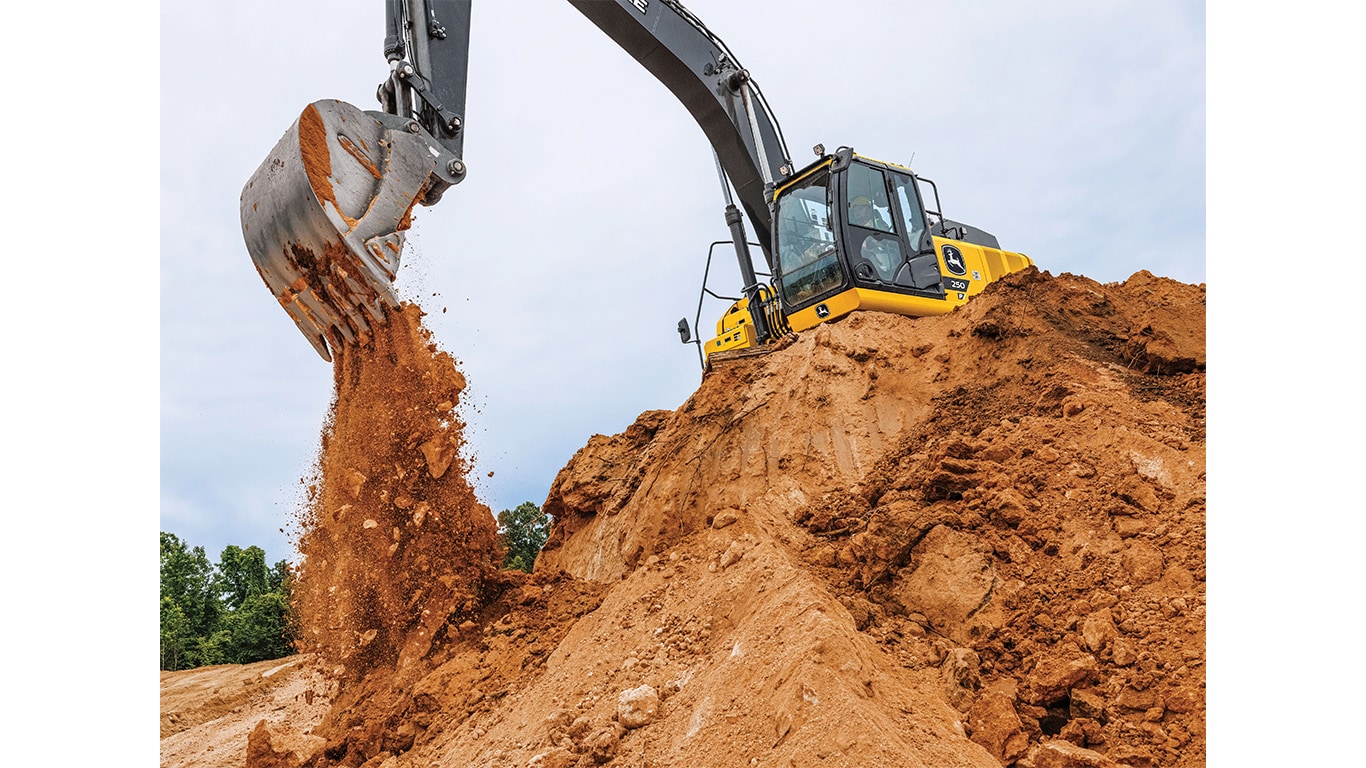

250 P-TierMid-Size Excavator
- Net Power: 140 kW (188 hp)
- Max. Digging Depth: 7.61 m (25 ft. 0 in.)
- Operating Weight: 27 500 kg (60,600 lb.)
Optional accessories and attachments shown. See your dealer for available models, options, attachments and pricing. Product options and accessories may not be available in all regions.
Features
Expand All
Collapse All
Central lubrication at arm tip
Two-piece front pipe clamping
Arm With New Top Hat Bushing
Arm With Original Bushing
Top Hat Bushing
Top Hat Bushing
New Pin with +5mm Case Depth Hardening
New Pin with +5mm Case Depth Hardening
2MAD Seal Inside Visual
Internal view of central lubrication grease path
Hydraulic coupler ready option
Coupler control switch
Coupler control switch on left side pilot tower
Full view of Option Code 7041
Arm View of Hydraulics/Controls
Cab/Boom View of Hydraulics and Controls
Electronic cooling fans
Right, rear, and left cameras with additional LED surround lighting
Improved front joint durability
Central lubrication at arm tip
Two-piece front pipe clamping
Improved Arm/Bucket Bushing, Pin and Seal for Increased Durability
Arm With New Top Hat Bushing
Arm With Original Bushing
Top Hat Bushing
Top Hat Bushing
New Pin with +5mm Case Depth Hardening
New Pin with +5mm Case Depth Hardening
2MAD Seal Inside Visual
Internal view of central lubrication grease path
Overview
P-Tier updates build on the proven G-series design. Take front joint durability to new levels compared to G-series.
- With proper maintenance, the new top hat bushing, hardened pin and 2-Sided Mud and Dirt (2MAD) seals have proven as much as double the joint life when digging in sandy conditions which typically reduce pin and bushing life.
- Increased sealing performance through the 2MAD seal provides superior sealing properties, keeps dirt and debris out and increases life.
- Increased pin case depth hardening from +2mm to +5mm.
- New design makes the bushing serviceable, reducing the need for costly line boring and maximizing uptime.
- Grease point at arm tip for easy greasing and extended uptime.
- Better torque retention at the clamp reduces the likelihood of front hydraulic pipes moving.
- Hydraulic lines routed on top of the boom for added protection.
- Grease point at arm tip for easy greasing and extended uptime
- Better torque retention at the clamp reduces the likelihood of front hydraulic pipes moving
- Redesigned boom foot bushings improve durability
Quickly change attachments with integrated hydraulic coupler ready option
Hydraulic coupler ready option
Overview
Factory installed hydraulic plumbing all the way to the end of the arm. Coupler controls integrated into a switch in the cab. Quick and efficient coupler installation. Popular in the underground segment, couplers allow excavators to efficiently switch attachments and get more productive working hours each day.
- Ease of installation – pin on the coupler, connect the hydraulics, get to work
- Compatible with multiple coupler manufacturers (see dealer for details)
Additional Details
Coupler control switch
Coupler control switch on left side pilot tower
Full view of Option Code 7041
Arm View of Hydraulics/Controls
Cab/Boom View of Hydraulics and Controls
Up to 7% improved fuel economy
Electronic cooling fans
Overview
At John Deere, we understand that jobsite conditions are tough and operating costs can drain your business. With new features now included on our 210, 250, and 300 P-Tier excavators, your fuel economy can improve by up to 7%. This not only helps your operation run more smoothly but can also help you save both time and money.
These new features have improved fuel economy:
- Reduce engine load with electric on-demand cooling fans.
- Individually serviceable fans with four bolts and one connector to remove and replace.
- In-line aftertreatment for reduced restriction and system complexity.
- Increased front piping diameter reduces hydraulic restriction, positively impacting fuel consumption.
With improved fuel economy, you can experience less downtime and lower daily operating costs.
Work confidently via standard cameras and lighting
Right, rear, and left cameras with additional LED surround lighting
Overview
Standard right, rear, and left camera system with additional light-emitting diode (LED) surround lighting work together to provide the operator enhanced 270 degree visibility around the machine. All integrated into the main monitor.
Benefits
- Work confidently with enhanced visibility even in low light conditions
- Powerful LEDs cast a pool of light surrounding 270 degrees of the sides and rear of the machine. Cameras display surroundings to the operator in the main monitor
- LED front work lights and rear camera are still standard equipment
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 250 P-Tier Mid-Size Excavator |
DRIVELINE
| Emission Rating | Tier 4 | |||
|---|---|---|---|---|
| Engine Manufacturer | John Deere Power Tech | |||
| Number Of Cylinders | 6 | |||
| Displacement, ltr (Inches³) | 6.8 (415) | |||
| Rated speed, rpm | 2100 | |||
| Engine Output - Net, kW (hp) | 140 (188) | |||
| Number Of Carrier Rollers - Each Side | 3 | |||
| Number Of Track Rollers - Each Side | 9 | |||
| Track Shoe Width, mm (inches) | 800 (32) |
DIMENSIONS
| Transport Length Mono Boom, mm (ft/in) | 10410 (34 ft 2 in) | |||
|---|---|---|---|---|
| Transport Height - Maximum, mm (ft/in) | 3370 (11 ft 1 in) | |||
| Overall Undercarriage Width, mm (ft/in) | 3390 (11 ft 1 in) | |||
| Track Length On Ground, mm (ft/in) | 3840 (12 ft 7 in) | |||
| Overall Undercarriage Length, mm (ft/in) | 4640 (15 ft 3 in) | |||
| Tailswing Radius, mm (ft/in) | 3140 (10 ft 4 in) | |||
| Ground Clearance, mm (inches) | 460 (18) | |||
| Width over fixed tracks, mm (ft/in) | 3390 (11 ft 1 in) | |||
| Track Gauge, mm (ft/in) | 2590 (8 ft 6 in) | |||
| Digging Reach - Mono Boom, mm (ft/in) | 10910 (35 ft 10 in) | |||
| Ground Level Reach - Mono Boom, mm (ft/in) | 10750 (35 ft 3 in) | |||
| Dig Height - Mono Boom, mm (ft/in) | 10560 (34 ft 8 in) | |||
| Dump Height - Mono Boom, mm (ft/in) | 7580 (24 ft 10 in) | |||
| Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in) | 7440 (24 ft 5 in) | |||
| Dig Depth - Mono Boom, mm (ft/in) | 7610 (25 ft ) | |||
| Standard Arm, mm (ft/in) | 3610 (11 ft 10 in) |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 500 (132) | |||
|---|---|---|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 147.6 (39) | |||
| Number Of Batteries | 2 | |||
| Voltage, V | 24 |
PERFORMANCE
| Ground Bearing Pressure, kPa (PSI) | 39.1 (5.66) | |||
|---|---|---|---|---|
| Swing Speed, rpm | 13.5 | |||
| Swing Torque, kNm (lbf / ft) | 77.5 (57150) | |||
| Travel Speed - High, kph (mph) | 5.5 (3.4) | |||
| Tractive Force, kN (lbf) | 214.8 (48300) | |||
| Arm Tearout, kN (lbf) | 114 (25628) | |||
| Bucket Breakout, kN (lbf) | 189 (42489) | |||
| Gradeability, % | 70 | |||
| End lift - 7.5m Reach, kg (lbs) | 6070 (13050) | |||
| Side lift - 7.5m Reach, kg (lbs) | 3760 (8070) | |||
| Total Flow, lt/min (gallons (US) / min) | 448 (118.4) | |||
| Bucket Pressure, bar (PSI) | 343 (4975) | |||
| Boost Pressure, bar (PSI) | 380 (5511) |
WEIGHTS
| Operating Weight, kg (lbs) | 25463 (56100) |
|---|
-
