You will feel confident and comfortable, even on tough terrain, with a full-size Gator™ Utility Vehicle. You will feel stable with a low center of gravity and a wide stance. Engine braking and four-wheel hydraulic disc brakes keep you in control on steep descents, even when fully loaded. The power steering on M- and R-Trim vehicles, is smooth and responsive.
Dash mounted four-wheel drive and rear differential lock switches
With standard four-wheel drive and rear differential lock, both instantly available with the flip of a switch, you can get where you are going.
Rear suspension and ground clearance
The independent suspension provides a smooth ride as 203 mm (8 in.) of front suspension travel and 229 mm (9 in.) of rear suspension travel cushions bumps and glides over ruts. And clearing rocks and roots is no problem with 284 mm (11.2 inches) of ground clearance.
Terra Hawk all-terrain tire
Maxxis® Bighorn® 2.0 extreme terrain radial tire
Predator Heavy-Duty all-terrain radial tire
Full-Size Gator Utility Vehicles are available with three tire options:
Maxxis® Bighorn® is registered trademark of Cheng Shin Rubber Ind. Co., Ltd.
Full-size Gator™ XUVs are built to work hard and go the extra mile.
Underside view of XUV865M
Underside view of XUV825M S4
The hefty frame is designed to stand-up to all the bumps and bends of the trail, and the standard front skid plate protects key components from damage.
Constant velocity boot protection
Constant velocity joints are enclosed to keep water and dirt out. A protector shield protects the boot from trail debris.
TrueTimber® KANATI camo XUV865R with optional Premium Protection Package
The hood and side panels are made of automotive-grade materials that resist scratches and dents, and the cargo box is made of tough composite material that resists dents and rust. Optional protection packages look tough and provide even more protection.
TrueTimber® is a trademark of True Timber Outdoors Holding Company, LLC.
Instrument display, shift lever, and switches (shown on XUV835R Signature Edition)
When you sit behind the wheel of a full-size Gator™ Utility Vehicle, you will be reminded of your favorite pick-up truck. There are controls at your fingertips, an easy-to-read instrument panel, and outlets to recharge your phone.
Shift from park and into gear with a throw of a single lever. Power steering on M- and R- trim vehicles is smooth and responsive.
When the going gets tough, you can instantly engage four-wheel drive and rear differential lock with switches. Even at night, the backlit switches are easy to see. If a front wheel starts to slip, the front differential automatically locks to pull you through.
When you hop into the seat of a full-size Gator™ Utility Vehicle, you will notice there’s seating for you, plus two.
40/60 split three-passenger bench seat
Operator platform
The adjustable operator’s seat and tilt steering lets drivers of all sizes get comfortable, and the passenger grab handles help everyone feel secure. The low step height and generous opening between seat base and fender is even designed to accommodate bulky work boots.
XUV835M with optional half doors, roof, windshield, and rear panel
XUV865M with optional cab doors with roll down windows, roof, windshield, and rear panel
Roof, windshield, rear panel, and half doors attachments keep you dry, shaded, and out of the dust. Cab doors with roll down windows and heater attachments keep you warm all winter.
The full-size Gator™ XUV can haul 454 kg (1000 lb), so load it up with confidence. You can also make fewer trips with 1814 kg (4000 lb) of towing capacity and a standard 51-mm (2-in.) receiver hitch.
Cargo box (shown with spray-in liner and optional taillight protectors)
Cargo box converted to flatbed
The cargo box resists dents, scratches, and rust because it is made from a tough composite material. You will have no problem securing loads with integrated tie bars and 14 tie-down points. You can also convert the cargo box to a flatbed when you need to haul big and bulky loads.
The cargo box measures 1143 mm (45 in.) long, 1320 mm (52 in.) wide, and 305 mm (12 in.) deep.
Tailgate handle
Since your hands are always full, the tailgate can be opened and closed with one hand. You can also lower the tailgate to carry longer items or remove it for easy cleanout.
Deluxe cargo box unloading rocks
To save your back, the optional cargo box power lift empties heavy loads with the push of a button.
812-cc (49.6-cu in.) gasoline engine and drivetrain
The XUV835 and XUV825M S4 Gator™ Utility Vehicles are powered by an electronic fuel injection (EFI) gasoline engine with liquid-cooled, dual-overhead cams. This engine is designed to provide maximum power and fuel efficiency to muscle through tough jobs.
It also has plenty of torque in low range, and fast speeds in high range. The enclosed drivetrain automatically adjusts for fast acceleration, along with powerful hauling and hill-climbing capabilities.
One-row full-size Gator XUVs come packed with places to store tools, gear, and beverages.
Four cup holders and center tray (shown on XUV835E)
Cab door cup holder and pocket
The dash has four cup holders, and cab vehicles have a cup holder in each door.
Under seat storage (shown on XUV835E)
Glove box, storage pocket, and two dash bins (shown on XUV835M cab)
The vehicles also feature an enclosed glove box, center tray, dash storage pocket and under-seat storage. Depending on the configuration, vehicles may have up to three additional dash bins and under-hood storage.

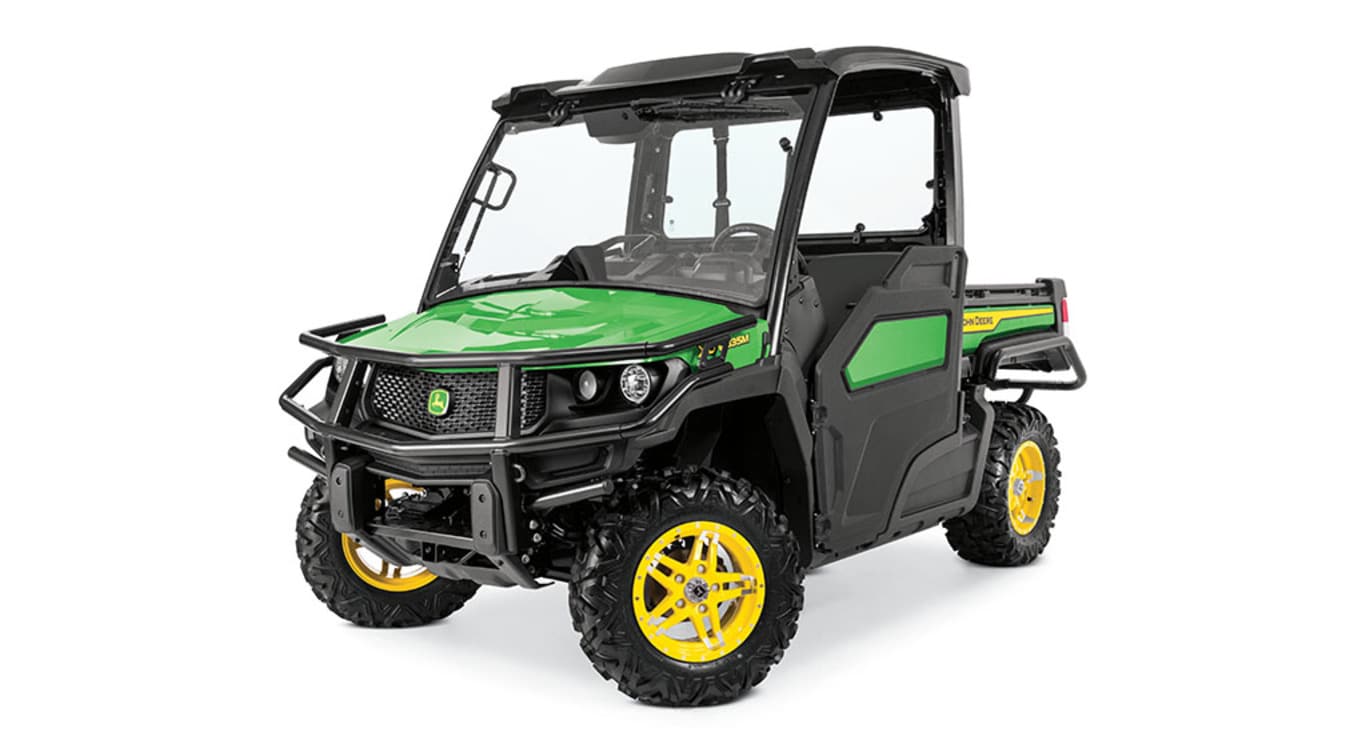

Green and yellow XUV835R Signature Edition with included Ultimate Protection Package

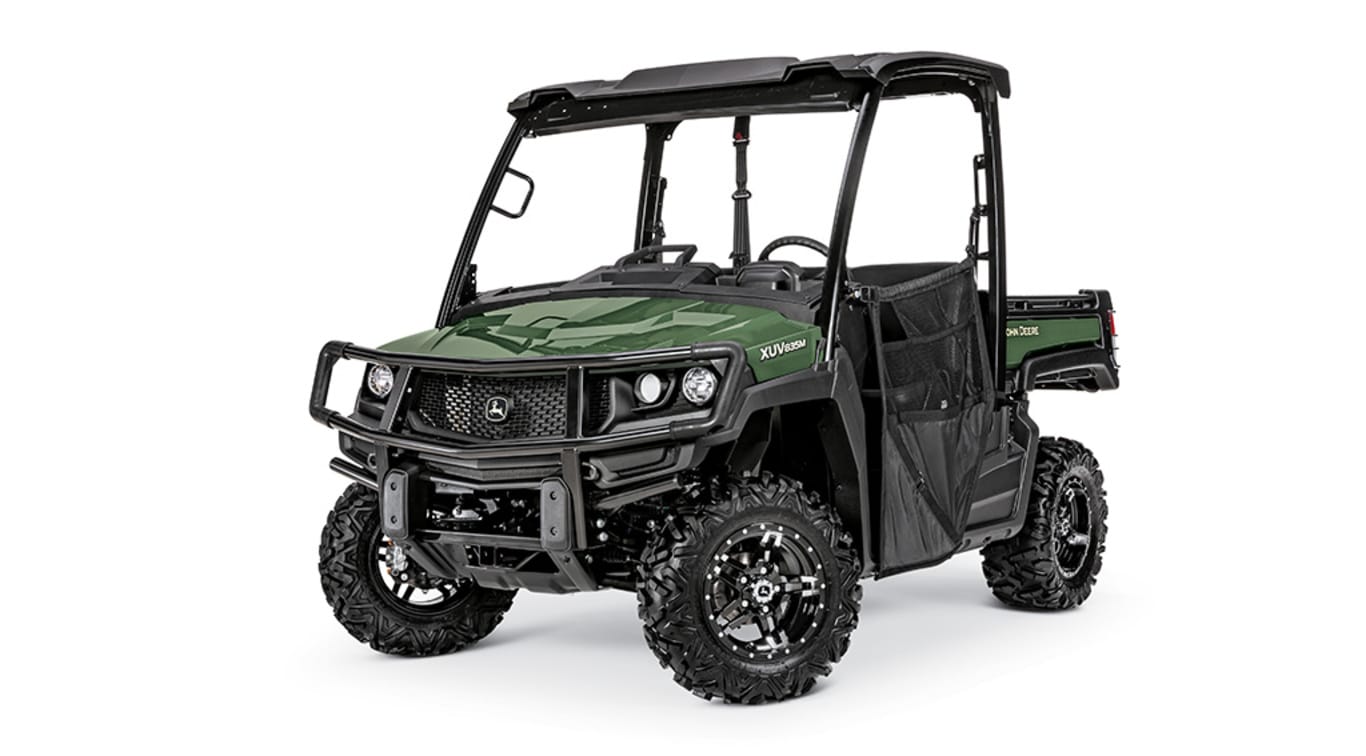

Olive and black XUV865M with cab and optional brush guard
TrueTimber® KANATI camo XUV865R with optional Premium Protection Package
You will get noticed with the distinctive styling of full-size Gator™ XUVs. Available in three colors, with various protection packages, and more than 100 attachments, you can create a custom look that will turn heads.
TrueTimber is a trademark of True Timber Outdoors Holding Company, LLC.
Large fuel tank fill opening
Full-size Gator™ XUVs have a large 42.8-L (11.3-gal.) fuel tank so you go further between fill ups. A 76-mm (3-in.) diameter fill opening reduce spills.
| Specs & Compare | ||||
|---|---|---|---|---|
| John Deere XUV835M Crossover Utility Vehicle |
| Engine power | 40.3 kW 54 hp |
|||
|---|---|---|---|---|
| Cargo box dimensions | 1143 x 305 x 1320 mm 45 x 12 x 52 in. |
|||
| Cargo box capacity (weight) | 454 kg 1000 lb |
|||
| Towing capacity | Up to 1814 kg 4000 lb |
|||
| Front suspension | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel | |||
| Rear suspension | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel | |||
| Final drive | Park, high, low, neutral, reverse transaxle | |||
| Four wheel drive | Dash switch actuated four-wheel drive system | |||
| Fuel capacity | 42.4 L 11.2 U.S. gal. |
| Type | 4-cycle gas, electronic fuel injection (EFI) | |||
|---|---|---|---|---|
| Displacement | 812 cc | |||
| Power | 40.3 kW 54 hp |
|||
| Cooling system | Liquid |
| Transmission | Continuously Variable Transmission (CVT) with clutch enclosure | |||
|---|---|---|---|---|
| Final drive | Park, high, low, neutral, reverse transaxle | |||
| Four wheel drive | Dash switch actuated four-wheel drive system | |||
| Traction assist | Limited slip front differential, Positive locking, switch actuated rear differential lock | |||
| Descent control | Yes |
| Front | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel | |||
|---|---|---|---|---|
| Rear | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel |
| Type | Front/rear hydraulic disc with twin piston front calipers | |||
|---|---|---|---|---|
| Park brake | Park in-transmission, Optional factory-installed secondary foot operated with hand release |
| Front | 27x9-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on steel or alloy wheels 27x9-R14 Predator Heavy-Duty all-terrain radials on steel or alloy wheels |
|||
|---|---|---|---|---|
| Rear | 27x11-R14 Maxxis Bighorn 2.0 extreme terrain radials on steel or alloy wheels 27x11-R14 Predator Heavy-Duty all-terrain radials on steel or alloy wheels |
| Wheelbase | 2146 mm 84.5 in. |
|||
|---|---|---|---|---|
| Weight | With fuel and fluids: 868 kg 1913 lb |
|||
| Length | 3228 mm 127 in. |
|||
| Width | 1618 mm 63.7 in. |
|||
| Height | 1981 mm 78.0 in. With roof: 1987 mm 78.2 in. |
|||
| Tread centers | Front: 1341 mm 52.8 in. Rear: 1259 mm 49.6 in. |
|||
| Ground clearance | 284 mm 11.2 in. |
|||
| Fuel capacity | 42.4 L 11.2 U.S. gal. |
|||
| Cargo box dimensions | 1143 x 305 x 1320 mm 45 x 12 x 52 in. |
|||
| Cargo box capacity (weight) | 454 kg 1000 lb |
|||
| Payload capacity | 677 kg 1493 lb |
|||
| Towing capacity | Up to 1814 kg 4000 lb |
|||
| Hitch | Standard receiver: 5.1 cm 2 in. |
| Color | Green and yellow, TrueTimber® KANATI® camo, olive and black | |||
|---|---|---|---|---|
| Power steering | Yes | |||
| Battery / Alternator / Power port | Battery: 12 V 480 CCA Alternator: 85 amp DC outlet: 12 V |
|||
| Instrumentation | Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light) | |||
| Storage | Total: 97.8 L 25.8 gal. Four cup holders: 1.3 L 0.3 gal. Center tray: 1.2 L 0.3 gal. Three dash bins: 5.0 L 1.3 gal. Storage pocket: 1.4 L 0.4 gal. Glove box: 3.8 L 1.0 gal. Under seat: 55.3 L 14.6 gal. Optional under hood: 30.0 L 7.9 gal. |
|||
| Seating | Black vinyl 40/60 split three-passenger bench |
| Country of Manufacture | U.S. | |||
|---|---|---|---|---|
| Date collected | 8-Jun-22 |
