You will feel confident and comfortable, even on tough terrain, with a full-size Gator™ Utility Vehicle. You will feel stable with a low center of gravity and a wide stance. Engine braking and four-wheel hydraulic disc brakes keep you in control on steep descents, even when fully loaded. The power steering on M- and R-Trim vehicles, is smooth and responsive.
Dash mounted four-wheel drive and rear differential lock switches
With standard four-wheel drive and rear differential lock, both instantly available with the flip of a switch, you can get where you are going.
Rear suspension and ground clearance
The independent suspension provides a smooth ride as 203 mm (8 in.) of front suspension travel and 229 mm (9 in.) of rear suspension travel cushions bumps and glides over ruts. And clearing rocks and roots is no problem with up to 305 mm (12 inches) of ground clearance.
Terra Hawk all-terrain tire
Maxxis® Bighorn® 2.0 extreme terrain radial tire
Predator Heavy-Duty all-terrain radial tire
Full-Size Gator Utility Vehicles are available with three tire options:
Maxxis® Bighorn® is registered trademark of Cheng Shin Rubber Ind. Co., Ltd.
Full-size Gator™ XUVs are built to work hard and go the extra mile.
Underside view of XUV 845M
Underside view of XUV825M S4
The hefty frame is designed to stand-up to all the bumps and bends of the trail, and the standard full-underbody skid plate protects key components from damage.
Constant velocity boot protection
Constant velocity joints are enclosed to keep water and dirt out. A protector shield protects the boot from trail debris.
XUV 845R with optional premium protection package
The hood and side panels are made of automotive-grade materials that resist scratches and dents, and the cargo box is made of tough composite material that resists dents and rust. Optional protection packages look tough and provide even more protection.
TrueTimber® is a trademark of True Timber Outdoors Holding Company, LLC.
Instrument display, shift lever, and switches (shown on XUV 845R)
When you sit behind the wheel of a full-size Gator™ Utility Vehicle, you will be reminded of your favorite pick-up truck. There are controls at your fingertips, an easy-to-read instrument panel, and outlets to recharge your phone. Comfort and convenience packages include cargo box power lift, dual-beam LED headlights, turn signals, even a winch.
Shift from park and into gear with a throw of a single lever. Power steering on M- and R- trim vehicles is smooth and responsive.
When the going gets tough, you can instantly engage four-wheel drive and rear differential lock with switches. Even at night, the backlit switches are easy to see. If a front wheel starts to slip, the front differential automatically locks to pull you through.
When you hop into the seat of a full-size Gator™ Utility Vehicle, you will notice there’s seating for you, plus two.
40/60 split three-passenger bench seat (shown on XUV 845R)
Operator platform
The adjustable operator’s seat and tilt steering lets drivers of all sizes get comfortable, and the passenger grab handles help everyone feel secure. The low step height and generous opening between seat base and fender is even designed to accommodate bulky work boots.
HVAC controls (shown on XUV 845R)
Partially-open door windows and fully-open windshield
On cab vehicles, you will enjoy standard heating and air-conditioning that will keep you comfortable in every season, and the tight-closing doors help seal out dust and reduce noise. When you want to let in the breeze, you can also roll down the windows and open the front windshield.
Stone colored dash with sport steering wheel
Headliner, sun visors, rearview mirror, and dome light
R-trim vehicles have an upgraded stone-colored cab interior with headliner and rear panel to reduce noise. Standard dual-beam LED headlights, sun visor, dome light, rearview mirror, and sport steering wheel round out the package.
R-Trim two-tone vinyl seat
Genuine leather Signature Edition seat
R-trim vehicles seats are covered with marine-grade vinyl or genuine leather that are both durable and easy to clean.
Boundary mapping
Spraying
Precision ag technologies have changed the way we farm, and John Deere has been at the forefront of that change. Adding the GreenStar™ ready or AutoTrac™ ready option to a Gator Utility Vehicle brings precision ag technology to farms of all sizes.
G5 Universal Display and pivoting bracket with power switch
StarFire™ receiver mount
The GreenStar ready option provides a basic precision ag technology solution enabling you to utilize the vehicle’s fast speed, light weight, and nimbleness to establish boundary lines, even when the soil is too wet for larger equipment.
The GreenStar ready option code includes factory-installed components:
A StarFire receiver and universal display are required and can be installed year-round or shared with another piece of equipment.
The GreenStar ready option also requires a JDLink™ modem to connect your utility vehicle to the John Deere Operations Center:
G5 Universal Display with AutoTrac ready switches
ISO implement connector
Bring another level of productivity to your farm by adding an AutoTrac assisted steering system to your Gator Utility Vehicle. In addition to the benefits of the GreenStar ready, the AutoTrac ready option enables hands-free steering and includes an ISO implement connector.
Stop waiting for the perfect day to spray
Improve soil mapping
Checkout your boundaries to reduce planting hassles
Enhance your basic AutoTrac assisted steering system with AutoPath. AutoPath transforms farming operations by providing precise, automated guidance for the entire field, regardless of the season or crop type. With AutoPath, you can expect improved productivity, higher yields, and overall greater operational efficiency.
AutoPath plans can be generated in one of two ways:
Gator utility vehicles can use AutoPath (rows) to steer themselves accurately between planted crop rows, preventing crop damage. This enables the driver to work quicker and more efficiently while concentrating on field tasks such as spot spraying, crop, rock, or pest scouting, even before emergence.
Utilize a Gator Utility Vehicle’s fast speed, light weight, and agility to drive around and map the perimeter of your fields. This can be done in conjunction with a StarFire Receiver and Gen 4 or G5 display. These accurate and robust boundaries can support AutoPath (boundaries) plans and autonomy in the future. Once the field boundary is established and an AutoPath plan is created with reference to the boundary using the Operations Center or within the display, Gators can efficiently navigate the entire field, reaping the same benefits mentioned earlier.

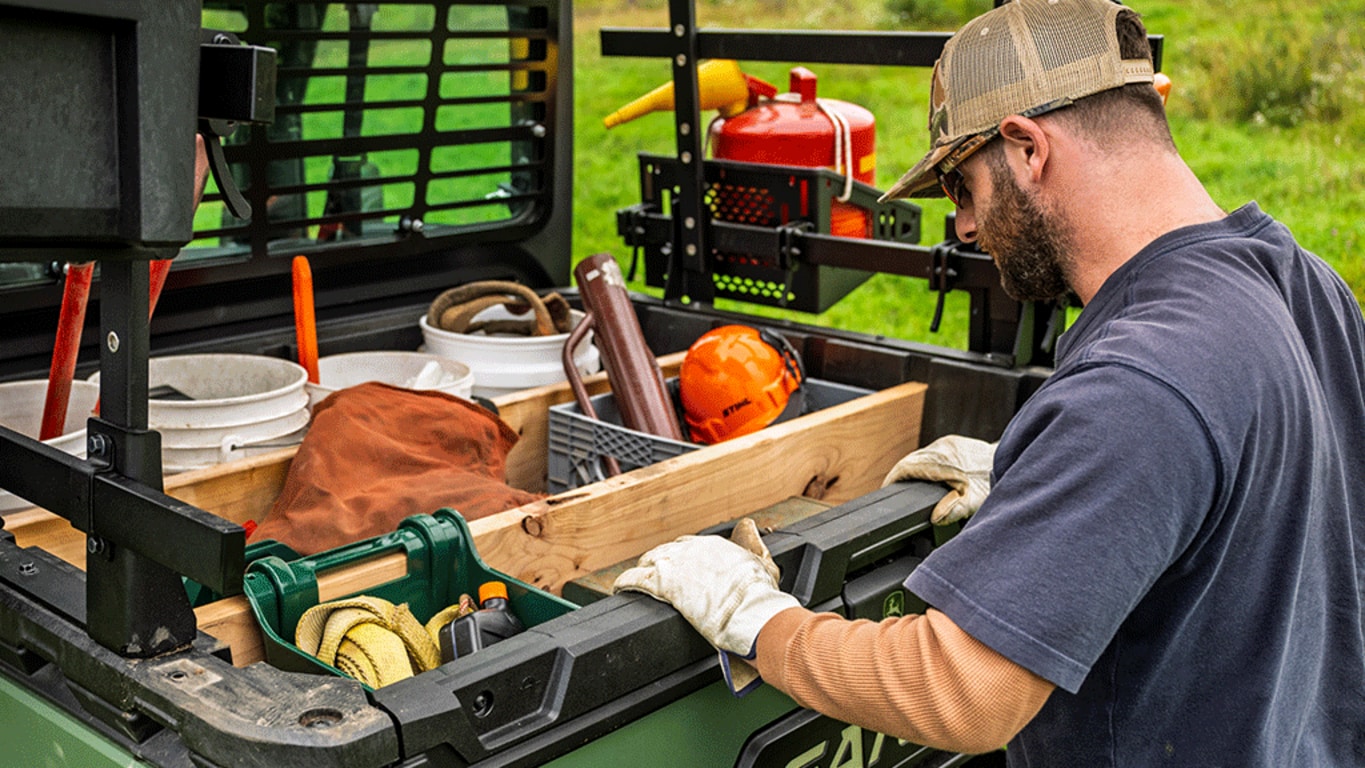

The large cargo box on full-size Gator XUVs has a 454 kg (1000 lb) capacity so you can bring your gear, tools, and haul materials with confidence. You can also make fewer trips with 1814 kg (4000 lb) of towing capacity and a standard 51-mm (2-in.) receiver hitch.
Cargo box shown with premium protection package
Cargo box with cargo
The cargo box resists dents, scratches, and rust because it is made from a tough composite material and can haul 524-L (18.5-cu ft) of your gear and material. Five D-ring tie down points and rails can be used to secure your load.
Cargo box with 2x6 dividers
Cargo box utilizing the second level of storage
Molding the cargo box allows for built-in features that enable the box to be quickly reconfigured for the unique needs of every job. You can use standard 5-cm (2-in.) dimensional lumber to hold cargo in place or divide cargo box into separate areas. You can add a second level of storage space by leveraging the tiered storage lip. Stake pocket clamps allows for quick and toolless attachment installation and removal. On M-trim and R-trim vehicles, a 12-V power port is available to power attachments.
A pipe clamped to V-channel
Pocket with hardware and cupholder
The tailgate includes a flat work surface, ruler, and pockets to place hardware. A v-channel and four reinforced clamping pockets work together to securely hold round objects. Bump stops provide raised edges position your square edged objects.
Since your hands are always full, the tailgate can be opened and closed with one hand. You can also lower the tailgate to carry longer items or remove it for easy cleanout.
Cargo box unloading gravel
Power lift switch
To save your back, the optional cargo box power lift empties heavy loads with the push of a button.
*Class is defined as a full-size heavy-duty crossover UTV with less than 100-in. wheelbase which is powered by a 750 to 900cc gasoline engine. Comparisons were made by calculating volume using published cargo box dimensions.
812-cc (49.6-cu in.) gasoline engine and drivetrain
The XUV 845 and XUV825M S4 Gator™ Utility Vehicles are powered by an electronic fuel injection (EFI) gasoline engine with liquid-cooled, dual-overhead cams. This engine is designed to provide maximum power and fuel efficiency to muscle through tough jobs.
It also has plenty of torque in low range, and fast speeds in high range. The enclosed drivetrain automatically adjusts for fast acceleration, along with powerful hauling and hill-climbing capabilities.
One-row full-size Gator XUVs come packed with places to store tools, gear, and beverages.
Four cup holders and center tray (shown on XUV835E)
Cab door cup holder and pocket
The dash has four cup holders, and cab vehicles have a cup holder in each door.
Under seat storage (shown on XUV 845R)
Glove box, storage pocket, and dash bins (shown on XUV 845M)
The vehicles also feature an enclosed glove box, center tray, dash storage pocket and under-seat storage. Depending on the configuration, vehicles may have up to three additional dash bins and under-hood storage.
Green and yellow XUV 845R

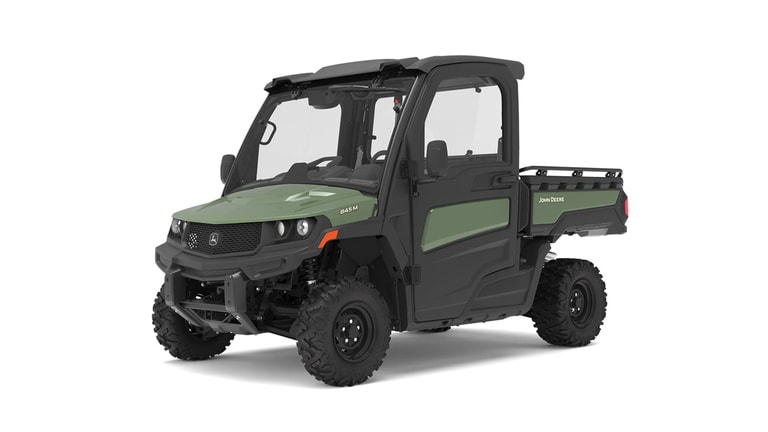

Olive and black XUV 845R

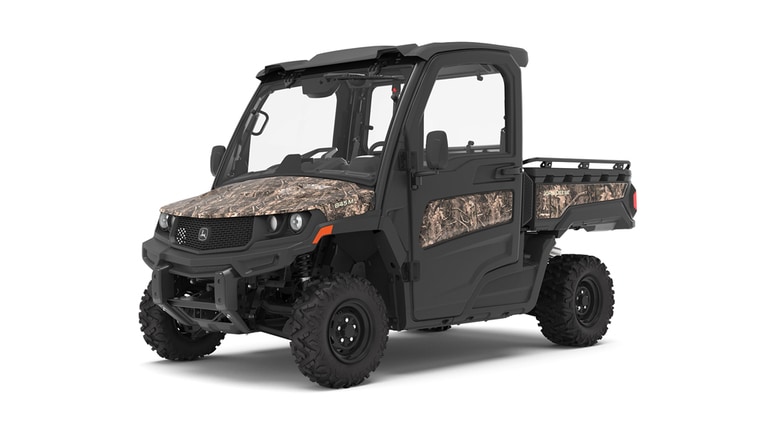

TrueTimber® KANATI camo XUV 845R
You will get noticed with the distinctive styling of full-size Gator™ XUVs. Available in three colors, with various protection packages, and more than 100 attachments, you can create a custom look that will turn heads.
TrueTimber is a trademark of True Timber Outdoors Holding Company, LLC.
Large fuel tank fill opening
Full-size Gator™ XUVs have a large 42.8-L (11.3-gal.) fuel tank so you go further between fill ups. A 76-mm (3-in.) diameter fill opening reduce spills.
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere XUV 845M HVAC Cab Crossover Utility Vehicle |
| Engine power | 39.5 kW 53 hp |
|||
|---|---|---|---|---|
| Cargo box dimensions | 1099 x 343 x 1392 mm 43.3 x 13.5 x 54.8 in. |
|||
| Cargo box volume | 524 L 18.5 cu ft |
|||
| Cargo box capacity (weight) | 454 kg 1000 lb |
|||
| Towing capacity | Up to 1814 kg 4000 lb |
|||
| Front suspension | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel | |||
| Rear suspension | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel | |||
| Final drive | Park, high, low, neutral, reverse transaxle | |||
| Four wheel drive | Dash switch actuated four-wheel drive system | |||
| Fuel capacity | 42.4 L 11.2 U.S. gal. |
| Type | 4-cycle gas, electronic fuel injection (EFI) | |||
|---|---|---|---|---|
| Displacement | 812 cc | |||
| Power | 39.5 kW 53 hp |
|||
| Cooling system | Liquid |
| Transmission | Continuously Variable Transmission (CVT) with clutch enclosure | |||
|---|---|---|---|---|
| Final drive | Park, high, low, neutral, reverse transaxle | |||
| Four wheel drive | Dash switch actuated four-wheel drive system | |||
| Traction assist | Limited slip front differential, Positive locking, switch actuated rear differential lock | |||
| Descent control | Yes |
| Front | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel | |||
|---|---|---|---|---|
| Rear | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel |
| Type | Front/rear hydraulic disc with twin piston front calipers | |||
|---|---|---|---|---|
| Park brake | Park in-transmission, Optional factory-installed secondary foot operated with hand release |
| Front | 27x9-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on steel or alloy wheels 27x9-R14 Predator Heavy-Duty all-terrain radials on steel or alloy wheels |
|||
|---|---|---|---|---|
| Rear | 27x11-R14 Maxxis Bighorn 2.0 extreme terrain radials on steel or alloy wheels 27x11-R14 Predator Heavy-Duty all-terrain radials on steel or alloy wheels |
| Wheelbase | 2211 mm 87 in. |
|||
|---|---|---|---|---|
| Weight | With fuel and fluids: 1075 kg 2371 lb |
|||
| Length | 3250 mm 128 in. |
|||
| Width | Mirrors folded: 1790 mm 70.5 in. |
|||
| Height | 2030 mm 79.9 in. |
|||
| Tread centers | Front: 1376 mm 54.2 in. Rear: 1300 mm 51.2 in. |
|||
| Ground clearance | Unloaded: 305 mm 12 in. |
|||
| Fuel capacity | 42.4 L 11.2 U.S. gal. |
|||
| Cargo box dimensions | 1099 x 343 x 1392 mm 43.3 x 13.5 x 54.8 in. |
|||
| Cargo box volume | 524 L 18.5 cu ft |
|||
| Cargo box capacity (weight) | 454 kg 1000 lb |
|||
| Payload capacity | 467 kg 1030 lb |
|||
| Towing capacity | Up to 1814 kg 4000 lb |
|||
| Hitch | Standard receiver: 5.1 cm 2 in. |
| Color | Green and yellow, TrueTimber® KANATI® camo, olive and black | |||
|---|---|---|---|---|
| Power steering | Yes | |||
| Battery / Alternator / Power port | Battery: 12 V 480 CCA Alternator: 85 amp DC outlet: 12 V Cargo box power port: 12 V |
|||
| Instrumentation | Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light) | |||
| Storage | Total: 69.5 L 18.4 gal. Six cup holders: 4.6 L 1.2 gal. Center tray: 1.2 L 0.3 gal. Two dash bins: 3.3 L 0.9 gal. Storage pocket: 1.4 L 0.4 gal. Glove box: 3.8 L 1.0 gal. Under seat: 55.3 L 14.6 gal. |
|||
| Seating | Black vinyl 40/60 split three-passenger bench |
| Country of Manufacture | U.S. | |||
|---|---|---|---|---|
| Date collected | 11-Jun-24 |
