Find out what makes the Signature Edition XUV835R the ultimate standard in comfort and convenience.
Select An Image Below To Learn More
Touchscreen Infotainment Center
Professionally Tuned Sound System
Easy-To-Clean Leather Seats
Rear-Sliding Window
Versatile Bumper Pro Brush Guard
The Signature Edition Gator Utility Vehicles leverage technology to deliver a distinctive experience. Features include:

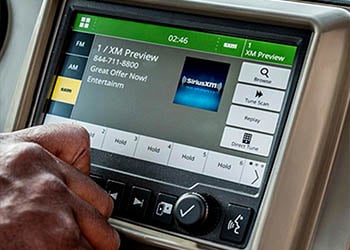

Automotive grade touchscreen entertainment system
Rear facing camera view
Signature Edition’s standard 16.3-cm (6.4-in.) touchscreen infotainment system delivers seven speakers, rear-facing camera, Bluetooth® wireless connectivity, AM/FM, and SiriusXM® satellite radio. The infotainment system is designed for use during operation and while parked.
The touchscreen infotainment system is compatible with Apple CarPlay and Android Auto. CarPlay allows iPhone users to place hands-free phone calls, send messages, check the weather, and access Apple Music and Maps through the infotainment system touchscreen or with their voice through Siri. Android Auto enables Android smartphone users to place hands-free phone calls, send messages, check the weather, play music, and get driving directions. An operator can also control the apps on the infotainment system using Google Assistant voice controls.
When using CarPlay or Android Auto, the touchscreen and voice control user experiences are provided by the iPhone or Android smartphone app software. Screen layouts, icons, menu structures, and voice commands are designed to be familiar to the iPhone or Android smartphone user. To use CarPlay or Android Auto, the iPhone or Android smartphone must be connected using an USB cable. A Bluetooth® wireless connection provides basic smartphone functions using infotainment system’s software.
Background noise may limit the usability of voice controls while the vehicle is being operated. The iPhone or Android smartphone app software must also be compatible with CarPlay or Android Auto.

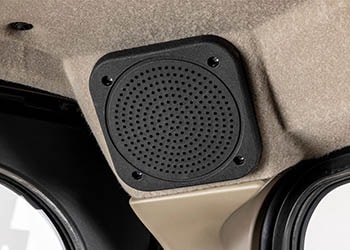

Seven-speaker infotainment system professionally tuned by Harman:
Rear-facing camera:
Sirius XM satellite radio:
USB ports:
Auxiliary port:

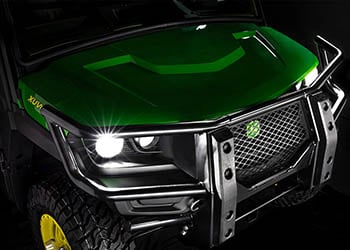

Bumper Pro Brush Guard
Rear fender guard, and fender flare
Signature Edition vehicles include components to protect the vehicle:
Genuine leather 40/60 split three-passenger bench seat
Signature Edition vehicles feature a genuine leather bench seat that is durable and comfortable. An embroidered John Deere logo adds to the distinctiveness of a Signature Edition vehicle.

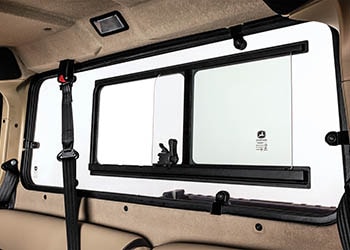

Rear sliding window
Signature Edition vehicles include a rear-sliding window that can provide access to the cargo box and provide additional ventilation.
Leather-wrapped grab handle
Signature Edition vehicles include a leather-wrapped grab handle. The stitching is eye catching, and a foam base layer gives a soft feel.
Signature Edition badge on dash
Upgraded Gator and Signature Edition badges on tailgate
Signature Edition vehicles include badges on the dash and tailgate to designate their exclusivity. The tailgate’s Gator badge is also upgraded to complement the Signature Edition badge.
Front roof-mounted LED driving lights
Signature Edition vehicles include factory-installed LED driving lights mounted to the front of the cab roof. The LED lights have a driving-focused beam pattern to illuminate directly in front of the vehicle.
Ultimate dash in stone with sport steering wheel
Headliner, visors, rearview mirror, and dome light
A-post cover
B-post cover
Rear panel cover
Signature Edition vehicles include all the R-trim cab features including:
You will feel confident and comfortable, even on tough terrain, with a full-size Gator™ Utility Vehicle. You will feel stable with a low center of gravity and a wide stance. Engine braking and four-wheel hydraulic disc brakes keep you in control on steep descents, even when fully loaded. The power steering on M- and R-Trim vehicles, is smooth and responsive.
Dash mounted four-wheel drive and rear differential lock switches
With standard four-wheel drive and rear differential lock, both instantly available with the flip of a switch, you can get where you are going.
Rear suspension and ground clearance
The independent suspension provides a smooth ride as 203 mm (8 in.) of front suspension travel and 229 mm (9 in.) of rear suspension travel cushions bumps and glides over ruts. And clearing rocks and roots is no problem with 284 mm (11.2 inches) of ground clearance.
Terra Hawk all-terrain tire
Maxxis® Bighorn® 2.0 extreme terrain radial tire
Predator Heavy-Duty all-terrain radial tire
Full-Size Gator Utility Vehicles are available with three tire options:
Maxxis® Bighorn® is registered trademark of Cheng Shin Rubber Ind. Co., Ltd.
Full-size Gator™ XUVs are built to work hard and go the extra mile.
Underside view of XUV865M
Underside view of XUV825M S4
The hefty frame is designed to stand-up to all the bumps and bends of the trail, and the standard front skid plate protects key components from damage.
Constant velocity boot protection
Constant velocity joints are enclosed to keep water and dirt out. A protector shield protects the boot from trail debris.
TrueTimber® KANATI camo XUV865R with optional Premium Protection Package
The hood and side panels are made of automotive-grade materials that resist scratches and dents, and the cargo box is made of tough composite material that resists dents and rust. Optional protection packages look tough and provide even more protection.
TrueTimber® is a trademark of True Timber Outdoors Holding Company, LLC.
Instrument display, shift lever, and switches (shown on XUV835R Signature Edition)
When you sit behind the wheel of a full-size Gator™ Utility Vehicle, you will be reminded of your favorite pick-up truck. There are controls at your fingertips, an easy-to-read instrument panel, and outlets to recharge your phone.
Shift from park and into gear with a throw of a single lever. Power steering on M- and R- trim vehicles is smooth and responsive.
When the going gets tough, you can instantly engage four-wheel drive and rear differential lock with switches. Even at night, the backlit switches are easy to see. If a front wheel starts to slip, the front differential automatically locks to pull you through.
When you hop into the seat of a full-size Gator™ Utility Vehicle, you will notice there’s seating for you, plus two.
40/60 split three-passenger bench seat
Operator platform
The adjustable operator’s seat and tilt steering lets drivers of all sizes get comfortable, and the passenger grab handles help everyone feel secure. The low step height and generous opening between seat base and fender is even designed to accommodate bulky work boots.
HVAC controls
Partially-open door windows and fully-open windshield
On cab vehicles, you will enjoy standard heating and air-conditioning that will keep you comfortable in every season, and the tight-closing doors help seal out dust and reduce noise. When you want to let in the breeze, you can also roll down the windows and open the front windshield.
Stone colored dash with sport steering wheel
Headliner, sun visors, rearview mirror, and dome light
R-trim vehicles have an upgraded stone-colored cab interior with headliner and rear panel to reduce noise. Standard LED headlights, sun visor, dome light, rearview mirror, and sport steering wheel round out the package.
Stone cloth seat
R-trim vehicles also include a stone cloth seat that keeps cool in the hot sun and warms up quickly in the winter.
XUV835R with AutoTrac Ready option
Interior of XUV835R with Gen 4 4640 Universal Display
Precision ag technologies have changed the way we farm, and John Deere has been at the forefront of that change. Adding the AutoTrac™ assisted steering system and JDLink™ Modem options to Gator Utility Vehicles brings precision ag technology to farms of all sizes.
The AutoTrac Ready option enables hands-free steering through the field decreasing overlap and lowering input costs while reducing operator fatigue. The JDLink Modem option connects your vehicle to the John Deere Operations Center so the vehicle can be managed with the rest of your fleet.
Simplify field boundaries
Improve soil mapping
Connect your Gator Utility Vehicle to the rest of your fleet
Save time and stop waiting for the perfect day to spray
Track productivity, maintenance, and machine vitals
Share StarFire™ Receiver and Universal Display
The full-size Gator™ XUV can haul 454 kg (1000 lb), so load it up with confidence. You can also make fewer trips with 1814 kg (4000 lb) of towing capacity and a standard 51-mm (2-in.) receiver hitch.
Cargo box (shown with spray-in liner and optional taillight protectors)
Cargo box converted to flatbed
The cargo box resists dents, scratches, and rust because it is made from a tough composite material. You will have no problem securing loads with integrated tie bars and 14 tie-down points. You can also convert the cargo box to a flatbed when you need to haul big and bulky loads.
The cargo box measures 1143 mm (45 in.) long, 1320 mm (52 in.) wide, and 305 mm (12 in.) deep.
Tailgate handle
Since your hands are always full, the tailgate can be opened and closed with one hand. You can also lower the tailgate to carry longer items or remove it for easy cleanout.
Deluxe cargo box unloading rocks
To save your back, the optional cargo box power lift empties heavy loads with the push of a button.
854-cc (52.1-cu in.) diesel engine and drivetrain
The XUV865 and XUV825M S4 Gator™ Utility Vehicles are powered by a fuel-efficient and durable diesel engine. The enclosed drivetrain automatically adjusts for fast acceleration, along with powerful hauling and hill-climbing capabilities. With plenty of torque to get the job done, this engine will provide reliable performance for years to come.
One-row full-size Gator XUVs come packed with places to store tools, gear, and beverages.
Four cup holders and center tray (shown on XUV835E)
Cab door cup holder and pocket
The dash has four cup holders, and cab vehicles have a cup holder in each door.
Under seat storage (shown on XUV835E)
Glove box, storage pocket, and two dash bins (shown on XUV835M cab)
The vehicles also feature an enclosed glove box, center tray, dash storage pocket and under-seat storage. Depending on the configuration, vehicles may have up to three additional dash bins and under-hood storage.
Green and yellow XUV835R Signature Edition with included Ultimate Protection Package
Olive and black XUV865M with cab and optional brush guard
TrueTimber® KANATI camo XUV865R with optional Premium Protection Package
You will get noticed with the distinctive styling of full-size Gator™ XUVs. Available in three colors, with various protection packages, and more than 100 attachments, you can create a custom look that will turn heads.
TrueTimber is a trademark of True Timber Outdoors Holding Company, LLC.
Large fuel tank fill opening
Full-size Gator™ XUVs have a large 42.8-L (11.3-gal.) fuel tank so you go further between fill ups. A 76-mm (3-in.) diameter fill opening reduce spills.
| Specifications | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere XUV865R Signature Edition Crossover Utility Vehicle |
| Engine power | 17.0 kW 22.8 hp |
|||
|---|---|---|---|---|
| Cargo box dimensions | 1143 x 305 x 1320 mm 45 x 12 x 52 in. |
|||
| Cargo box capacity (weight) | 454 kg 1000 lb |
|||
| Towing capacity | Up to 1814 kg 4000 lb |
|||
| Front suspension | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel | |||
| Rear suspension | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel | |||
| Final drive | Park, high, low, neutral, reverse transaxle | |||
| Four wheel drive | Dash switch actuated four-wheel drive system | |||
| Fuel capacity | 42.4 L 11.2 U.S. gal. |
| Type | 4-cycle diesel | |||
|---|---|---|---|---|
| Displacement | 854 cc | |||
| Power | 17.0 kW 22.8 hp |
|||
| Cooling system | Liquid |
| Transmission | Continuously Variable Transmission (CVT) with clutch enclosure | |||
|---|---|---|---|---|
| Final drive | Park, high, low, neutral, reverse transaxle | |||
| Four wheel drive | Dash switch actuated four-wheel drive system | |||
| Traction assist | Limited slip front differential, Positive locking, switch actuated rear differential lock | |||
| Descent control | Yes |
| Front | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel | |||
|---|---|---|---|---|
| Rear | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel |
| Type | Front/rear hydraulic disc with twin piston front calipers | |||
|---|---|---|---|---|
| Park brake | Park in-transmission, Optional factory-installed secondary foot operated with hand release |
| Front | 27x9-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on alloy wheels 27x9-R14 Predator Heavy-Duty all-terrain radials on alloy wheels |
|||
|---|---|---|---|---|
| Rear | 27x11-R14 Maxxis Bighorn 2.0 extreme terrain radials on alloy wheels 27x11-R14 Predator Heavy-Duty all-terrain radials on alloy wheels |
| Wheelbase | 2146 mm 84.5 in. |
|||
|---|---|---|---|---|
| Weight | With fuel and fluids: 1150 kg 2535 lb |
|||
| Length | 3356 mm 132 in. |
|||
| Width | 1763 mm 69.4 in. |
|||
| Height | With antenna: 2215 mm 87.2 in. Antenna removed: 2038 mm 80.2 in. |
|||
| Tread centers | Front: 1341 mm 52.8 in. Rear: 1259 mm 49.6 in. |
|||
| Ground clearance | 284 mm 11.2 in. |
|||
| Fuel capacity | 42.4 L 11.2 U.S. gal. |
|||
| Cargo box dimensions | 1143 x 305 x 1320 mm 45 x 12 x 52 in. |
|||
| Cargo box capacity (weight) | 454 kg 1000 lb |
|||
| Payload capacity | 395 kg 871 lb |
|||
| Towing capacity | Up to 1814 kg 4000 lb |
|||
| Hitch | Standard receiver: 5.1 cm 2 in. |
| Color | Green and yellow | |||
|---|---|---|---|---|
| Power steering | Yes | |||
| Battery / Alternator / Power port | Battery: 12 V 480 CCA Alternator: 85 amp DC outlet: 12 V |
|||
| Instrumentation | Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light) 16.3 cm (6.4-in.) touchscreen infotainment system with seven speakers, rear-facing camera, Android™ Auto, Bluetooth® connectivity, AM/FM/SiriusXM® Satellite bands |
|||
| Storage | Total: 47.3 L 12.5 gal. Six cup holders: 4.6 L 1.2 gal. Center tray: 1.2 L 0.3 gal. Storage pocket: 1.4 L 0.4 gal. Glove box: 3.8 L 1.0 gal. Under seat: 36.4 L 9.6 gal. |
|||
| Seating | Genuine leather 40/60 split three-passenger bench |
| Country of Manufacture | U.S. | |||
|---|---|---|---|---|
| Date collected | 8-Jun-22 |
