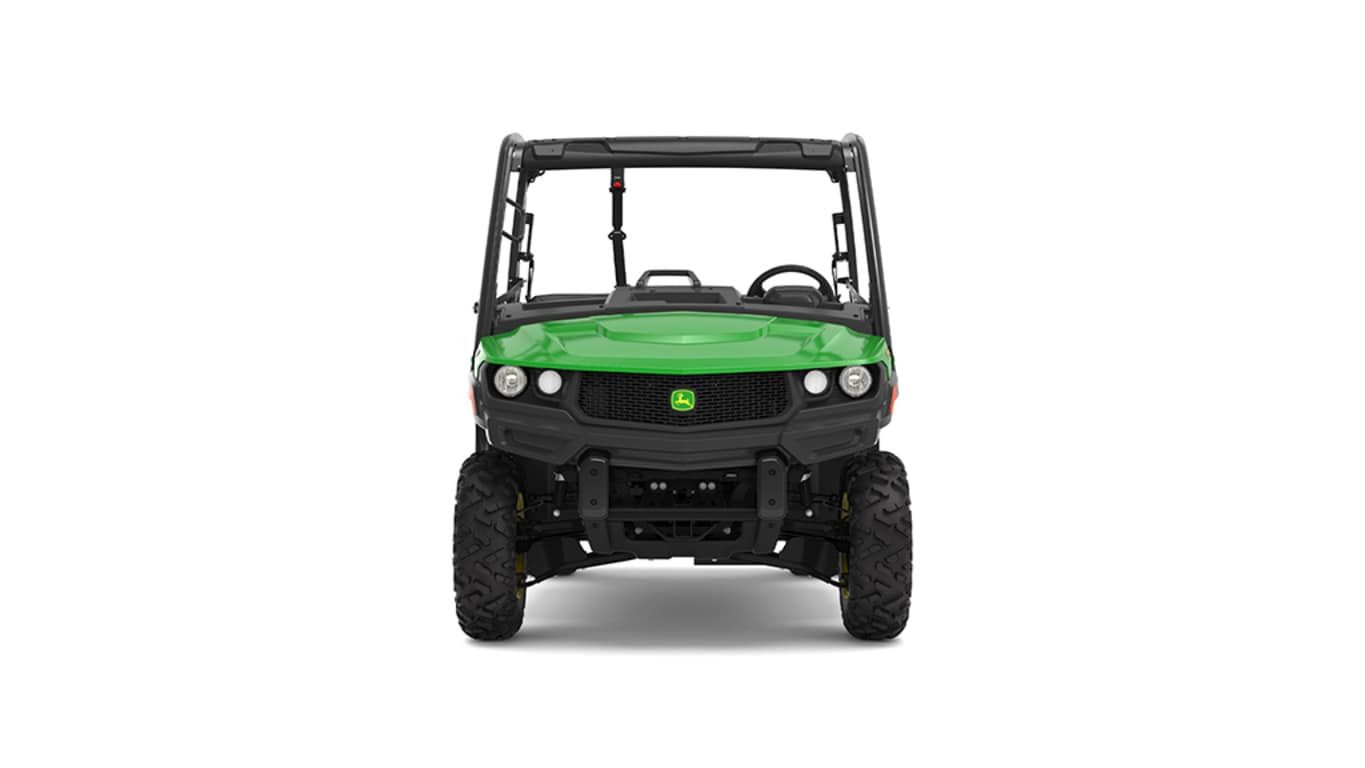

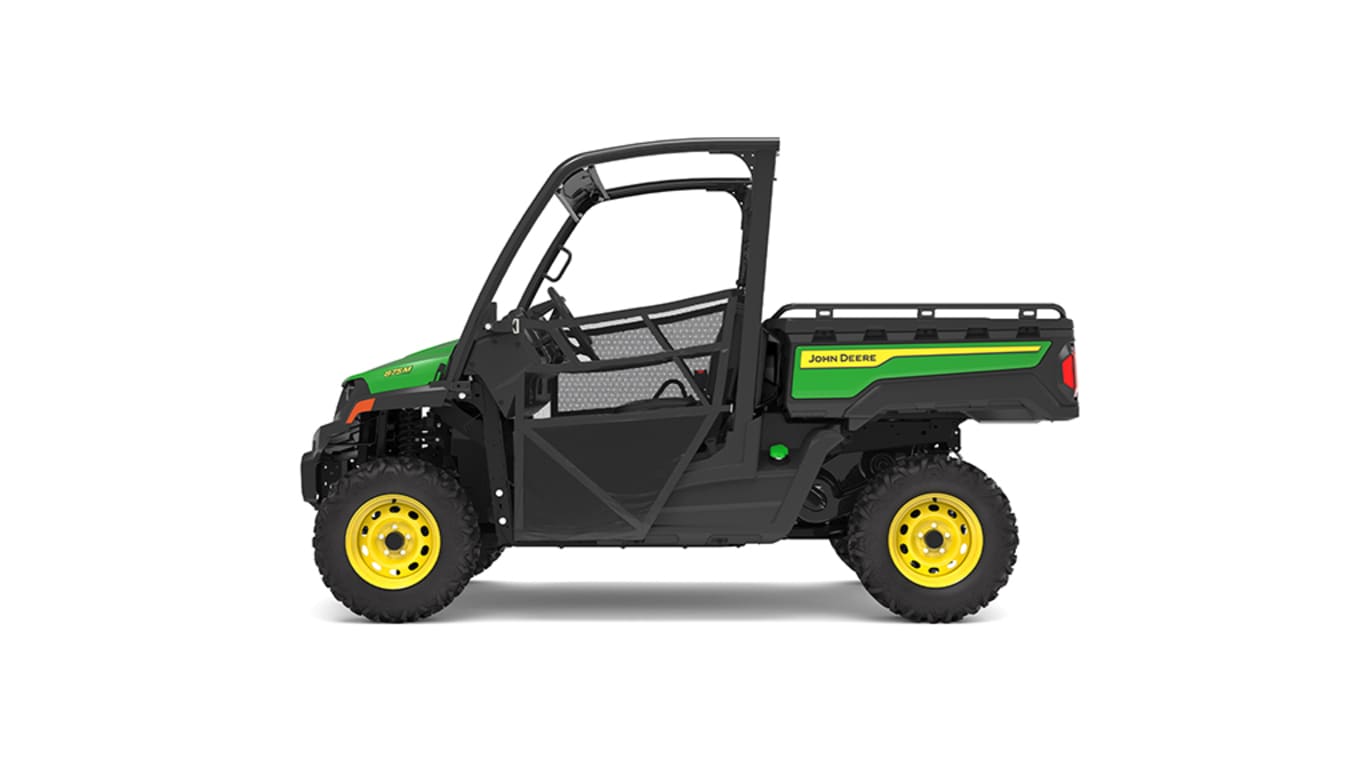

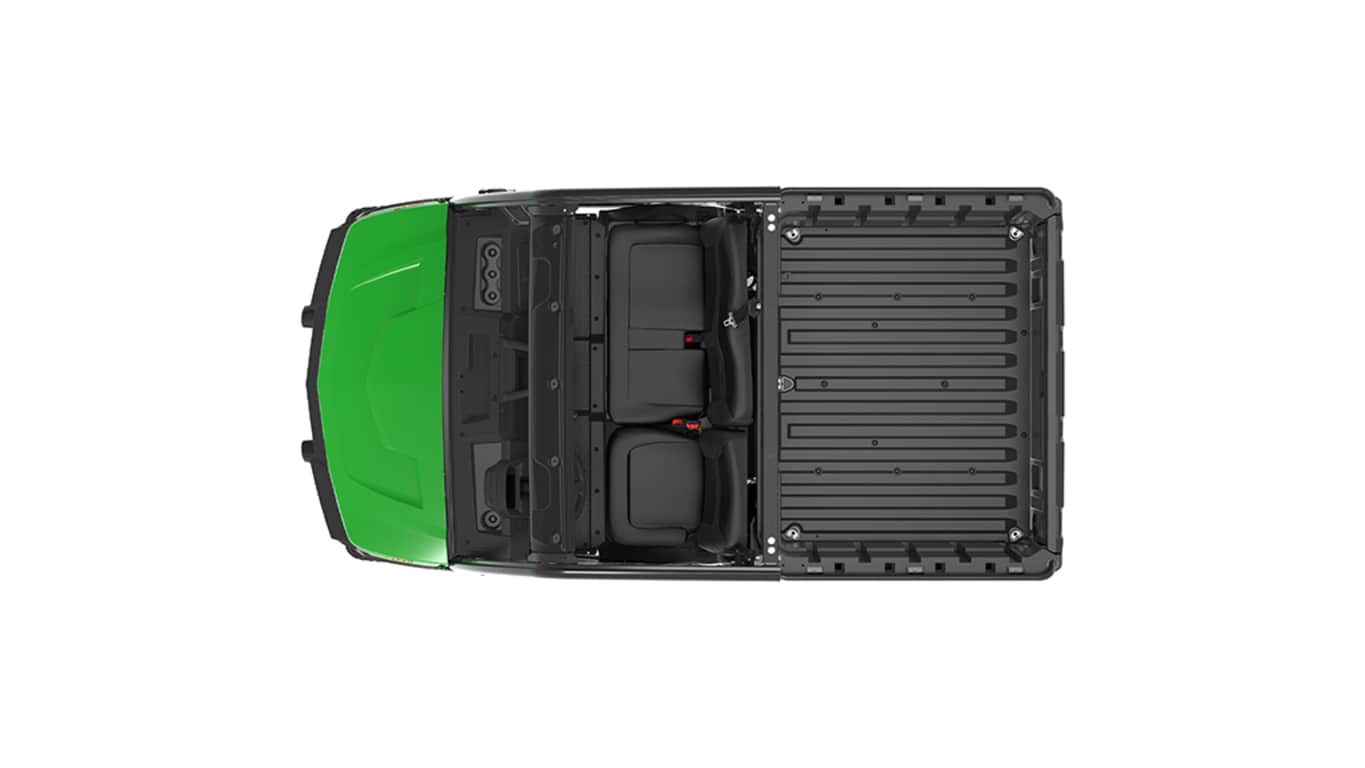

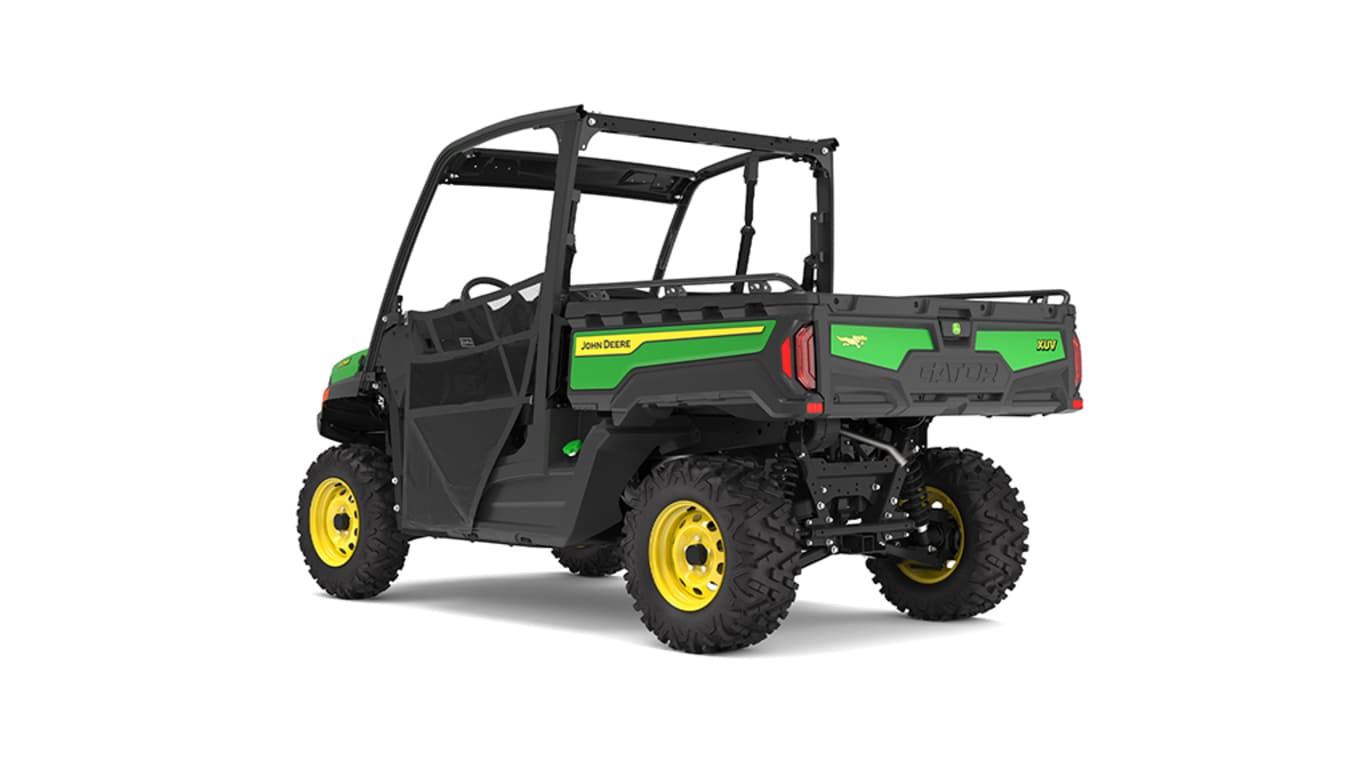

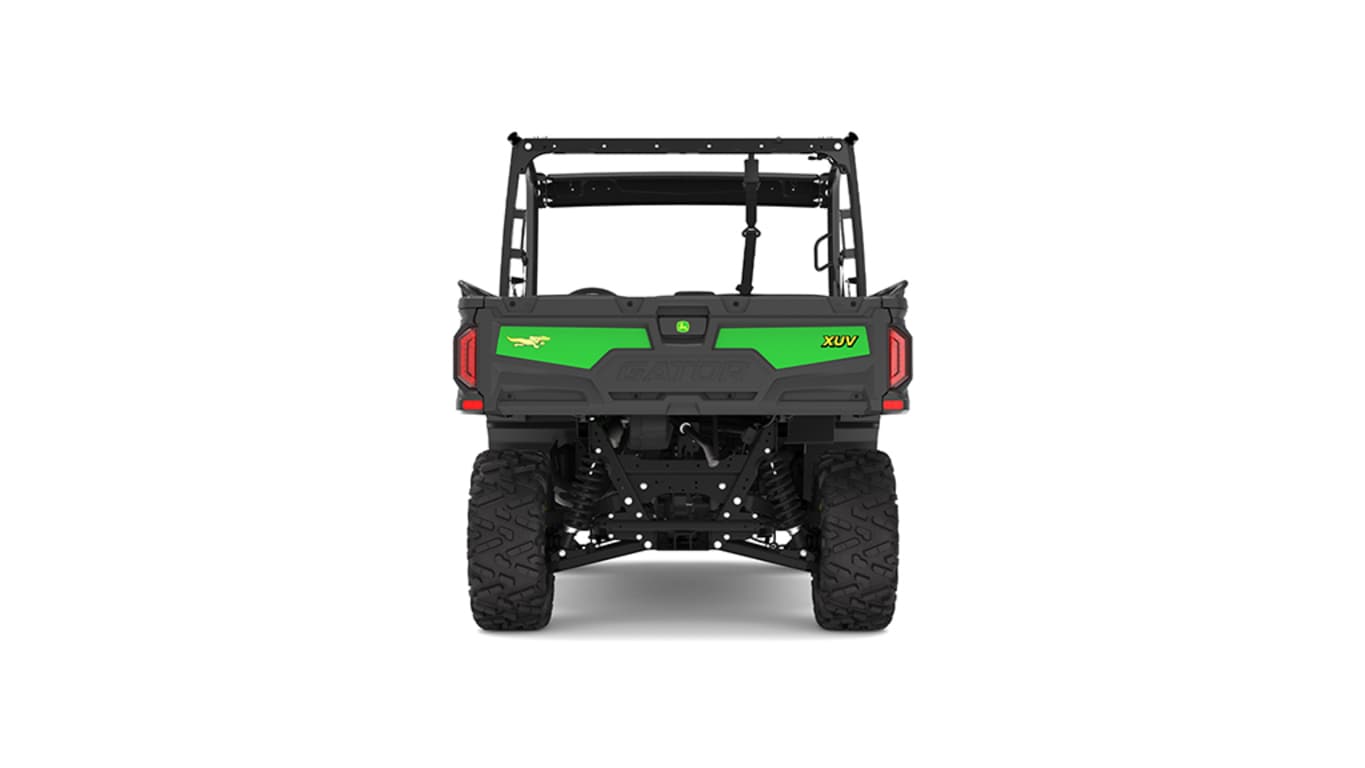

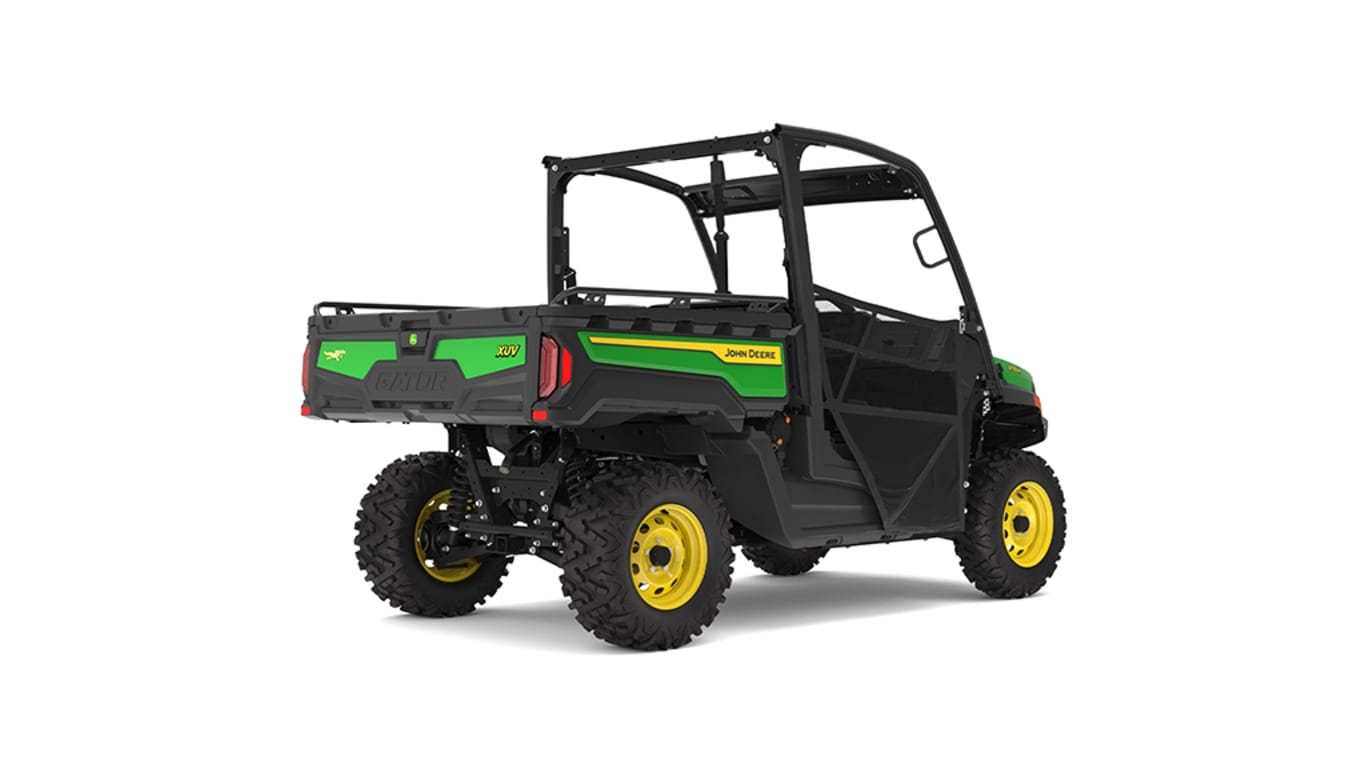

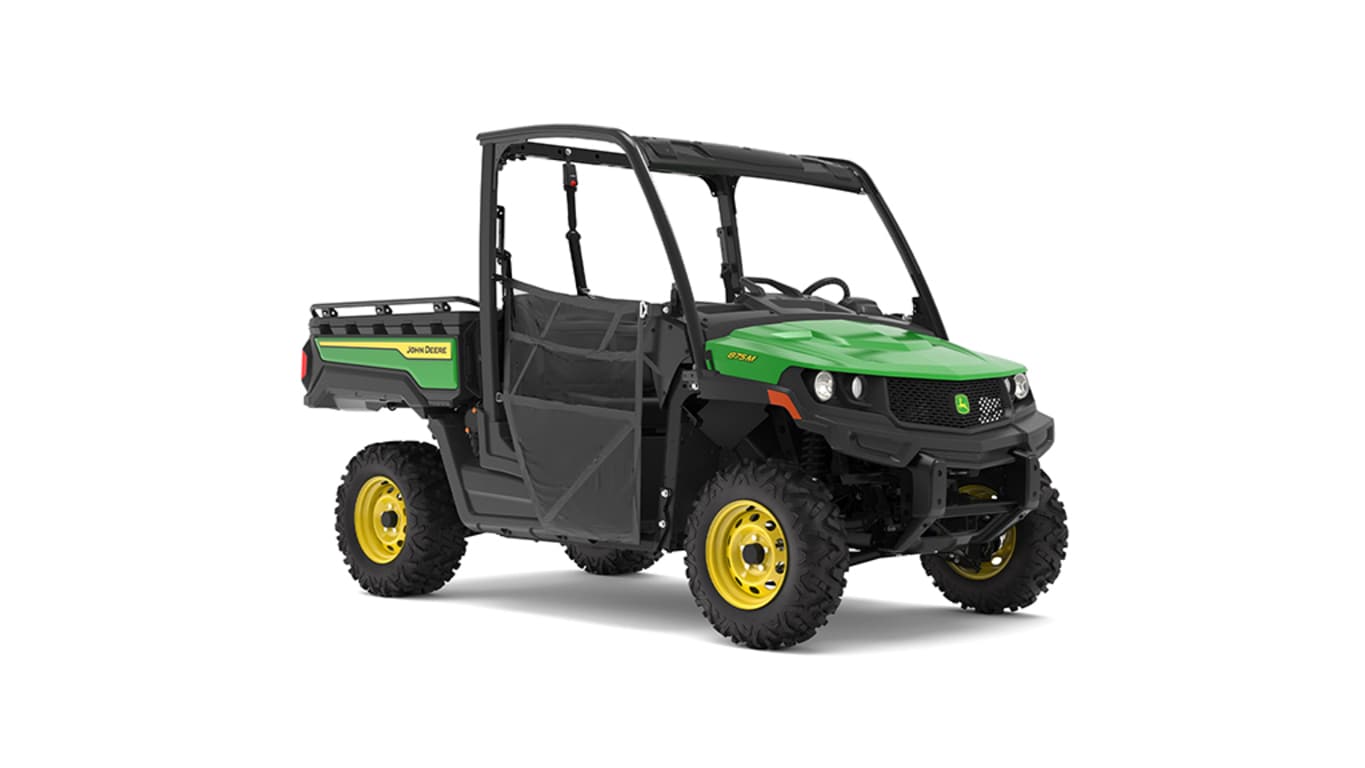

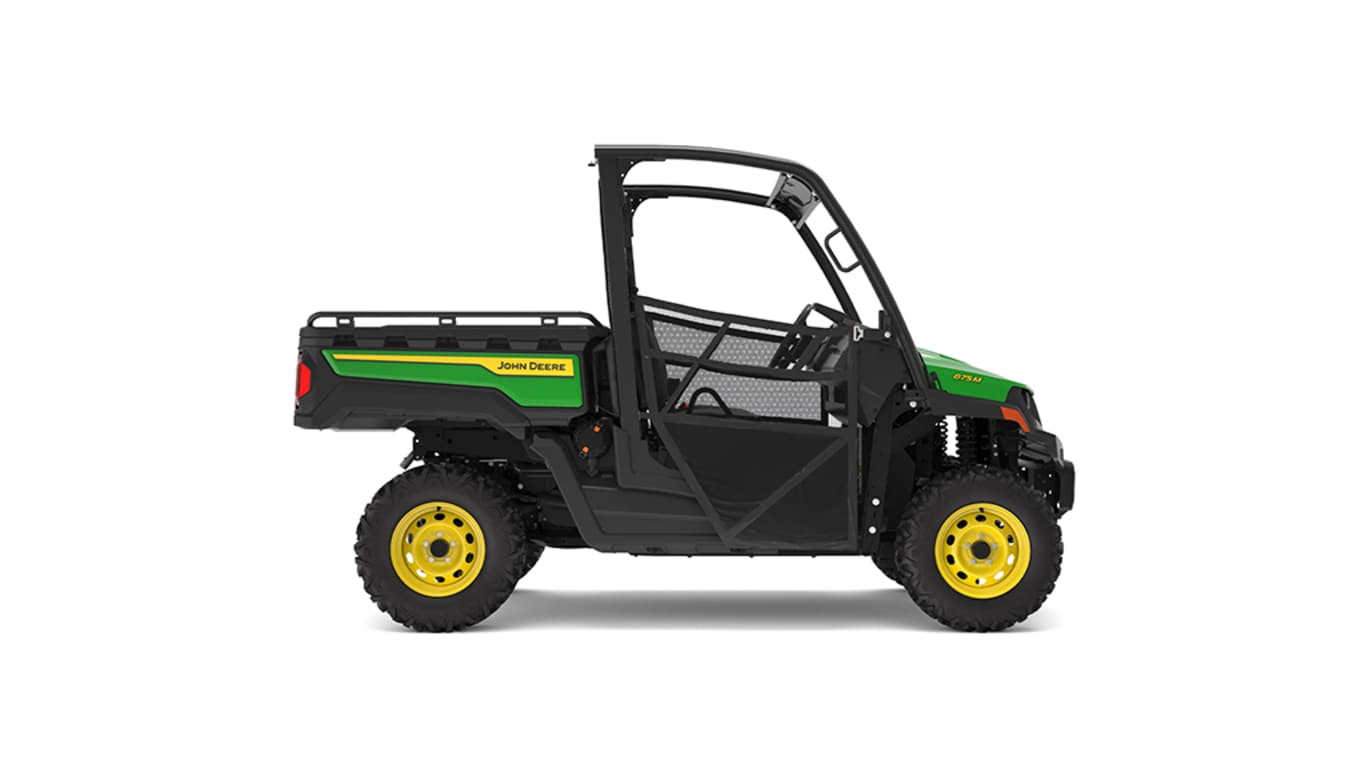

XUV 875M DieselCrossover Utility Vehicle
- Powerful diesel engine with up to 4,000-lb (1814 kg) towing capacity
- Power steering
- Class-leading cargo box volume1
- Maxxis® Bighorn® 2.0 Extreme Terrain Radial Tires with steel wheels2
Features
Expand All
Collapse All
Dash mounted four-wheel drive and rear differential lock switches
Rear suspension and ground clearance
Terra Hawk all-terrain tire
Maxxis® Bighorn® 2.0 extreme terrain radial tire
Predator Heavy-Duty all-terrain radial tire
Underside view of XUV865M
Underside view of XUV825M S4
Constant velocity boot protection
XUV 845R with optional premium protection package
Instrument display, shift lever, and switches (shown on XUV 845R)
40/60 split three-passenger bench seat (shown on XUV 845R)
Operator platform
XUV 845M with optional half doors, roof, windshield, and rear screen
XUV 845M with optional cab doors with roll down windows, roof, windshield, and rear panel
Cargo box shown with premium protection package
Cargo box with cargo
Cargo box with 2x6 dividers
Cargo box utilizing the second level of storage
A pipe clamped to V-channel
Pocket with hardware and cupholder
Cargo box unloading gravel
Power lift switch
854-cc (52.1-cu in.) diesel engine and drivetrain
Four cup holders and center tray (shown on XUV835E)
Cab door cup holder and pocket
Under seat storage (shown on XUV 845R)
Glove box, storage pocket, and dash bins (shown on XUV 845M)
Green and yellow XUV 845R
Olive and black XUV 845R
TrueTimber® KANATI camo XUV 845R
Large fuel tank fill opening
Conquer tough terrain with confidence
You will feel confident and comfortable, even on tough terrain, with a full-size Gator™ Utility Vehicle. You will feel stable with a low center of gravity and a wide stance. Engine braking and four-wheel hydraulic disc brakes keep you in control on steep descents, even when fully loaded. The power steering on M- and R-Trim vehicles, is smooth and responsive.
Standard four-wheel drive with rear differential lock
Dash mounted four-wheel drive and rear differential lock switches
With standard four-wheel drive and rear differential lock, both instantly available with the flip of a switch, you can get where you are going.
Dual A-arm front and rear independent suspension
Rear suspension and ground clearance
The independent suspension provides a smooth ride as 203 mm (8 in.) of front suspension travel and 229 mm (9 in.) of rear suspension travel cushions bumps and glides over ruts. And clearing rocks and roots is no problem with up to 305 mm (12 inches) of ground clearance.
Tires for any terrain
Terra Hawk all-terrain tire
Maxxis® Bighorn® 2.0 extreme terrain radial tire
Predator Heavy-Duty all-terrain radial tire
Full-Size Gator Utility Vehicles are available with three tire options:
- Terra Hawk all-terrain tires
- Tread pattern and wide footprint provide excellent traction with minimal impact on terrain
- Maxxis Bighorn 2.0 extreme terrain radial tires
- Radial construction provides shock absorption, allowing for a smoother ride
- Non-directional tread pattern provides predictable cornering and claws up roots and rocks
- Predator Heavy-Duty all-terrain radial tire
- Radial construction provides shock absorption, allowing for a smoother ride
- Flat profile increases footprint area, reducing ground pressure
- 8-ply rating delivers up to three times the life of Bighorn tires
Maxxis® Bighorn® is registered trademark of Cheng Shin Rubber Ind. Co., Ltd.
Built for the long haul
Full-size Gator™ XUVs are built to work hard and go the extra mile.
Heavy-duty frame
Underside view of XUV865M
Underside view of XUV825M S4
The hefty frame is designed to stand-up to all the bumps and bends of the trail, and the standard full-underbody skid plate protects key components from damage.
Constant velocity boot protection
Constant velocity boot protection
Constant velocity joints are enclosed to keep water and dirt out. A protector shield protects the boot from trail debris.
Automotive-grade panels and optional protection packages
XUV 845R with optional premium protection package
The hood and side panels are made of automotive-grade materials that resist scratches and dents, and the cargo box is made of tough composite material that resists dents and rust. Optional protection packages look tough and provide even more protection.
TrueTimber® is a trademark of True Timber Outdoors Holding Company, LLC.
Automotive-like controls
Instrument display, shift lever, and switches (shown on XUV 845R)
When you sit behind the wheel of a full-size Gator™ Utility Vehicle, you will be reminded of your favorite pick-up truck. There are controls at your fingertips, an easy-to-read instrument panel, and outlets to recharge your phone. Comfort and convenience packages include cargo box power lift, dual-beam LED headlights, turn signals, even a winch.
Shift from park and into gear with a throw of a single lever. Power steering on M- and R- trim vehicles is smooth and responsive.
When the going gets tough, you can instantly engage four-wheel drive and rear differential lock with switches. Even at night, the backlit switches are easy to see. If a front wheel starts to slip, the front differential automatically locks to pull you through.
Room for you, plus two
When you hop into the seat of a full-size Gator™ Utility Vehicle, you will notice there’s seating for you, plus two.
Three-passenger seating with room to spare
40/60 split three-passenger bench seat (shown on XUV 845R)
Operator platform
The adjustable operator’s seat and tilt steering lets drivers of all sizes get comfortable, and the passenger grab handles help everyone feel secure. The low step height and generous opening between seat base and fender is even designed to accommodate bulky work boots.
Roof, windshield, rear panel, door, and heater options
XUV 845M with optional half doors, roof, windshield, and rear screen
XUV 845M with optional cab doors with roll down windows, roof, windshield, and rear panel
Roof, windshield, rear panel, and half doors attachments keep you dry, shaded, and out of the dust. Cab doors with roll down windows and heater attachments keep you warm all winter.
Class-leading cargo box volume* configures to the needs of the job
The large cargo box on full-size Gator XUVs has a 454 kg (1000 lb) capacity so you can bring your gear, tools, and haul materials with confidence. You can also make fewer trips with 1814 kg (4000 lb) of towing capacity and a standard 51-mm (2-in.) receiver hitch.
Class-leading cargo box volume*
Cargo box shown with premium protection package
Cargo box with cargo
The cargo box resists dents, scratches, and rust because it is made from a tough composite material and can haul 524-L (18.5-cu ft) of your gear and material. Five D-ring tie down points and rails can be used to secure your load.
Quickly configure the cargo box to the needs of the job
Cargo box with 2x6 dividers
Cargo box utilizing the second level of storage
Molding the cargo box allows for built-in features that enable the box to be quickly reconfigured for the unique needs of every job. You can use standard 5-cm (2-in.) dimensional lumber to hold cargo in place or divide cargo box into separate areas. You can add a second level of storage space by leveraging the tiered storage lip. Stake pocket clamps allows for quick and toolless attachment installation and removal. On M-trim and R-trim vehicles, a 12-V power port is available to power attachments.
Your portable workbench
A pipe clamped to V-channel
Pocket with hardware and cupholder
The tailgate includes a flat work surface, ruler, and pockets to place hardware. A v-channel and four reinforced clamping pockets work together to securely hold round objects. Bump stops provide raised edges position your square edged objects.
Since your hands are always full, the tailgate can be opened and closed with one hand. You can also lower the tailgate to carry longer items or remove it for easy cleanout.
Power lift
Cargo box unloading gravel
Power lift switch
To save your back, the optional cargo box power lift empties heavy loads with the push of a button.
*Class is defined as a full-size heavy-duty crossover UTV with less than 100-in. wheelbase which is powered by a 750 to 900cc gasoline engine. Comparisons were made by calculating volume using published cargo box dimensions.
Durable, fuel-efficient diesel-powered drivetrain
854-cc (52.1-cu in.) diesel engine and drivetrain
The XUV 875 and XUV855M S4 Gator™ Utility Vehicles are powered by a fuel-efficient and durable diesel engine. The enclosed drivetrain automatically adjusts for fast acceleration, along with powerful hauling and hill-climbing capabilities. With plenty of torque to get the job done, this engine will provide reliable performance for years to come.
Store more gear
One-row full-size Gator XUVs come packed with places to store tools, gear, and beverages.
Cup holders
Four cup holders and center tray (shown on XUV835E)
Cab door cup holder and pocket
The dash has four cup holders, and cab vehicles have a cup holder in each door.
Dash and under-seat storage
Under seat storage (shown on XUV 845R)
Glove box, storage pocket, and dash bins (shown on XUV 845M)
The vehicles also feature an enclosed glove box, center tray, dash storage pocket and under-seat storage. Depending on the configuration, vehicles may have up to three additional dash bins and under-hood storage.
Color options and styling
Green and yellow XUV 845R
Olive and black XUV 845R
TrueTimber® KANATI camo XUV 845R
You will get noticed with the distinctive styling of full-size Gator™ XUVs. Available in three colors, with various protection packages, and more than 100 attachments, you can create a custom look that will turn heads.
TrueTimber is a trademark of True Timber Outdoors Holding Company, LLC.
Go further between fill ups
Large fuel tank fill opening
Full-size Gator™ XUVs have a large 42.8-L (11.3-gal.) fuel tank so you go further between fill ups. A 76-mm (3-in.) diameter fill opening reduce spills.
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere XUV 875M Diesel Crossover Utility Vehicle |
Key Specs
| Engine power | 17.0 kW 22.8 hp |
|||
|---|---|---|---|---|
| Cargo box dimensions | 1099 x 343 x 1392 mm 43.3 x 13.5 x 54.8 in. |
|||
| Cargo box volume | 524 L 18.5 cu ft |
|||
| Cargo box capacity (weight) | 454 kg 1000 lb |
|||
| Towing capacity | Up to 1814 kg 4000 lb |
|||
| Front suspension | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel | |||
| Rear suspension | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel | |||
| Final drive | Park, high, low, neutral, reverse transaxle | |||
| Four wheel drive | Dash switch actuated four-wheel drive system | |||
| Fuel capacity | 42.4 L 11.2 U.S. gal. |
Engine
| Type | 4-cycle diesel | |||
|---|---|---|---|---|
| Displacement | 854 cc | |||
| Power | 17.0 kW 22.8 hp |
|||
| Cooling system | Liquid |
Drivetrain
| Transmission | Continuously Variable Transmission (CVT) with clutch enclosure | |||
|---|---|---|---|---|
| Final drive | Park, high, low, neutral, reverse transaxle | |||
| Four wheel drive | Dash switch actuated four-wheel drive system | |||
| Traction assist | Limited slip front differential, Positive locking, switch actuated rear differential lock | |||
| Descent control | Yes |
Suspension
| Front | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel | |||
|---|---|---|---|---|
| Rear | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel |
Brakes
| Type | Front/rear hydraulic disc with twin piston front calipers | |||
|---|---|---|---|---|
| Park brake | Park in-transmission, Optional factory-installed secondary foot operated with hand release |
Tires / Wheels
| Front | 27x9-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on steel or alloy wheels 27x9-R14 Predator Heavy-Duty all-terrain radials on steel or alloy wheels |
|||
|---|---|---|---|---|
| Rear | 27x11-R14 Maxxis Bighorn 2.0 extreme terrain radials on steel or alloy wheels 27x11-R14 Predator Heavy-Duty all-terrain radials on steel or alloy wheels |
Dimensions / Capacities
| Wheelbase | 2211 mm 87 in. |
|||
|---|---|---|---|---|
| Weight | With fuel and fluids: 915 kg 2017 lb |
|||
| Length | 3250 mm 128 in. |
|||
| Width | 1625 mm 64.0 in. |
|||
| Height | 1980 mm 78.0 in. With roof: 2030 mm 79.9 in. |
|||
| Tread centers | Front: 1376 mm 54.2 in. Rear: 1300 mm 51.2 in. |
|||
| Ground clearance | Unloaded: 305 mm 12 in. |
|||
| Fuel capacity | 42.4 L 11.2 U.S. gal. |
|||
| Cargo box dimensions | 1099 x 343 x 1392 mm 43.3 x 13.5 x 54.8 in. |
|||
| Cargo box volume | 524 L 18.5 cu ft |
|||
| Cargo box capacity (weight) | 454 kg 1000 lb |
|||
| Payload capacity | 627 kg 1383 lb |
|||
| Towing capacity | Up to 1814 kg 4000 lb |
|||
| Hitch | Standard receiver: 5.1 cm 2 in. |
Features
| Color | Green and yellow, TrueTimber® KANATI® camo, olive and black | |||
|---|---|---|---|---|
| Power steering | Yes | |||
| Battery / Alternator / Power port | Battery: 12 V 480 CCA Alternator: 85 amp DC outlet: 12 V Cargo box power port: 12 V |
|||
| Instrumentation | Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light) | |||
| Storage | Total: 97.8 L 25.8 gal. Four cup holders: 1.3 L 0.3 gal. Center tray: 1.2 L 0.3 gal. Three dash bins: 5.0 L 1.3 gal. Storage pocket: 1.4 L 0.4 gal. Glove box: 3.8 L 1.0 gal. Under seat: 55.3 L 14.6 gal. Optional under hood: 30.0 L 7.9 gal. |
|||
| Seating | Black vinyl 40/60 split three-passenger bench |
Additional information
| Country of Manufacture | U.S. | |||
|---|---|---|---|---|
| Date collected | 11-Jun-24 |
-
