Improved wrap feeding
Experience consistent wrap feeding, module after module, with the new positive drive wrap system…operators will appreciate the reliability of the system, along with the simplicity of loading.
It’s your machine. We just built it.
When we set out to build the newest versions of our revolutionary cotton harvesters, we went to the experts…cotton growers from across the country.
And what we heard was that you need a faster, more cost-efficient harvest. So we
started with a clean sheet of paper and ended up with two of the most impressive
machines available to cotton producers today.
CP770 Cotton Picker
- 13.6 L, 555 HP engine
- Up to 20 mph transport speed
- 4.6 mph sync speed
- up to 20% greater fuel efficiency1
- 8% reduction in wrap and hauling costs1
CS770 Cotton Stripper
- 13.6 L, 515 HP engine
- Up to 20 mph transport speed
- Available 8- and 12- row heads
- 15% greater fuel efficiency1
- 12% reduction in wrap and hauling costs1
SH8R Cotton Stripper Header
- Quick connect design for easy removal
- 40”, 38”, and 36” row spacing
- High capacity 13” diameter cross auger
- Heavy duty mainframe

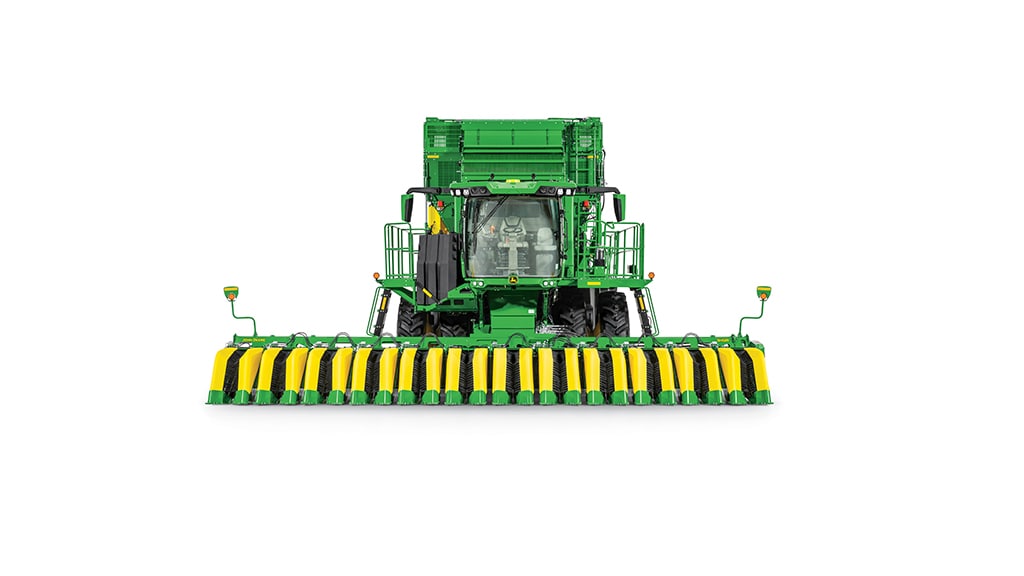

SH12R Cotton Stripper Header
- 12 row header
- 30”, 32”, and 36” row spacing
- Quick connect design for easy removal
- High capacity 13” diameter cross auger
SH12F Cotton Stripper Header
- Easy field transport with folding header
- 40” and 38” row spacing
- High capacity 13” diameter cross auger
Features
Sure, we built new row units, a new power plant, we redesigned the module building and handling system, and a lot more. But the bottom line is the bottom line, and these machines deliver serious harvest-time cost savings. So give yourself a pat on the back…you helped us build the most advanced cotton harvesters in the world.
Save 8%-12% on Wrap and Hauling
Uses 15%-20% Less Fuel
Pick 5% faster1
Enjoy a 30% Larger Cab1
Use Cotton's Most Advanced Technology

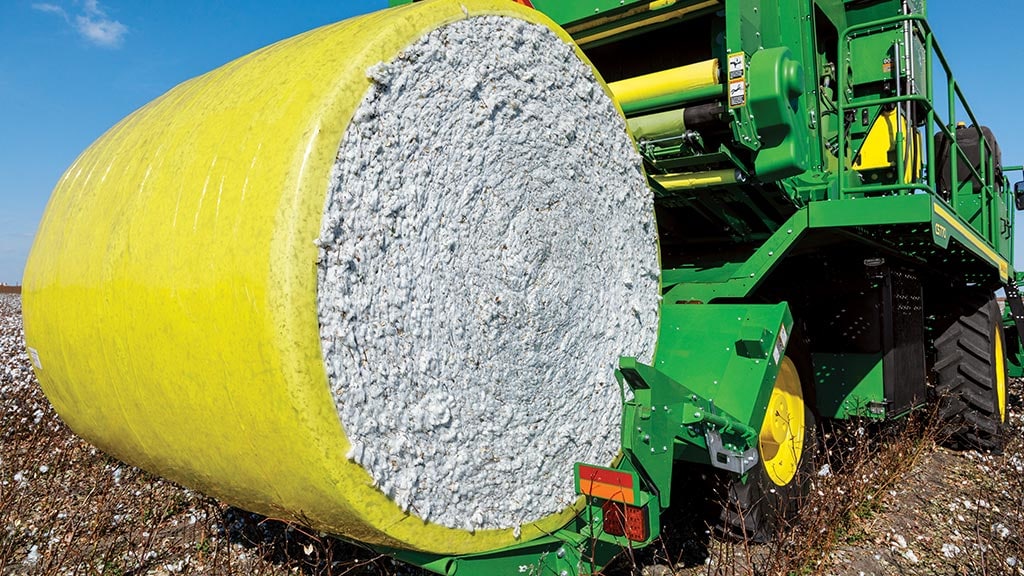

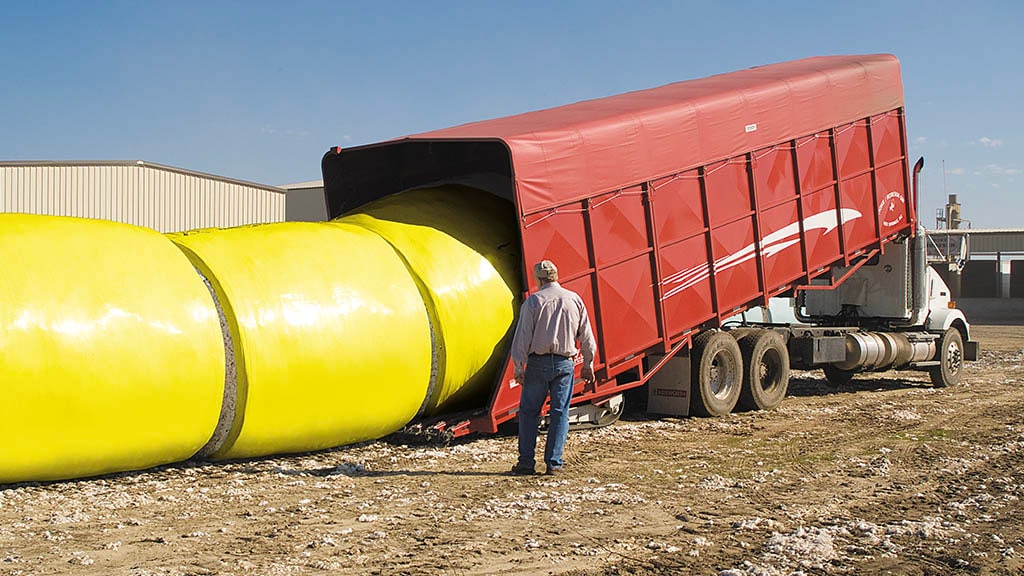

Module Building and Handling
Save up to 12% on Wrap and Hauling
To help maximize cost efficiency, we redesigned the round module builder as well as the wrapping and handling system; both the CP770 and CS770 now pack more cotton into each module, reducing the per-pound cost of module wrap and module hauling.

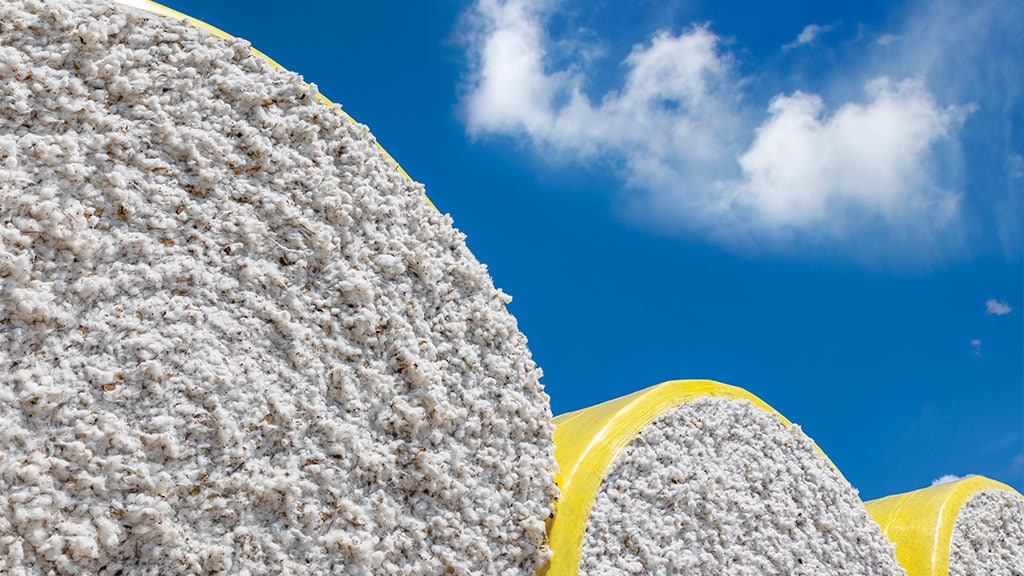

Denser bales = less wrap per pound
Picker customers, the new CP770 returns a solid 8% savings in wrap and hauling costs per lint pound, compared to its predecessor; stripper growers, the CS770 gives you a 12% reduction per lint pound in wrap and hauling.
Reduced module wrap time
Our next-generation module handling system cuts the module wrap-eject cycle time by 33%, from 48 seconds to 32 seconds, allowing you to stay at harvest speeds longer, and making every harvest day more productive.1

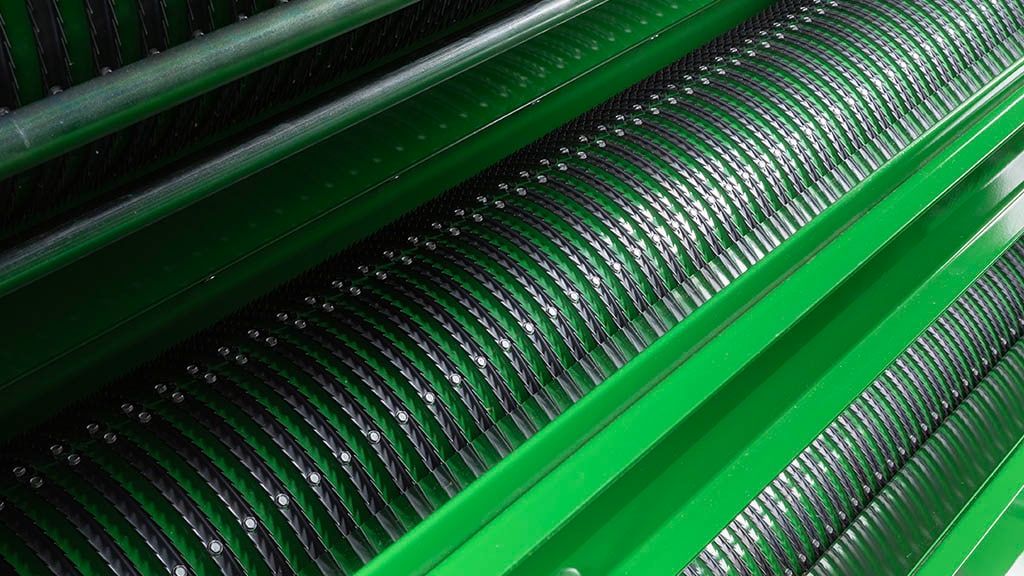

Increase turnout with improved cleaning
Reduce your seed cotton losses with the high-capacity three-drum onboard field cleaner. 2Independently tested, results show a 10% increase in cleaning efficiency3 and removes more plant material in the field - reducing your wrapping, hauling, and ginning costs.

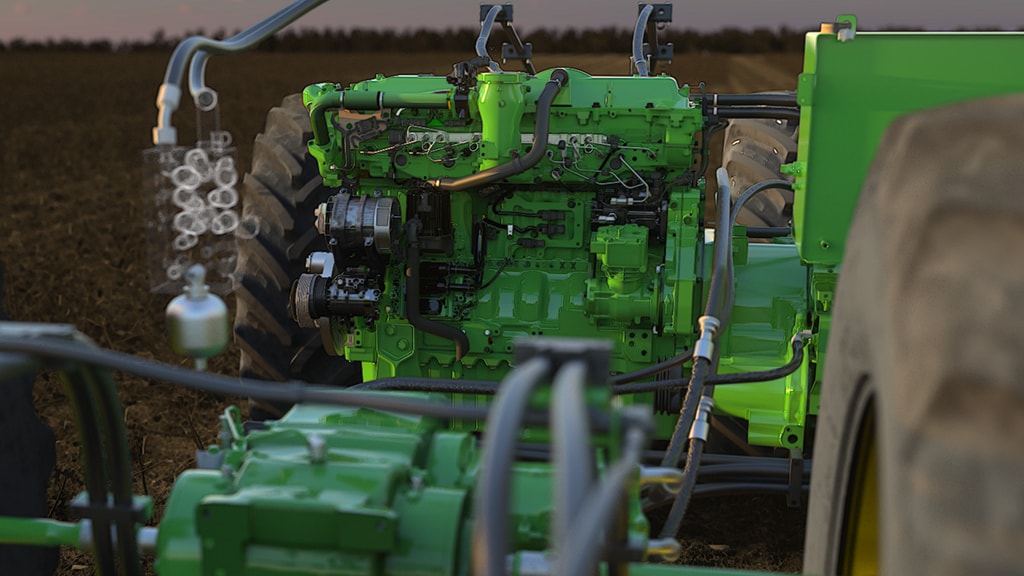

Engines and Hydraulic Power
Efficient, Quiet, Usable Power
At the heart of the C770 Series is the John Deere 13.6 L PowerTech™ engine, tuned to deliver the power you need, when you need it, with less fuel consumption, lower noise levels, and higher transport speed.1

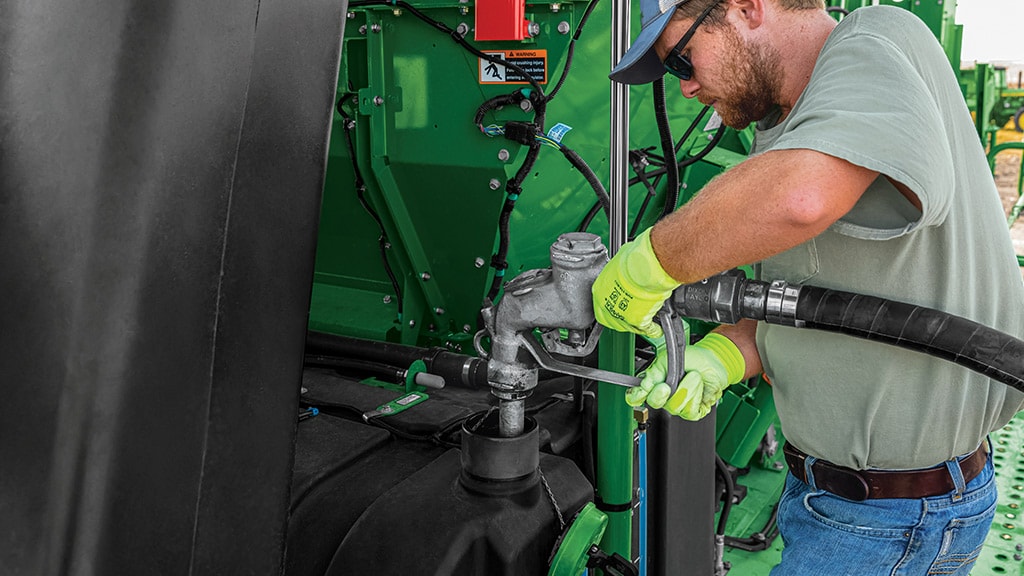

Increased Fuel Efficiency
Improved fuel efficiency lets you harvest more with every gallon. The CP770 uses 20% less fuel than its predecessor, while the CS770 uses 15% less fuel than the previous stripper

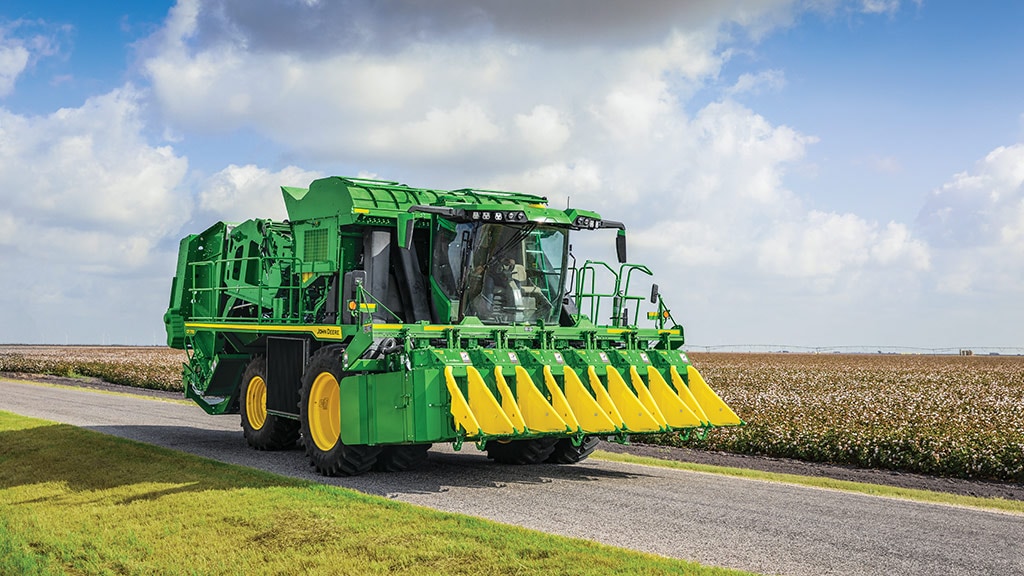

Higher Transport Speed
You and your operators will appreciate the increased transport speed…you can run from field to field at 20 mph, up from 17 mph over previous models.
Reduced Noise
With the engine working at an easy 1,900 RPM, you’ll notice reduced noise in the cab…3 dBA less in the CP770, 5 dBA less in the CS770.1

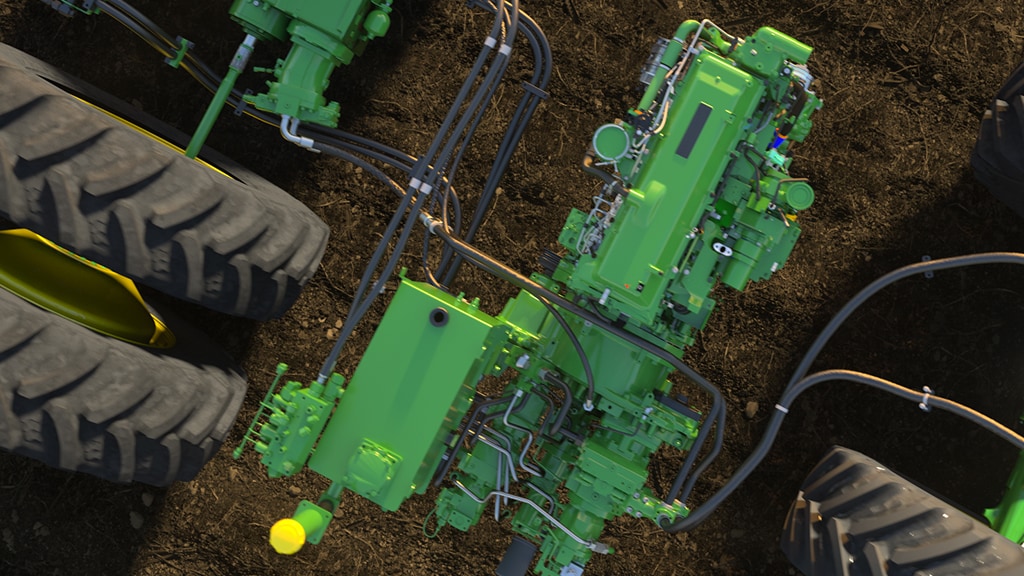

Reduced Complexity
We’ve redesigned the engine and hydraulic power module to use fewer unique parts, reducing complexity and improving maintenance and serviceability.

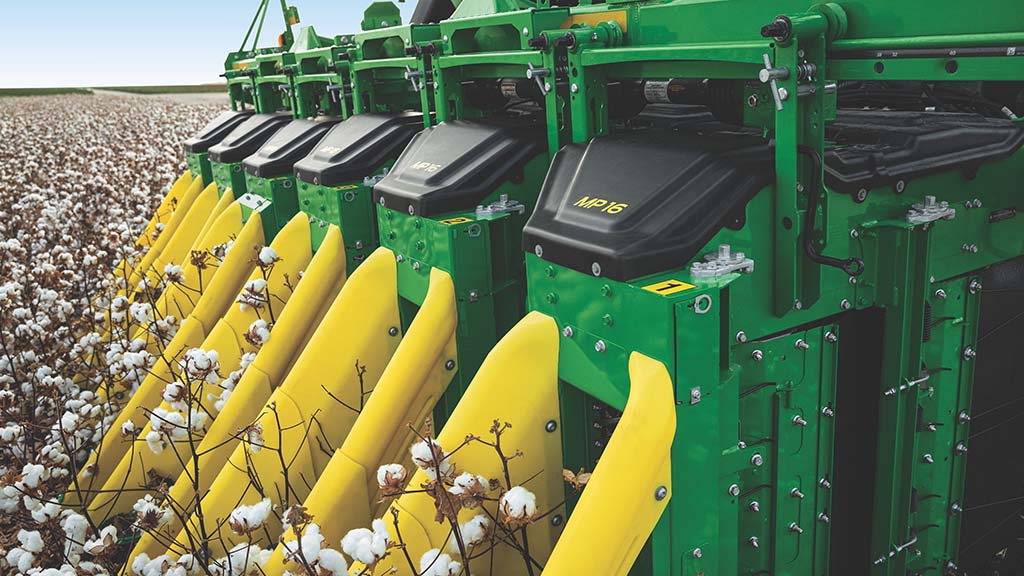

Picker Row Units
Pick Another 4.4 Acres per Day
You know better than anyone…the longer cotton stays in the field after defoliation, the more the lint quality degrades. So we gave our row units the speed you need to get out of the field faster.1

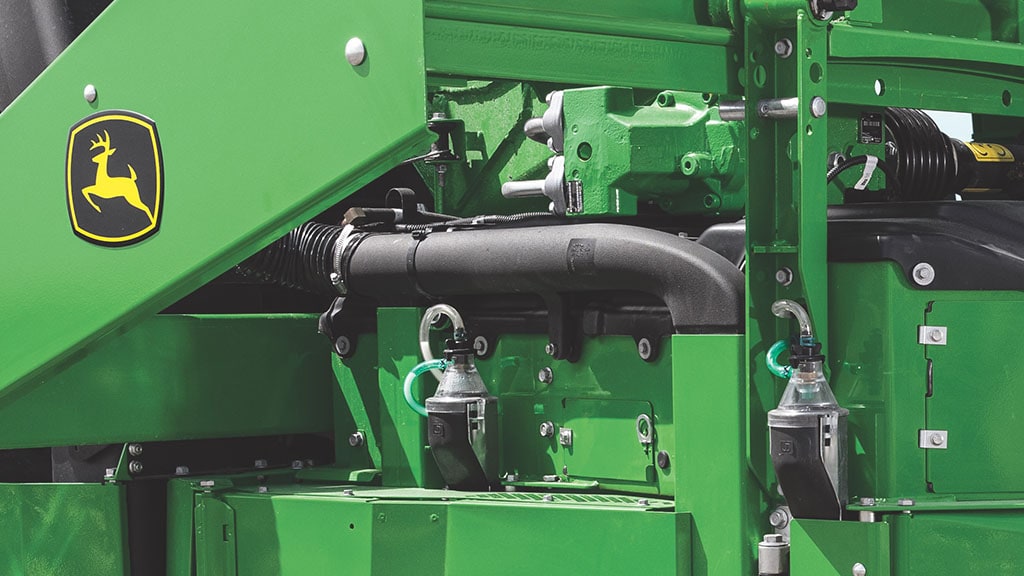

Auto Greasing System
Automated greasing gives you day-today confidence that bars, spindles, and gears are always properly lubricated to increase reliability.

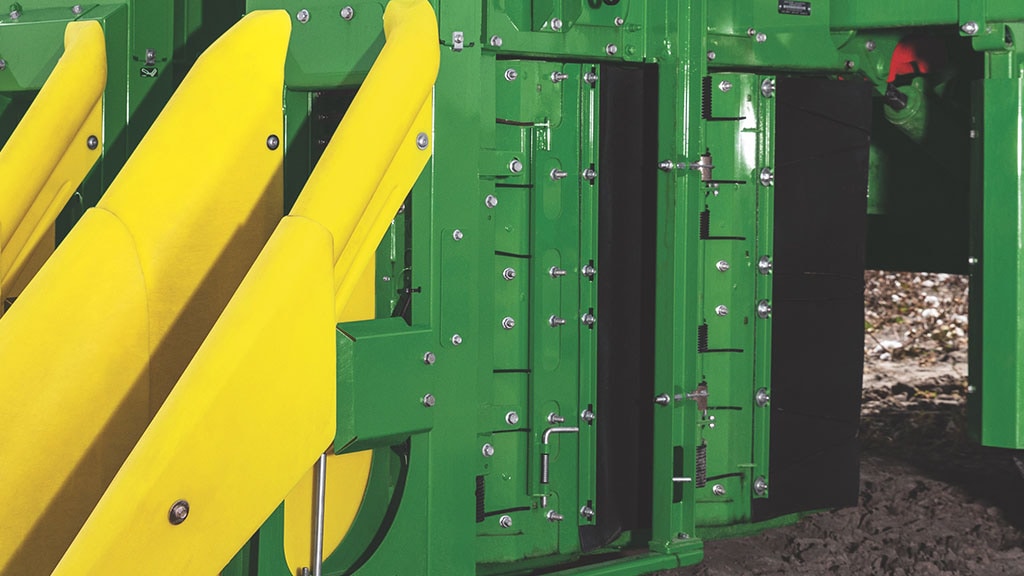

Improved Crop Flow
Wider air doors2 give the new MP16 expanded choke points to allow more free-flow of crop to air ducts. The result? Increased throughput and reduced plugs without increasing unit weight of fan power.
2MP16's 1.375-inch (3.492-centimeters) space behind air door compared to MP16’s 75-inch (1.905-centimeters).

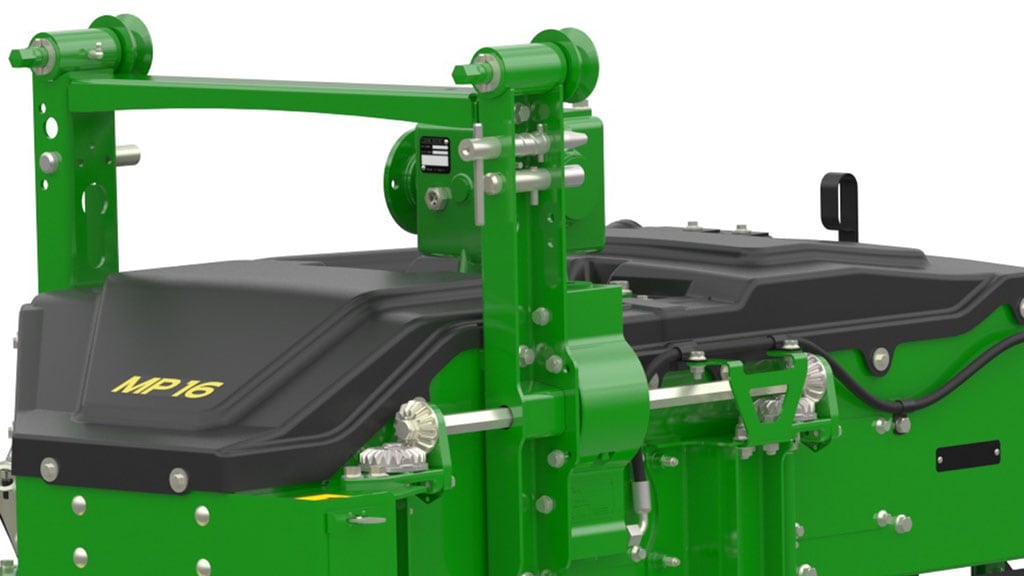

Hydraulic Pressure Doors
This dealer installed kit allows you to hydraulically adjust torque pressure on air doors – right from the cab. When ground speed reaches 0 the door pressure drops to help clear plugs. That saves you time.
Stripper Headers
More Acres with Less Hassle
Stripper-cotton producers…if you’d like to harvest more acres per day, we have your answer: the new SH12F Folding Stripper Header. We put major productivity and transportability into an easy-folding header, then redesigned the header attachment system for quicker, easier hookup.

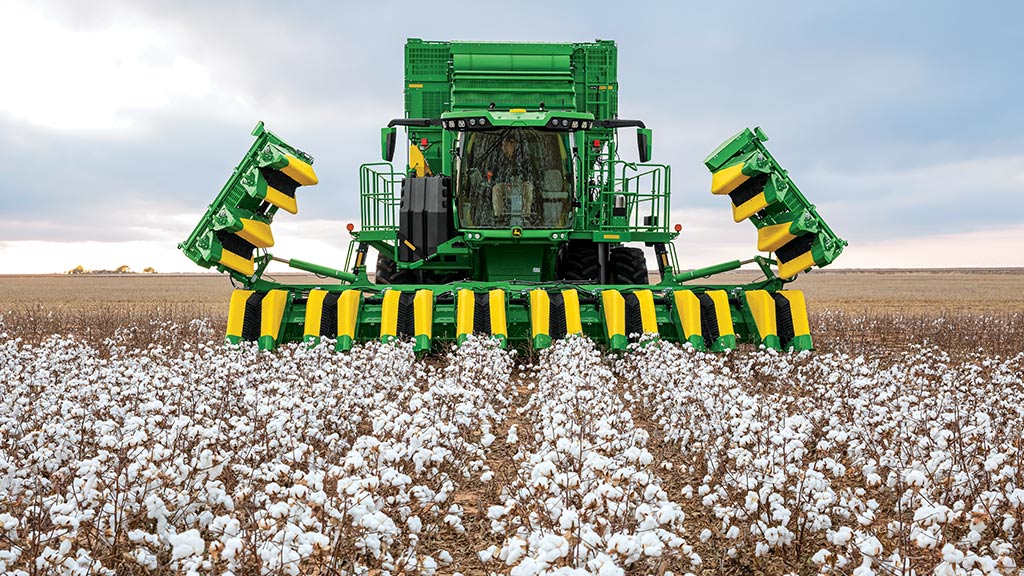

12-Row folding header
The new SH12F 12-row Folding Stripper Header lets you cover 48% more acreage per hour than an 8-row header on our previous stripper. The SH12F folds in under a minute, and can be transported without removing it.
Three available headers
The SH12F joins our SH8R 8-row and SH12R 12-row rigid headers to create a complete lineup of stripper headers. The SH8R can accommodate 36-, 38-, and 40-inch rows; the SH12R can handle 30-, 32-, and 36-inch rows, while the SH12F takes on 38- and 40-inch rows.

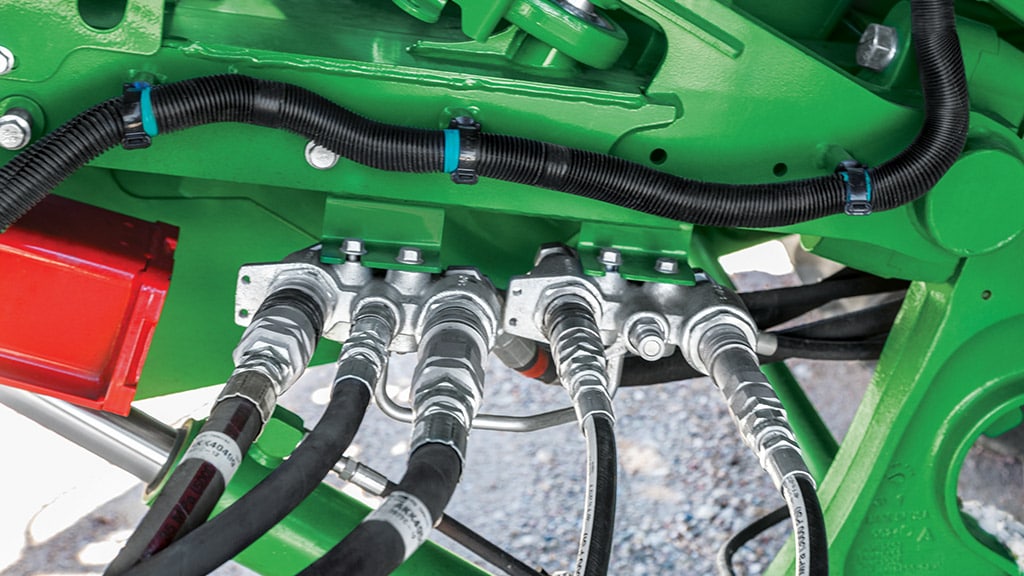

Improved Header Hookup
When you do need to attach and de-tach the header, new no-tool hydraulic hook-up cuts the time in half, to an easy-to-handle 15 minutes.
Comfort and Convenience

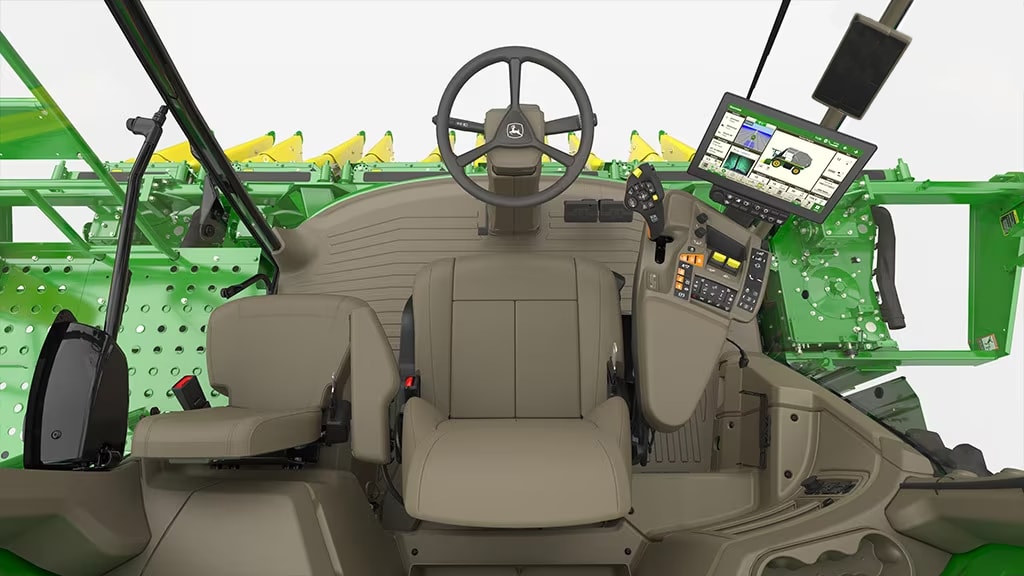

30% Larger Cab
From the shock-absorbing ActiveSeatTM II to the hard-driving sound system, we have the standard and available features you need to build the harvest-time office of your dreams. We’ll start with a cab that not only has 30% more space than the previous harvesters, but also features familiar, automotive styling, heat-to-feet HVAC ducts, a display that swivels with the seat, and plenty of USB ports for your devices.

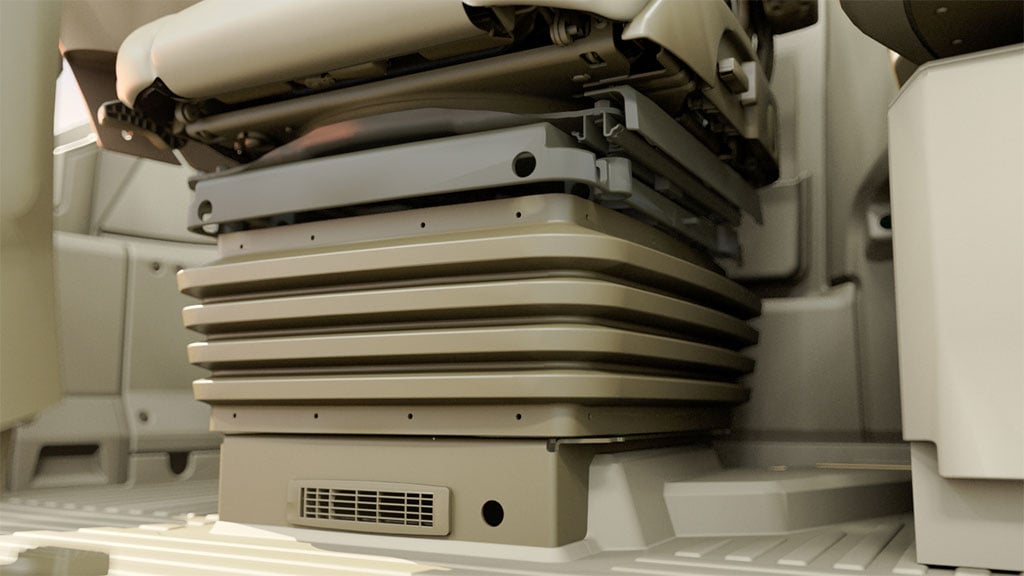

ActiveSeat™ II Suspension
ActiveSeat II Suspension reduces vertical seat motion by up to 90 percent, as compared to an air-suspended seat. Standard with Ultimate Cab Package.

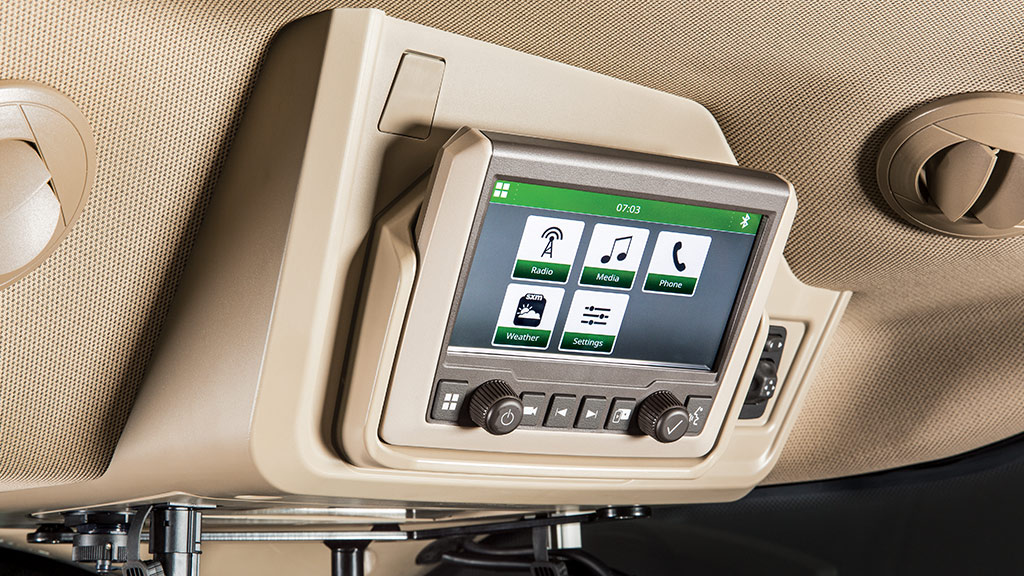

Touchscreen radio
Available in our Premium and Ultimate Cab Packages, the SiriusXM-ready radio lets you listen to your favorite music, podcasts, or audiobooks. Two speakers plus a subwoofer give you the ultimate audio experience.

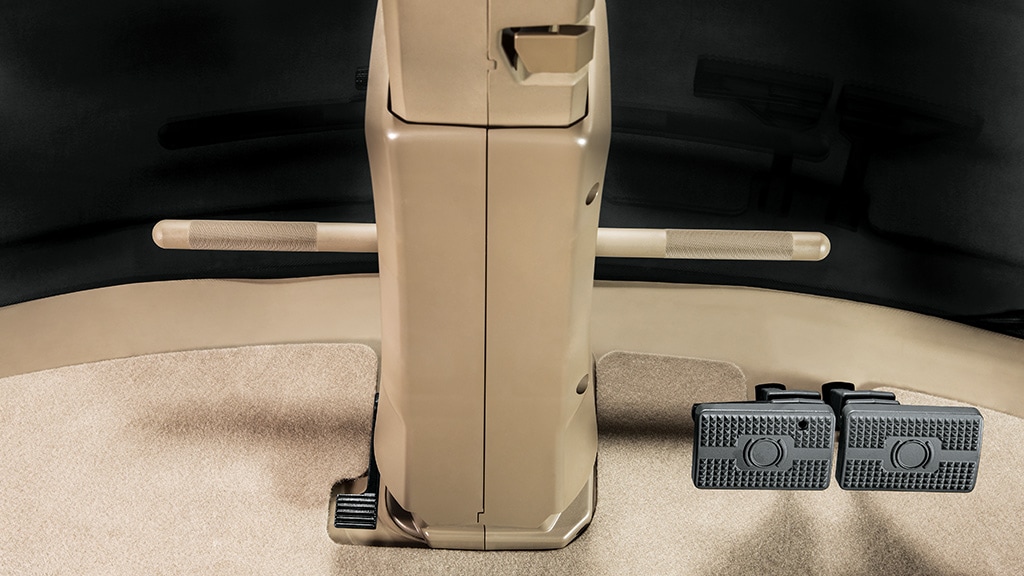

Foot rests
Take a load off and get comfortable with our foot rests, available in the Premium and Ultimate Cab Packages.

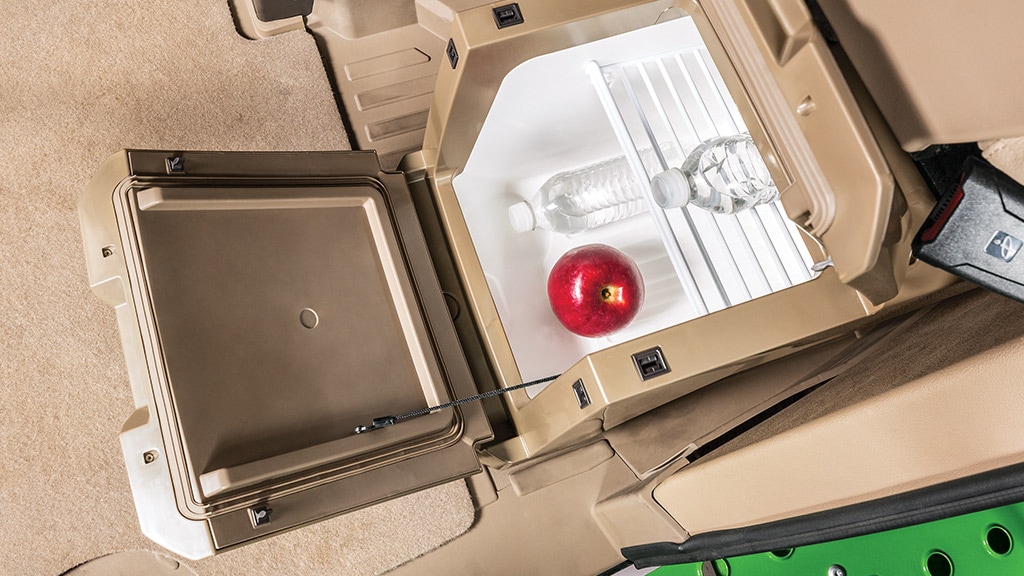

Refrigerator
Order our Premium or Ultimate Cab Package, and you’ll get a roomy fridge, perfect for keeping lunch and drinks cold.
Technology
Cotton’s most advanced technology.
It takes data to make informed decisions. And when you harvest your cotton data with the G5Plus CommandCenter™ Display and integrated StarFire™ Receiver, you, your consultants, and your ginners can turn mapping data into actionable decisions to improve your productivity and profitability.
See More. Know More.
Do More.

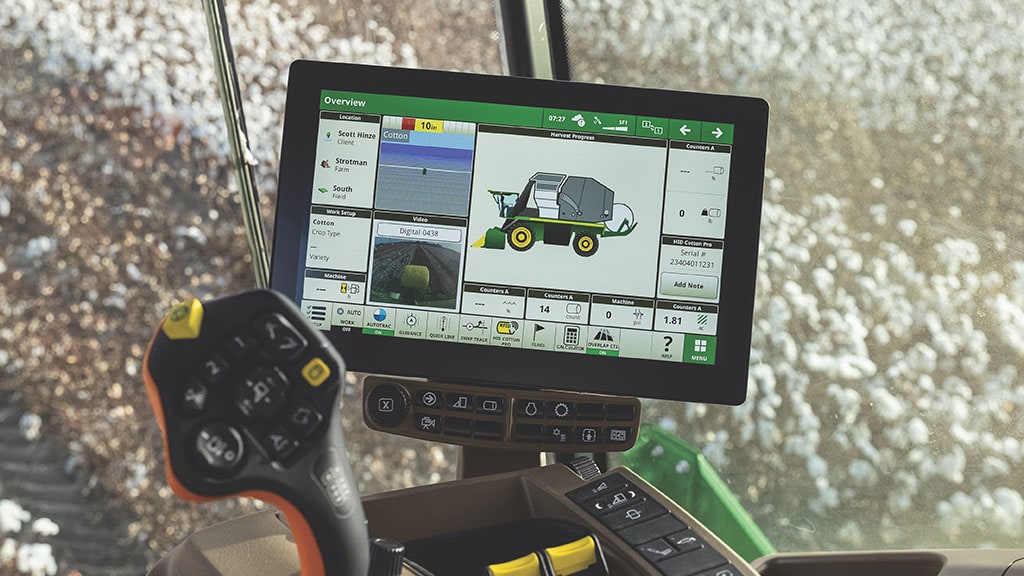

Our new G5Plus CommandCenter™ display offers clear, 1080p HD resolution on a 12.8-inch touchscreen. Precision ag technology includes AutoTrac, Documentation, Harvest Identification, Cotton Pro, Data Sync, JDLink Modem, over-the-air updates, and Remote Display Access all standard.
JDLink™ connectivity
The C770 Series comes with JDLink connectivity, giving you easy communication with your machines, your operators, and your dealer. Analyze progress and performance, transfer data to and from machines, and use Machine Alerts and Service ADVISOR remote to pre-empt or diagnose issues.
John Deere Operations Center™
Access field, crop, and machine information anytime on your desktop computer or mobile device through your Operations Center account. Plus, with many connected software tools, including major farm management systems, you can make the most out of your data.
Harvest Identification, Cotton Pro
Capture, analyze, and share harvest information down to the module with Harvest Identification, Cotton Pro. Track module moisture and weight, then share that information with your gin to help prioritize module movement. Together, Harvest Identification, Cotton Pro allow for traceability from field to end use.

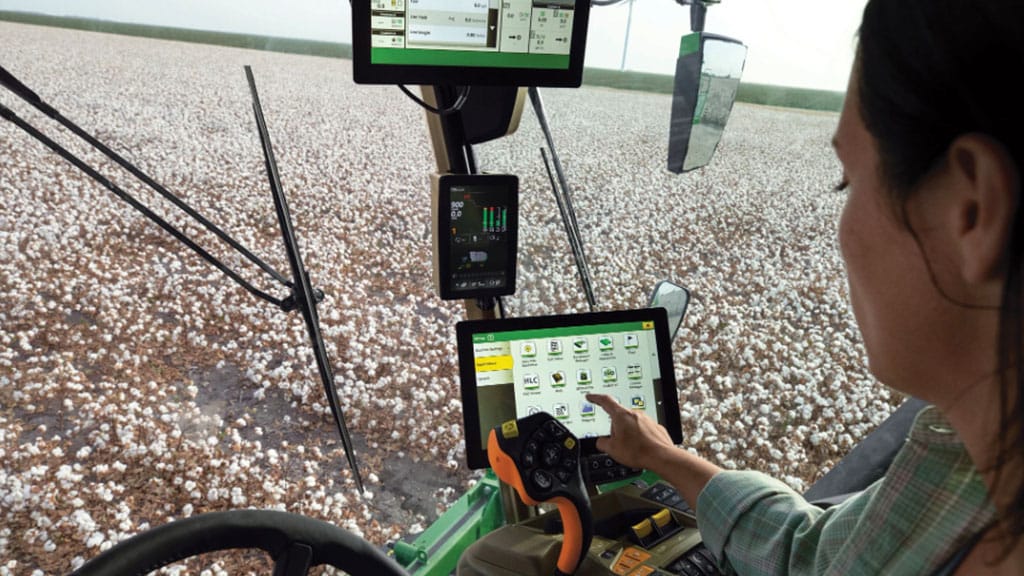

RowSense™ and AutoTrac™ Guidance
Here’s how you get the most accurate guidance available. RowSense uses mechanical sensors to guide you through standing crops. AutoTrac then provides secondary GPS guidance to help steer through gaps.

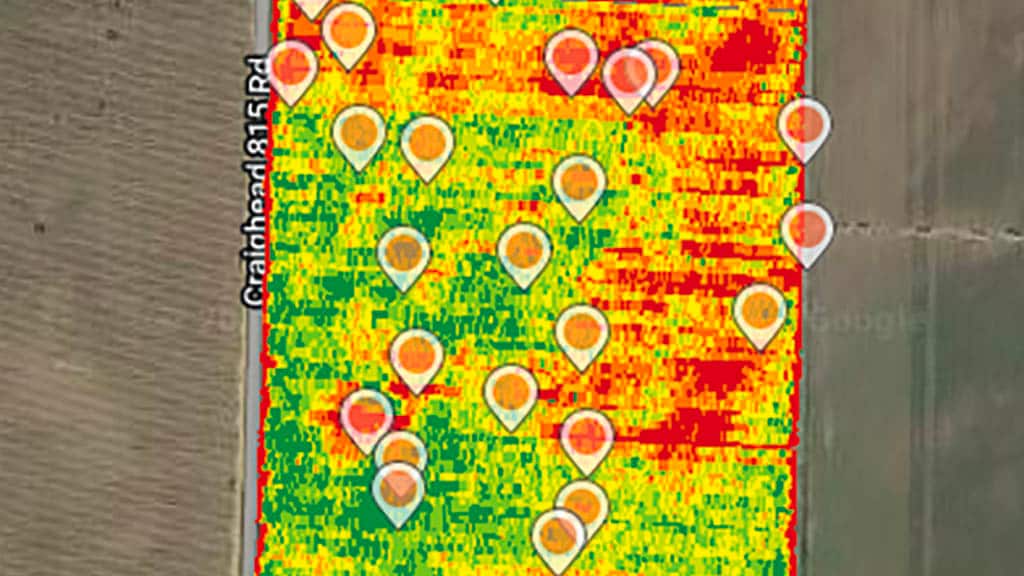

Documentation and Field Analyzer
Make informed decisions by reviewing your documentation data in Field Analyzer. Track your yields from field to field, then generate and share detailed yield maps with your consultants, seed reps, scouts or other advisors through your Operations Center account.

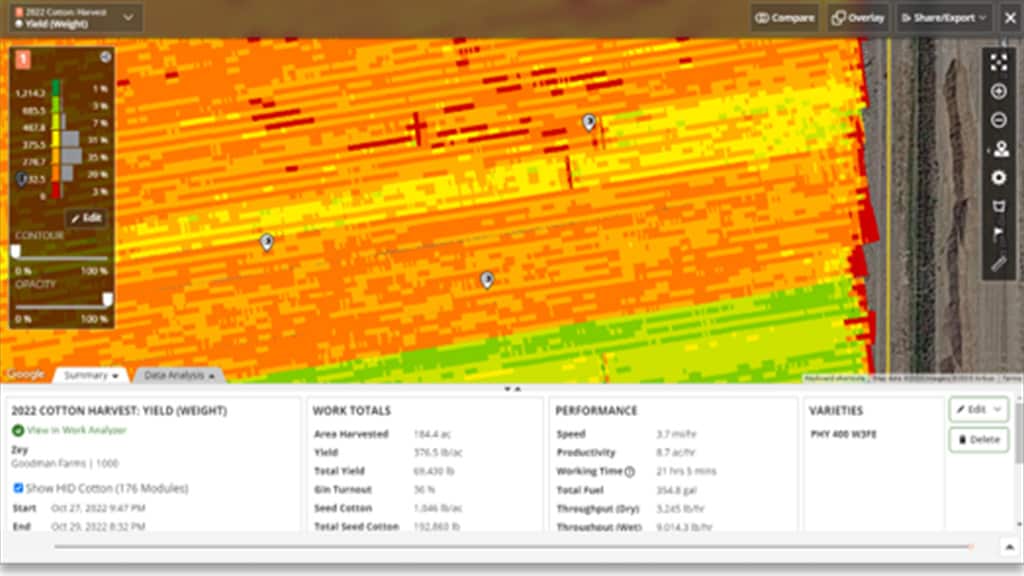

Row by Row
With Row by Row, you can make data-driven decisions by analyzing documentation data right down to the row level. It also gives you real-time views of your yield, so you can spot opportunities to improve yield while you’re harvesting.
Maintenance & Reliability
Our equipment is supported by one of the most responsive dealer networks in the business.

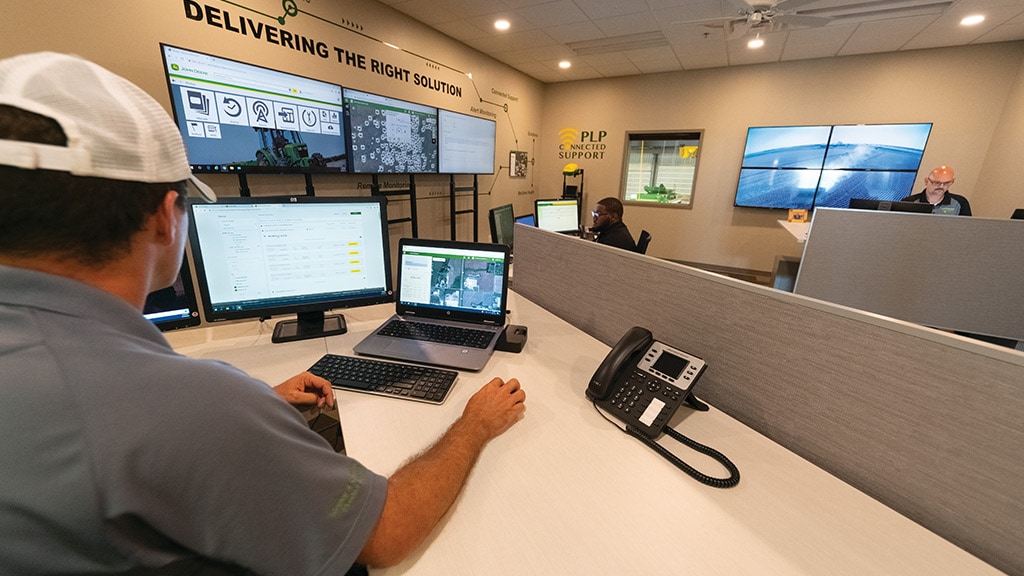

John Deere Connected Support™
Cotton Harvesters come with built-in technology to sense potential issues and alert you - or your dealer - when there's a concern. With Connected Support, you get Remote Display Access and Expert Alerts. You can monitor machine fuel levels, location history, receive alerts and view the in-cab display remotely.
John Deere Protect Plans
Annual Expert Inspections and regular scheduled maintenance, coupled with PowerGard™ extended warranty will help ensure "like new" performance and uptime of your cotton harvester and reduce unexpected expenses for up to 36 months.
Inspections
Keep your cotton harvesters in tip-top condition with comprehensive inspections. The best-trained technicians in the industry will replace worn parts and tune up other key areas.
You Also May Be Interested In
Product Brochures
You May Also Be Interested In
1Internal John Deere comparisons between CP770 and CP690, and between CS770 and CS690. Individual results may vary.
2Only available on the CS770 Cotton Stripper
3Compared to a John Deere CS690 when tested by the USDA Ag Research Service in Lubbock, TX.
