Improved wrap feeding
Experience consistent wrap feeding, module after module, with the new positive drive wrap system…operators will appreciate the reliability of the system, along with the simplicity of loading.
When we set out to build the newest versions of our revolutionary cotton harvesters, we went to the experts…cotton growers from across the country.
And what we heard was that you need a faster, more cost-efficient harvest. So we
started with a clean sheet of paper and ended up with two of the most impressive
machines available to cotton producers today.
Sure, we built new row units, a new power plant, we redesigned the module building and handling system, and a lot more. But the bottom line is the bottom line, and these machines deliver serious harvest-time cost savings. So give yourself a pat on the back…you helped us build the most advanced cotton harvesters in the world.
To help maximize cost efficiency, we redesigned the round module builder as well as the wrapping and handling system; both the CP770 and CS770 now pack more cotton into each module, reducing the per-pound cost of module wrap and module hauling.
Experience consistent wrap feeding, module after module, with the new positive drive wrap system…operators will appreciate the reliability of the system, along with the simplicity of loading.
Picker customers, the new CP770 returns a solid 8% savings in wrap and hauling costs per lint pound, compared to its predecessor; stripper growers, the CS770 gives you a 12% reduction per lint pound in wrap and hauling.
Our next-generation module handling system cuts the module wrap-eject cycle time by 33%, from 48 seconds to 32 seconds, allowing you to stay at harvest speeds longer, and making every harvest day more productive.1
Reduce your seed cotton losses with the high-capacity three-drum onboard field cleaner. 2Independently tested, results show a 10% increase in cleaning efficiency3 and removes more plant material in the field - reducing your wrapping, hauling, and ginning costs.
At the heart of the C770 Series is the John Deere 13.6 L PowerTech™ engine, tuned to deliver the power you need, when you need it, with less fuel consumption, lower noise levels, and higher transport speed.1
Improved fuel efficiency lets you harvest more with every gallon. The CP770 uses 20% less fuel than its predecessor, while the CS770 uses 15% less fuel than the previous stripper
You and your operators will appreciate the increased transport speed…you can run from field to field at 20 mph, up from 17 mph over previous models.
With the engine working at an easy 1,900 RPM, you’ll notice reduced noise in the cab…3 dBA less in the CP770, 5 dBA less in the CS770.1
We’ve redesigned the engine and hydraulic power module to use fewer unique parts, reducing complexity and improving maintenance and serviceability.
You know better than anyone…the longer cotton stays in the field after defoliation, the more the lint quality degrades. So we gave our row units the speed you need to get out of the field faster.1

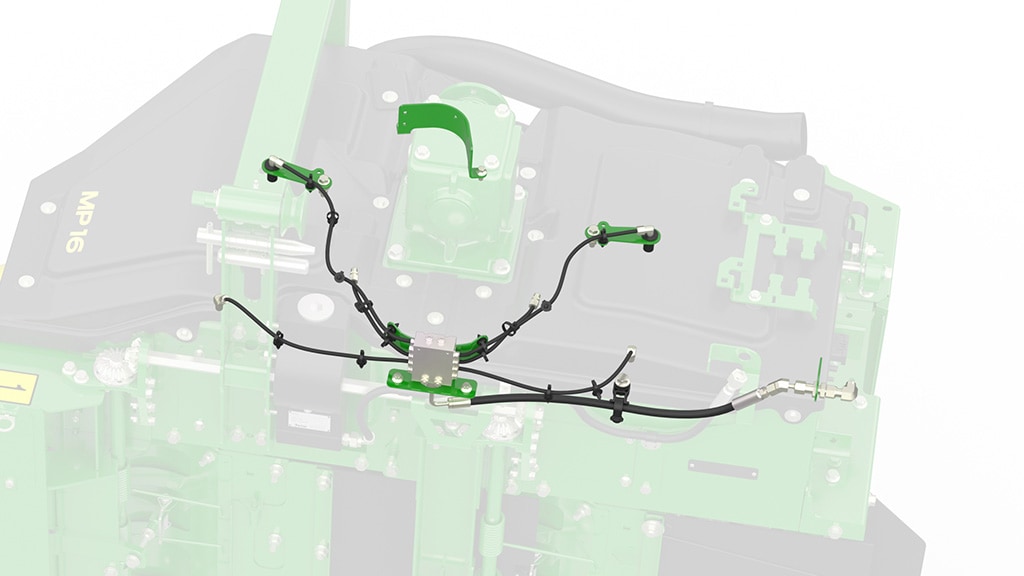

Automated greasing gives you day-today confidence that bars, spindles, and gears are always properly lubricated to increase reliability.
Wider air doors2 give the new MP16 expanded choke points to allow more free-flow of crop to air ducts. The result? Increased throughput and reduced plugs without increasing unit weight of fan power.
2MP16's 1.375-inch (3.492-centimeters) space behind air door compared to MP16’s 75-inch (1.905-centimeters).

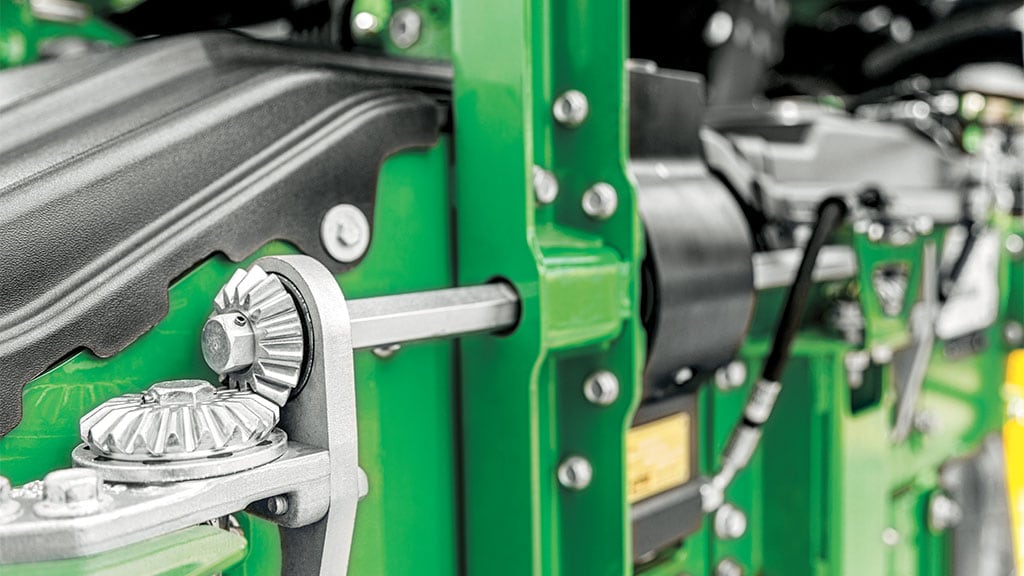

This dealer installed kit allows you to hydraulically adjust torque pressure on air doors – right from the cab. When ground speed reaches 0 the door pressure drops to help clear plugs. That saves you time.
Stripper-cotton producers…if you’d like to harvest more acres per day, we have your answer: the new SH12F Folding Stripper Header. We put major productivity and transportability into an easy-folding header, then redesigned the header attachment system for quicker, easier hookup.
The new SH12F 12-row Folding Stripper Header lets you cover 48% more acreage per hour than an 8-row header on our previous stripper. The SH12F folds in under a minute, and can be transported without removing it.
The SH12F joins our SH8R 8-row and SH12R 12-row rigid headers to create a complete lineup of stripper headers. The SH8R can accommodate 36-, 38-, and 40-inch rows; the SH12R can handle 30-, 32-, and 36-inch rows, while the SH12F takes on 38- and 40-inch rows.
When you do need to attach and de-tach the header, new no-tool hydraulic hook-up cuts the time in half, to an easy-to-handle 15 minutes.
From the shock-absorbing ActiveSeatTM II to the hard-driving sound system, we have the standard and available features you need to build the harvest-time office of your dreams. We’ll start with a cab that not only has 30% more space than the previous harvesters, but also features familiar, automotive styling, heat-to-feet HVAC ducts, a display that swivels with the seat, and plenty of USB ports for your devices.
ActiveSeat II Suspension reduces vertical seat motion by up to 90 percent, as compared to an air-suspended seat. Standard with Ultimate Cab Package.
Available in our Premium and Ultimate Cab Packages, the SiriusXM-ready radio lets you listen to your favorite music, podcasts, or audiobooks. Two speakers plus a subwoofer give you the ultimate audio experience.
Take a load off and get comfortable with our foot rests, available in the Premium and Ultimate Cab Packages.
Order our Premium or Ultimate Cab Package, and you’ll get a roomy fridge, perfect for keeping lunch and drinks cold.
It takes data to make informed decisions. And when you harvest your cotton data with the G5Plus CommandCenter™ Display and integrated StarFire™ Receiver, you, your consultants, and your ginners can turn mapping data into actionable decisions to improve your productivity and profitability.
Our new G5Plus CommandCenter™ display offers clear, 1080p HD resolution on a 12.8-inch touchscreen. Precision ag technology includes AutoTrac, Documentation, Harvest Identification, Cotton Pro, Data Sync, JDLink Modem, over-the-air updates, and Remote Display Access all standard.
The C770 Series comes with JDLink connectivity, giving you easy communication with your machines, your operators, and your dealer. Analyze progress and performance, transfer data to and from machines, and use Machine Alerts and Service ADVISOR remote to pre-empt or diagnose issues.
Access field, crop, and machine information anytime on your desktop computer or mobile device through your Operations Center account. Plus, with many connected software tools, including major farm management systems, you can make the most out of your data.
Capture, analyze, and share harvest information down to the module with Harvest Identification, Cotton Pro. Track module moisture and weight, then share that information with your gin to help prioritize module movement. Together, Harvest Identification, Cotton Pro allow for traceability from field to end use.
Here’s how you get the most accurate guidance available. RowSense uses mechanical sensors to guide you through standing crops. AutoTrac then provides secondary GPS guidance to help steer through gaps.
Make informed decisions by reviewing your documentation data in Field Analyzer. Track your yields from field to field, then generate and share detailed yield maps with your consultants, seed reps, scouts or other advisors through your Operations Center account.
With Row by Row, you can make data-driven decisions by analyzing documentation data right down to the row level. It also gives you real-time views of your yield, so you can spot opportunities to improve yield while you’re harvesting.
Our equipment is supported by one of the most responsive dealer networks in the business.
Cotton Harvesters come with built-in technology to sense potential issues and alert you - or your dealer - when there's a concern. With Connected Support, you get Remote Display Access and Expert Alerts. You can monitor machine fuel levels, location history, receive alerts and view the in-cab display remotely.
Annual Expert Inspections and regular scheduled maintenance, coupled with PowerGard™ extended warranty will help ensure "like new" performance and uptime of your cotton harvester and reduce unexpected expenses for up to 36 months.
Keep your cotton harvesters in tip-top condition with comprehensive inspections. The best-trained technicians in the industry will replace worn parts and tune up other key areas.
1Internal John Deere comparisons between CP770 and CP690, and between CS770 and CS690. Individual results may vary.
2Only available on the CS770 Cotton Stripper
3Compared to a John Deere CS690 when tested by the USDA Ag Research Service in Lubbock, TX.
