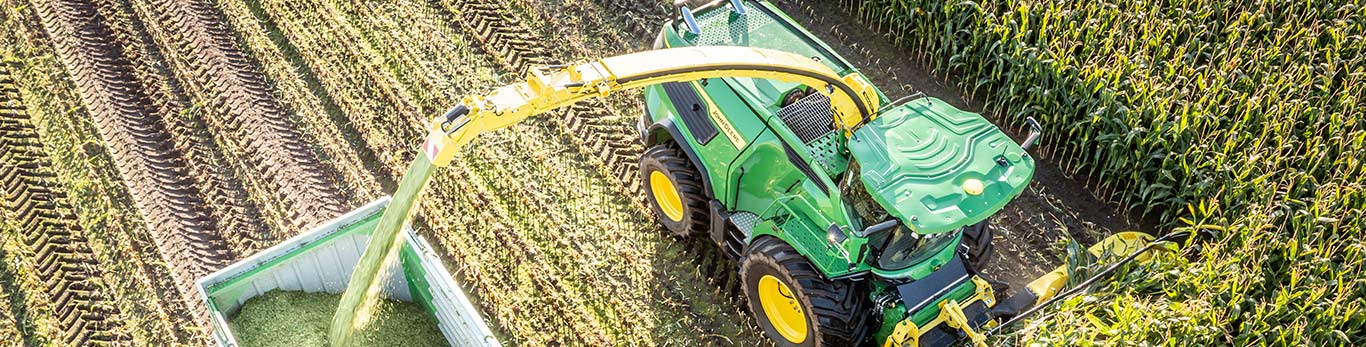

field image of self-propelled forage harvester

Self-Propelled Forage Harvesters

Experience more power at lower engine RPM with the new JD18X 18.0 L engine. Now available on select 9000 series forage harvesters, these diesel-only engines deliver up to 13% higher efficiency compared to previous models.

Compare Models

9000 Series
8000 Series

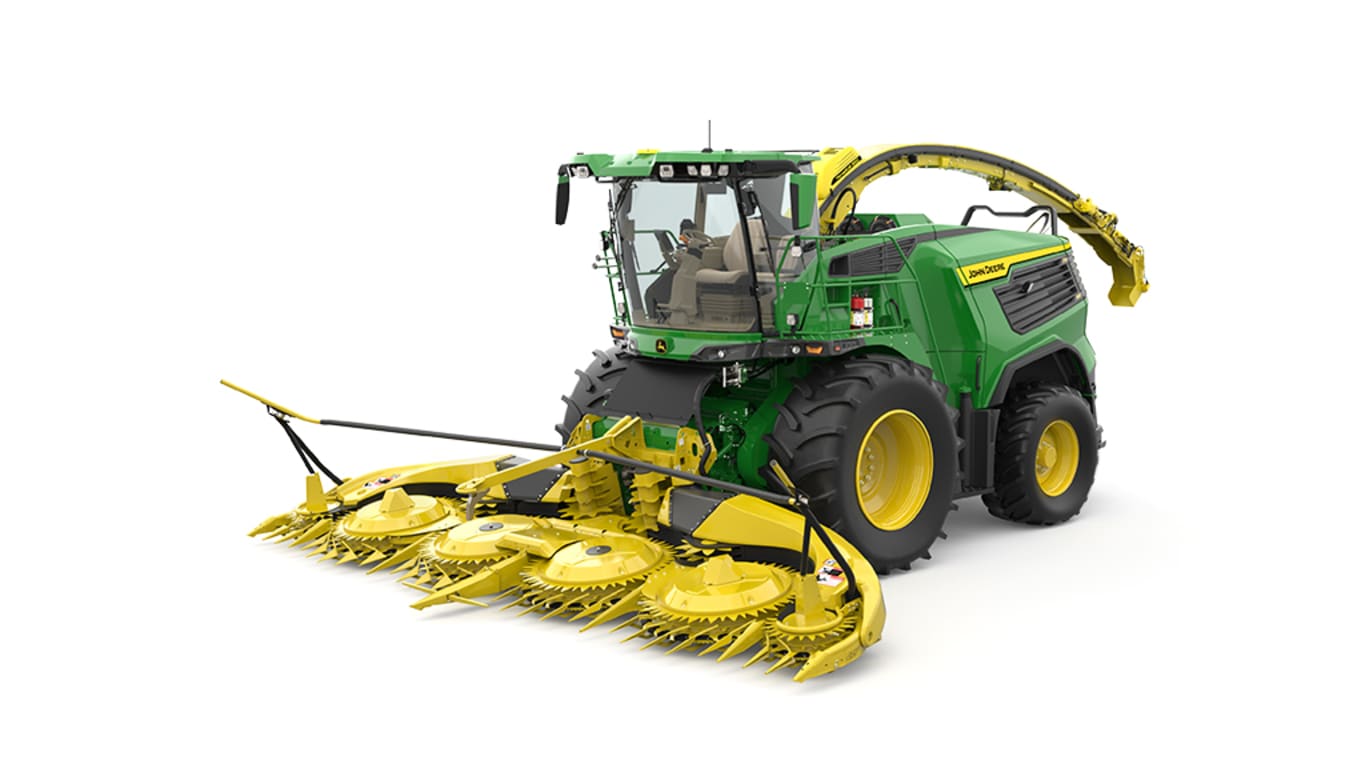

9500 Self-Propelled Forage Harvester

HP: 755 Max / 690 Rated
JD18X 18.0 L engine
Wide Channel Width
HarvestLab™
JDLink™ Connection

View the 9500

9600 Self-Propelled Forage Harvester

HP: 775 Max / 740 Rated
JD18X 18.0 L engine
Wide Channel Width
HarvestLab™
JDLink™ Connection

View the 9600

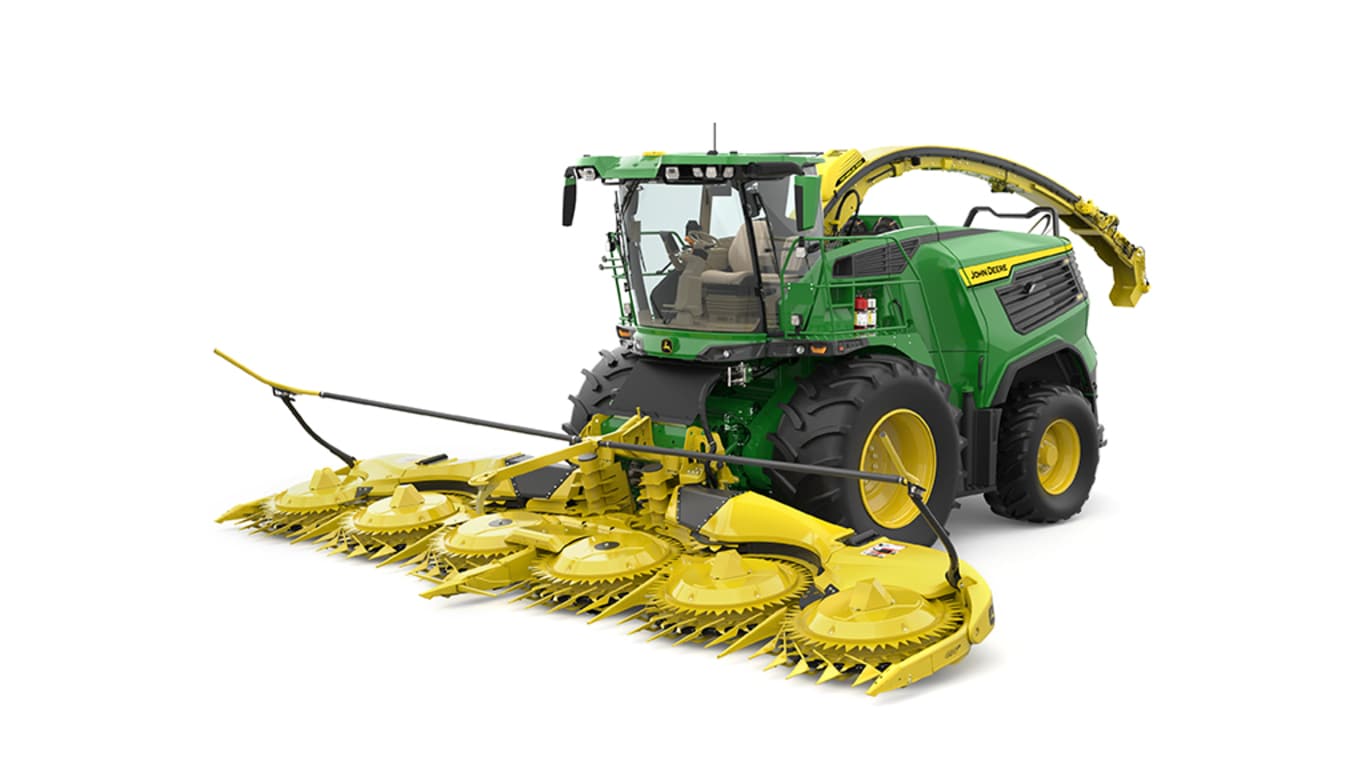

9700 Self-Propelled Forage Harvester

HP: 813 Max / 789 Rated
JD18X 18.0 L engine
Wide Channel Width
HarvestLab™
JDLink™ Connection

View the 9700

9800 Self-Propelled Forage Harvester

HP: 856 Rated*
Liebherr 24.2 L engine
Wide Channel Width
HarvestLab™
JDLink™ Connection

View the 9800

9900 Self-Propelled Forage Harvester

HP: 956 Rated*
Liebherr 24.2 L Engine
Wide Channel Width
HarvestLab™
JDLink™ Connection

View the 9900

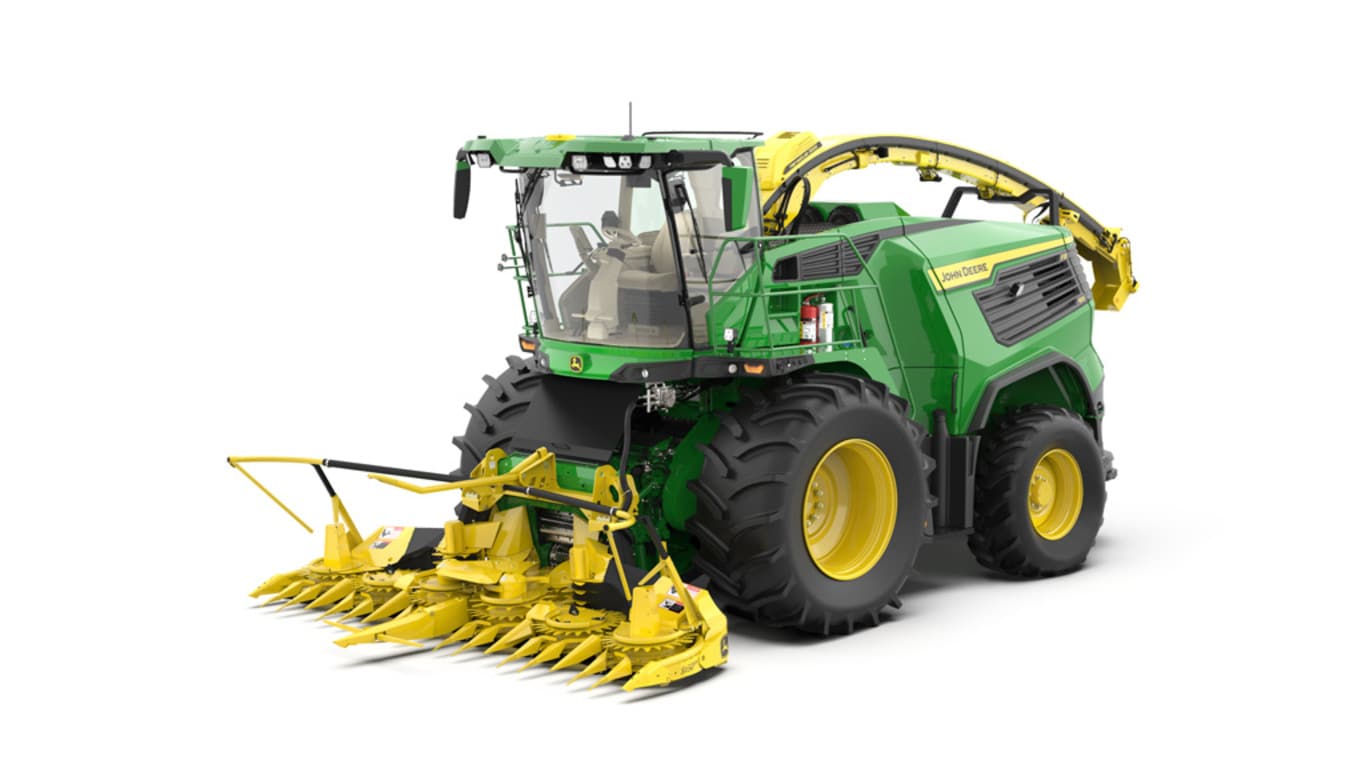

8100 Self-Propelled Forage Harvester

HP: 431 Max / 425 Rated
John Deere 9.0 L Engine
Standard Channel Width
HarvestLab™
JDLink™ Connection

View the 8100

8200 Self-Propelled Forage Harvester

HP: 465 Max / 459 Rated
John Deere 13.5 L Engine
Standard Channel Width
HarvestLab™
JDLink™ Connection

View the 8200

8300 Self-Propelled Forage Harvester

HP: 505 Max / 498 Rated
John Deere 13.5 L Engine
Standard Channel Width
HarvestLab™
JDLink™ Connection

View the 8300

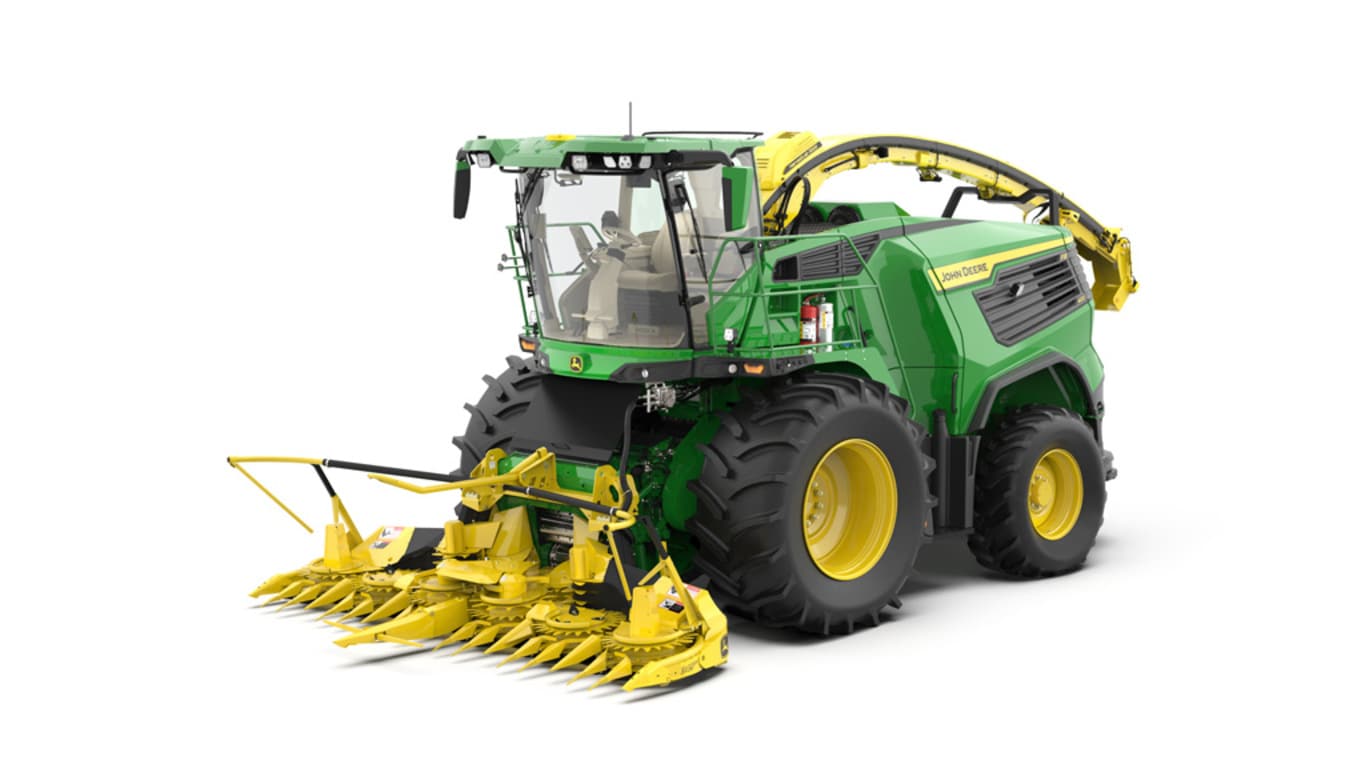

8400 Self-Propelled Forage Harvester

HP: 540 Max / 533 Rated
John Deere 13.5 L Engine
Standard Channel Width
HarvestLab™
JDLink™ Connection

View the 8400

8500 Self-Propelled Forage Harvester

HP: 585 Max / 577 Rated
John Deere 13.5 L Engine
Standard Channel Width
HarvestLab™
JDLink™ Connection

View the 8500

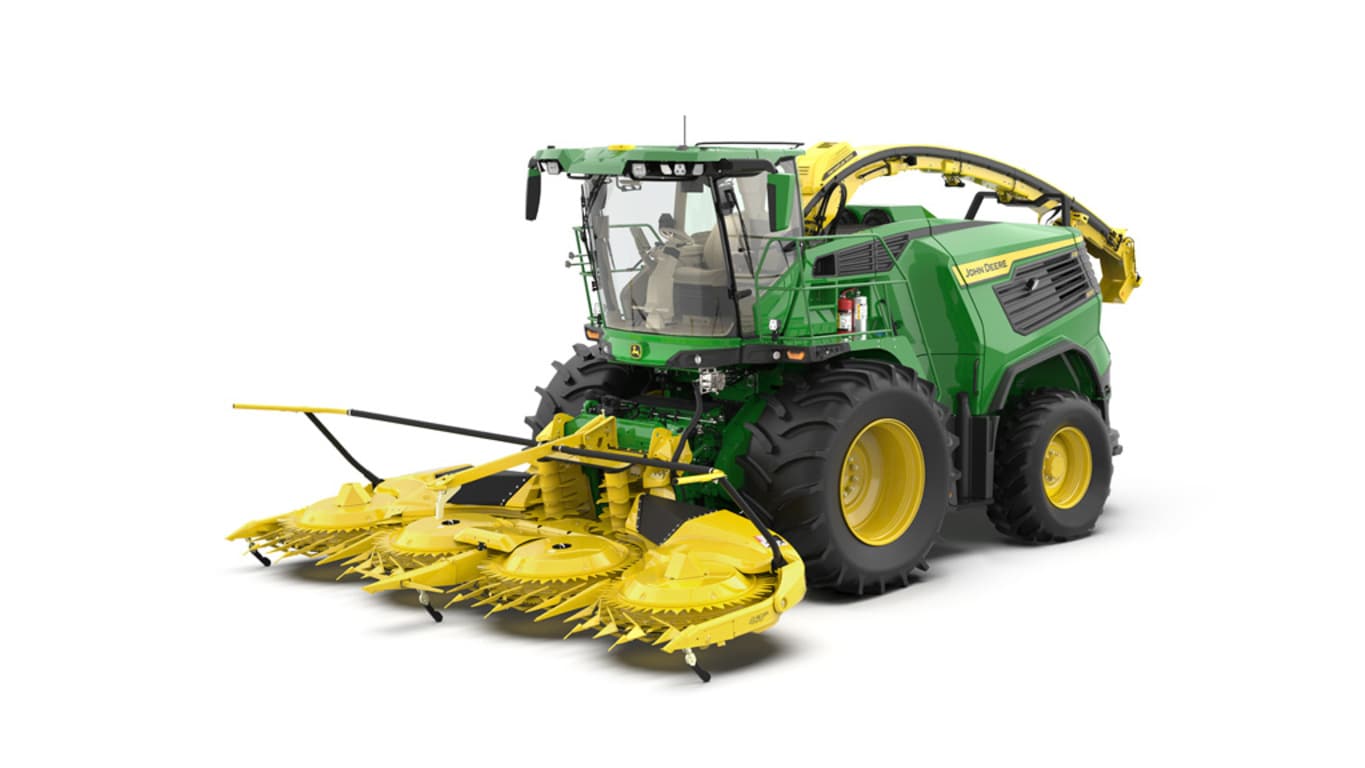

8600 Self-Propelled Forage Harvester

HP: 625 Max / 616 Rated
John Deere 13.5 L Engine
Standard Channel Width
HarvestLab™
JDLink™ Connection

View the 8600

9000 Series Self-Propelled Forage Harvesters

These new forage harvesters are more powerful and efficient, while maintaining high-quality silage.

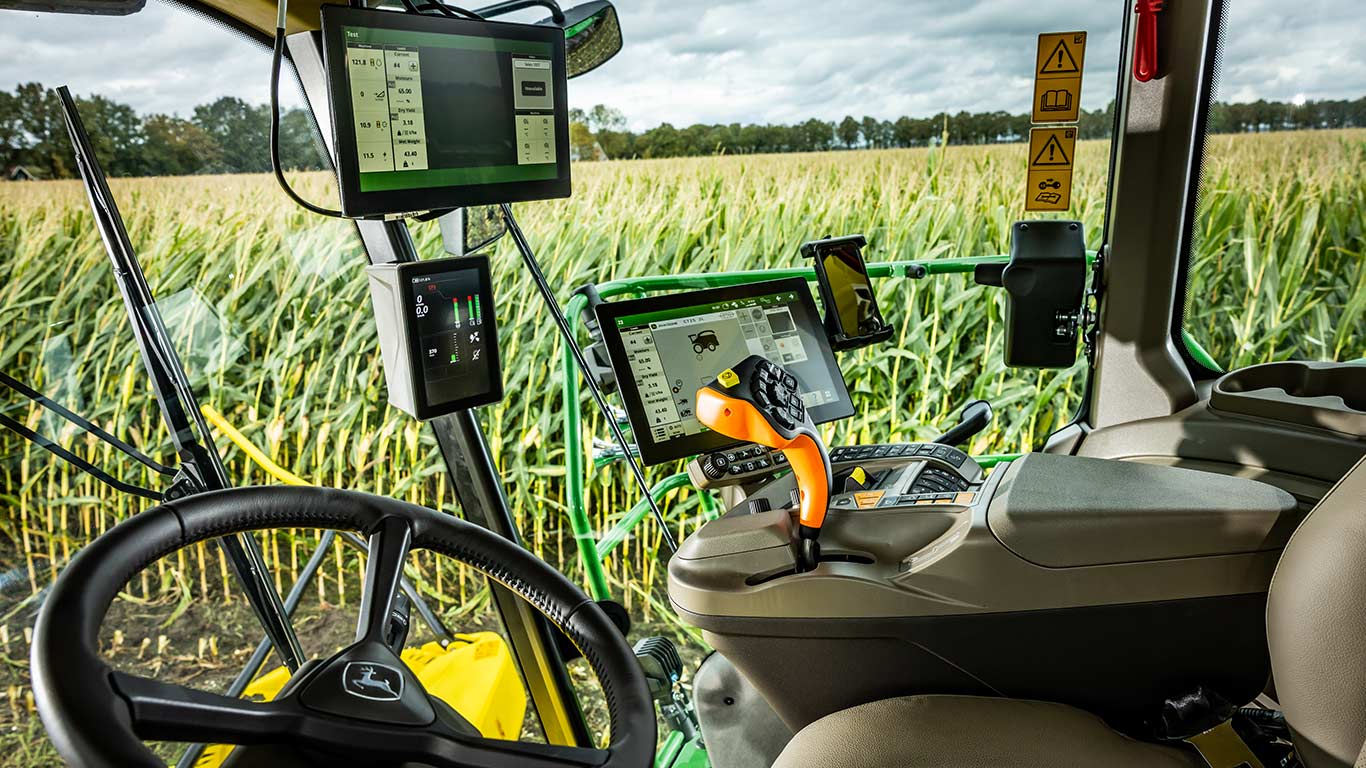

Active Fill Control

Active Fill Control uses a camera with 3D capability to automatically detect the crop transport truck or trailer and fill it evenly and without spillage. As the camera detects a truck, it automatically begins tracking with the spout. Then it controls the rotation and cap position of the spout until the truck is filled. Select from 4 fill strategies to suit your work style or crop removal vehicle, reduce operator fatigue and increase the efficiency of your forage production.

Learn More about Active Fill Control about Active Fill Control

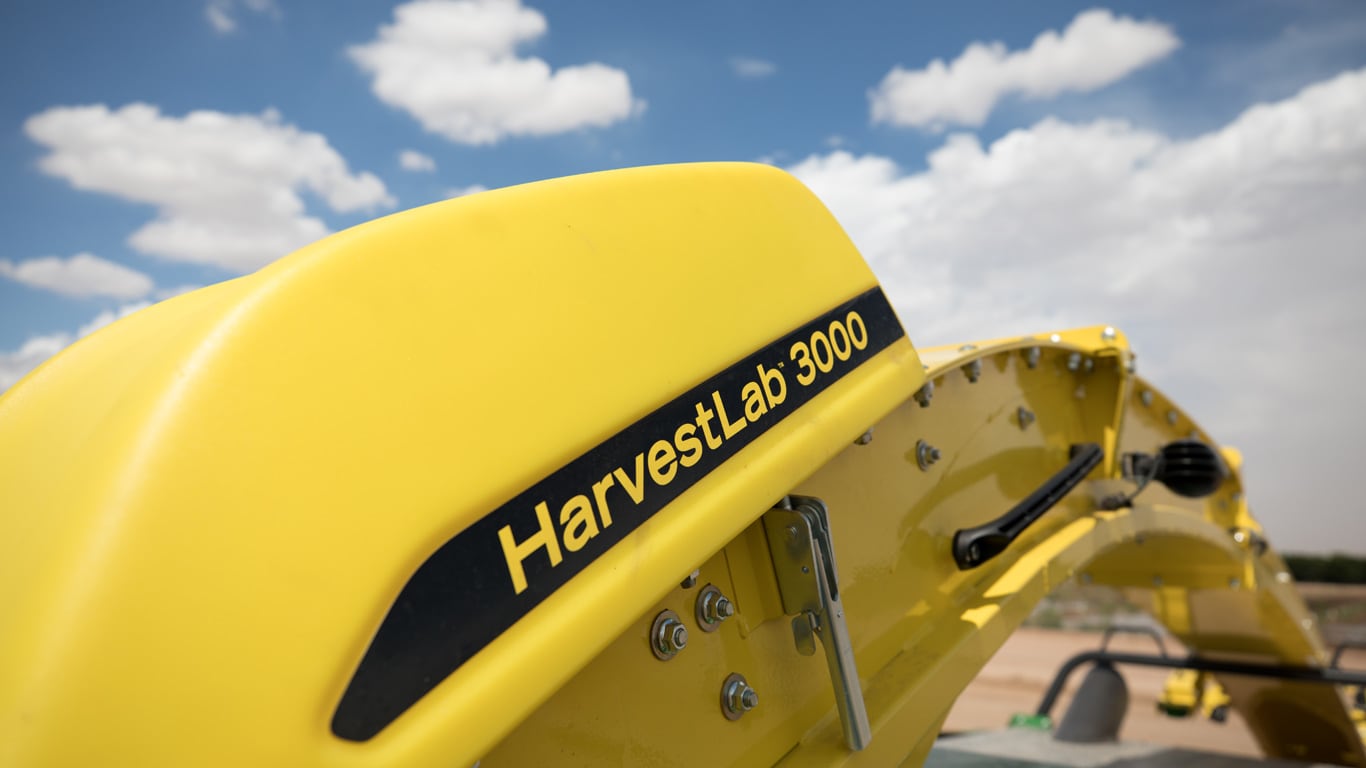

HarvestLab™ 3000

HarvestLab 3000 measures moisture and nutrient values on the go, allowing you to make reliable in-field adjustments -- on the fly.

Learn more about the HarvestLab 3000 about HarvestLab™ 3000

Fill It

Feed more crop through your windrower with the new 46R pickup. Maintain as many leaves as you can with a trash net that extends down to the rake tines. The 10% larger¹ auger allows for a faster, more uniform feeding of the crop – regardless of your windrow size. Plus, when it comes to maintenance, the new 46R has a chainless drive, meaning no oiling or wear.

Learn more about the 46R header

Bring it on

The 772 Header matches the capacity and capability of the new 9000 Series. This 12-row, large drum head has bring it on capacity. Add AutoTrac™ RowSense™, and you can sit back and get a full header width with each pass.

Learn more about the 772 Header about Bring it on

studio image of XStream kernel processor

Crush It

Partnering with Scherer, Inc., John Deere developed the new XStream™ Kernel Processor for the high horsepower of the new 9000 Series. With 250 mm (10 in.) diameter rolls and 50% speed differential, this processor delivers consistently smashed kernels and thoroughly processed plants. In 2022, the XStream Kernel Processor is now available with 275 mm (11 in.) diameter rolls. You can count on the high Corn Silage Processing Scores, no matter the length of cut.

Self-Propelled Forage Harvesters

Models	Engine	Displacement	Rated Power	Channel Width	Fuel Tank Capacity
9500	JD18X	18.0 L	690 HP	Wide	396 gal. (1500 L)
9600	JD18X	18.0 L	740 HP	Wide	396 gal. (1500 L)
9700	JD18X	18.0 L	755 HP	Wide	396 gal. (1500 L)
9800	Liebherr	24 L	856 HP	Wide	396 gal. (1500 L)
9900	Liebherr	24 L	956 HP	Wide	396 gal. (1500 L)

8000 Series

Compare our 8000 Series Self-Propelled Forage Harvesters

Models	Engine	Displacement	Rated Power	Channel Width	Fuel Tank Capacity
8100	John Deere Power Tech™ PSS	9.0 L	425 hp	Standard	290 gal. (1100 L)
8200	John Deere Power Tech™ PSX	13.5 L	459 hp	Standard	290 gal. (1100 L)
8300	John Deere Power Tech™ PSX	13.5 L	498 hp	Standard	290 gal. (1100 L)
8400	John Deere Power Tech™ PSX	13.5 L	533 hp	Standard	290 gal. (1100 L)
8500	John Deere Power Tech™ PSX	13.5 L	577 hp	Standard	290 gal. (1100 L)
8600	John Deere Power Tech™ PSX	13.5 L	616 hp	Standard	290 gal. (1100 L)

Technology & Tips

JDLink™ Connectivity

Enjoy all the benefits of a connected machine with a 4G JDLink MTG (modem), standard. Just activate the JDLink wireless service within your John Deere Operations Center account to start streaming machine and crop data to your account free of charge.

See How It Works Together about JDLink™ Connectivity

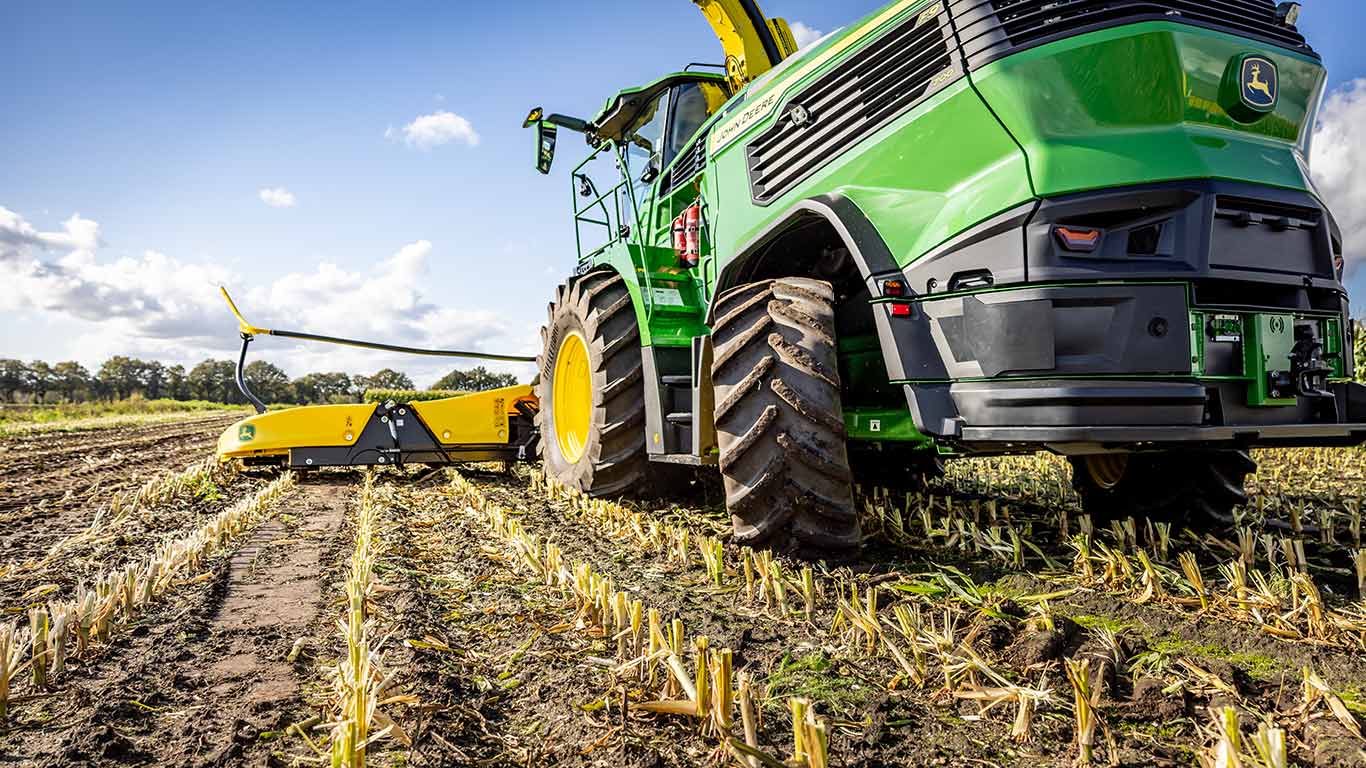

John Deere Operations Center

Plan field work. Monitor machines in near real-time. Analyze machine and crop performance year over year. With Operations Center, you can manage your operation from anywhere, anytime, all so you can farm better.

Discover Operations Center about John Deere Operations Center
