When it comes to cutting hay, John Deere has you covered. Whether you need a side-pull, center-pivot or front- or rear-mounted mower-conditioner, we’ve got the machine for you.

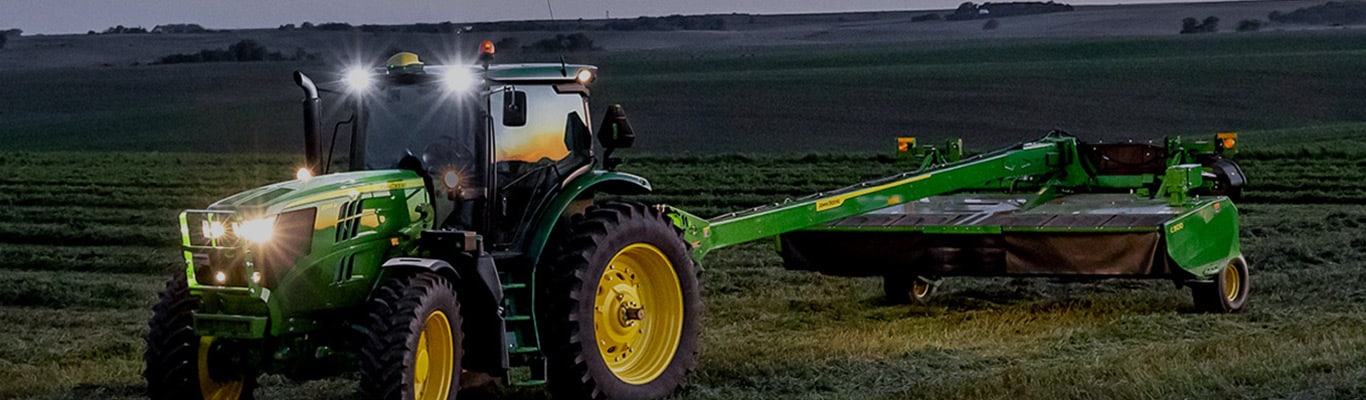

Get more done in a day with the new John Deere C500 Mower Conditioner. The 16 ft. 4 in. (5 m) cutting width of the new C500 lets you cover up to 10% more acres per hour*.
*compared to previous models

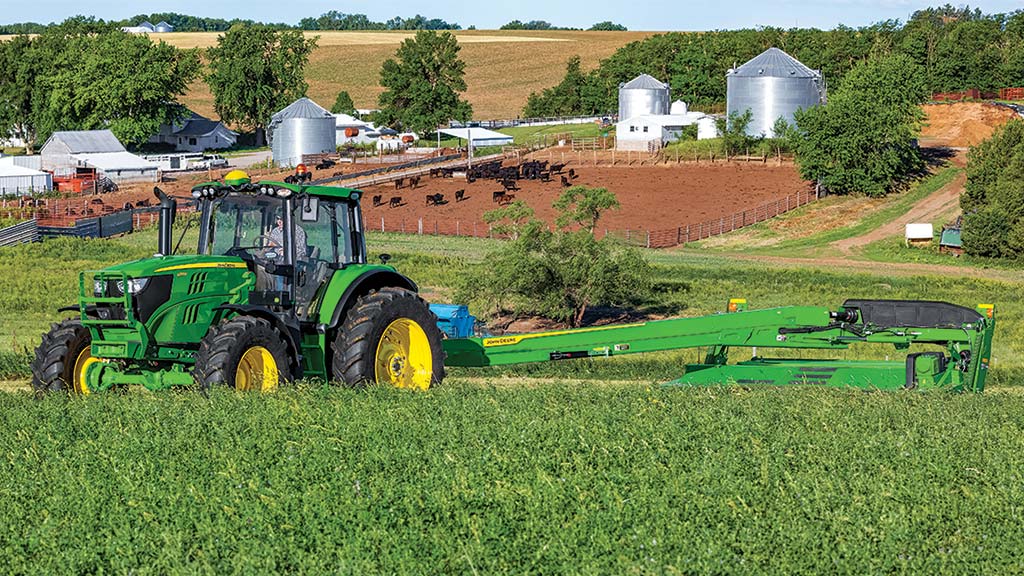

Now you can mow with a wider range of tractors and handle hills easier, due to the lighter weight of the John Deere C400 Mower-Conditioner. In addition to the flexibility to use lower horsepower tractors, you get wider conditioning rolls, Quick Change Knives and continued great maneuverability and durability with swivel hitch options.

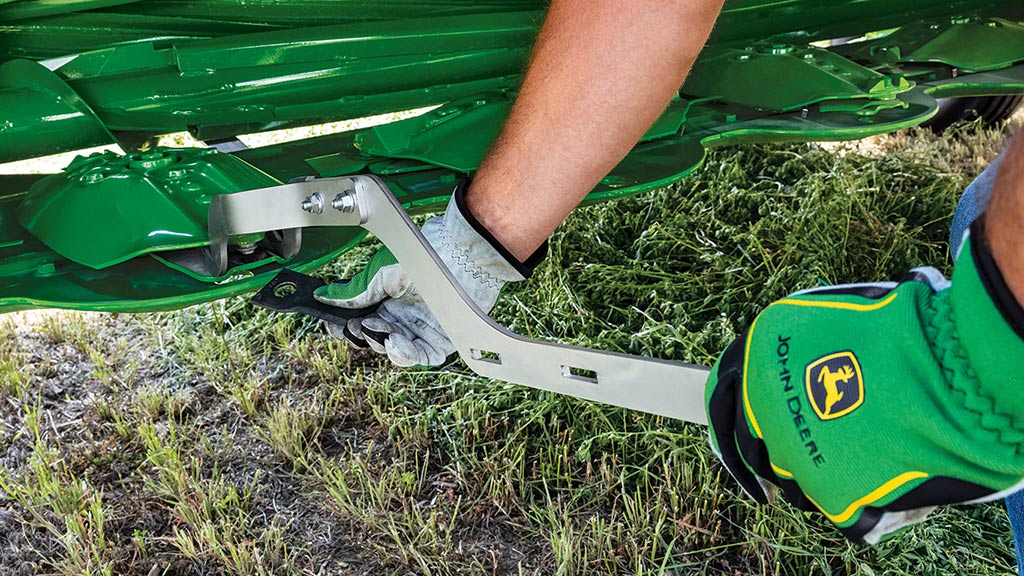

Cut your time changing knives in half* with the Quick Change Knives, available on the redesigned John Deere Zero Series Mower-Conditioners, letting you spend less time servicing your mower and more time cutting hay. Changing a knife in the field is easier than ever with Quick Change Knives, helping you maintain the best cut quality.
*compared to standard bolted knives of previous models

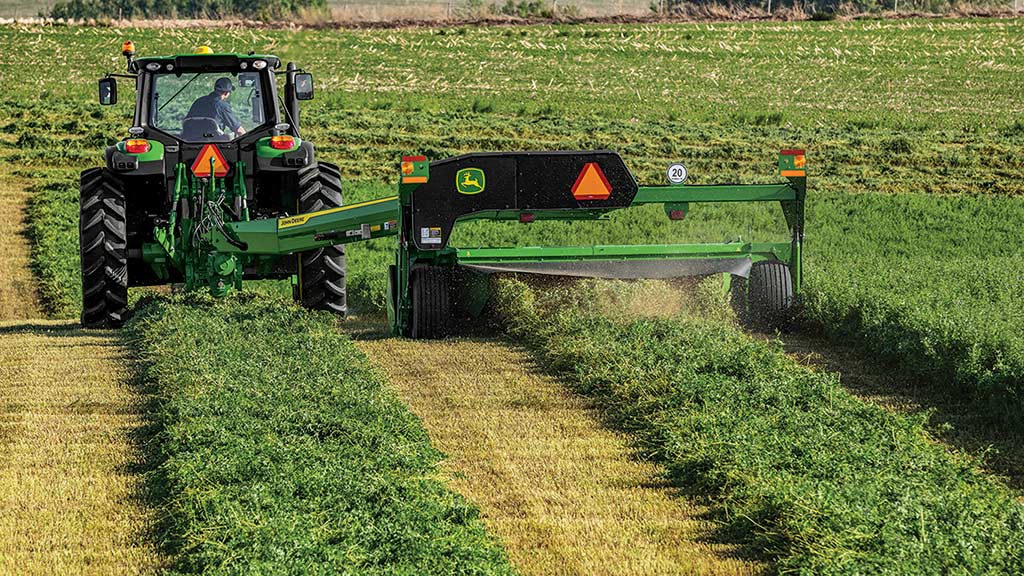

Getting your hay crop dried down fast is important, especially if you have weather events looming. The John Deere S250, S300, S350, C300, C350 and C400 Mower-Conditioners give you the ability for wider windrows, thanks to the forming vanes. These wider windrows help the crop dry down faster, preserving the quality of the hay and giving you more time to bale before Mother Nature strikes.
The 5-year cutterbar warranty shows how John Deere remains committed to the quality and durability of the John Deere Zero Series Mower-Conditioners. The proven drawbar swivel is now available on more models and provides increased maneuverability and driveline protection, letting you make tighter turns with increased peace of mind.
⠀

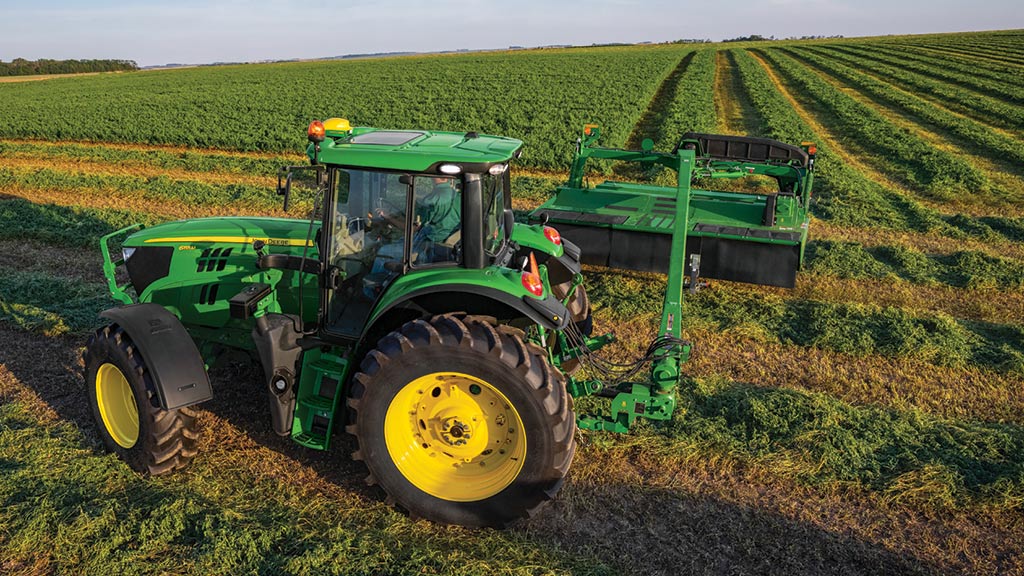

John Deere Mower-Conditioners are built with durable parts to withstand the tough conditions of every day use. And with innovations like our cutterbar's patented shear hub, you can be sure that should you hit an obstruction, getting your machine up and running will be fast and painless.
Model | PTO Speed | 540-rpm PTO, 1 3/8" shaft | 1,000-rpm PTO, 1 3/8" shaft | Discs | Cutting Width | Cutting Height |
---|---|---|---|---|---|---|
PTO Speed
540 rpm only | 540-rpm PTO, 1 3/8" shaft
55 to 75 hp (41 to 56 kW) | 1,000-rpm PTO, 1 3/8" shaft
N/A | Discs
5 | Cutting Width
8 ft. 2 in. (2.5 m) | Cutting Height
1.1 to 3.8 in. (28 to 98 mm) without extensions; 2.8 to 6.6 in. (71-167 mm) with extensions |
|
PTO Speed
540 or 1,000 rpm | 540-rpm PTO, 1 3/8" shaft
65 to 81 hp (48 to 60 kW) | 1,000-rpm PTO, 1 3/8" shaft
65 to 150 hp (48 to 112 kW) | Discs
6 | Cutting Width
9 ft. 9 in. (3.0 m) | Cutting Height
1.1 to 3.8 in. (28 to 98 mm) without extensions; 2.8 to 6.6 in. (71-167 mm) with extensions |
|
PTO Speed
1,000 rpm only | 540-rpm PTO, 1 3/8" shaft
N/A | 1,000-rpm PTO, 1 3/8" shaft
90 to 150 hp (68 to 112 kW) | Discs
7 | Cutting Width
11 ft. 6 in. (3.5 m) | Cutting Height
1.1 to 3.72 in. (28 to 94 mm) without extensions, 2.52 to 6.45 in. (64-168 mm) with extensions |
|
PTO Speed
540 rpm/1,000 rpm | 540-rpm PTO, 1 3/8" shaft
70 to 81 hp (52 to 60 kW) | 1,000-rpm PTO, 1 3/8" shaft
70 to 150 hp (52 to 112 kW) | Discs
6 | Cutting Width
9 ft. 9 in. (3.0 m) | Cutting Height
0.8 to 3.7 in. (20 to 95 mm) without extensions; 2.4 to 6.5 in (60 to 165 mm) with extensions |
|
PTO Speed
1,000 rpm only | 540-rpm PTO, 1 3/8" shaft
N/A | 1,000-rpm PTO, 1 3/8" shaft
90 to 150 hp (68 to 112 kW) | Discs
7 | Cutting Width
11 ft. 6 in. (3.5 m) | Cutting Height
0.8 to 3.7 in. (20 to 95 mm) without extensions; 2.4 to 6.5 in. (60 to 165 mm) with extensions |
|
PTO Speed
1,000 rpm only | 540-rpm PTO, 1 3/8" shaft
N/A | 1,000-rpm PTO, 1 3/8" shaft
100 to 150 hp (75 to 112 kW) | Discs
8 | Cutting Width
13 ft. (4.0 m) | Cutting Height
0.63 to 6.7 in. (16 to 170 mm) |
|
PTO Speed
1,000 rpm only | 540-rpm PTO, 1 3/8" shaft
N/A | 1,000-rpm PTO, 1 3/8" shaft
100 to 150 hp (75 to 112 kW) | Discs
9 | Cutting Width
14 ft. 6 in. (4.5 m) | Cutting Height
0.63 to 6.7 in. (16 to 170 mm) |
|
PTO Speed
1,000 rpm | 540-rpm PTO, 1 3/8" shaft
N/A | 1,000-rpm PTO, 1 3/8" shaft
120-210 hp (89-157 kW) | Discs
10 | Cutting Width
16 ft. (4.9 m) | Cutting Height
0.63 to 6.7 in. (1.6 to 1.7 cm) |

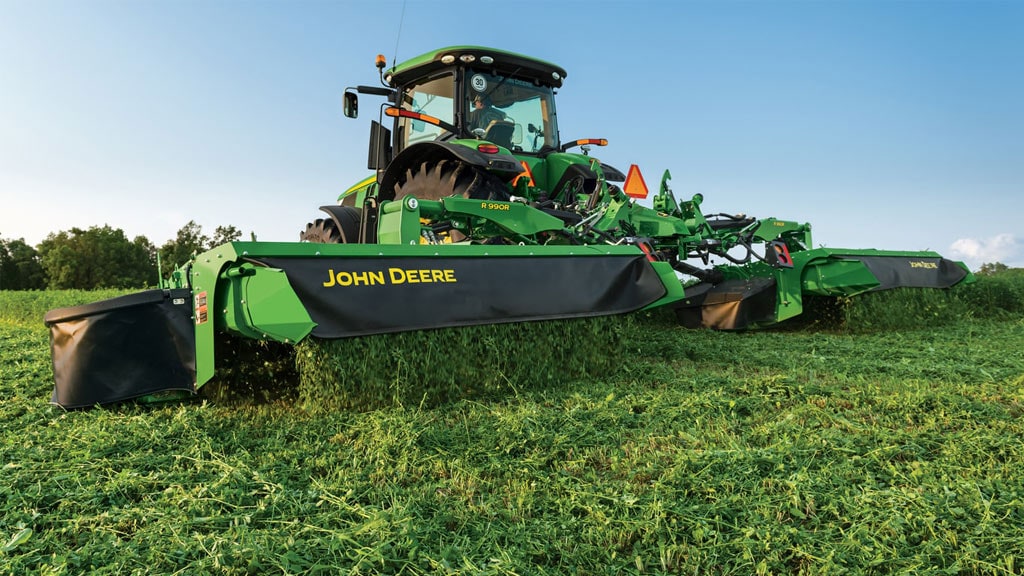

Get a cutting width of more than 32 feet in one pass, with a narrow transport width of 10 feet. Choose from two front-mount and three rear-mount mower conditioners to meet your needs.
.
Get a cutting width of more than 32 feet in one pass, plus a narrow transport width of about 10 feet. Pair it with a 7R or 8R Series Tractor with a front hitch and PTO and AutoTrac for unmatched productivity. From the F310R, to the R990R, there are two front-mount and three rear-mount options to choose from.
Models | Recommended PTO Power | Number of Cutterbar Discs | Cutting Width | Transport Width | Number of Impeller Conditioner Tines |
---|---|---|---|---|---|
Recommended PTO Power
100 hp (75 kW) | Number of Cutterbar Discs
7 | Cutting Width
10.2 ft (3.1 m) | Transport Width
9.8 ft (3 m) | Number of Impeller Conditioner Tines
80 |
|
Recommended PTO Power
120 hp (91 kW) | Number of Cutterbar Discs
8 | Cutting Width
11.5 ft (3.5 m) | Transport Width
11.4 ft (3.5 m) | Number of Impeller Conditioner Tines
104 |
|
Recommended PTO Power
210 hp (155 kW) | Number of Cutterbar Discs
2x7 | Cutting Width
27.2-28.5 ft (8.3-8.7 m) | Transport Width
9.8 ft (3 m) | Number of Impeller Conditioner Tines
2x80 |
|
Recommended PTO Power
230 hp (170 kW) | Number of Cutterbar Discs
2x8 | Cutting Width
29.9-31.2 ft (9.1-9.5 m) | Transport Width
9.8 ft (3 m) | Number of Impeller Conditioner Tines
2x104 |
|
Recommended PTO Power
250 hp (185 kW) | Number of Cutterbar Discs
2x8 | Cutting Width
31.2-32.5 ft (9.5-9.9 m) | Transport Width
11.4 ft (3.5 m) | Number of Impeller Conditioner Tines
2x104 |

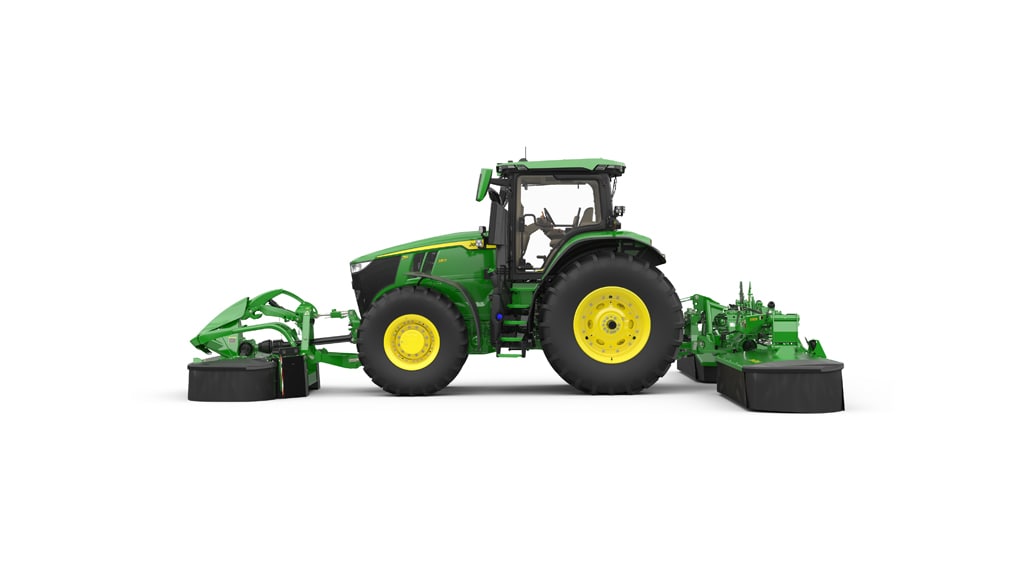

Take the pain out of haymaking with our new triple mount mower option. The 32-ft. 6-in. cutting width covers more ground while ensuring an even cut in any type of field condition.
Model | RECOMMENDED PTO POWER | NUMBER OF CUTTERBAR DISCS | CUTTING WIDTH | TRANSPORT WIDTH |
---|---|---|---|---|
RECOMMENDED PTO POWER
49 HP (36.5 kW) | NUMBER OF CUTTERBAR DISCS
8 | CUTTING WIDTH
11 ft. 6 in. (3.5 m) cutting width | TRANSPORT WIDTH
11.5 ft (3.5 m) |
|
RECOMMENDED PTO POWER
190 HP (142 kW) | NUMBER OF CUTTERBAR DISCS
2x8 | CUTTING WIDTH
32 ft. 6 in. (9.9 m) cutting width | TRANSPORT WIDTH
11 ft (3.35 m) |
Enjoy all the benefits of a connected machine with a 4G JDLink MTG (modem), standard. Just activate the JDLink wireless service within your John Deere Operations Center account to start streaming machine and crop data to your account free of charge.
Visit our compilation of how-to tips, videos and ideas about how to get all kinds of jobs done around your place, including videos on hay mowing, tedding, raking, and bale handling.
