325GCompact Track Loader
- Gross Power: 54.8 kW (74 hp)
- Net Power: 52.5 kW (70 hp)
- Rated Operating Capacity: 1 176 kg (2,590 lb.)
- Operating Weight: 4 313 kg (9,500 lb.)
Optional accessories and attachments shown. See your dealer for available models, options, attachments and pricing. Product options and accessories may not be available in all regions.
Features
Expand All
Collapse All
John Deere 325G equipped with a grapple
325G equipped with a hammer
325G equipped with brush cutter
View of inside the cab
Deluxe light-emitting diode (LED) Lighting Package
Rearview camera display
View out of the Rear of the Machine
Mid-Frame Skid Steers and Compact Track Loaders (CTL’s) offer ease of access to components for regular service or repair
325G with a power rake

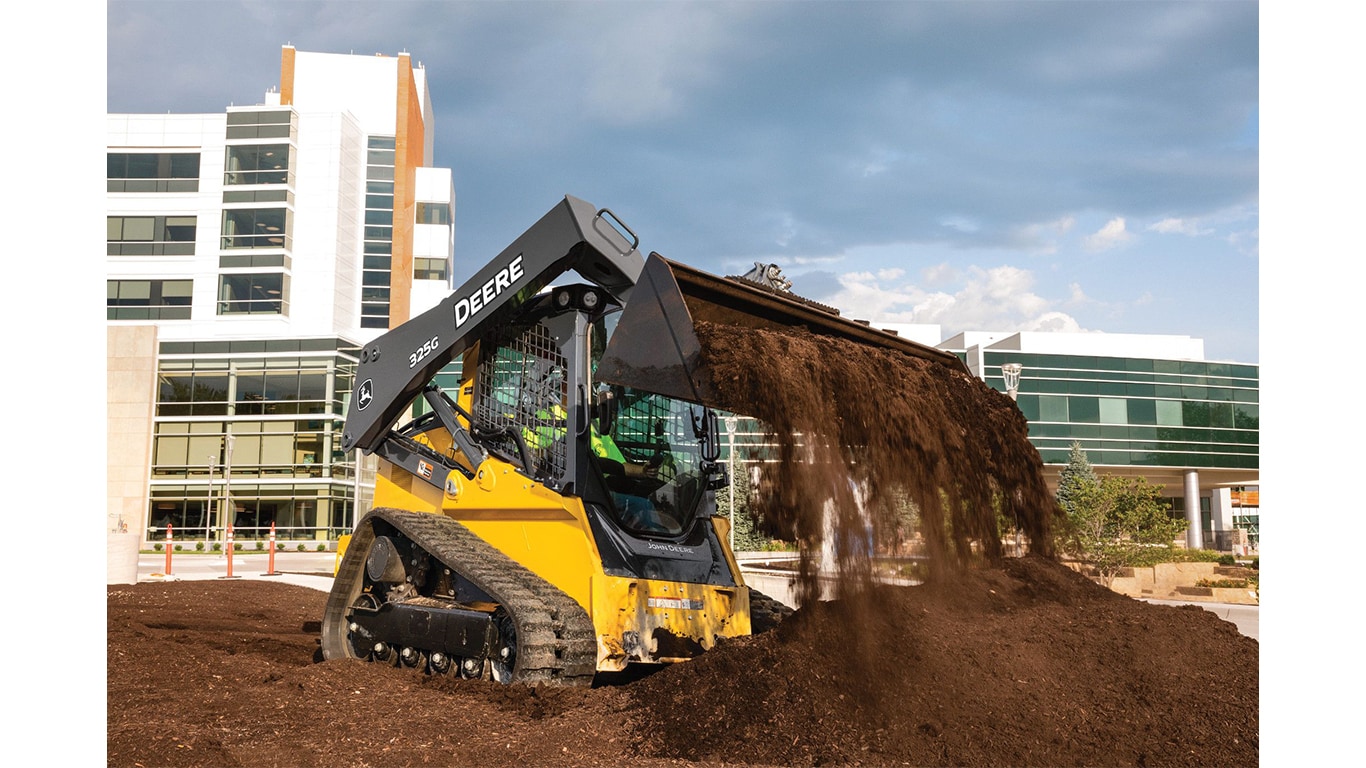

325G removing material from a jobsite
Increase your machine’s versatility with John Deere’s wide array of attachment offerings
John Deere 325G equipped with a grapple
325G equipped with a hammer
325G equipped with brush cutter
With over 100 attachments offered in the John Deere portfolio you can make the most out of your skid steer or compact track loader by equipping it with a number of popular attachments.
- Increased auxiliary hydraulic flows and power over previous models enable greater performance while running attachments and optional high-flow hydraulics lets operators add things like snow blowers, rotary cutters, or brooms
- Optional electrically actuated Quik-TatchTM enables some attachment connecting to take place within the cab reducing the need for exiting and re-entering the cab to manually connect attachments.
- Creep control (offered within the Joystick Performance Package) allows operators to perform precise tasks that require full hydraulic flow and power while running at lower travel speeds
For additional information on attachments and compatibility, check out the John Deere attachments guide
Enjoy all day comfort with the spacious and ergonomically friendly cab
View of inside the cab
To maximize productivity and comfort, an array of enhancements have been made to the spacious and comfortable cab on the mid frame sized machines to keep operators satisfied throughout the entire day.
- The sealed and pressurized cab helps ensure that outside noise is reduced and also keeps the inside cleaner.
- Optional air ride heated seat provides customers working throughout the cold winter months increased comfort and optional Bluetooth radio enables streaming of content from a cell phone.
- Removable glass windows, from inside the cab, without the need for tools means that windows can be easily, quickly, and adequately cleaned to improve machine visibility
- Multiple slip-resistant steps and ergonomically placed handles mounted on the interior and exterior of the machine result in a safer and more natural way to get in and out of the cab
Excellent visibility for increased situational and jobsite awareness
Deluxe light-emitting diode (LED) Lighting Package
Rearview camera display
View out of the Rear of the Machine
Enhanced visibility features enable the operator to view the jobsite to be as precise and productive as possible while also increasing jobsite awareness.
- Optional deluxe LED lighting provides increased visibility early in the morning or at night over the standard halogen package
- Clear sight from the seat under the boom arms to see the tires, even when the boom is down and great visibility to the cutting edges and Quik-Tatch™ lock and unlock indicators
- Rear view camera, low sloped hood and a high cross-tube on the upper-linkage result in unmatched rear visibility
Ease of serviceability allows you to spend more time completing the tasks at hand
Mid-Frame Skid Steers and Compact Track Loaders (CTL’s) offer ease of access to components for regular service or repair
Enhanced serviceability features and ease of access to daily and preventative maintenance points ensures that these tasks do not significantly cut into working hours
- The hood tilts up for ground level access to the dipstick, fuel and fluid filler necks, filters, and see-through reservoirs.
- The cab is able to swing up and out of the way in less than five minutes for wide-open drivetrain access. A single person is able to safely and efficiently lift the boom and lock it out, exit the machine, raise the cab, and remove the footwell.
- Removable metal side panels on the left and rear are lightweight and perforated with handles at optimized lifting points.
- The removal of the footwell with just six total nuts and bolts allows for easy cleaning of dirt and debris that enters the cab.
- Optional JDLink™ provides machine data and health alerts to help decrease costly downtime.
Productivity enhancements that can benefit you regardless of the machine’s application

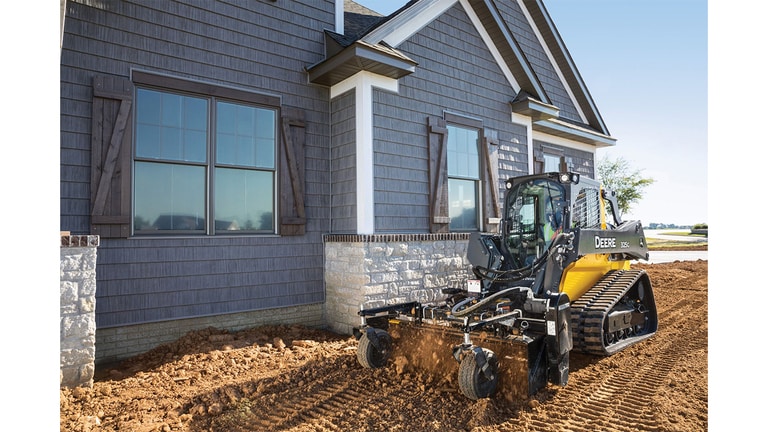

325G with a power rake

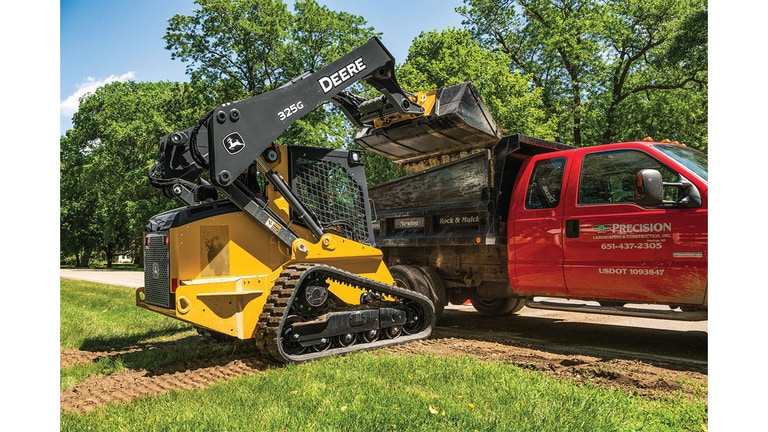

325G removing material from a jobsite

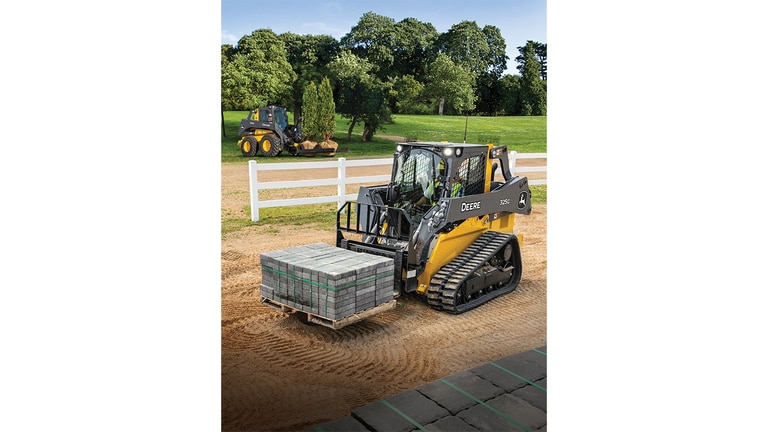

The 325G is a reliable machine with low owning and operating costs that also offers customers an array of productivity features for rental companies, landscapers, or contractors.
- Increased bucket breakout forces result in better handling of pallets of pavers or other heavy materials in addition to helping heap the bucket with larger loads.
- Optional ISO-H switchable controls with electro-hydraulic (EH) Joystick Performance Package that allows operators to choose the pattern they prefer
- Differential steering allows the operator to maintain speed and traction when pushing through a turn
- Standard two-speed drivetrain delivers travel speeds up to 12.9 km/h (8 mph) for Compact Track Loaders (CTL’s) that allow operators to get from one side of the job to the other much quicker
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 325G Compact Track Loader |
DESCRIPTION
| Lift Geometry | Vertical |
|---|
DRIVELINE
| Engine Manufacturer | Yanmar | |||
|---|---|---|---|---|
| Engine Model | 4TNV98CT | |||
| Aspiration | Turbo | |||
| Displacement, ltr (Inches³) | 3.3 (203) | |||
| Rated Speed, rpm | 2500 | |||
| Engine Output - Net, kW (hp) | 52.5 (70) | |||
| Engine Output - Gross, kW (hp) | 54.8 (74) | |||
| Torque, Nm (lbf / ft) | 280 (207) | |||
| Track Shoe Width, mm (inches) | 320 (12.6) |
DIMENSIONS
| Length - No Bucket, mm (inches) | 2850 (112.3) | |||
|---|---|---|---|---|
| Length - Foundry Bucket, mm (inches) | 3460 (136.3) | |||
| Width - No Bucket, mm (inches) | 1820 (71.5) | |||
| Height - Top Of Cab, mm (inches) | 2060 (81.1) | |||
| Ground Clearance, mm (inches) | 240 (9.3) | |||
| Rear Departure Angle, Degrees | 30.5 | |||
| Height to Hinge Pin, mm (inches) | 3200 (126.1) | |||
| Dump Angle, Degrees | 41 | |||
| Dump Height - Maximum Foundry, mm (inches) | 2590 (102.1) | |||
| Rollback - Ground Level, Degrees | 34 |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 79 (21) |
|---|
PERFORMANCE
| Rated Operating Capacity - Foundry, kg (lbs) | 1176 (2590) | |||
|---|---|---|---|---|
| Tipping Load - Foundry, kg (lbs) | 3360 (7400) | |||
| Ground Bearing Pressure - Foundry, kPa (PSI) | 39.3 (5.7) | |||
| Speed - Maximum, kph (mph) | 13.2 (8.2) | |||
| Breakout - Lift Foundry, kN (lbf) | 23.3 (5250) | |||
| Breakout - Bucket Foundry, kN (lbf) | 38.9 (8750) | |||
| Hydraulic Power, kW (hp) | 30.617 (41) | |||
| Hydraulic Power - Option, kW (hp) | 47.103 (63.1) | |||
| Pump Flow, lt/min (gallons (US) / min) | 78 (21) | |||
| Pump Flow - Option, lt/min (gallons (US) / min) | 120 (32) | |||
| System Pressure, bar (PSI) | 237.87 (3450) |
WEIGHTS
| Operating Weight - Foundry, kg (lbs) | 4313 (9500) |
|---|
