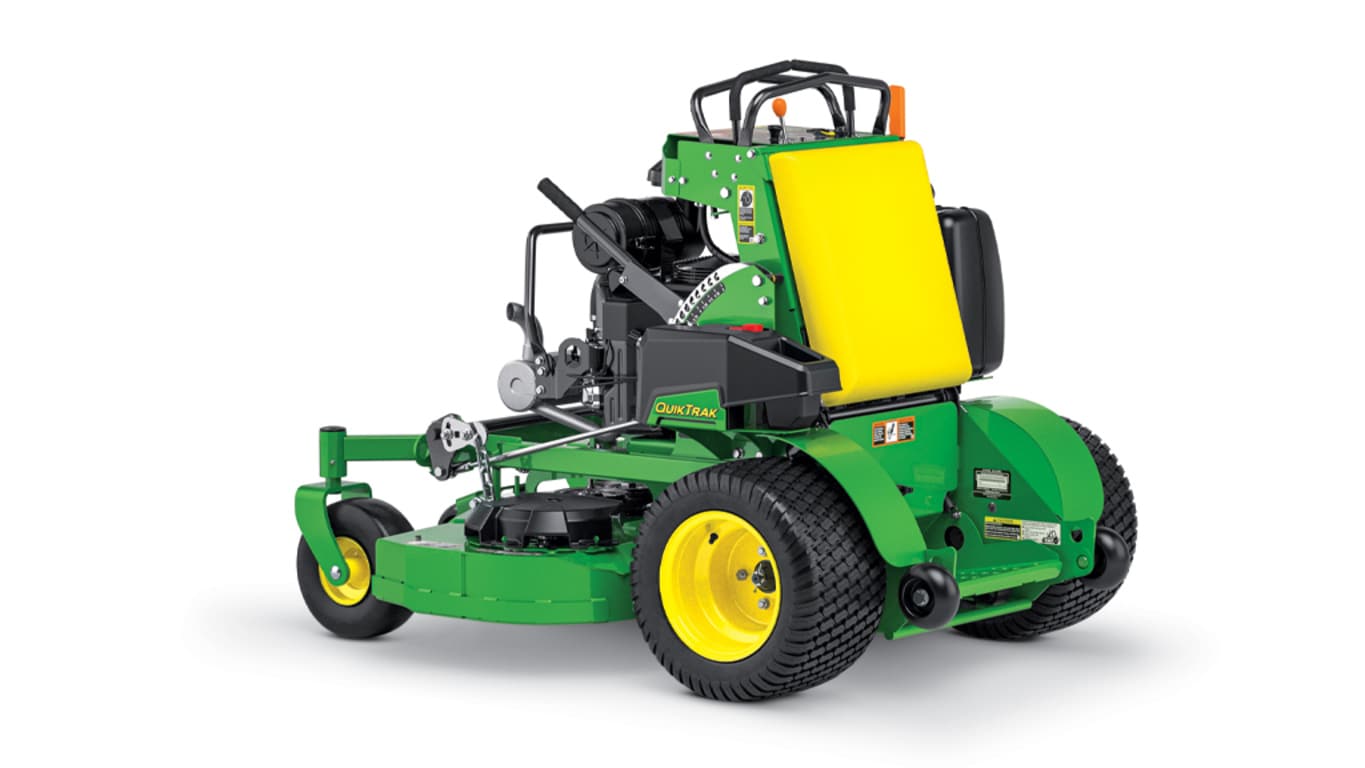

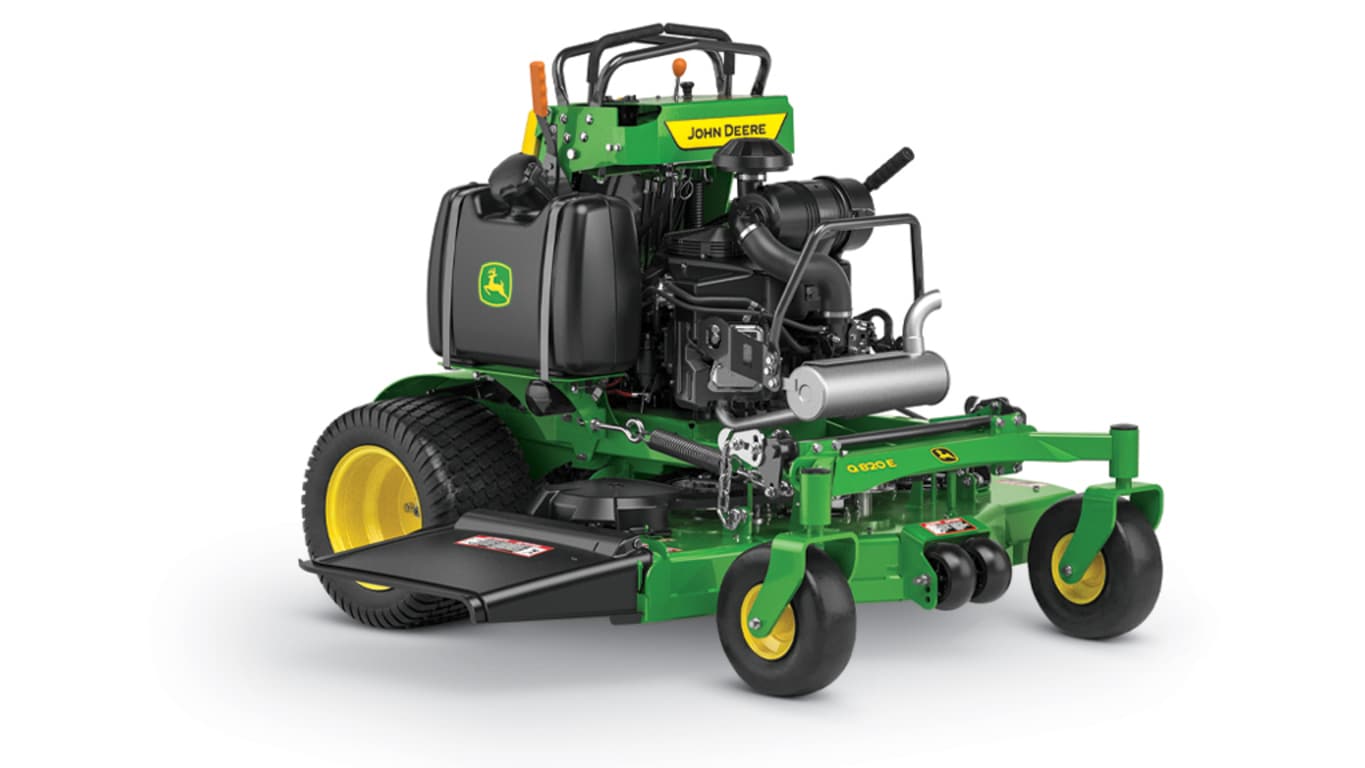

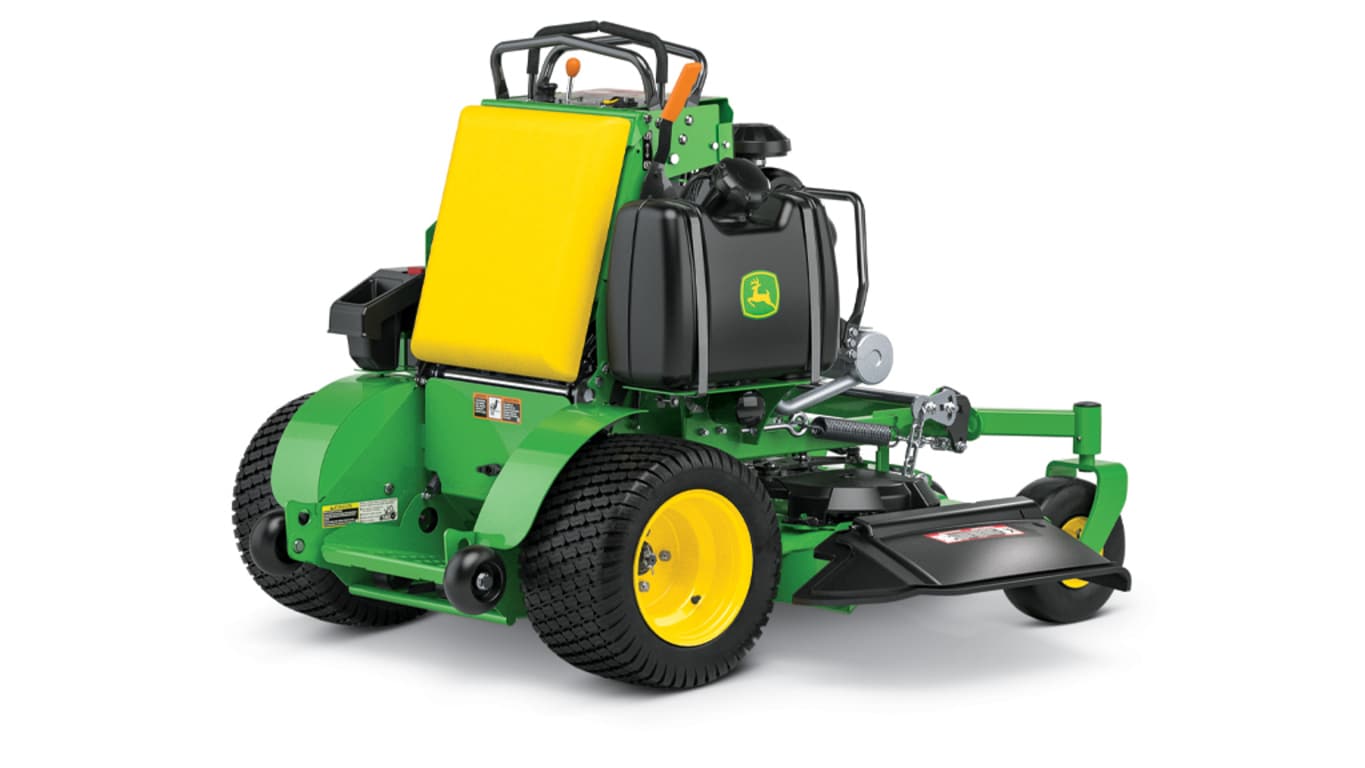

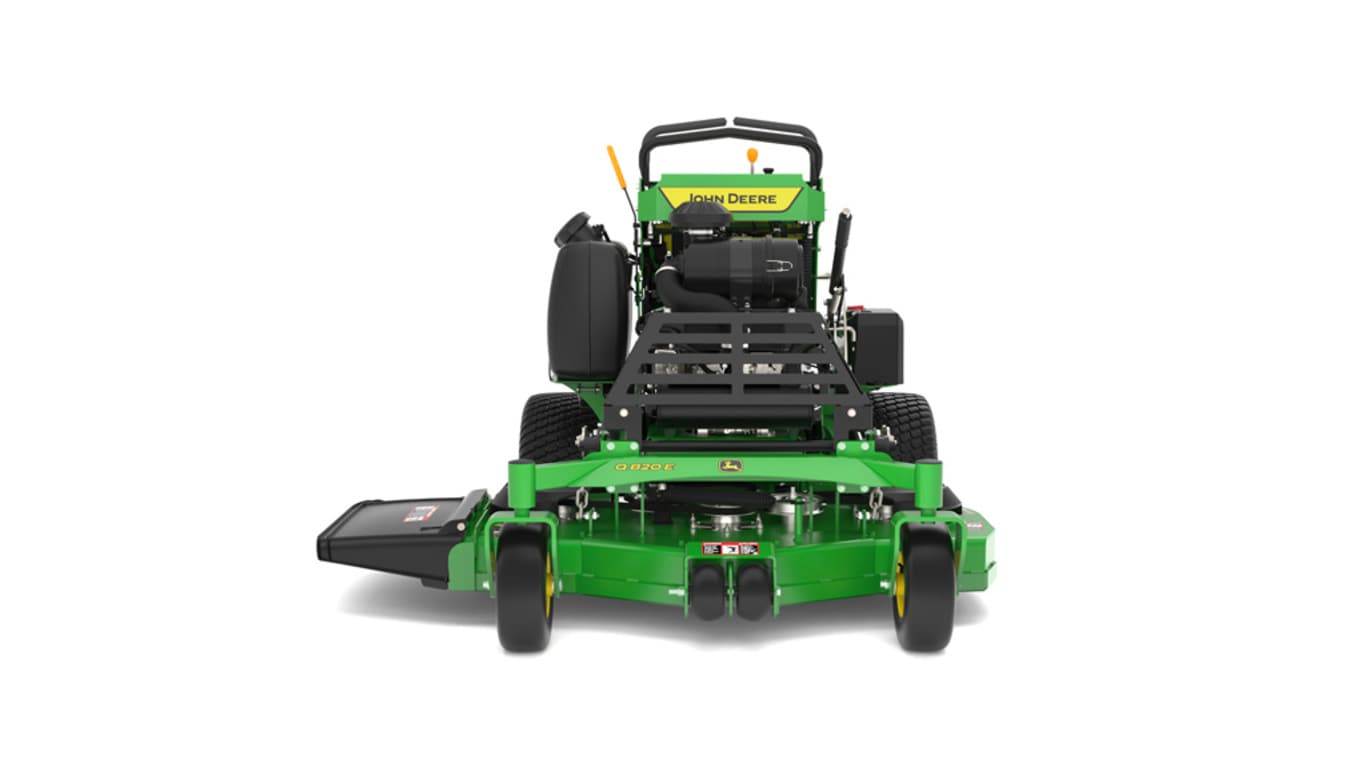

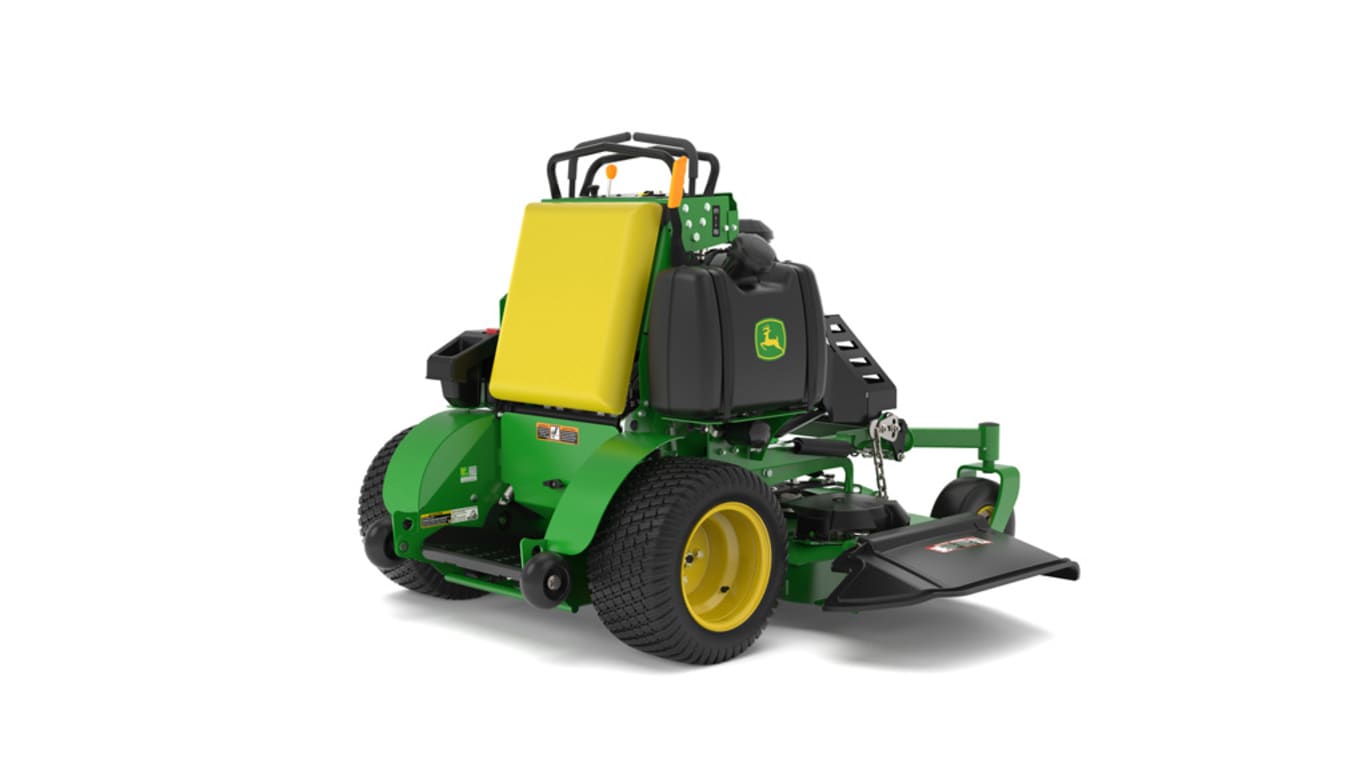

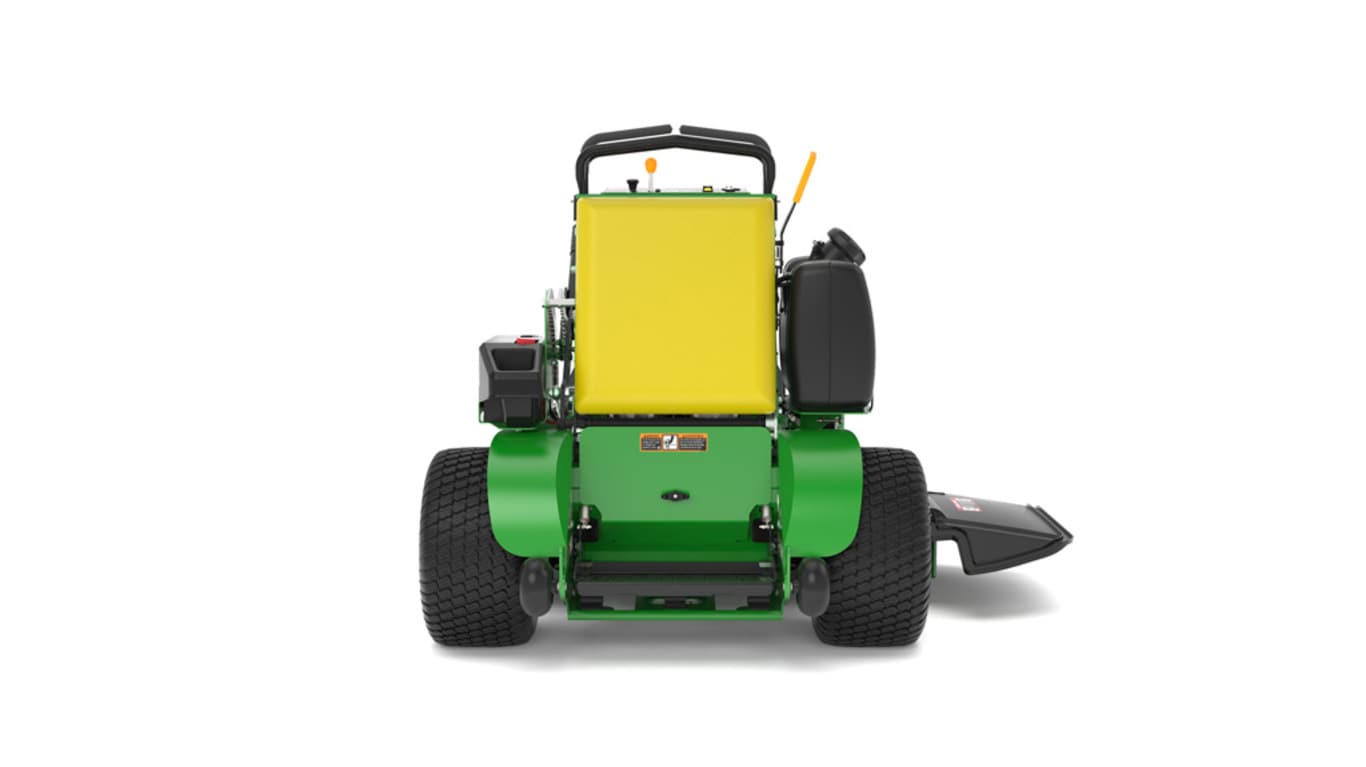

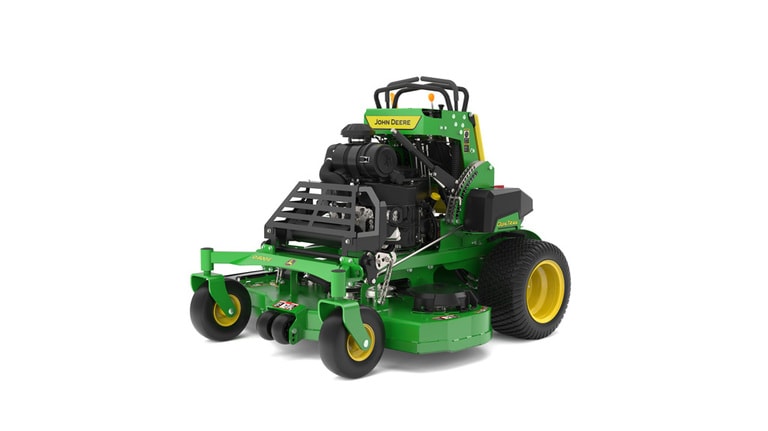

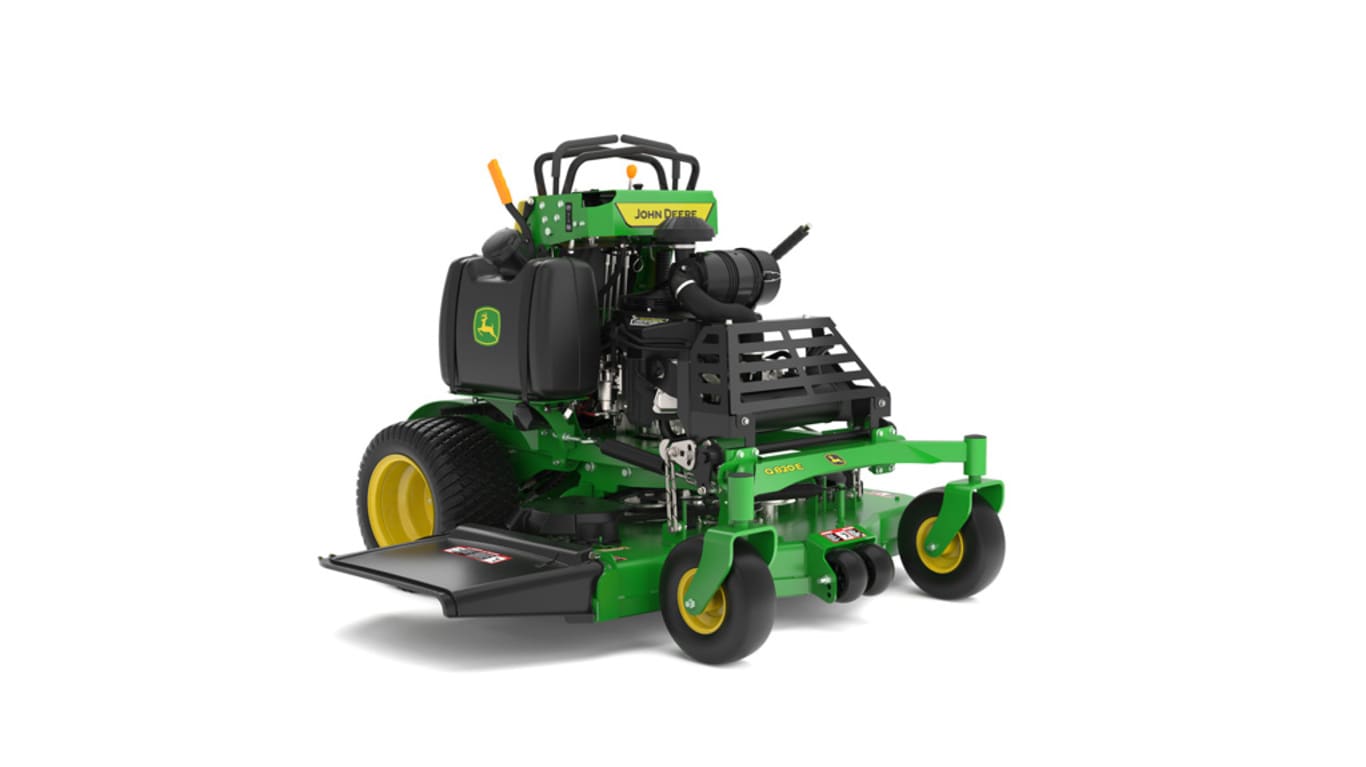

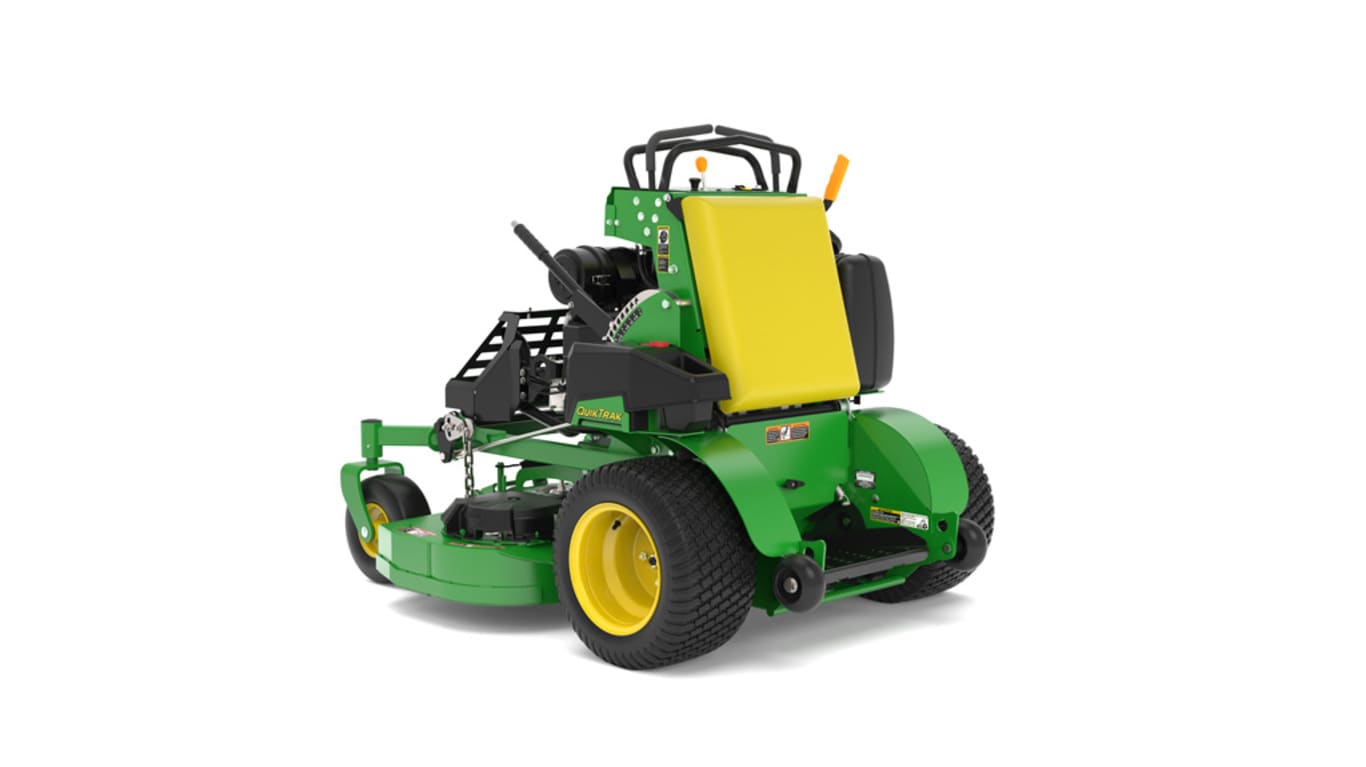

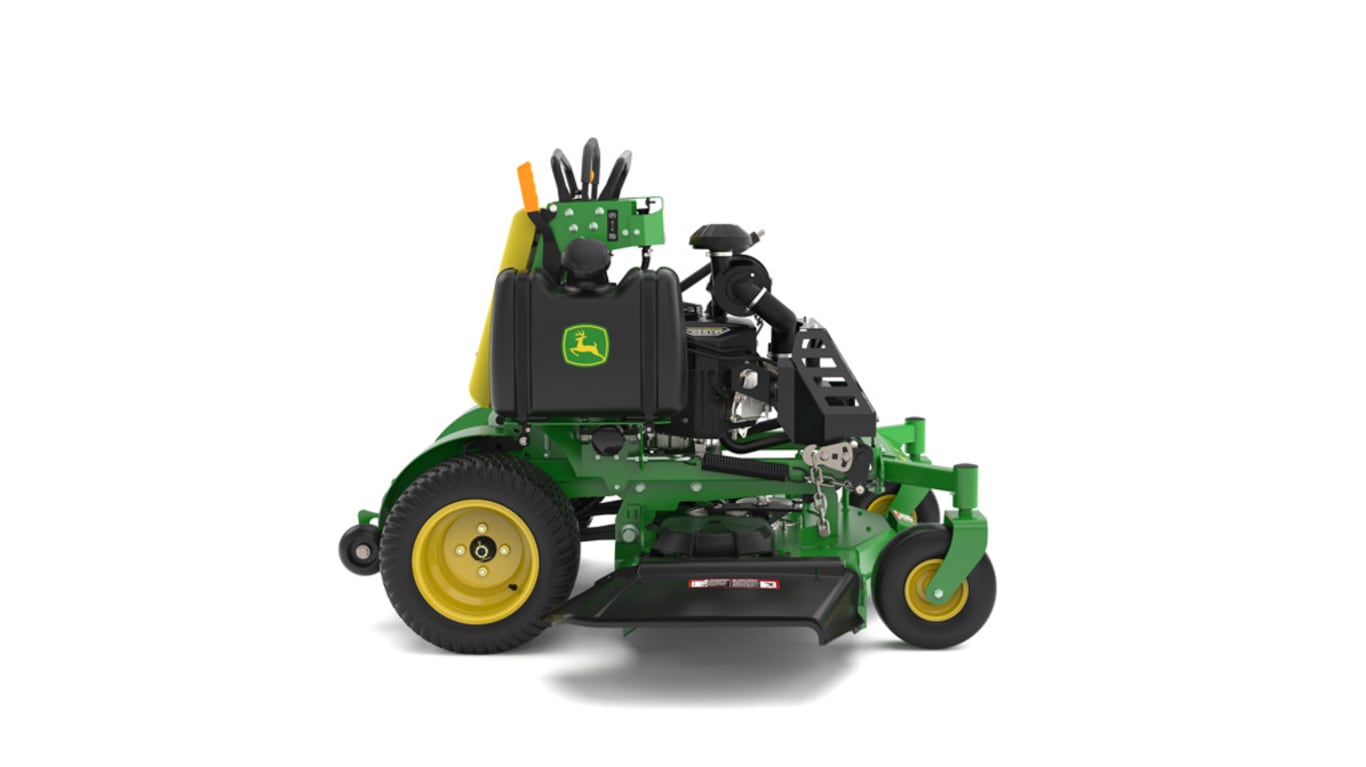

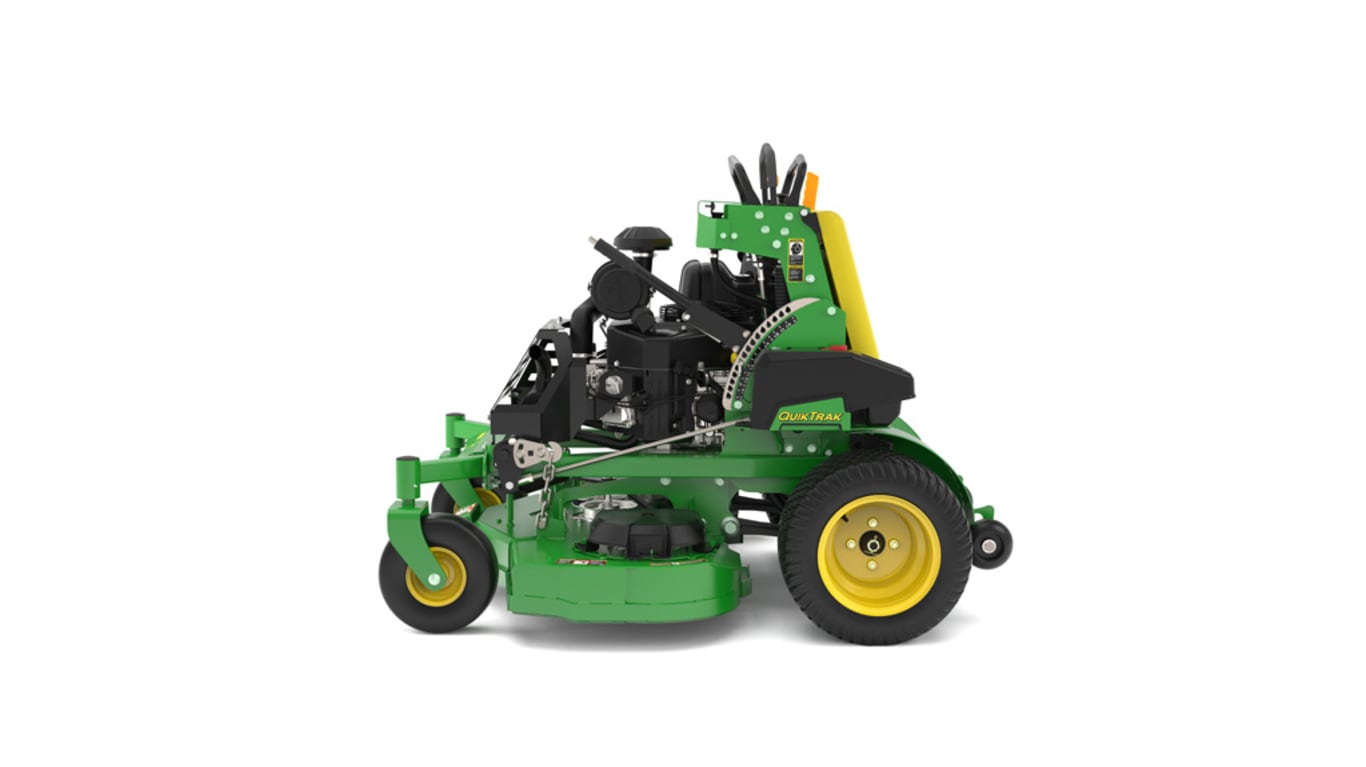

Commercial Mowers | QuikTrak™ Q820E Stand-On Mowers

Features

Expand All Collapse All

Commercial-quality engine is reliable and provides excellent performance and life

Engine (Q810E engine shown)

Heavy-duty air cleaner (Q810E shown)

Commercial-quality V-twin air-cooled engines power the QuikTrak™ Mowers:

FX600V 19 hp (14.2 kW) gross at 3600 rpm (Q810E)
FX730V 23.5 hp (17.5 kW) gross at 3600 rpm (Q820E)

Both engines feature:

Overhead valve design
- More horsepower and torque per cubic inch of displacement
- Better fuel efficiency
Full-pressure lubrication with full-flow filter
- Reduces engine wear by ensuring proper lubrication, even when operating on hillsides or uneven terrain
- Filtered oil reduces risk of contamination for increased engine life
V-twin design
- Fast starts
- Smooth operation
Vertical shaft for efficient transfer of power to the transmission and mower
Standard canister-type, dry replaceable, heavy-duty air cleaner
- Q820E has dual-element air cleaner with safety element
Fuel pump for consistent and reliable fuel supply to the carburetor
Air-cooled engine design for minimum maintenance and maximum reliability
Standard cleanout ports for easy access to remove debris collecting in cooling fins
Aluminum cylinder block
- Effectively dissipates heat
- Lightweight and strong construction
- Extends engine life due to elimination of debilitating engine temperatures

Engine oil-fill/check tube, drain hose, oil filter, and cleanout port

The engine is equipped with a replaceable oil filter for longer engine life.

Engine oil fill/check tube, oil filter, and oil drain hose are located close together for easy and convenient service.

Large fuel tank saves refueling time and increases productivity

Fuel tank

Fuel cap, gauge, and shutoff valve

Quality fuel-system components enhance performance and convenience:

Large, 5.6-U.S. gal. (21.2-L) capacity
- Wide fuel tank filler opening
  - Conveniently located
  - Makes adding fuel easy and helps eliminate spillage
Sealed and tethered fuel cap
- Reduced fuel vapor loss
- Less chance of losing fuel cap

A fuel gauge is conveniently located to keep the operator informed about the amount of fuel remaining in the tank.

A fuel shut-off valve is provided. It should be turned off whenever the QuikTrak Mower is not in use.

Replaceable fuel filter

A high-quality, replaceable fuel filter is provided to help maintain reliable engine operation.

Fabricated mower deck is made from 7-gauge, 0.179-in. (4.6-mm) steel for reliability and performance

36-in. (91-cm) fabricated mower deck

Mower-deck reinforcement

A well-designed mower deck can make the difference between just getting the job done and getting eye-catching results. The 7-gauge, 0.179-in. (4.6-mm) fabricated mower deck delivers a higher quality of cut in more diverse conditions to enhance mowing performance.

Key features of the fabricated mower deck include:

36-in. (91-cm) cutting width on Q810E model and 48-in. (122-cm) cutting width on Q820E model
Manufactured from 7-gauge, 0.179-in. (4.6-mm) steel to minimize the number of welds and provide a smooth underside, with fewer sharp corners, for reduced material buildup.
A compact footprint delivers greater maneuverability when working in tight quarters.
A deep-deck design delivers excellent airflow, so material is processed quickly and efficiently.
A powerful vacuum effect is created by the deck's unique air-flow design, which pulls more grass upright so that the blades can cut more evenly.

Flexible mower-discharge deflector

Caster wheels

The wide-discharge opening and raised deflector provide even clipping dispersal for an excellent finished appearance in all conditions.

Caster wheels with flat-free tires contribute to a smooth, even cutting job:

Large, flat-free caster wheels carry the mower deck smoothly over the lawn.
Caster wheels are recessed to reduce the vehicle footprint and turning radius.
- With the wheels less exposed, there is less chance they will get snagged by immovable obstacles, thus improving maneuverability, and reducing damage.

Mower lift lever

The QuikTrak is equipped with a floating mower deck that offers several advantages:

The lift lever allows the operator to raise the mower to the fully-raised position from the operator's station.
- Convenient when transporting from one mowing area to another and when loading/unloading.
- Allows the operator to raise the mower over roots or other obstructions in the lawn on the fly.
Lift-assist springs reduce the effort required to raise the mower deck.

Cutting-height adjustment

Mower deck spindle cover

Mower cutting height can be set from 1.5-in. (3.8-cm) to 5-in. (12.7-cm) in 0.25-in. (0.64-cm) increments:

Pull the lift lever back to the full-raised position.
Remove the tethered pin and place it at the desired cutting height.
Lower the lift lever; the lift lever and mower will stop at the desired cutting height.

Mower deck spindle covers allow for cleaning while installed and can be removed without tools for maintenance. A single belt drive has low repair costs and accessible for cleaning.

Optional mulching attachment

Optional mulching attachment and blades (similar design shown)

Optional mulching attachment and special mulching blades are available:

This is a high-performance mulching attachment that includes formed steel baffles to control the material for superior performance.
The special mulching blades can also be used for side discharging, though overall cutting performance may be slightly less than with the standard blades.

Large operator platform and quality leaning pad enhance operator comfort

QuikTrak™ Mower (Q810E shown)

Operator platform and leaning pad

The large operator platform is cushioned to absorb shock to give the operator a smooth and comfortable ride.

A high-quality leaning pad is provided for operator comfort and to insulate the operator from heat given off by the machine.

Storage pocket

Operator controls

A storage pocket on the battery box provides a convenient place for the operator to store a cell phone, gloves, etc.

Control levers are covered with cushioning material for operator comfort. Two stationary reference bars are provided for operator comfort and convenience:

Front reference bar is included to control speed and reduce fatigue from control lever operation.
Rear reference bar is included to make reverse operation easy while maintaining operator confidence.

Controls are easy to locate and use for operator comfort and productivity

QuikTrak™ Mower (Q810E shown)

Control console (Q810E shown)

Controls are color coded and logically placed to make them easy for the operator to find and use:

Ground speed and direction are easily controlled by moving the two hand-lever hydrostatic drive controls forward or reverse.
- Speeds are infinitely variable up to 8-mph (12.9-km/h) forward and 3.5-mph (5.6-km/h) reverse.
- A positive neutral-lock holds the control levers in neutral when the park brake is engaged.
Two stationary reference bars are provided for operator convenience and security.
- Front reference bar is included to control speed and reduce fatigue from control lever operation.
- Rear reference bar is included to make reverse operation easy while maintaining operator confidence.
Control levers return to neutral automatically for safety and convenience.
Separate choke is easy to locate and use.
- Less adjustment is needed with the separate choke.

Park brake lever

A tire brake is provided to give stability for parking the vehicle on hillsides and for transport; it should be engaged whenever the machine is not being used:

Brake must be engaged to start the machine, for added safety.
The tire brake bars are easily adjusted, if necessary, to maintain effective operation.

Mower deck height-of-cut adjustment

Mower deck lift handle and height-of-cut adjustment

An easy-to-use cutting height adjustment system allows the operator to adjust the mower deck cutting height with no tools and minimal effort:

Pull the lift lever back to the fully raised position.
Remove the tethered pin and place it at the desired cutting height.
Lower the lift lever; the lift lever and mower will stop at the desired cutting height.

NOTE: Additional information on mower cutting height adjustment can be found in the mower deck section.

Exclusive three-year, bumper-to-bumper warranty is standard with a QuikTrak™ Mower

Q800 QuikTrak Mowers

Hassle-free three-year warranties

The E and M Series QuikTrak mowers have a 1200-hour or 36-month, whichever comes first, bumper-to-bumper warranty. The R Series mowers have a 1500-hour or 36-month, whichever comes first, warranty. All QuikTrak Mowers also have an unlimited hour 24-month warranty. The warranty is hassle free, with John Deere covering the complete machine.

The QuikTrak warranties are also aligned with John Deere’s commercial walk-behind and Z900 ZTrak Mowers so you can roll your entire fleet on one contract, with one warranty duration, and one payment schedule.

Maintenance is simple and easy to reduce time and cost

Q810E QuikTrak™ Mower

Open engine compartment

All service components are easy to access:

Servicing is simplified because of the open engine compartment.
All service and maintenance points are within easy reach.

Heavy-duty air cleaner

Engine oil-fill/check tube, drain hose, oil filter, and cleanout port

Heavy-duty air cleaner is easy to reach and easy to service:

Standard canister-type, dry replaceable, heavy-duty air cleaner.
- Q820E has dual-element air cleaner with safety element.
Elements are easy to access and easy to change.

Engine oil service points are grouped together in easy-to-reach locations:

Reduces the time required to check and/or change the oil and filter.
Oil drain hose makes draining oil easy and clean.

Clean out ports provide assist to clean engine fins for optimum cooling.

Leaning pad raised for service access

Periodic service chart

Simply raising the leaning pad exposes the hydrostatic oil reservoir, control linkage, and other service areas.

A periodic service chart is provided for convenience in keeping up on required service.

Mower deck spindle cover

Mower deck drive with spindle covers removed

Mower deck spindle covers allow for cleaning while installed and can be removed without tools for maintenance. A single belt drive has low repair costs and accessible for cleaning.

Remove service access shields on the mower deck, battery box, etc. to service the machine:

Panels are easy to remove and install.

Hydrostatic transmission control linkage

Threaded ball and socket rod ends are used throughout the QuikTrak Mowers:

Provide precise control over a long period of time.
Easily replaced when necessary.

Convenient access panel

Hydrostatic pump maintenance access

Remove service access cover to check and service the hydrostatic pumps and motors. Transmission bypass valves enable moving the vehicle without the engine running.

Battery box

A secure battery box protects the battery and provides access to the terminals.

Quick response (QR) codes link to owner information web pages

QR (quick response) code label on rear of mower

To speed access to owner information web pages, a QR code is printed onto a product identification number (PIN) label located on the rear of the mower, left of the foot platform. The owner information web pages that include links to:

Safety and how-to videos Operator’s manuals
Parts catalogs
Maintenance reminder sheets Attachments
Warranty statements

Tie-down points

Front tie-down

Rear-tie down

Four tie-down locations, two at the front and two at the rear, are provided for safely towing or anchoring the vehicle.

Compact design for easy hauling and excellent maneuverability

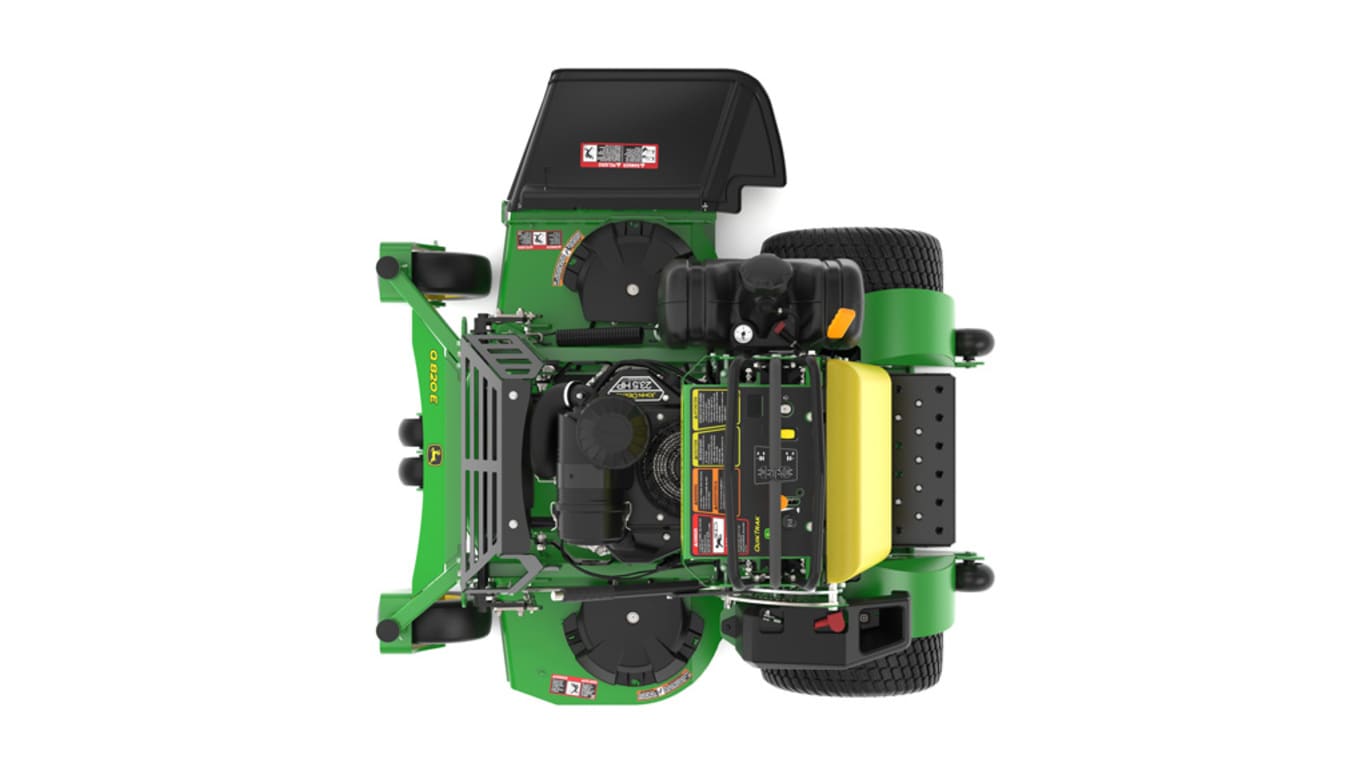

Overhead view of Q810E showing compact design

Q810E showing compact design

From the operator's platform to the mower deck, John Deere QuikTrak™ Mowers have a compact and functional design:

The compact design allows the QuikTrak to operate in tighter areas that a larger machine cannot. Often, this means the area can be mowed with a QuikTrak so it is not necessary to switch to a walk-behind mower, reducing the time on site.
With the compact design of QuikTrak Mowers, less space is required on a truck or trailer - which can mean there is room for an extra mower, resulting in less time on property, saving time and money.

Whether mowing hills or on level terrain, trimming or mowing straight-away, the operator of a John Deere QuikTrak can affect the performance of the machine with their body:

The compact design of the QuikTrak allows the operator to use their body to help control the machine.
The innovative QuikTrak design puts the operator in line with the rear axle to keep traction when mowing across slopes, providing greater control.
Faster ground speeds get work done quicker.
Better traction on slopes gives more control and increased productivity.
Superior stability gives more control and confidence when operating.
Better visibility allows for quick operator reaction times to changing terrain and obstructions.
Standing area is designed for improved range of motion to allow the operator more room to move and avoid obstacles.
Minimal operator station obstruction allows safe and fast exits for clearing mower-path obstacles.
Operator area is designed for more comfort and less fatigue.

Inset caster wheels (Q810E shown)

John Deere QuikTrak Mowers are designed, tested, and manufactured to provide the best commercial mowing machines available:

The shape of the front edge of the mower deck allows caster wheels to be set back further, closer to the blades, for more effective ground following capability.
Compact design takes less space for mowing tighter areas and may allow room for an extra machine when hauling to the worksite.

Frame is compact and durable for productivity and long life

Q810E QuikTrak™ Mower frame

QuikTrak Mowers are designed around a heavy-duty formed and welded steel frame for strength and reliability:

More-rounded corners contribute to a clean, attractive appearance.
Greater strength results from eliminating sharp angles where peak loads can cause failure.
Large 11x4-5 flat-free front caster wheels and large 18x8.5-10 (Q810E) or 18x10.5-10 (Q820E) 4-ply rear drive wheels provide a smoother ride.

Better slope performance
More operator comfort over uneven ground
Better traction

Hydrostatic drive system is reliable and easy to use

Hydrostatic pumps

E Series QuikTrak Mowers use a heavy-duty hydrostatic pump and wheel-motor drive system that gives reliable and consistent performance and long life:

Heavy-duty components stand up to the rigors of commercial use.
Individual pump and wheel motor design allows placement of these heavy components low in the vehicle for a low center of gravity and excellent hillside stability.

Two Hydro-Gear™, 0.61-cu in. (10-cc) axial piston, variable-displacement pumps provide hydraulic power to the wheel motors:

Pumps are linked to the hand-control levers to allow the operator to make speed and direction changes.
Rugged construction is ideal for high-performance commercial use.
Piston design gives efficient and consistent performance.
A replaceable hydraulic filter helps ensure long life of the pumps and wheel motors.

Two individual, 12-cu in. (196.6-cc), piston wheel motors power the QuikTrak drive wheels. Their heavy-duty construction and super-efficient axial-piston design provides superior performance and seamless power to the wheels:

Integrated high-pressure shaft seal gives greater reliability.
Large bearings are designed with the capacity to carry heavier loads and give long life.

Transmission oil filter

Transmission fluid oil reservoir

A spin-on-type replaceable hydraulic oil filter is conveniently located:

Extends life of transmission components by keeping oil clean
Easy to reach for easy and fast service

A hydraulic fluid oil reservoir is located behind the leaning pad:

Located in a cleaner environment
Easy to access for inspection and service
Sight glass built into the tank reduces risk of contamination when checking fluid level

Transmission bypass valves are provided on each hydrostatic pump to permit moving the QuikTrak without the engine running.

Hydro-Gear is a trademark of Hydro-Gear Limited Partnership AF Holding Company.

Safety features are built-in to protect the operator and bystanders

Operator Controls

Mower discharge deflector

Curb wheels

Key safety features of QuikTrak™ Mowers include:

Start circuit requirements
- Park brake engaged
- Power take-off (PTO) disengaged
- Control levers in neutral
- Ignition key used to start the engine
A high-quality, polyethylene, mower-discharge deflector
- Deflects if it strikes a solid obstruction, causing less damage
- Returns to its original shape and function
Operator station designed to allow fast exit
Two large curb wheels
Easy to remove and replace shields
Stationary handles on either side of the traction controls for operator security
Control levers return to neutral when released

Mower deck safety certification

QuikTrak mower decks are evaluated by the manufacturer (John Deere Turf Care) and conform to American National Standards Institute (ANSI) B71.4 2017 safety certification specifications for commercial turf care equipment.

Optional LED strobe light attachment

Rear strobe light

Front strobe light

The optional LED strobe light attachment increases visibility of the QuikTrak mowers to motorists. The kit includes two lights providing visibility in all directions.

Manage your commercial mowing fleet using John Deere Operations Center™

TerrainCut™ Front and Wide-Area Mowers

ZTrak, QuikTrak, and commercial walk-behind Mowers

Overview

A JDLink™ M Modem - 4G connects a commercial mower to the John Deere Operations Center, which enables you to manage your fleet more efficiently, increase productivity, and reduce labor costs. With a modem and Operations Center, you are always connected to the work in progress and can make timely adjustments to keep your fleet mowing.

JDLink M Modem - 4G

A JDLink M Modem - 4G is standard equipment on model year 2024 and newer TerrainCut Front and Wide-Area Mowers.

A modem can be field installed on:

Model year 2024 and newer Z700 ZTrak™ Mowers
Model year 2024 and newer gasoline-powered Z900 ZTrak Mowers
Model year 2024 and newer Z994R ZTrak Mowers
Model year 2024 and newer Q800 QuikTrak™ Mowers
Model year 2025 and newer R Series commercial walk-behind mowers
Model year 2022-2023 TerrainCut Front Mowers
Model year 2023 TerrainCut Wide-Area Mowers

See compatibility section for serial number breaks and requirements.

John Deere Operations Center

John Deere Operations Center is available on PC, Apple iOS, and Android mobile apps

The John Deere Operations Center tracks your fleet and provides tools to analyze mower data. The connected features vary by mower model.

Models	Location and status	GPS speed	Geofencing and curfews	Engine hours	Maintenance planner	Machine Analyzer Tool	Fuel level	Fuel consumption	Diagnostic trouble codes	Service Advisor Remote
Z700 ZTrak Mowers	X	X	X	Key	X	X	---	---	---	---
Z900 ZTrak Mowers with carbureted engines	X	X	X	Key	X	X	---	---	---	---
Z900 ZTrak Mowers with EFI engines	X	X	X	Sync	X	X	X	X	X	X
Z994R ZTrak Mowers	X	X	X	Key	X	X	---	---	---	---
E Series QuikTrak Mowers	X	X	X	Key	X	X	---	---	---	---
Q820M, Q850M, and Q850R QuikTrak Mowers	X	X	X	Sync	X	X	X	---	X	---
Q865R EFI QuikTrak Mowers	X	X	X	Sync	X	X	X	X	X	X
R Series commercial walk-behind mowers	X	X	X	Key	X	X	---	---	---	---
1550 TerrainCut Front Mowers	X	X	X	Key	X	X	---	---	---	---
1570, 1575, 1580, and 1585 TerrainCut Front Mowers	X	X	X	Sync	X	X	---	X	X	X
1600 TerrainCut Wide-Area Mowers	X	X	X	Sync	X	X	---	X	X	X

Location and status

Operations Center map displaying past locations of a mower

Mobile view of Operations Center map showing GPS speed

The JDLink M Modem - 4G regularly transmits the location and operational status of each mower in the fleet so you can monitor mowing progress in Operations Center.

Location history-Display of map with current and past locations of each mower.
GPS Speed-Maps each mower’s current speed, based on GPS location data, so you can target operator training. GPS speed is only viewable on Apple iOS and Android mobile apps.
Geofencing-Alerts when a mower enters or exits a prescribed area, for example if the mower has been stolen or an operator entered an area that should not be mowed.
Curfews-Alerts if the mower is operating outside prescribed times, for example residential areas with early-morning noise restrictions.

Engine hours

The modem regularly transmits the mower’s engine hours to inform maintenance planning and balance use.

Sync-The mower reports actual engine hours to the Operations Center.
Key-Engine hours are estimated by monitoring the key switch. Engine hours can be corrected in Operations Center.

Maintenance planner

Operations Center Maintenance Planner

Factory or custom maintenance plans can be established in Operations Center. Maintenance alerts are sent when engine hours reach maintenance intervals.

Diagnostic trouble codes (DTCs)

On select products, the modem transmits the trouble codes generated by the mower’s control units to the Operations Center. Addressing DTCs can reduce downtime and repair costs. For example, a low-engine oil pressure DTC can indicate an engine is low on oil. Addressing the issue can prevent costly downtime and repairs.

Machine Analyzer Tool

Operations Center Machine Analyzer Tool

On select products, the modem reports the time the mower spent transporting, idling, and working. The Operations Center’s Machine Analyzer tool reports usage data which allows you to analyze operator behavior, identify causes of low productivity, and initiate corrective actions.

Fuel level

On select products, the modem reports the fuel level. On these products, an analysis of fuel consumption is available in the Operations Center Machine Analyzer Tool. Measuring fuel consumption enables you to address causes of excessive fuel use.

Service Advisor Remote

On select products, John Deere dealers can perform remote diagnostics, software programming, and adjustments without the cost of a service call.

Compatibility

A JDLink M Modem - 4G is standard equipment on model year 2024 and newer (SN 110,001-) TerrainCut Front Mowers and model year 2024 and newer (SN 690,001-) TerrainCut Wide-Area Mowers.

A JDLink M Modem - 4G can be field installed on the commercial mowing products listed below. Field installation attachments simplify modem installation, and include brackets, mounting hardware, harness, and instructions. Field installation requires a JDLink M Modem - 4G to be ordered separately.

Model	Compatible model years	Installation attachment
Z700 ZTrak Mowers	2024 and newer (SN 080,001-)	BUC11759
Gasoline-powered Z900 ZTrak Mowers	2024 and newer (SN 130,001-)	BUC11759
Z994R ZTrak Mowers	2024 and newer (SN 070,001-)	BUC11759
Z997R ZTrak Mowers	2021 and newer (SN 070,001-)	To be determined
QuikTrak Mowers	2024 and newer (SN 010,001-)	BUC11744
R Series commercial walk-behind mowers	2025 and newer (SN 070,001-)	BUC11918*
TerrainCut Front Mowers	2022-2023 (SN 080,001-110,000)	BUC11797
1600 TerrainCut Wide-Area Mowers	2023 (SN 680,001-690,000)	BUC11797

*Expected Spring of 2025

Show More Show Less

Specifications

Select up to 4 models to compare specifications

John Deere

Q820E

QuikTrak™ Stand-On Mower

Engine Manufacturer/model

FX730V

Engine power

Gross at 3,600 rpm: 23.5 hp
17.5 kW

Fuel tank capacity

5.6 U.S. gal.
21.2 L

Mower deck size

48-in. (122-cm) fabricated

Blade tip speed

Approximately 18,000 fpm
5486 m/min

Transmission

Separate hydraulic pumps and motors

Speed range

0-8 mph
0-12.9 km/h

Drive wheels

18x10.5-10 pneumatic

Caster wheels

11x4-5

Warranty

36 months or 1200 hours, whichever comes first.
First 24 months, no hour limitation.

Manufacturer/Model

FX730V

Power

Gross at 3,600 rpm: 23.5 hp
17.5 kW

Displacement

44.3 cu in.
726 cc

Injection

Cylinders

Two, V-twin

Crankcase capacity

With filter, 2.2 qt
2.1 L

Oil filter

Full flow, replaceable

Lubrication

Full pressure

Cooling

Forced air, with integrated clean out ports

Air cleaner

Heavy-duty canister type with safety element

Fuel type

Gasoline

Fuel consumption

Fuel tank capacity

5.6 U.S. gal.
21.2 L

Fuel tank switch/shut-off valve

Yes

Charge system

At 3,600 rpm 20A

Battery voltage

12 V

Cold cranking amp

300 CCA

Hour meter

Digital

Operator presence starting system

Yes

Transmission

Separate hydraulic pumps and motors

Hydraulic pumps

0.61 cu in.
10 cc

Wheel motors

12 cu in.
196 cc

Travel speed

Speed range
0-8 mph
0-12.9 km/h
Forward
Infinite, 0-8 mph
Infinite, 0-12.9 km/h
Reverse
Infinite, 0-3.5 mph
Infinite, 0-5.6 km/h

Speed and direction control

Twin hand-controlled levers

Hydraulic capacity

With filter, dry, 5 qt
4.7 L

Hydraulic oil cooler

Radiator core

Filter

Spin-on replaceable

Warranty	36 months or 1200 hours, whichever comes first. First 24 months, no hour limitation.

Drive wheels

18x10.5-10 pneumatic

Rear tires

Load rating

4 PR

Dynamic braking

Dual hand-controlled levers

Park brake

Tire engagement

Park brake actuation

Hand lever

Type

Electro-magnetic with brake, 125 lb-ft
169 Nm

Drive

V-belt

Size

48-in. (122-cm) fabricated

Deck construction

Fabricated steel, floating mount system

Deck thickness

7 gauge
0.180 in.
4.6 mm

Discharge

Side

Height-of-cut range

Increments
0.25 in.
0.64 cm
1.5-5 in.
3.8-12.7 cm

Cutting width

48-in. (122-cm) fabricated

Length

Thickness

0.25 in.
0.64 cm

Blade tip speed

Approximately 18,000 fpm
5486 m/min

Number

Three

Caster wheel type

Flat free

Caster wheels

11x4-5

Front anti-scalp rollers

Double-captured center

Rear anti-scalp rollers

Length

59.75 in.
151.8 cm

Width

With chute down, 62 in.
157 cm

Height

46 in.
117 cm

Weight

800 lb
363 kg

Rollover protective structure (ROPS)

Slope operating limit

Offers and Discounts

Date collected	28-Aug-2023

Expand All Collapse All

No Interest, No Payment for 6 months Followed by 2.9% APR fixed rate for 42 months†

on new John Deere Commercial Mowing Equipment

†For complete details regarding this offer, please select the corresponding link below.

View Offer Details

0% APR fixed rate for 48 months†

on New John Deere QuikTrak™ Stand-On Commercial Mowers

†For complete details regarding this offer, please select the corresponding link below.

View Offer Details

Save $1,000†

on New John Deere Z900 ZTrak™ Mowers, QuikTrak™ Mowers, & Commercial Walk-Behind Mowers

†For complete details regarding this offer, please select the corresponding link below.

View Offer Details

Show More Show Less

Q820EQuikTrak™ Stand-On Mower

SHARE

Features

Large fuel tank saves refueling time and increases productivity

Optional mulching attachment

Mower deck height-of-cut adjustment

Hassle-free three-year warranties

Quick response (QR) codes link to owner information web pages

Tie-down points

Mower deck safety certification

Optional LED strobe light attachment

Overview

JDLink M Modem - 4G

John Deere Operations Center

Location and status

Engine hours

Maintenance planner

Diagnostic trouble codes (DTCs)

Machine Analyzer Tool

Fuel level

Service Advisor Remote

Compatibility

Specifications

Add Model

Key Specs

Engine

Fuel system

Electrical system

Drivetrain

Buyer's note

Tires

Brakes

PTO

Mower decks

Blades

Wheels

Dimensions

Operation

Additional information

Offers and Discounts

Related Products

Shop and Buy

Maintenance and Support

You May Also Be Interested In
