19-hp (14.2-kW) engine
Engine oil filter and fuel filter
A 19-hp (14.2-kW) single-cylinder engine has plenty of power and torque to handle tough mowing, mulching, and bagging:
No-tools oil drain valve
No-tools oil drain valve is easy to access when changing engine oil.
Convenient fuel filler opening
Solid one-piece frame
Solid one-piece frame
The solid one-piece frame is constructed of 12-gauge, 0.105-in. (2.66-mm) steel:
Front axle and wheel spindle
The front axle is constructed of solid cast iron that will not bend:
Front bumper
Front bumper
The front bumper is included on the S130, S140, S160, S170, and S180. It is available as an optional attachment for the S100, S110, and S120.
Rear CargO Mount points
Front CargO Mount points at the top of the dashboard
Rear bagger is mounted with CargO Mount points
Rear bagger is mounted with CargO Mount points
The CargO Mount system is a combination of front- and rear-mounting points providing convenient and easy installation of the sun canopy, rear bagger, and other attachments.
S140 Tractor with front blade, weights, and tire chains
S160 Tractor with snow blower, weather enclosure, weights, and tire chains
An advantage of lawn tractors is their ability to use equipment for snow removal. Lawn tractor owners can add a John Deere snow blower or front blade to make quick work of moving snow whenever the need arises. Weather enclosure and tire-chain attachments add comfort and performance.
Equipment available for snow removal includes:
Two-pedal speed/direction controls
Forward speed control pedal in use
A Kanzaki® Tuff Torq® hydrostatic transmission gives an infinite choice of speeds and makes changing the direction of travel easy. Side-by-side foot pedals control the speed and direction of travel:
Hydrostatic transmission
Appropriate transmissions are used in each model, depending on rear tire size and tractor performance requirements, to ensure excellent performance and reliability:
Kanzaki and Tuff Torq are trademarks of Kanzaki Kokyukoki Mfg. Co., Ltd.
Comfortable operator station (S130 shown)
Comfortable operator station (S130 shown)
The operator station is designed for operator comfort and easy operation:
Steering wheel and dash (S130 shown)
Wide footrest with debris-removal channels
Controls are easy to see and use:
Wide footrest areas with non-slip, anti-vibration floor mats are provided for operator comfort:
Comfortable seat
Easily adjusted seat
Operator comfort is enhanced with a 15-in. (38-cm) high-back, two-piece seat with an open back:
Seat springs give a smoother ride
Seat tilted forward
Two long seat springs give plenty of seat travel to smooth out the ride, keeping the operator comfortable while operating the tractor.
The seat can be tilted forward for protection from the elements and to provide easy access to the fuel tank.
Storage compartment and beverage holder
Storage compartment and beverage holder, located on the right-side fender, are conveniently located and easy to use.
NOTE: A storage compartment cover is standard on S120, S130, S160, S170, and S180 Tractors and optional on the S100, S110, and S140.
Fender flares
Fender flares included on the S130 Tractor cover the tires more completely and add style to the tractor.

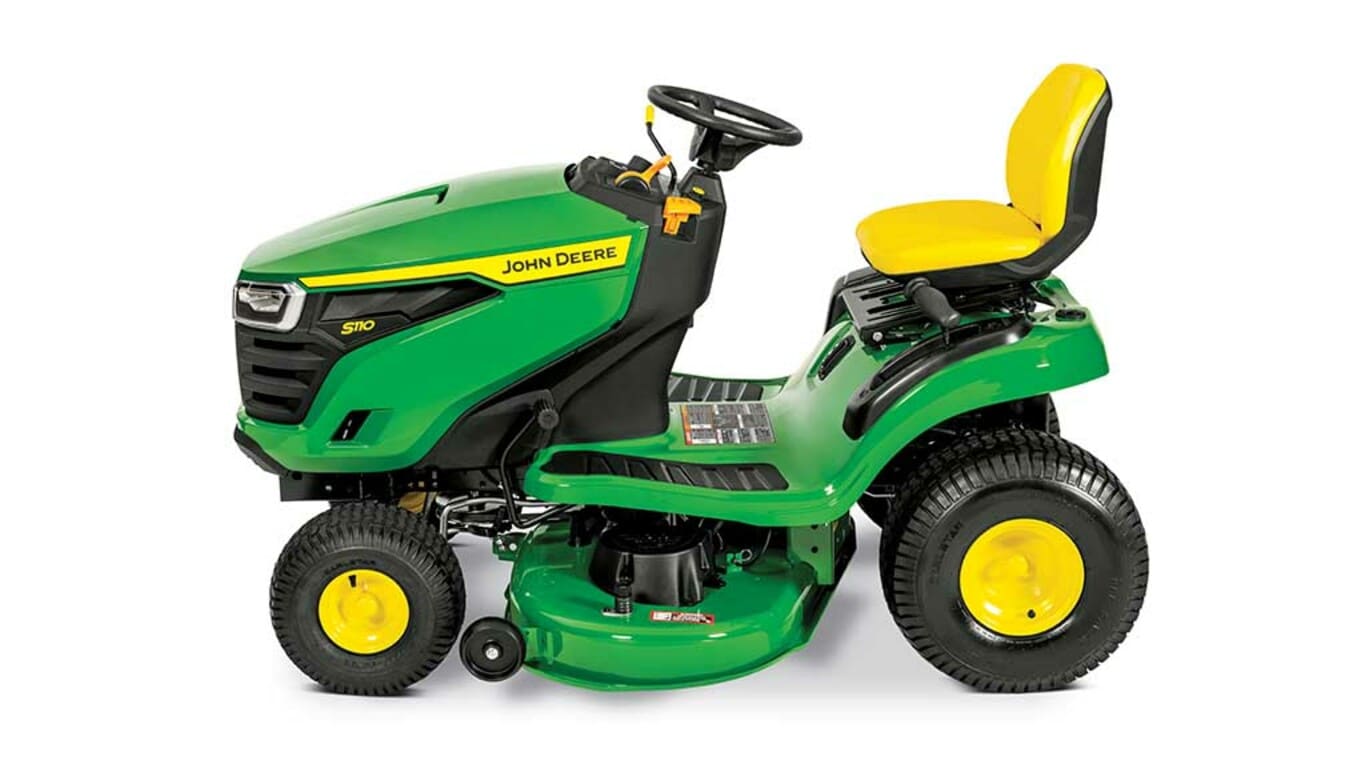

S100 Tractor
Steering wheel and controls on S100
The contoured dash has clean, attractive styling:
Two-pedal speed/direction controls
Side-by-side foot pedals
Side-by-side foot pedals control the speed and direction of travel:
Mower deck height adjustment lever
A spring-assisted, ergonomically designed lift lever simplifies adjusting the mower cut height:
Brake/parking brake pedal
Parking brake lever
The parking brake control is conveniently located on the tractor pedestal for easy access. It holds the brake pedal securely in the locked position.
PTO engagement lever
The mower deck is engaged with the easy-to-see and easy-to-use yellow lever above the dashboard. Its placement on the right side leaves a lot of room on the left, the entry side of the tractor, for the operator to get on and off the tractor.
RIO switch
CAUTION: Children or bystanders may be injured by rotating blades. Before traveling forward or rearward:
NOTE: Backing up while the mower is engaged is strongly discouraged. RIO should be used only when operating another attachment or when the operator deems it necessary to reposition the machine with the mower engaged.
NOTE: If the engine and mower or other attachment stops while repositioning the machine, return the attachment engagement lever/switch to the off position. Start the engine and engage mower or other attachment. Begin again with step 2.
Fuel tank gauge
Convenient fuel- filler opening
The fuel tank gauge shows how much fuel is in the tank and can be seen without leaving the operator's seat:
One-piece hood is easy to open
Service interval decal located under hood
The one-piece hood opens easily to permit checking and servicing the engine:
Easy-to-service engine fuel and oil filters
Easy access to fuel-fill opening
The engine fuel and oil filters, the oil check/fill tube, and the oil drain tube are exposed for serviceability when the hood is opened.
The seat tilts up and out of the way to make adding fuel easy.
Example product identification number (PIN) label with QR code
John Deere riding lawn mowers are supported by owner information web pages that include links to:
To speed access to owner information web pages, a QR code is printed onto a PIN label located near the fuel fill. Since each vehicle model has its own web page, the links are specific to the owner’s model. The QR code also includes the vehicle’s unique PIN, which enables warranty registration without the need to manually enter the vehicle’s PIN.
One-piece hood with quality headlights
MowerPlus home screen
MowerPlus maintenance screen
Keep a mower running its best and know how it mows with the John Deere MowerPlus app. Simply scan the mower’s barcode to get custom information about the mower.
To download the free MowerPlus app, visit the Apple® App Store® or Google Play™ store.
MowerPlus connectors (sold separately)
MowerPlus Deluxe Smart Connector, with a phone
MowerPlus connectors are available to transmit vehicle information to the MowerPlus app.
BUC10929 MowerPlus Deluxe Smart Connector is for use with:
BUC10537 MowerPlus Smart Connector is for use with:
MowerPlus connectors transmit the fuel level and engine hour information to the app, making it easy to keep track of fuel level and maintenance intervals.
MowerPlus connectors require the MowerPlus app on a mobile device to use. The John Deere MowerPlus app and operating system requirements can be found in the mobile device’s app store. The MowerPlus app is only available in the English language, and it is not available in all countries.
Apple and App Store are trademarks of Apple, Inc. Google Play and Android are trademarks of Google LLC. iOS is a trademark of Cisco Technology, Inc. used under license by Apple Inc.
42-in. (107-cm) Edge cutting system
The Edge cutting system has been trademarked to emphasize the advantages of the John Deere mower deck designs. They give superior mowing performance, convenience, and reliability:
The 42-in. (107-cm) Edge Mower Deck is a two-spindle design with heavy-duty characteristics:
Mower wash port
Mower wash port with hose connector
A wash port is provided to make cleaning the underside of the mower deck easy:
StarLock blade design
The StarLock blade design keeps the blade bolt at the correct torque for easy removal.
Optional blades for difficult mulching or bagging conditions are available.

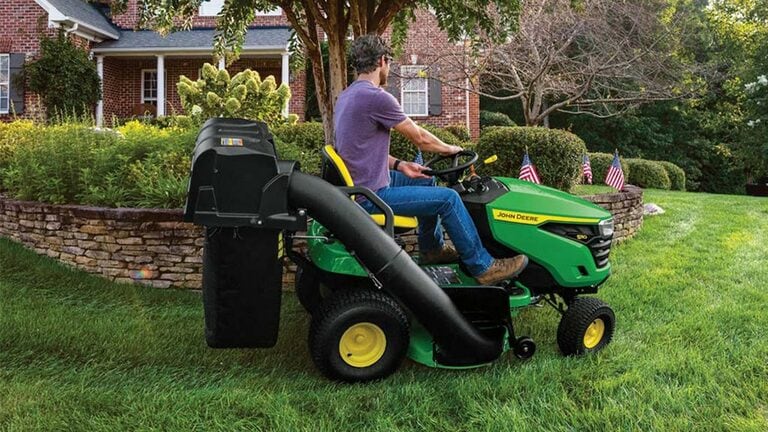

6.5-bu (229-L) hopper and chute on an S100
A cut-and-throw, 6.5-bu (229-L) bagger is sold separately and comes with bagging blades. Special bagging blades are not required but they can enhance performance.
The bagger kit provides an efficient means of collecting grass clippings and leaves. It can be set up without tools in minutes and has easy-to-empty bags.
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere S110 Lawn Tractor |
| Engine power | 19 hp 14.2 kW |
|||
|---|---|---|---|---|
| Oil change | No-tools oil drain with replaceable filter | |||
| Engine manufacturer/model | 33R877 (M33) | |||
| Transaxle type | TLT200 hydrostatic, two-wheel drive | |||
| Transaxle control | Side-by-side pedals | |||
| Rear tires | 20x8-8 | |||
| Lift system type | Spring-assisted hand-grip lever | |||
| Cutting width | Edge™ mower deck, 42 in. 107 cm |
|||
| U.S. warranty | 2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Power | 19 hp 14.2 kW |
|||
|---|---|---|---|---|
| Displacement | 33 cu in. 540 cc |
|||
| Manufacturer/model | 33R877 (M33) | |||
| Type | Overhead valve, full-pressure lube, oil filter | |||
| Cylinders | One | |||
| Governor | Mechanical | |||
| Choke/speed control | Single lever with spring-return on choke | |||
| Cooling method | Air | |||
| Air cleaner | Cartridge | |||
| Oil change | No-tools oil drain with replaceable filter |
| Type | Gasoline | |||
|---|---|---|---|---|
| Fuel delivery | Pulse pump and carburetor | |||
| Fuel gauge | Mechanical, viewable from seat | |||
| Fuel tank location | Rear | |||
| Fuel fill opening | Center, 1.75 in. 4.45 cm |
|||
| Fuel tank capacity | 2.4 U.S. gal. 9.1 L |
| Battery | 12 V 300 CCA |
|||
|---|---|---|---|---|
| Charging system | Regulated, 8 amp | |||
| Engine starter | Bendix type | |||
| Hour meter | Yes | |||
| Headlights | Two standard, incandescent | |||
| Taillights or reflector | No | |||
| Backup lights | No | |||
| Rear work lights | No | |||
| 12-V outlet | No |
| Type | Hydrostatic, 2-wheel drive | |||
|---|---|---|---|---|
| Control | Side-by-side pedals | |||
| Cruise control | No | |||
| Oil cooler | Fins and fan on transaxle | |||
| Oil filter | Yes, not serviceable | |||
| Differential lock | No | |||
| Forward speed | 0-5.5 mph 0-8.9 km/h |
|||
| Reverse speed | 0-3.2 mph 0-5.2 km/h |
|||
| Brakes | Internal wet disk |
| Frame | Full-length welded steel | |||
|---|---|---|---|---|
| Primer/paint | E-coat/powder | |||
| Weight bracket | Optional rear | |||
| Receiver hitch | No | |||
| Front axle | Cast-iron front axle, powdered-metal front wheel bushings | |||
| Spindle bushings | No | |||
| Front tires | 15x6-6 | |||
| Rear tires | 20x8-8 | |||
| Hood material | Molded-in color material reduces sound, will not rust or dent | |||
| Fender deck material | Stamped steel | |||
| Floor mats | Yes, with debris removing channels | |||
| Storage | Storage tray with optional cover | |||
| Service interval decal | Yes | |||
| Fender handles/grips | No | |||
| Cup holder | Yes | |||
| Equipment mounting | CargO Mount™ system | |||
| Maximum towing capacity | 500 lb 227 kg |
| Type | Sector and pinion with single drag link and tie rod | |||
|---|---|---|---|---|
| Four-wheel steer | Not available on this model | |||
| Steering wheel | Standard, diameter - 12 in. 30.5 cm |
|||
| Tilt steering wheel | No | |||
| Turning radius | 18 in. 45.7 cm |
|||
| Uncut circle radius | 25 in. 63.5 cm |
| Type | Two piece with open-back | |||
|---|---|---|---|---|
| Seat back height | 15 in. 38 cm |
|||
| Armrests | No | |||
| Fore-aft adjustment | While seated, 5.5 in. 14 cm |
|||
| Seat suspension | Tilt, two coil springs |
| Type | Spring-assisted hand-grip lever | |||
|---|---|---|---|---|
| Hydraulic outlets | No | |||
| Mower cut height | 13 positions, 1-4 in. 2.5-10.2 cm |
|||
| Cut height increments | 0.25 in. 0.64 cm |
|||
| Preset cut height | No |
| Type | Side discharge | |||
|---|---|---|---|---|
| Cutting width | Edge™ mower deck, 42 in. 107 cm |
|||
| Construction | Stamped steel deck shell | |||
| Mower deck material | Steel, 13 gauge 0.090 in. 2.3 mm |
|||
| Mower wash port | Yes | |||
| Mower drive system | Manual power take-off (PTO) | |||
| Mower wheels | Two | |||
| Mower wheel adjustment | One bolt | |||
| Mower level adjustment | Easy-level deck |
| Type | Slide under tractor | |||
|---|---|---|---|---|
| Front draft arms | One spring clip | |||
| Rear draft arms | Two spring clips | |||
| Mower wheels rotate | No | |||
| Drive system | Single belt |
| Meets ANSI standard | Yes | |||
|---|---|---|---|---|
| Meets OPEI standard | Yes | |||
| Backup protection | Reverse Implement Option (RIO) | |||
| Safety video | Yes |
| Notes | Molded-in color material reduces sound, will not rust or dent Durable primer and powder paint finish Full-length welded steel frame |
|||
|---|---|---|---|---|
| Warranty | 2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Mowers | ||||
|---|---|---|---|---|
| Rear bagger | 2-bag, 6.5 bu 229 L |
|||
| Powered material collection | ||||
| Mulching system | Mulch cover or high-performing plug | |||
| Front thatcher | ||||
| Front blade | 46 in. 116.8 cm |
|||
| Mid-mount blade | ||||
| Snow blower | Two-stage, 44 in. 111.8 cm |
|||
| Rotary broom | ||||
| Rotary tiller | ||||
| Sleeve hitch | ||||
| 3-point hitch | ||||
| Rear power take-off (PTO) | ||||
| Plow, moldboard | ||||
| Box scraper | ||||
| Cultivator | ||||
| Rear blade | ||||
| Disk harrow | ||||
| Landscape rake | ||||
| Sprayer | Tow-behind, 15 U.S. gal. 56.8 L Mounted, 15 U.S. gal. Tow-behind only, 25 U.S. gal. 94.6 L |
|||
| Spreader | Tow-behind only, 125-175 lb 57.7-80 kg |
|||
| Front bumper | Styled front bumper | |||
| Brush guard | ||||
| Weather protection | Weather enclosure | |||
| Sun canopy | Sun canopy | |||
| Rear receiver hitch | ||||
| Bucket holder | Yes, single bucket | |||
| Grass striping | Lawn striping kit | |||
| Tractor shovel | ||||
| Front loader | ||||
| Other equipment | ||||
| Tow-behind tools | 16 |
| Height | 44 in. 112 cm |
|||
|---|---|---|---|---|
| Overall length | 69.7 in. 177 cm |
|||
| Wheelbase | 48.9 in. 124.2 cm |
|||
| Width with mower | 55.2 in. 140.2 cm |
|||
| Width with mower (deflector raised for storage) | 46.5 in. 118.1 cm |
|||
| Width without mower | ||||
| Weight | Mower, no fuel, 414 lb 188 kg |
| Manufacturing location | Greeneville, Tennessee, USA | |||
|---|---|---|---|---|
| Date collected | 26-Mar-22 |
