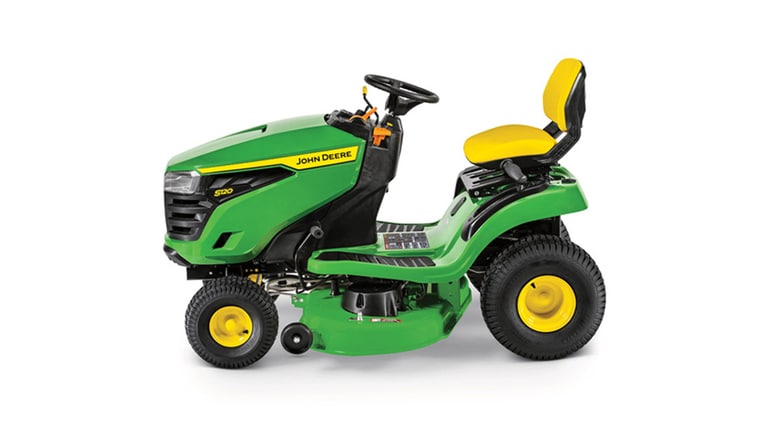

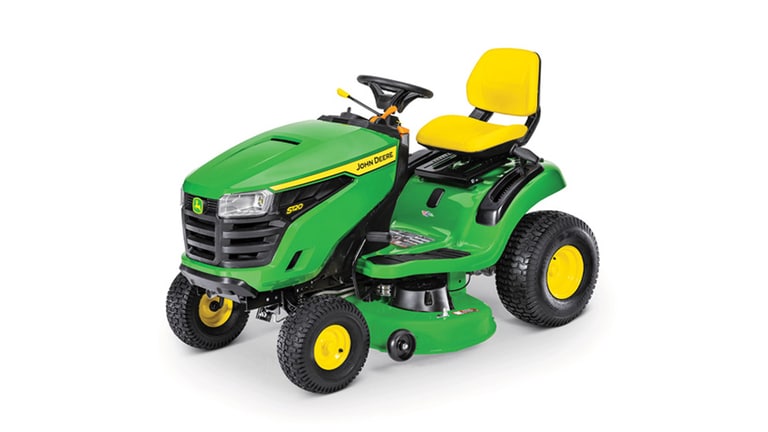

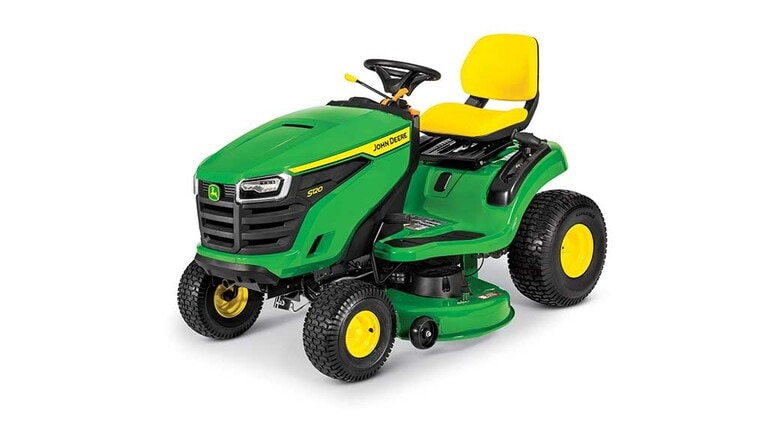

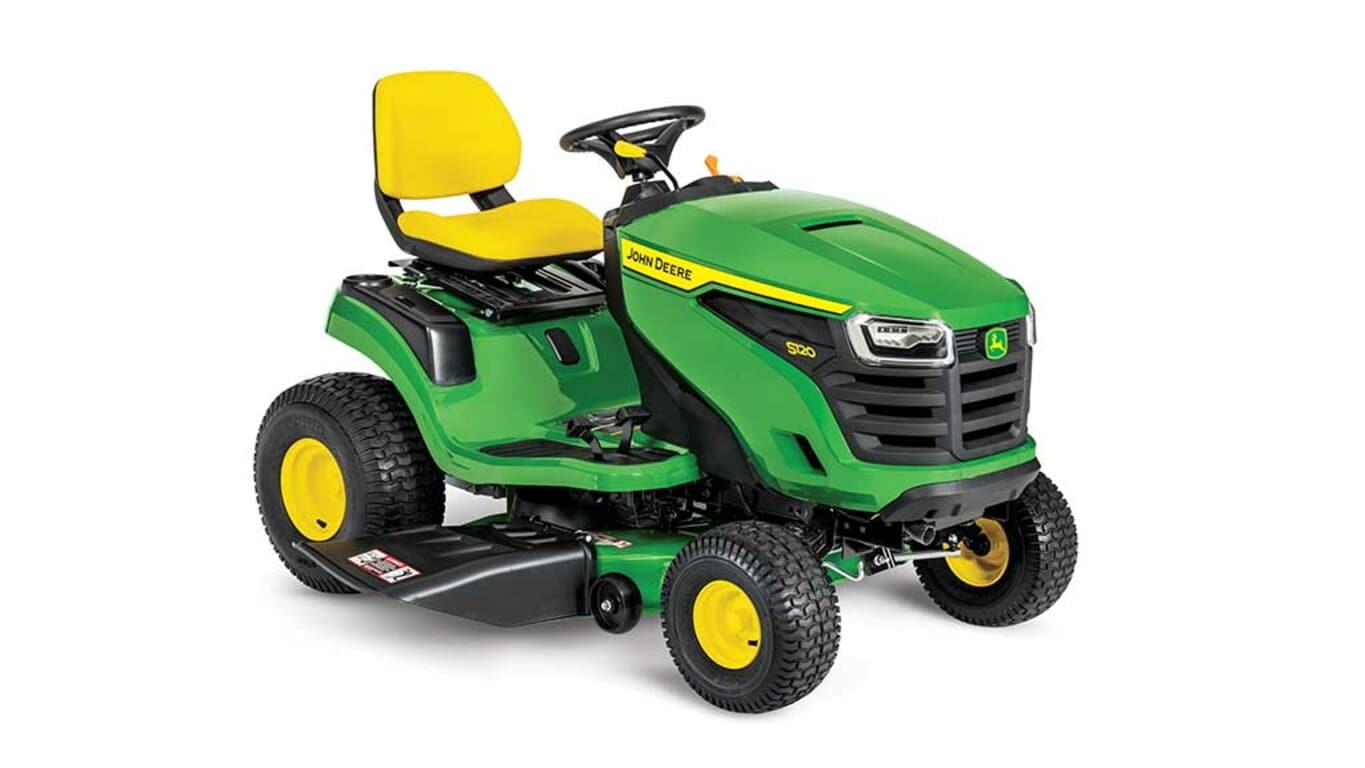

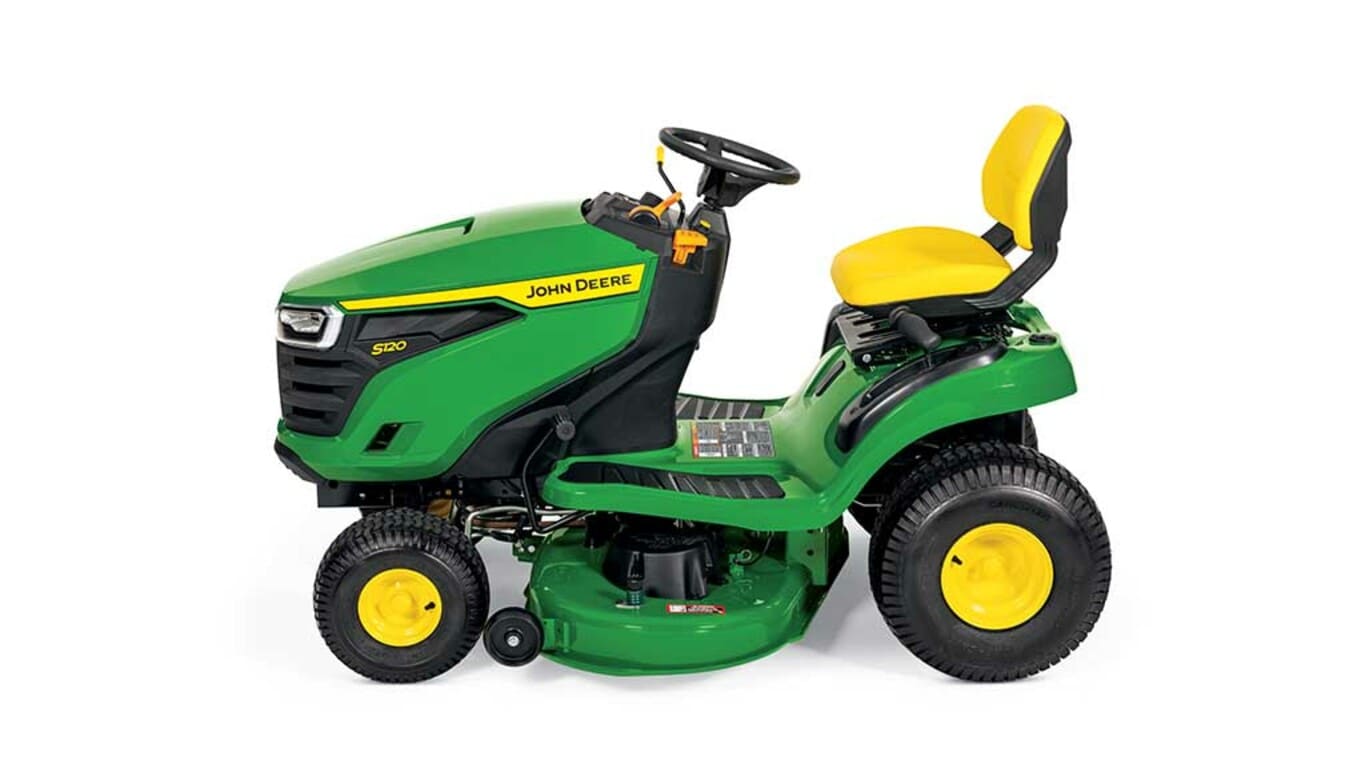

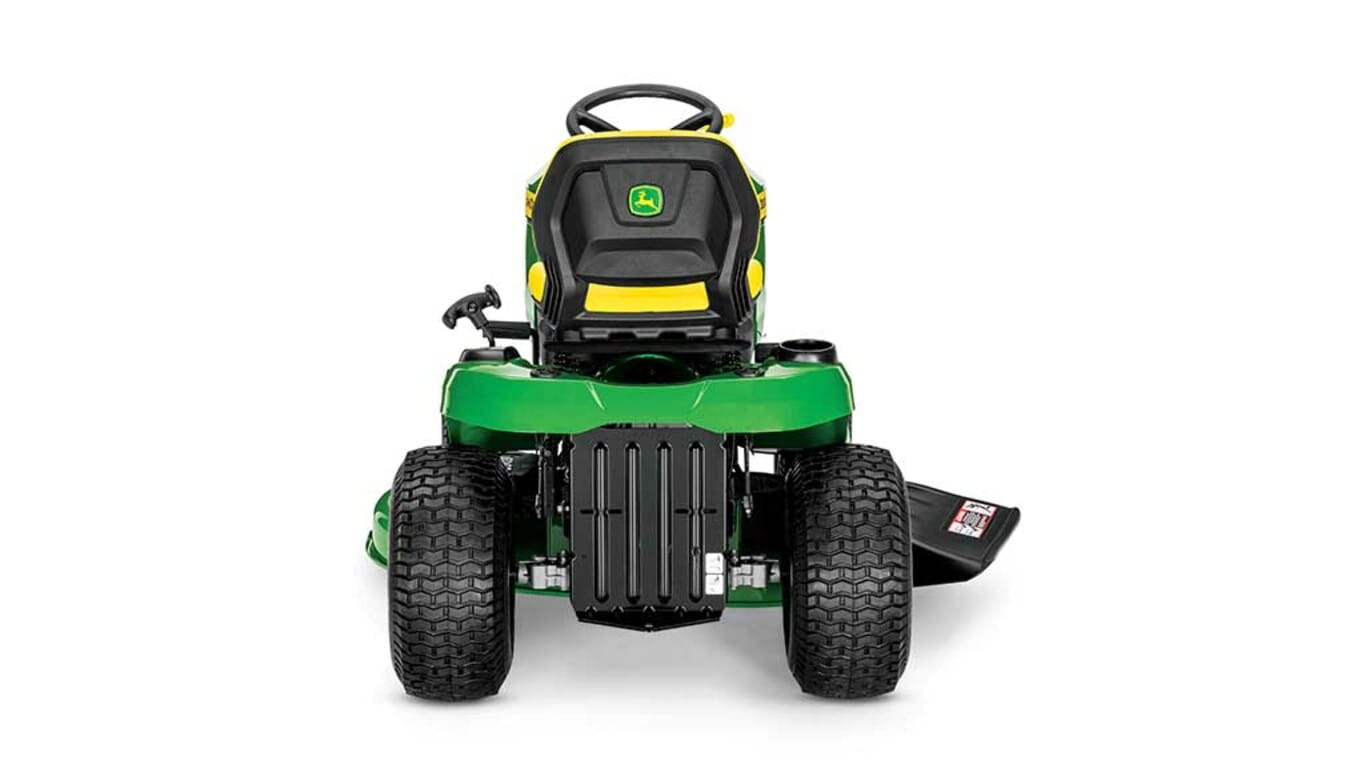

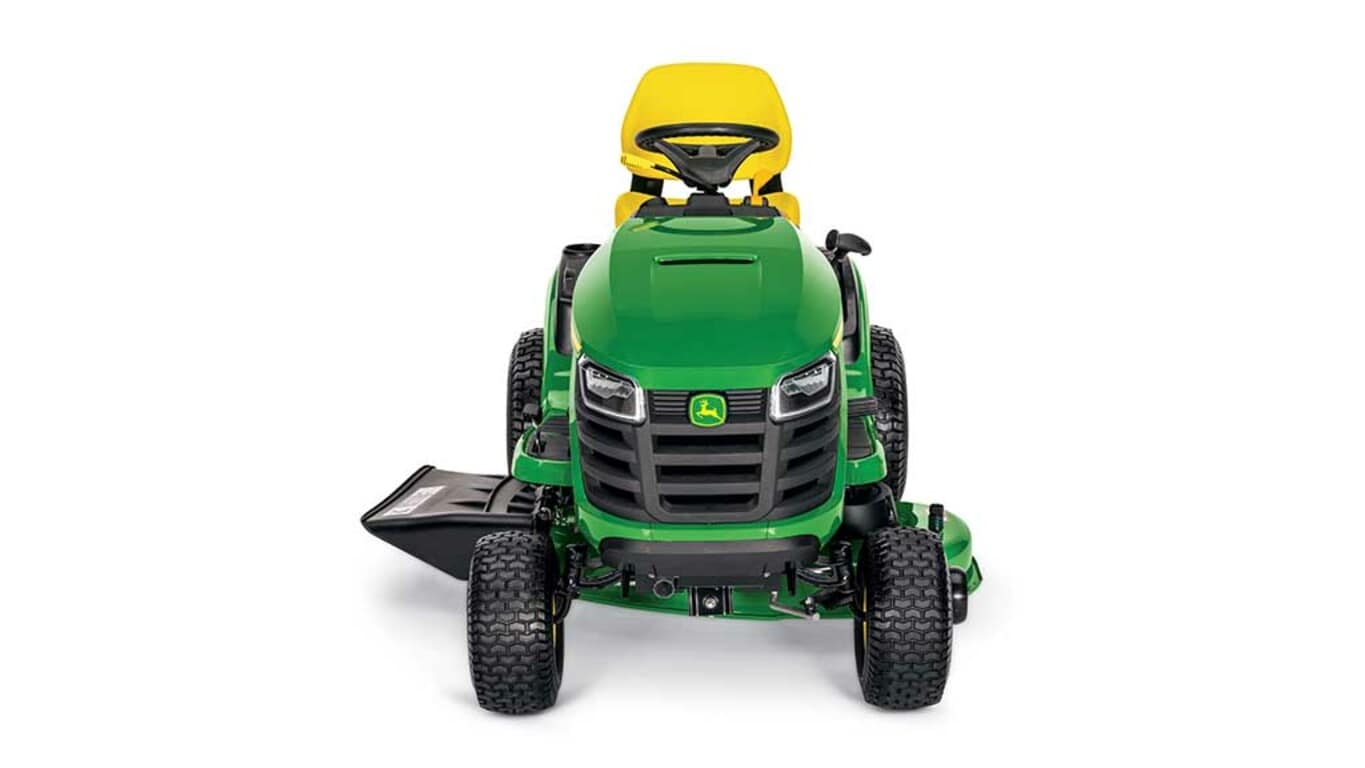

S120 | Lawn Tractor | 22 HP

Powerful V-twin engine features full-pressure lubrication for dependability and long life

22-hp (16.4-kW) engine

A 22-hp (16.4-kW) V-twin engine has plenty of power and torque to handle tough mowing, mulching, and bagging:

V-twin cylinder design for greater torque, lower vibration, and improved sound quality
Electronic ignition for fast starts
Spring-return feature to ensure the operator does not mistakenly leave the throttle lever in the choke position
Cast-iron cylinder liners for longer engine life
Overhead valves for excellent power and fuel economy
Full-pressure lubrication and oil filter for cleaner oil, prolonging engine life and extending the time between oil changes
- More effective when operating the tractor on an incline

Fuel tank

Convenient fuel filler opening

The capacity is 2.4 U.S. gal. (9.1 L).
The fuel filler opening is conveniently located under the seat.
- Filling the tank without spilling is easy.
- A tethered fuel tank cap is more convenient.
- The sealed fuel cap helps keep vapors inside the tank.

John Deere Easy Change™ 30-second oil change system

John Deere Easy Change 30-second oil change system

The John Deere Easy Change 30-second oil change system makes changing the engine oil easy, quick, and clean. Changing the oil is as easy as twisting on a new oil-filled filter. Oil does not need to be drained from the engine.

The John Deere Easy Change filter is an additional engine oil reservoir. Changing the filter removes the captured contaminants and replaces about 0.8 qt (0.76 L) of engine oil.

The functionality does not stop with ease of use. The Easy Change oil system has several meaningful benefits over the traditional oil filter system of the 100 Series:

A synthetic filter material is used for more predictable filtering and longer life.
Filtering capacity is greater than with a standard oil filter.
- More filter surface area
- More oil flow capacity
The system has 40 percent more oil volume.
The oil and engine run cooler.
The oil filter valve closes whenever the engine stops, so filtered particles are captured and cannot drain back into the engine.
The risk of spilling during oil service is greatly reduced.
Waste oil (and new oil production) is reduced by over 1,000,000 lb (453,592.4 kg) per tractor production year.
This system is not a compromise to just make oil changes easier—these engines pass the same John Deere expectations and rigorous testing as always.

Partly due to these improvements, it is not necessary to remove and dispose of all the oil in the engine during service.

Everyone who uses the John Deere Easy Change system saves time and avoids the mess of a traditional oil change. In the past, many 100 Series Lawn Tractor owners rarely or never got around to changing their engine oil. With the 30-second oil change, even people who previously would not consider changing the oil themselves can easily do it. The Easy Change system is a no-mess, no-fuss solution the competition cannot match.

Installation instructions are in the Operator’s Manual and in the John Deere Easy Change service part box.

Please recycle. Many local government recycling programs, authorized retailers, auto-service centers, and auto-parts stores will puncture and recycle used oil filters and oil.

Eye-catching styling built upon a dependable full-length welded steel frame

Light emitting diode (LED) headlights complement modern styling

LED headlights

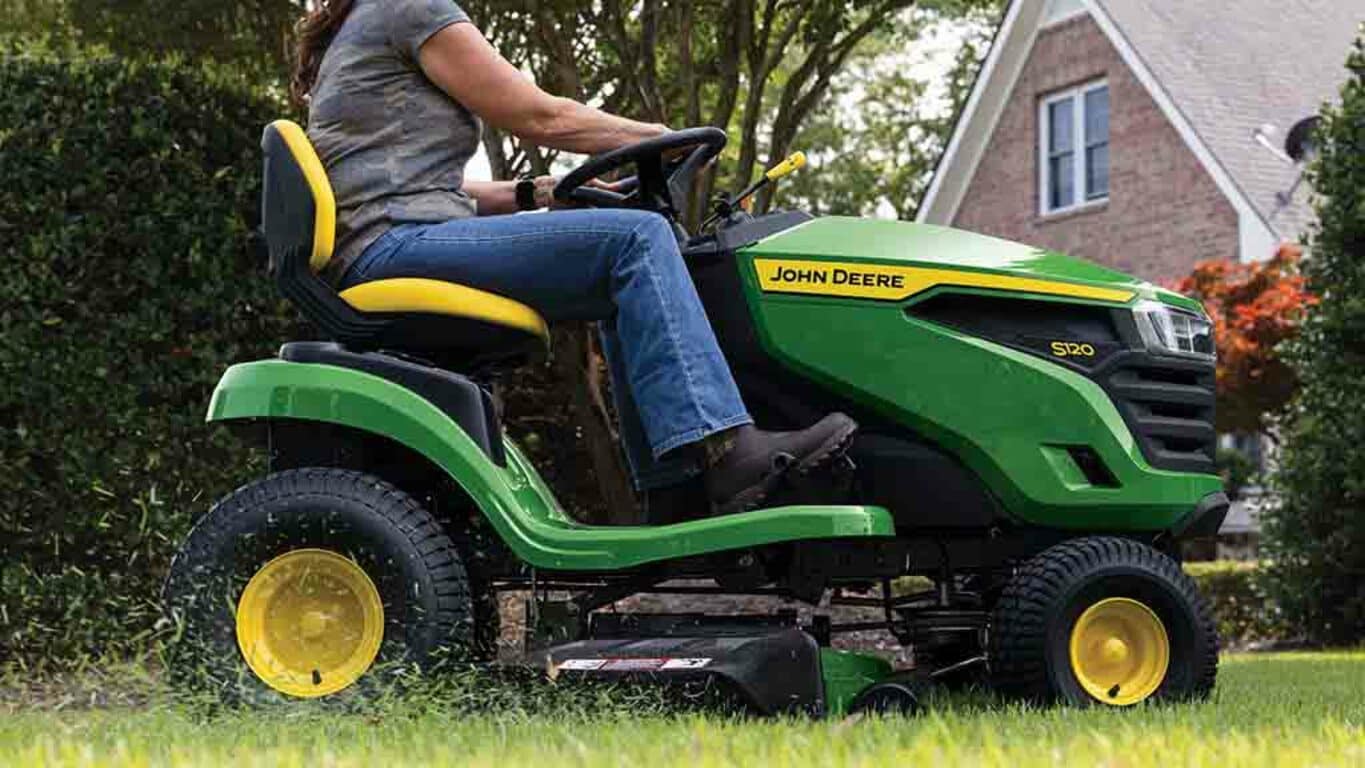

S120 Lawn Tractor

The 100 Series Lawn Tractors are equipped with LED headlights that:

Complement the tractor’s modern styling
Use less power and are far more durable than incandescent light bulbs
Provide a natural light quality that increases visibility in low-light conditions
Light the field of view evenly

Hood will not rust or dent

S120 hood

The hood used on 100 Series Lawn Tractors is made using the mold-in color process. The hood reduces sound, will not rust or dent, and provides resistance to UV light. Side openings let in plenty of cooling air while keeping the sound level low.

Reliable full-length welded steel frame

Solid one-piece frame

The solid one-piece frame is constructed of 12-gauge, 0.105-in. (2.66-mm) steel:

Full-length, robotically welded frame design has high-strength steel rails for added strength and long life.
One-piece, steel fender deck is bolted to the frame.

Cast-iron front axle will not bend

Front axle and wheel spindle

The front axle is constructed of solid cast iron that will not bend:

Automotive-like steering system with sector and pinion steering gears and single drag link with a tie rod provides a very strong, low-effort, and tight-turning system.
Three grease fittings, on both steering spindles and center pivot, allow for regular lubrication to help maintain easy steering and minimize wear.
Large, 0.75-in. (1.9-cm) diameter wheel spindles provide excellent durability.

Front bumper protects the tractor

Front bumper

The front bumper is included on the S130, S140, S160, S170, and S180. It is available as an optional attachment for the S100, S110, and S120.

Additional front-end protection
Attractive, bold style

CargO Mount™ system makes installation of rear bagger and other attachments easy

Rear CargO Mount points

Front CargO Mount points at the top of the dashboard (shown on S110)

Rear bagger is mounted with CargO Mount points

Snow blower controls are mounted with CargO Mount points

The CargO Mount system is a combination of front- and rear-mounting points providing convenient and easy installation of the sun canopy, rear bagger, and other attachments.

Snow removal is a strength of lawn tractors

S140 Tractor with front blade, weather enclosure, weights, and tire chains

S140 Tractor with snow blower, weights, and tire chains

An advantage of lawn tractors is their ability to use equipment for snow removal. Lawn tractor owners can add a John Deere snow blower or front blade to make quick work of moving snow whenever the need arises. Weather enclosure and tire-chain attachments add comfort and performance.

Equipment available for snow removal includes:

44-in. (112-cm) Snow Blower
46-in. (117-cm) Front Blade
Tire chains or TerraGrip traction belts
Weather enclosure
Weights

Hydrostatic transmission gives an infinite choice of ground speeds

Two-pedal speed/direction controls

Forward speed control pedal in use

A Kanzaki® Tuff Torq® hydrostatic transmission gives an infinite choice of speeds and makes changing the direction of travel easy. Side-by-side foot pedals control the speed and direction of travel:

Automotive-type accelerator controls ensure easy operation.
Operator can change direction without lifting foot off the platform.
Large pedal surface gives superior operator comfort.

Hydrostatic transmission (TLT200 shown)

Appropriate transmissions are used in each model, depending on rear tire size and tractor performance requirements, to ensure excellent performance and reliability:

Tuff Torq TLT200 – S100, S110, S120, S130, S140, and S160
Tuff Torq K46 - S170 and S180

Kanzaki and Tuff Torq are trademarks of Kanzaki Kokyukoki Mfg. Co., Ltd.

Operator station designed for comfortable operation

Comfortable operator station (S120 shown)

Comfortable operator station (S170 shown)

The operator station is designed for operator comfort and easy operation:

Controls are positioned where they are easy to reach and use to control the tractor.
The steering wheel is positioned and angled to give the operator plenty of room and steering comfort.
The seat is positioned to provide the most comfortable operator position.

Steering wheel and dash (S130 shown)

Wide footrest with debris channels

Controls are easy to see and use:

Large, three-spoke steering wheel provides greater operator comfort and control.
Ignition switch is on the dash for starting ease.

Wide footrest areas with non-slip, anti-vibration rubber floor mats are provided for operator comfort:

The wide footrest makes it easy to step over the mower deck while entering or exiting the seat.
Debris removing channels help keep the footrest area clean and dry.

Comfortable, open-back seat

Easy-to-adjust seat

Operator comfort is enhanced with a 15-in. (38-cm) high-back, two-piece seat with an open back:

The open-back seat design keeps the operator cooler
Especially helpful when operating the tractor for extended periods of time
Easily adjusted forward or rearward while in the seat
Seat travel of 5.5 in. (14 cm) and 10 different positions to adjust for operator height

Seat raised for fuel-fill access showing seat springs

Two long seat springs give plenty of seat travel to smooth out the ride, keeping the operator comfortable while operating the tractor.

The seat can be tilted forward for protection from the elements and to provide easy access to the fuel tank.

Covered storage compartment and beverage holder

A beverage holder and covered storag compartment, located on the right fender, are conveniently located and easy to use.

Handgrip and reflector on fender flare

On the S130, S160, S170, and S180 models, fender flares cover the tires more completely and add style to the tractor. Handgrips give extra comfort for the operator, especially when operating on hillsides. Reflectors make the tractor more visible.

Easy-read fuel gauge shows fuel level on dashboard and controls are convenient to use

Steering wheel and controls on S120

Instruments and controls

The contoured dash has clean, attractive styling:

Controls are color-coded and labeled for easy identification.
Controls are logically placed and easy to reach.
The hour meter makes it easy to tell when oil changes and other maintenance should be performed.
Functional design of the controls provides good appearance and a comfortable feel.

Easy-read fuel gauge shows fuel level on the dashboard

Easy-read fuel gauge

Convenient fuel filler opening

The easy-read fuel gauge shows how much fuel is in the tank and can be seen on the dashboard:

Easy to check fuel level
Convenient location
Visible in cloudy or dusk conditions (is not backlit)
Does not slosh from bumps
The MowerPlus™ smartphone app can read and remember the fuel level (optional MowerPlus deluxe smart connector required)
The hour meter is also visible on the fuel gauge display

Side-by-side transmission control pedals

Side-by-side foot pedals

Forward speed control pedal in use

Side-by-side foot pedals control the speed and direction of travel:

Automotive-type accelerator controls ensure easy operation.
Operator can change direction without lifting foot off the platform.
Large pedal surface gives superior operator comfort.

Cruise control (S120, S130, S160, S170, and S180)

Cruise control lever

Cruise control is available on the S120, S130, S160, S170, and the S180:

To engage, lift the cruise lever and hold until the foot is removed from the forward pedal.
The cruise control can be released by pushing on the brake pedal or the forward pedal.

Mower deck height adjustment

Mower deck height adjustment lever

A spring-assisted, ergonomically designed lift lever simplifies adjusting the mower cut height:

Increments of 1/4 in. (0.64 cm) allow fine-tuning the cut height.
Cut height is adjustable from 1 to 4 in. (2.5 to 10.2 cm).
The lift handle is shaped for easy use and is out of the way of entering or exiting operators.

Parking brake control

Brake/parking brake pedal

Parking brake lever

The parking brake control is conveniently located on the tractor pedestal for easy access. It holds the brake pedal securely in the locked position.

Manual power take-off (PTO)

PTO engagement lever

The mower deck is engaged with the easy-to-see and easy-to-use yellow lever above the dashboard. Its placement on the right side leaves a lot of room on the left, the entry side of the tractor, for the operator to get on and off the tractor.

Reverse implement option (RIO)

RIO switch

Using RIO

CAUTION: Children or bystanders may be injured by rotating blades. Before traveling forward or rearward:

Carefully check the area around the machine.
Disengage the mower before backing up.

NOTE: Backing up while the mower is engaged is strongly discouraged. RIO should be used only when operating another attachment or when the operator deems it necessary to reposition the machine with the mower engaged.

Stop forward travel.
Look behind the machine to be sure there are no bystanders.
Push and hold in the RIO switch while depressing the reverse pedal slightly.

NOTE: If the engine and mower or other attachment stops while repositioning the machine, return the attachment engagement lever/switch to the off position. Start the engine and engage mower or other attachment. Begin again with step 2.

Release the RIO switch and reposition the machine as the machine begins to move rearward.
Resume forward travel. The mower or other attachment should continue operating.
Repeat procedure to position the machine again.

Convenient maintenance is supported by trusted self-service resources

Example quick-response (QR) code label

QR code label shown on S240

John Deere riding lawn mowers are equipped with a QR code label that links to an owner support website. The label can be found on the rear fender, to the left of the seat.

Upper portion of owner support web page

Lower portion of owner support web page

The owner support website is formatted for smart phones and available without setting up an account and password. The QR code includes the mower’s serial number, enabling the owner support website to provide a maintenance schedule, service parts, attachments, how-to guide, videos, warranty information, and an operator’s manual for the specific mower.

The owner support website also allows users to purchase service parts, schedule dealer service, purchase extended warranties, and download the Equipment Mobile app. The Equipment Mobile app enables users to maintain a shared digital service record with their dealer.

Serviceability is convenient with an easy-open hood

One-piece hood is easy to open (shown on S110 model)

Service interval decal located under hood

The one-piece hood opens easily to permit checking and servicing the engine:

Important service points are located within easy reach.
A service-interval decal is provided inside the tractor hood for convenience when servicing the tractor.

John Deere Easy Change™ 30-second oil change system

Seat tilted up for easy access to fuel-fill opening

The John Deere Easy Change 30-second oil change system makes changing the engine oil easy, quick, and clean. Changing the oil is as easy as removing the old oil-filled filter and twisting on a new oil-filled filter.

The seat tilts up and out of the way to make adding fuel easy.

Keep your mower ready to go with the Equipment Mobile App and smart connector

X350 Tractor

Z370R Electric ZTrak™ Mower

Overview

Keep your John Deere equipment running its best with the John Deere Equipment Mobile App. Download the app from the mobile device’s app store, then add all your John Deere equipment by scanning the serial number bar codes. Once your equipment is added, you can access all your product’s model, serial number, and model year information in one place. The app also provides maintenance, parts, and support resources that are specific to your serial number(s).

Find the right parts the first time

Use Equipment Mobile to find the right parts

It is important to get the right parts the first time. When you load your equipment list, Equipment Mobile provides parts information specific to your serial number(s). This is helpful to you and your John Deere dealer, as some parts can vary by serial number range.

Plan, track, and coordinate maintenance with your dealer

Maintenance plan screen

Maintenance parts and notes screen

Equipment Mobile includes comprehensive maintenance plans for each piece of your equipment. The maintenance plan screen keeps track of completed tasks, provides a place for your notes, and provides parts listings. You can also share your maintenance plan with your dealership, enabling tasks completed by the dealer to be included.

Operator’s manual in the palm of your hands

A machine’s operator’s manual is a go-to resource that is available in Equipment Mobile. You can search, view, and download a copy. The operator’s manual is specific to the serial number(s) of your equipment.

Smart Connectors

Smart Connector

BUC10537 smart connector, wiring harness, and twist ties

A smart connector links the mower to the Equipment Mobile App and transmits vehicle information via Bluetooth® wireless technology to provide:

Engine hours, that enable maintenance reminders
Key switch status and battery level to warn if the battery is low
Fuel level - even when away from the mower, the app remembers the fuel level so you can make sure the mower is fueled when it is time to mow

Optional BUC11960 smart connector is for use with:

S120, S130, S160, S170, and S180 Tractors
Model year 2021 and newer S240 Tractors (serial number 880,001-)
Z515E, Z530M, Z530R, and Z545R ZTrak™ Mowers

Hours, fuel level, key switch status, and battery level are updated whenever the Equipment Mobile device is in range of a mower with a BUC11960 smart connector.

Optional BUC10537 smart connector is for use with:

Model year 2016 and newer Select Series X300 and X500 Tractors

Hours, fuel level, key switch status, and battery level are updated whenever the mower’s key is turned on and the Equipment Mobile device is in range of a mower with a BUC10537 smart connector. The X350R Tractor does not report exact fuel level, it only indicates if the mower is low on fuel.

The Z370R, Z370RS, and Z380R Electric ZTrak Mowers include the smart connector in base equipment.

On Electric ZTrak Mowers the battery level, charging status, and hours are transmitted when the Equipment Mobile device is in range of the mower, and the mower is on or actively charging. Equipment Mobile can also update an Electric ZTrak Mower’s controller software.

A smart connector requires the Equipment Mobile App. The John Deere Equipment Mobile App can be found in the mobile device’s app store.

Bluetooth is a trademark of Bluetooth SIG, Inc.

The Edge™ cutting system gives superior performance

S100 with 42-in. (107-cm) Edge cutting system

The Edge cutting system has been trademarked to emphasize the advantages of the John Deere mower deck designs. They give superior mowing performance, convenience, and reliability:

The deep-deck design lifts grass for a clean, even cut.
The smooth underside has no nooks and crannies, preventing grass buildup and evenly dispersing grass clippings.
The rolled outer edge of the deck provides extra strength and protection.
Dual-stage E-coat and powder paint coatings provide extra protection from rust.
Flexible discharge chute minimizes property and mower deck damage.

The 42-in. (107-cm) Edge Mower Deck is a two-spindle design with heavy-duty characteristics:

The 13-gauge, 0.09-in. (2.3-mm) steel deck provides years of dependable mowing.
Included three-in-one blades work well for side-discharge, mulching, or bagging.
The blade-to-spindle design provides a unique mounting system for the mower blade that provides extra safety and convenience.
No tools are required to switch from mulching to side discharge to rear bagging.
A mulching cover is an optional attachment that can be installed without tools to allow mulching with the standard mower blades.
High-performance mulching blades are available to enhance mulching performance.
A high-performance mulching attachment is an optional attachment that includes a mulch plug and special mulching blades for excellent performance.

Mower wash port

Mower wash port with hose connector

A wash port is provided to make cleaning the underside of the mower deck easy:

A hose connector is included with mower deck.

StarLock™ blade design

StarLock blade design

The StarLock blade design keeps the blade bolt at the correct torque for easy removal.

Optional blades for difficult mulching or bagging conditions are available.

Optional bagger

6.5-bu (229-L) hopper and chute on an S100

A cut-and-throw, 6.5-bu (229-L) bagger is sold separately and comes with bagging blades. Special bagging blades are not required but they can enhance performance.

The bagger kit provides an efficient means of collecting grass clippings and leaves. It can be set up without tools in minutes and has easy-to-empty bags.

Two-year or 120-hour bumper-to-bumper warranty is included

A 2-year or 120-hour single-source, bumper-to-bumper warranty* is included for all John Deere 100 Series Tractors.

The warranty is hassle free, with both the mower and the engine covered by a single warranty.
If the mower is sold, the remaining warranty term is transferable to a new owner.

*Term limited to years or hours used, whichever comes first, and varies by model. U.S. and Canada only. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.

Engine power	22 hp 16.4 kW
Oil change	John Deere Easy Change™ 30-second oil change system
Engine manufacturer/model	44N677 (M44)
Transaxle type	TLT200 hydrostatic, two-wheel drive
Transaxle control	Side-by-side pedals
Rear tires	20x8-8
Lift system type	Spring-assisted hand-grip lever
Cutting width	Edge™ mower deck, 42 in. 107 cm
U.S. warranty	2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Power	22 hp 16.4 kW
Displacement	44.2 cu in. 724 cm
Manufacturer/model	44N677 (M44)
Type	Overhead valve, full-pressure lube, oil filter
Cylinders	V-twin
Governor	Mechanical
Choke/speed control	Single lever with spring-return on choke
Cooling method	Air
Air cleaner	Cartridge
Oil change	John Deere Easy Change 30-second oil change system

Type	Gasoline
Fuel delivery	Pulse pump and carburetor
Fuel gauge	Easy-read on dash
Fuel tank location	Rear
Fuel fill opening	Center, 1.75 in. 4.45 cm
Fuel tank capacity	2.4 U.S. gal. 9.1 L

Battery	12 V 300 CCA
Charging system	Regulated, 8 amp
Engine starter	Bendix type
Hour meter	Yes
Headlights	Two standard, incandescent
Taillights or reflector	No
Backup lights	No
Rear work lights	No
12-V outlet	No

Type	Hydrostatic, 2-wheel drive
Control	Side-by-side pedals
Cruise control	Standard
Oil cooler	Fins and fan on transaxle
Oil filter	Yes, not serviceable
Differential lock	No
Forward speed	0-5.5 mph 0-8.9 km/h
Reverse speed	0-3.2 mph 0-5.2 km/h
Brakes	Internal wet disk

Type	Sector and pinion with single drag link and tie rod
Four-wheel steer	Not available on this model
Steering wheel	Standard, diameter - 12 in. 30.5 cm
Tilt steering wheel	No
Turning radius	18 in. 45.7 cm
Uncut circle radius	25 in. 63.5 cm

Type	Slide under tractor
Front draft arms	One spring clip
Rear draft arms	Two spring clips
Mower wheels rotate	No
Drive system	Single belt

Meets ANSI standard	Yes
Meets OPEI standard	Yes
Backup protection	Reverse Implement Option (RIO)
Safety video	Yes

Mowers
Rear bagger	2-bag, 6.5 bu 229 L
Powered material collection
Mulching system	Mulch cover or high-performance plug
Front thatcher
Front blade	46 in. 116.8 cm
Mid-mount blade
Snow blower	Two-stage, 44 in. 111.8 cm
Rotary broom
Rotary tiller
Sleeve hitch
3-point hitch
Rear power take-off (PTO)
Plow, moldboard
Box scraper
Cultivator
Rear blade
Disk harrow
Landscape rake
Sprayer	Tow-behind, 15 U.S. gal. 56.8 L Mounted, 15 U.S. gal. Tow-behind only, 25 U.S. gal. 94.6 L
Spreader	Tow-behind only, 125-175 lb 57.7-80 kg
Front bumper	Styled front bumper
Brush guard
Weather protection	Weather enclosure
Sun canopy	Sun canopy
Rear receiver hitch
Bucket holder	Yes, single bucket
Grass striping	Lawn striping kit
Tractor shovel
Front loader
Other equipment
Tow-behind tools	16

S120Lawn Tractor

SHARE

Features

Fuel tank

Light emitting diode (LED) headlights complement modern styling

Hood will not rust or dent

Reliable full-length welded steel frame

Cast-iron front axle will not bend

Front bumper protects the tractor

CargO Mount™ system makes installation of rear bagger and other attachments easy

Instruments and controls

Easy-read fuel gauge shows fuel level on the dashboard

Side-by-side transmission control pedals

Cruise control (S120, S130, S160, S170, and S180)

Mower deck height adjustment

Parking brake control

Manual power take-off (PTO)

Reverse implement option (RIO)

Using RIO

Serviceability is convenient with an easy-open hood

Overview

Find the right parts the first time

Plan, track, and coordinate maintenance with your dealer

Operator’s manual in the palm of your hands

Smart Connectors

Mower wash port

StarLock™ blade design

Optional bagger

Specs & Compare

Add Model

Key Specs

Engine

Fuel system

Electrical system

Transaxle

Chassis

Steering

Seat

Lift system

Mower deck

Mower attachability

Safety

Buyer's notes

Optional equipment

Dimensions

Additional information

Offers and Discounts

No Interest if Paid in Full within 9 Months†

Owner Resources

Related Products

Shop and Buy

Maintenance and Support

You May Also Be Interested In
