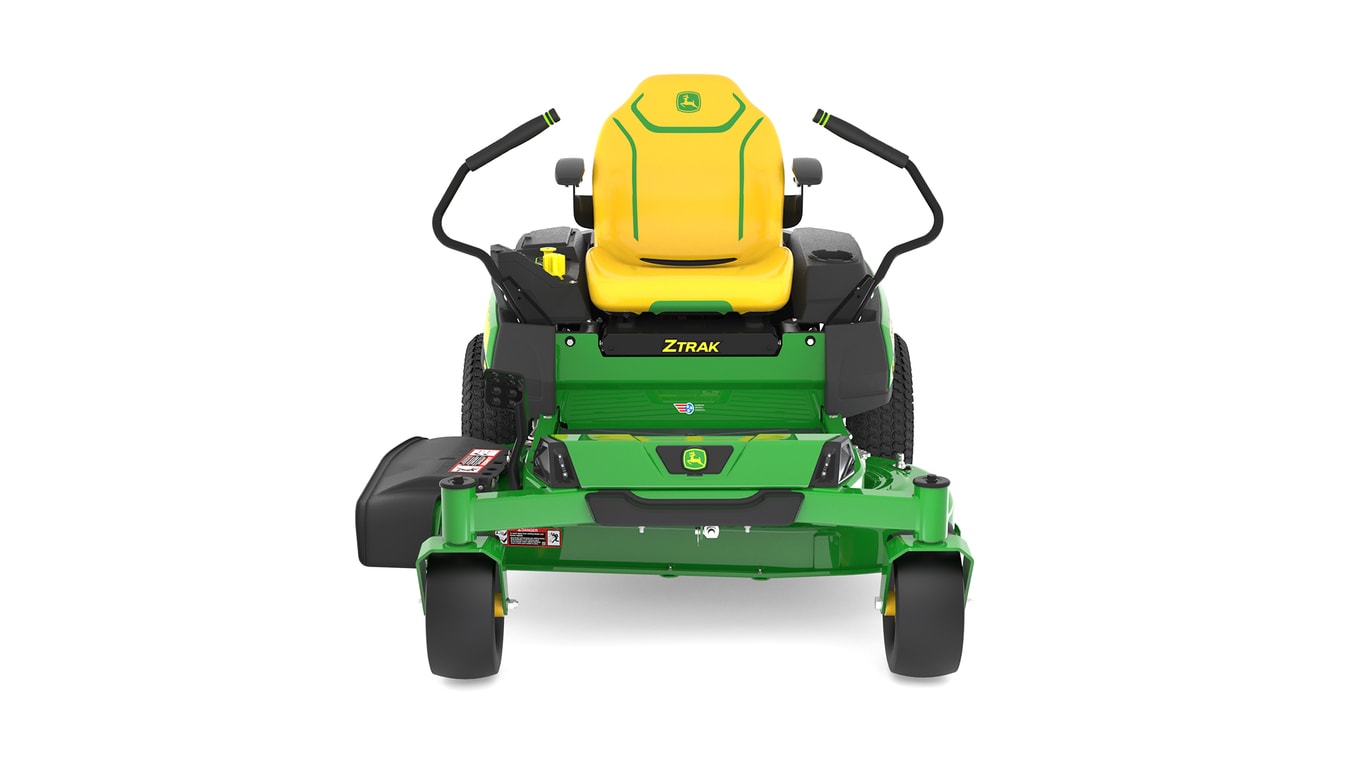

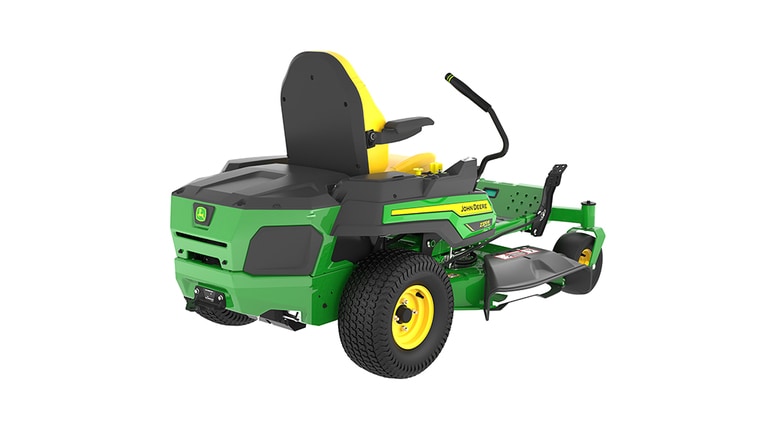

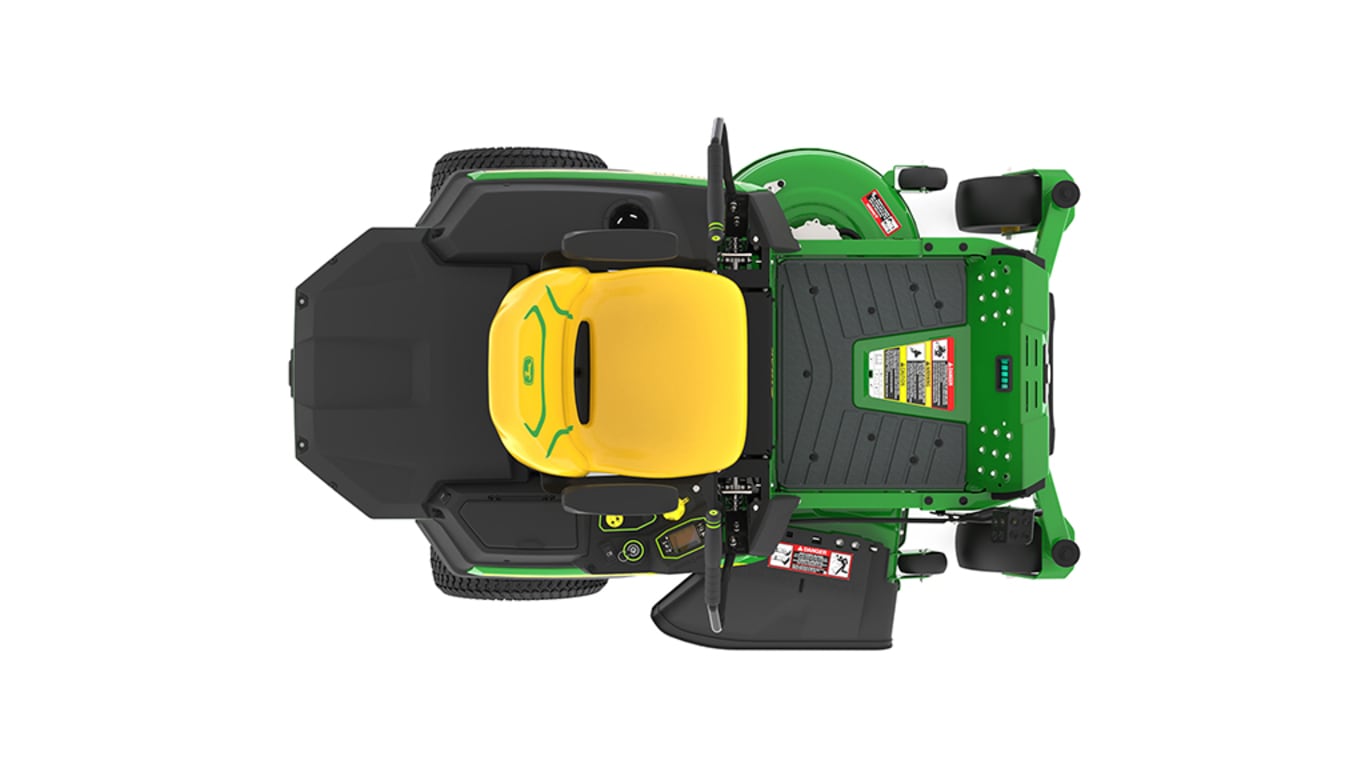

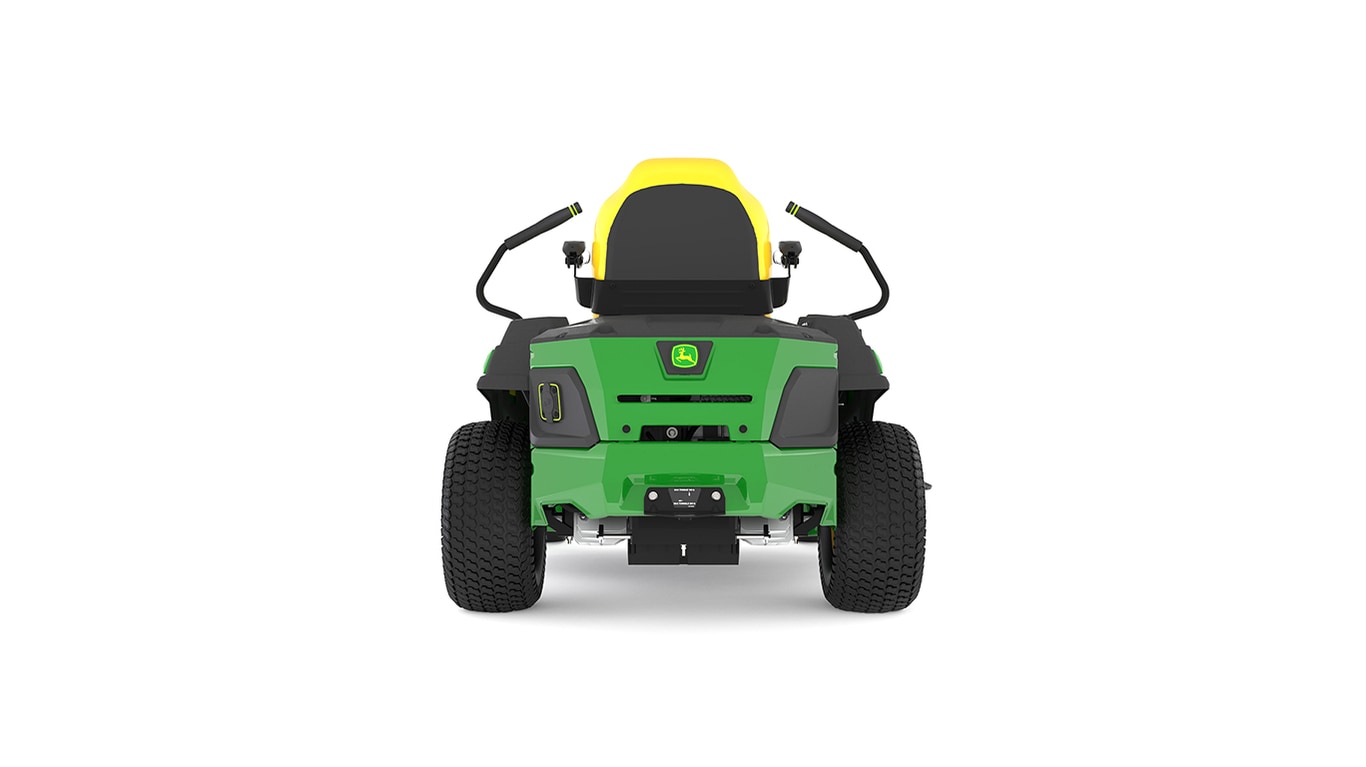

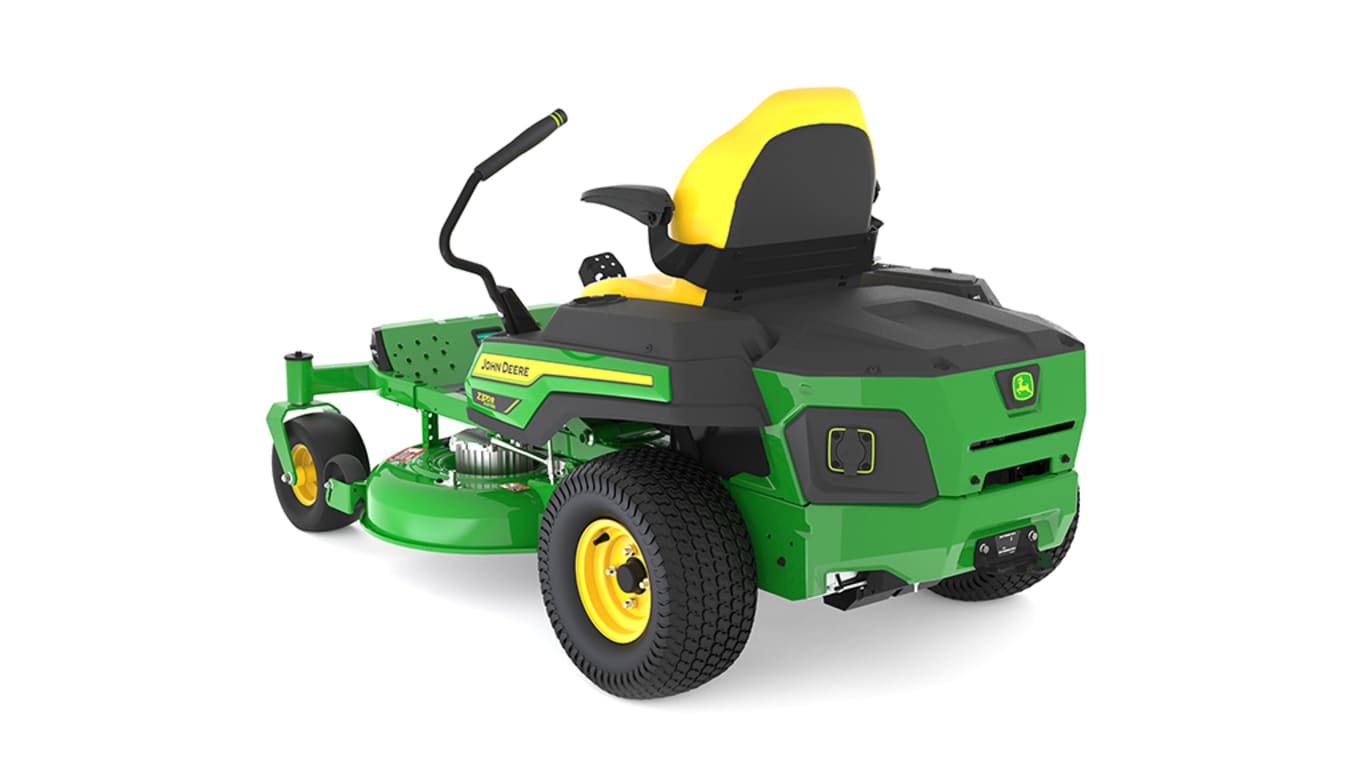

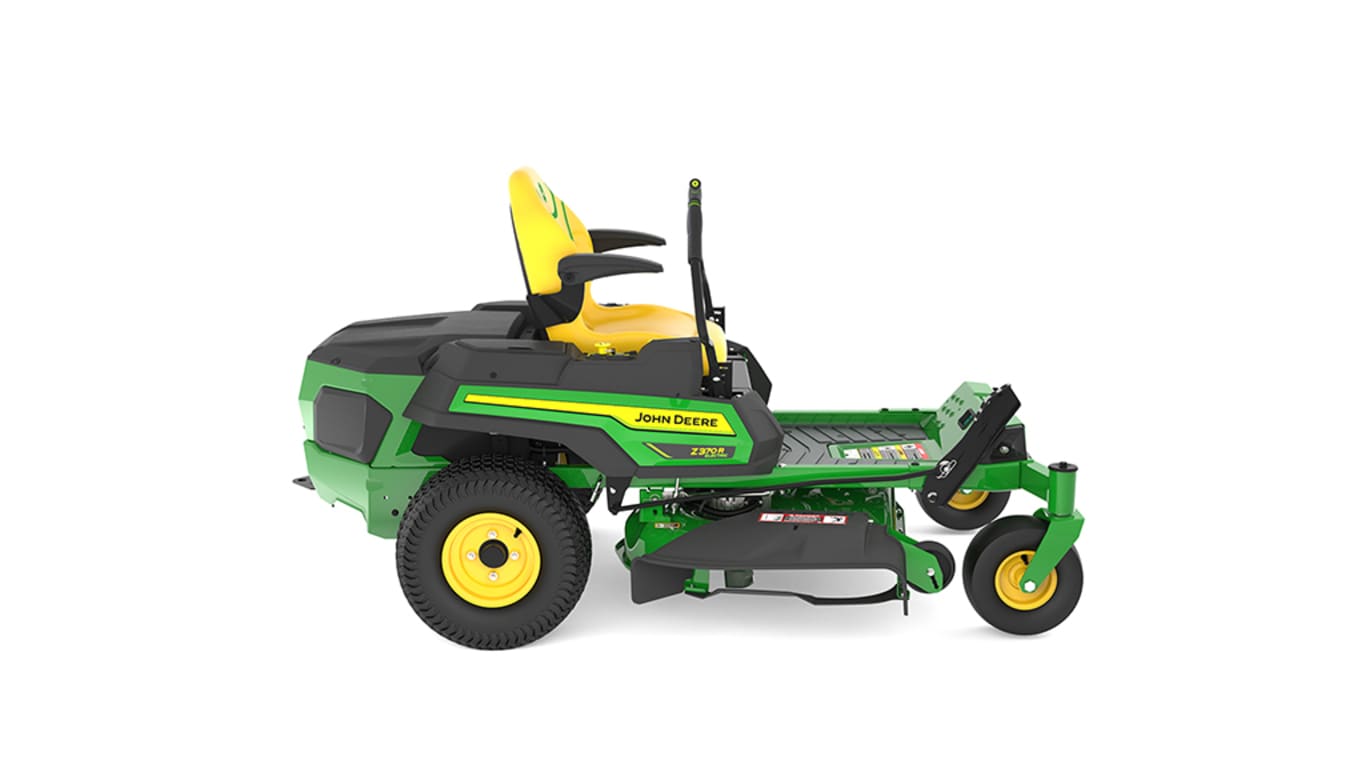

Z370R Electric ZTrak™ Mower
Z380R Electric ZTrak™ Mower
The Z300 Electric ZTrak Mowers deliver the productivity and cut quality of a gas-powered Z300 ZTrak Mower. Many proven components, including the frame and Accel Deep™ Mower Decks, are shared with the gas-powered models.
Mower decks are 4.83 to 4.97-in. (12.3 to 12.6-cm) deep with a flat top and large discharge opening.
Cut and suspended material can exit the mower deck without getting recut:
Stamped-steel construction eliminates sharp edges and corners:
Adjustable mower wheels, positioned just above ground level give a more even cut and reduce scalping.
Optional MulchControl™ enables you to mulch frequently:
Optional 6.5-bu (230-L) rear bagger with a 42-in. (107-cm) mower deck for collecting grass clippings and leaves.
The Z300R Electric ZTrak Mowers are powered by lithium-ion batteries that have up to twice the capacity of competitors:
The efficient Accel Deep Mower Decks with optimized blades extends runtime:
Go home mode gets you back:
The electric transaxle has the same 7-mph (11.3-km/h) maximum forward travel speed as the transaxle used on gas-powered Z300 ZTrak Mowers.
The wider 48-in. (122-cm) and 54-in. (137-cm) mower decks are more productive and extend further leftward which improves trimming.
Z370R Electric ZTrak™ Mower

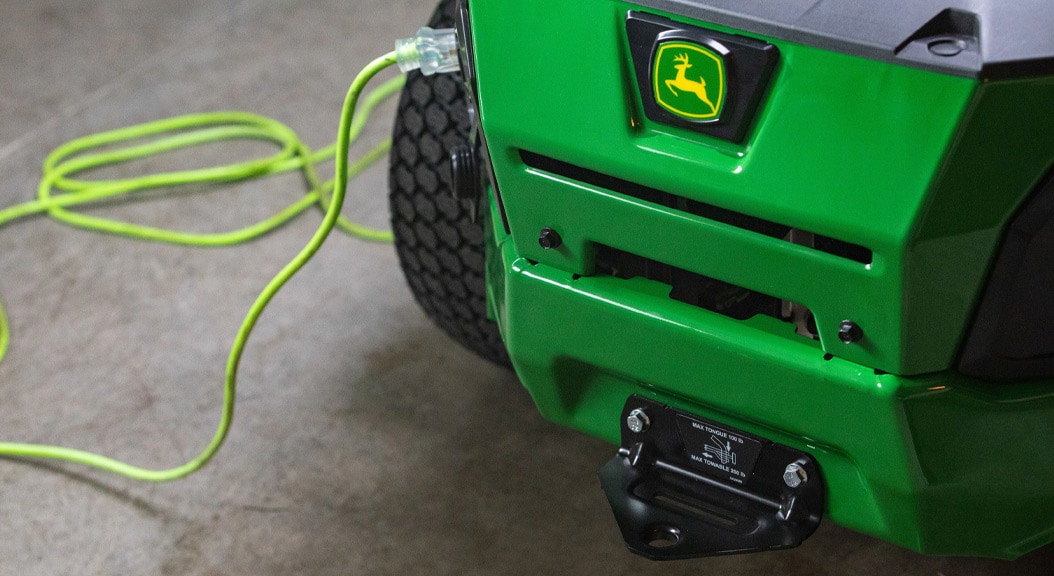

Customer-provided extension cord used to charge mower
A Z300 Electric ZTrak Mower frees you from the hassles of gasoline.
Start your weekend with the scent of fresh cut grass instead of a trip to the gas station
No spilling, transporting, smelling, or storing gasoline
Minimal maintenance
Smart charger is built into the mower
Smart charger continuously monitors battery
Washing a Z370R with a water hose
A Z300R Electric ZTrak™ is designed to withstand dust and water so you can confidently weather the conditions, wash the mower with a water hose, and even store the mower outdoors. The same weatherization technology used on John Deere’s agriculture and construction products is found on Electric ZTrak Mowers for dependable, trouble-free performance.

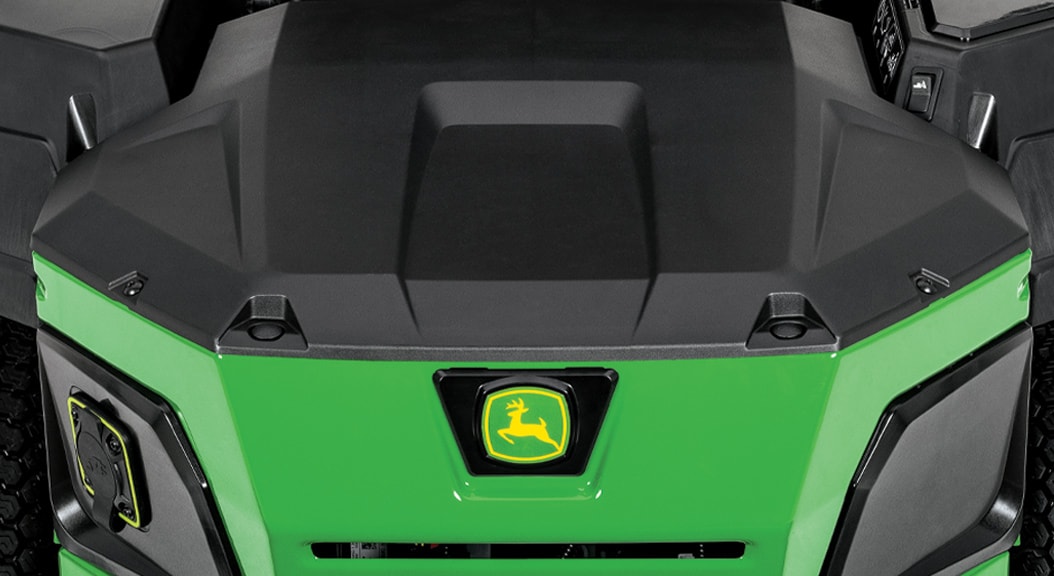

The battery is sealed to protect it from the elements:
Rear cover
Sealed battery, on-board charger, and electronics shown on Z370R with rear cover removed
Sealed mower deck motor
Mower deck motor connectors
The mower deck motors are also sealed to keep dust and water from entering. High-quality electrical connectors are also used throughout the mower.
All John Deere mowers are painted with a dual-stage E-coat process using powder-paint coatings to provide protection from fading and corrosion.

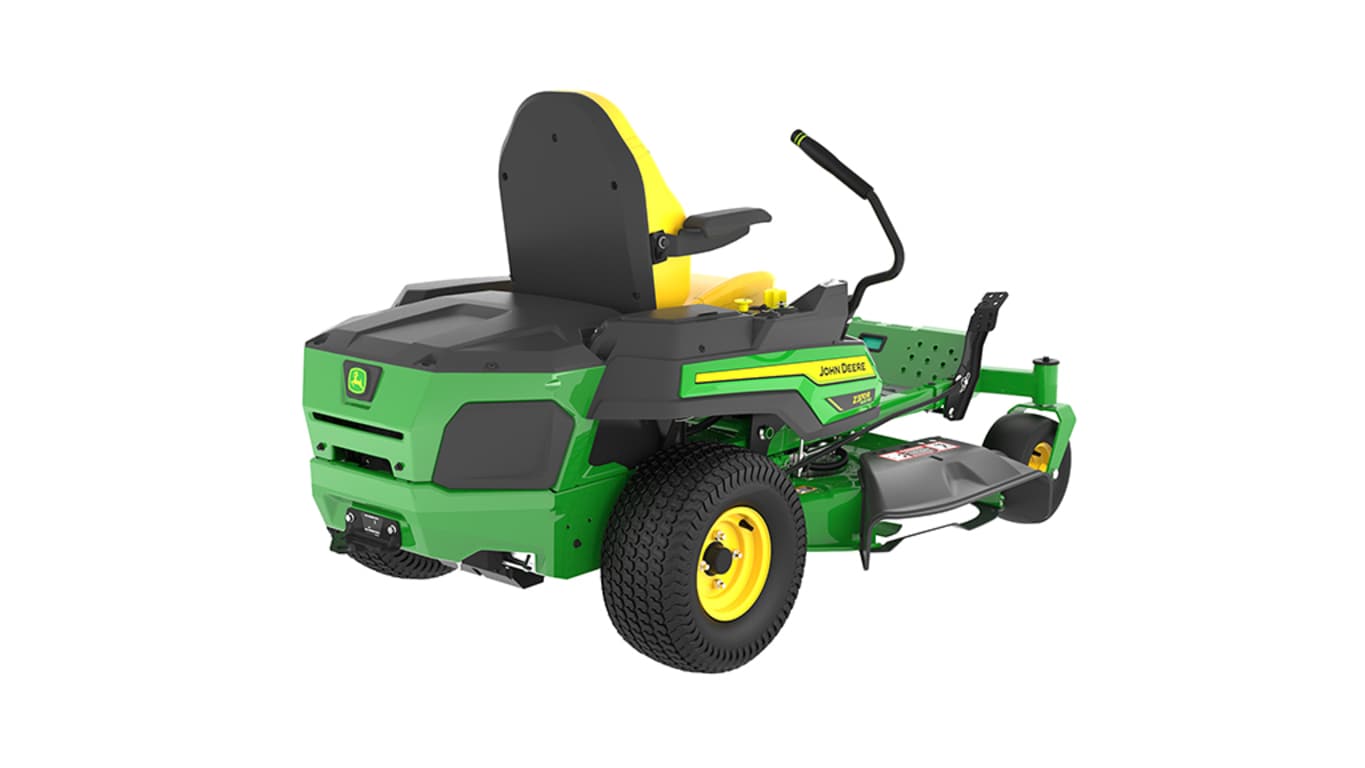

Z370R Electric ZTrak™ Mower

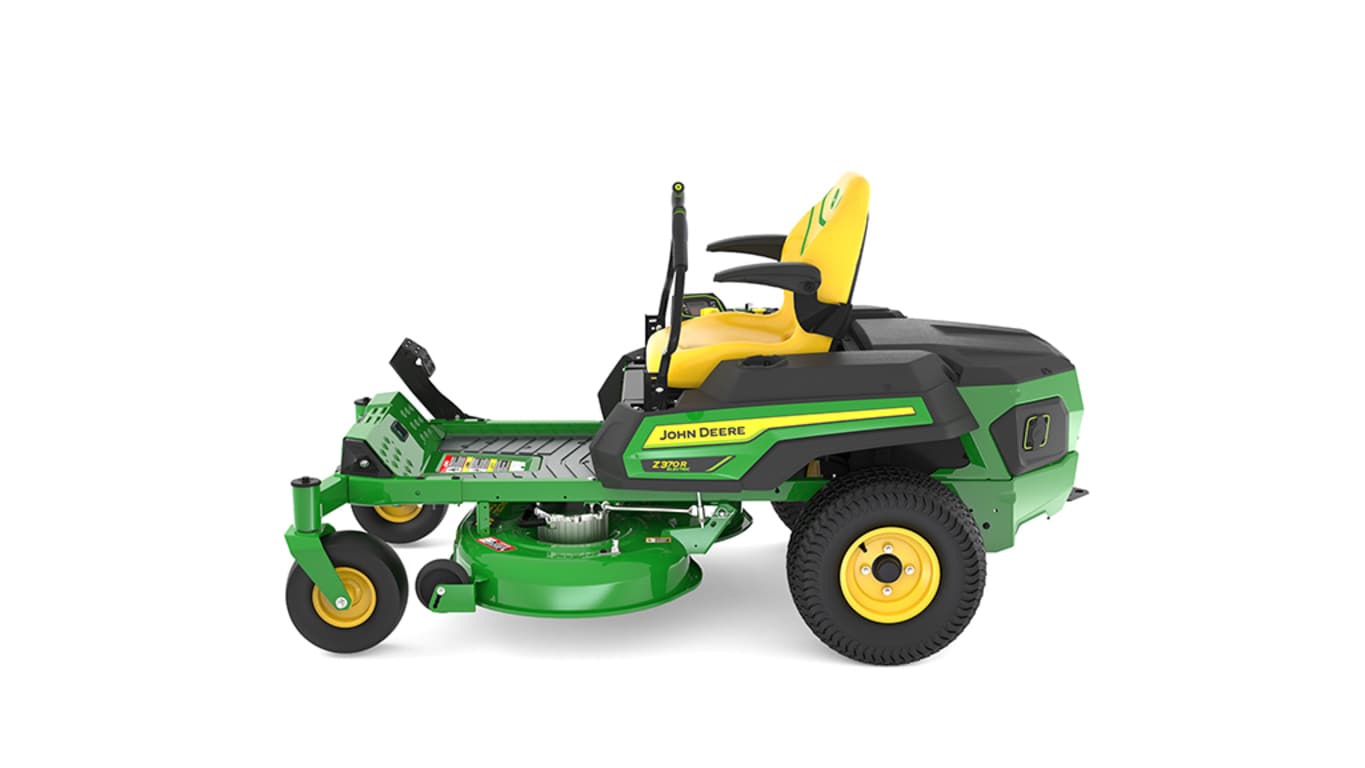

Z370R Electric ZTrak™ Mower
A Z300R Electric ZTrak Mower is built tough to provide many years of trouble-free service. Several proven components, including the frame and the Accel Deep™ Mower Decks, are shared with the gas-powered Z300 ZTrak models.

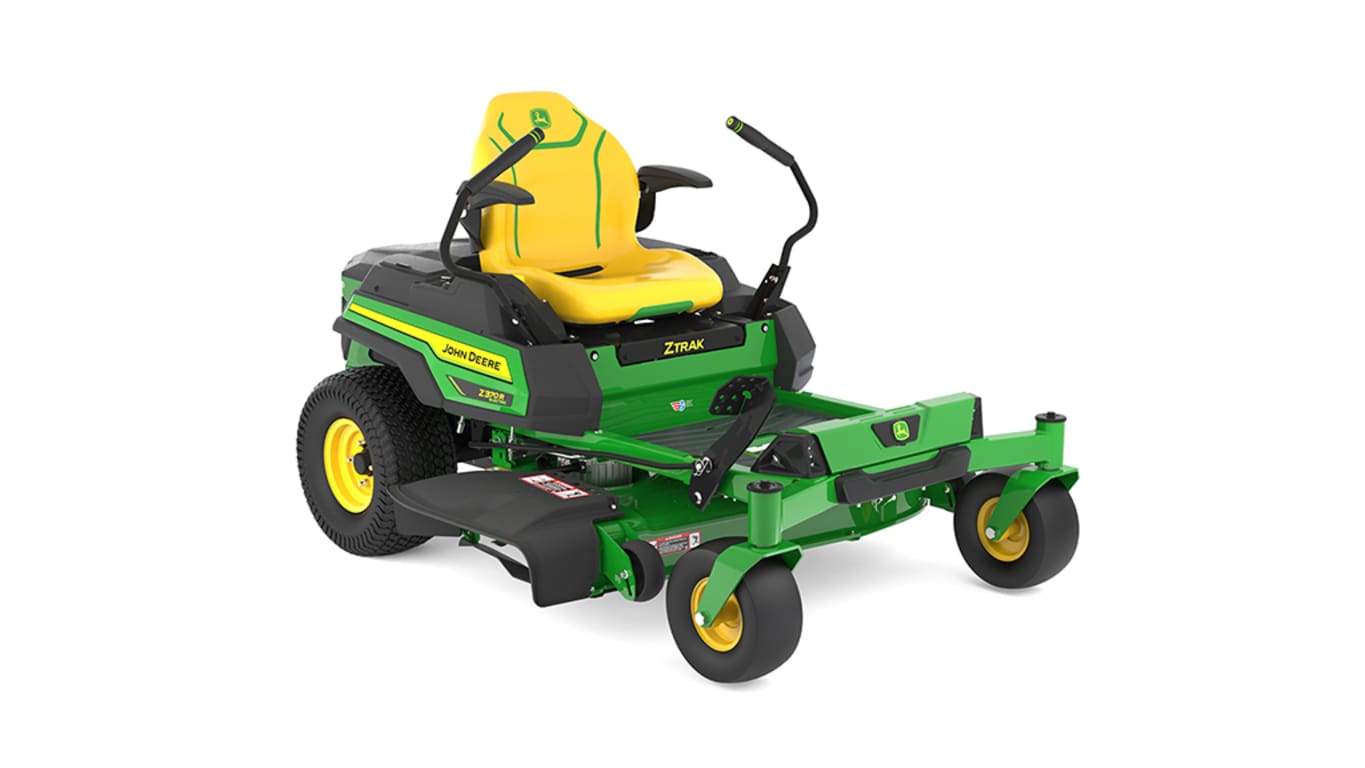

Z370R Electric ZTrak Mower
The Z300R Electric ZTrak Mower frame is constructed of heavy-duty formed and welded steel for strength, reliability, and long life:
42-in. (107-cm) Accel Deep Mower Deck
48-in. (122-cm) Accel Deep Mower Deck
54-in. (137-cm) Accel Deep Mower Deck
The Accel Deep Mower Decks are forged from heavy-gauge steel:
To withstand impacts both decks feature:
The 48-in. (122-cm) and 54-in. (137-cm) Accel Deep Mower Decks include a 5/8-in. (16-mm) diameter solid-steel rod side bumper that provides extra protection.
Z370R Electric ZTrak Transaxle
The electric transaxle is maintenance free and reliable:

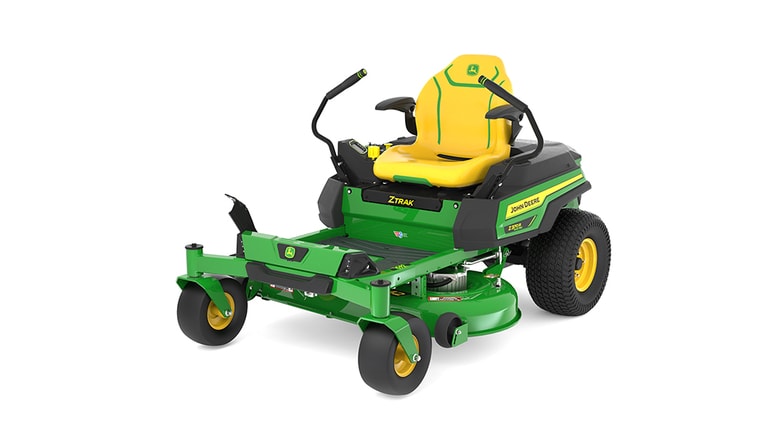

Z370R ZTrak™ Mower
Look forward to the weekend and mowing with your Z300R Electric ZTrak Mower. The mower’s seat, operator station, styling package, ergonomic controls, even the mower deck are designed to give a clean, quiet, and a smooth riding experience.
20-in. (51-cm) custom-tailored seat
Z370R operator platform
Optional boarding step
Covered storage compartment charging a cell phone
Z370R lighting pattern
Z370R Electric ZTrak™ Mower
Controls and display panel
The Z300R Electric ZTrak is designed to be intuitive to use, with controls at your fingertips.
Removing key pin from power button
Display panel
Status display
Display panel
Status display
Z370R Electric ZTrak mowing
Mode and PTO switch
The electric transaxle of the Z300R Electric ZTrak is tuned to be smooth, responsive, and operate like a gas-powered ZTrak Mower.
Three operating modes enable you to tailor the performance to your preferences and yard conditions:
Operating mode can be changed using the mode switch
Material collection is only available on the Z370R with the 42-in. (107-cm) mower deck.
Motion-control levers in park position
Motion-control levers in operating position
The integrated park brake is automatically applied when motion control levers are stowed outward and disengaged when levers are placed into operating position.
Cut-height adjustment knob
Foot pedal lift and cut-height adjustment knob
The foot-lift pedal also provides a convenient way to temporarily raise the mower deck over an obstruction while mowing.
A Z300R Electric ZTrak™ Mower has several features to simplify maintenance.
Deep flat-top mower deck
Service interval chart
The service interval decal includes recommended service points, intervals, and part numbers.
Push-mode switch
If you need to push or tow the mower you can activate the push-mode switch which allows the drive wheels to roll freely.
Example product identification number (PIN) label with QR code
John Deere riding lawn mowers are supported by owner information web pages that include links to:
To speed access to owner information web pages, a QR code is printed onto a PIN label located under the seat. Since each vehicle model has its own web page, the links are specific to the owner’s model. The QR code also includes the vehicle’s unique PIN which allows for additional customization of the owner information web page in the future.
Front and rear tie-down locations are provided for convenience and safety when trailering the mower.
Z370R Electric ZTrak™ Mower
A Z300 Electric ZTrak is covered by a 3-year or 200-hour, whichever comes first, bumper-to-bumper warranty. The battery has even more coverage, with a 5-year or 200-hour coverage period. An optional PowerGard™ Lithium-Ion Battery Protection Plan covers the battery for 10 years or 400 hours. An optional PowerGard Protection Plan Residential is available to cover the remaining components. PowerGard Protection Plans are only available in the United States.
Benefits
Z370R with spreader
Z370R with thatcher
A Z300 Electric ZTrak provides the same versatile attachments as gasoline-powered Z300 ZTrak Mowers.
Attachments add versatility, comfort, or protect your mower
*Bagger only available on Z370R with the 42-in. (107-cm) mower deck.
MowerPlus example screen
Keep your Z370R Electric ZTrak™ Mower running its best with the John Deere MowerPlus app. The Z370R includes connector functionality that wirelessly transmits mower information to the MowerPlus app.
To download the free MowerPlus app, visit the Apple® App Store® or Google Play™ store. The John Deere MowerPlus app and operating system requirements can be found in the mobile device’s app store. The MowerPlus app is only available in the English language, and it is not available in all countries.
Apple and App Store are trademarks of Apple, Inc. Google Play and Android are trademarks of Google LLC. iOS is a trademark of Cisco Technology, Inc. used under license by Apple Inc.
With up to 2 acres per charge2, zero operating emissions, no engine noise and a quality of cut that's second to none, there are dozens of reasons to pre-order a Z370R Electric Mower right now. Find out yours. Watch now.
Both the 42-in. (107 cm) and 48-in. (122 cm) Accel Deep™ Mower Decks have a deep draw and flat top design for an exceptional quality of cut at fast ground speeds –all to help ensure the Z370R Electric mows well fast. Plus, the deck is built for toughness. Just like our gas mowers.
Unlike other electric Zero Turn Mowers, the sealed 3.2 kWh (3.56 kWh maximum) lithium-ion battery offers protection from the elements allowing the unit to run under damp conditions. You can even wash the mower deck, and store outside with confidence. Plus, the sealed battery is protected from dust and debris to help keep you mowing. No unsealed battery can say that.
The Z370R Electric Mower carries a 5 year/200-hour battery warranty, supported by a dealer network that has your back if things go wrong. Feel like you want more? No problem. You can purchase an extended 10-year battery PowerGard warranty through your dealer. That’s a lot of peace of mind.
The Z370R Electric offers zero operating emissions to help make the world a better place and no engine noise. That’s good for you and good for all.
Just plug in when you are done mowing and walk away. The Smart Charge Technology prevents over charging and maintains battery life. The Z370R Electric eliminates the need for engine oil changes, spark plugs, air filters, mower belts and greasing as well.
The Z370R Electric with Bluetooth connectivity provides access to the operator’s manual for mower maintenance help, Web-based lawn maintenance video tips and articles as well as GPS Mowing Pattern Tracking for info that can help you mow better as an operator. Right from your phone with the MowerPlus App.
The sealed 3.2 kWh (3.56 kWh maximum) lithium-ion battery provides up to 2 acres of lawn mowing action per charge and quickly recharges – all with a grounded extension cord. Mowing distance depends on mowing conditions. Actual mowing acreage may vary.
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere Z370R Electric ZTrak™ Mower |
| Battery | One 58 V lithium-ion, 3.56 kilowatt-hour maximum (3.20 kilowatt-hour nominal), sealed and meets IP66 rating | |||
|---|---|---|---|---|
| Charger | On board, 700 Watts, 120 V input | |||
| Engine power | ||||
| Engine model number | ||||
| Forward speed | 0-7 mph 0-11.3 km/h |
|||
| Front caster tires | 11x6-5 | |||
| Drive tires | 42A: 18x8.5-8 48A: 20x10-8 |
|||
| Seat back height | High back with armrests, 20 in. 51 cm |
|||
| Width of cut | Accel Deep™ mower deck, 42 in. 107 cm Accel Deep™ mower deck, 48 in. 122 cm |
|||
| Mulching system | Optional MulchControl™ attachment | |||
| Warranty | 3 year or 200 hour bumper-to bumper; 5 year or 200 hour battery* (*Terms limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Power | ||||
|---|---|---|---|---|
| Model number | ||||
| Displacement | ||||
| Cylinders | ||||
| Lubrication | ||||
| Type | ||||
| Battery | ||||
| Choke/speed control | ||||
| Cooling method | ||||
| Fuel tank capacity | ||||
| Fuel gauge |
| Battery | One 58 V lithium-ion, 3.56 kilowatt-hour maximum (3.20 kilowatt-hour nominal), sealed and meets IP66 rating | |||
|---|---|---|---|---|
| Charger | On board, 700 Watts, 120 V input | |||
| Dual hydros | ||||
| Hydraulic pumps | ||||
| Wheel motors | ||||
| Transmission | Dual electric motor with 1-in (2.5-cm) axles |
| Forward speed | 0-7 mph 0-11.3 km/h |
|||
|---|---|---|---|---|
| Reverse speed | 0-3.5 mph 0-5.6 km/h |
|||
| Speed and direction control | Twin levers | |||
| Control adjustment | 3 height, 11 positions |
| Frame | Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing | |||
|---|---|---|---|---|
| Primer/paint | E-coat/powder | |||
| Front caster tires | 11x6-5 | |||
| Front caster bearings | Sealed ball bearings | |||
| Drive tires | 42A: 18x8.5-8 48A: 20x10-8 |
|||
| Hour meter | Yes | |||
| Service interval decal | Yes | |||
| Storage compartment | Standard covered | |||
| Cup holder | Yes | |||
| Maximum towing capacity | 250 lb 113 kg |
| Seat back height | High back with armrests, 20 in. 51 cm |
|||
|---|---|---|---|---|
| Fore-aft adjustment | 2.9 in. 7 cm |
|||
| Seat suspension | Two springs |
| Type | Foot lift | |||
|---|---|---|---|---|
| Mower cut height | 1.25-4.5 in. 3-11 cm |
|||
| Cut height increments | 0.25 in. 0.64 cm |
|||
| Preset cut height | Yes |
| Width of cut | Accel Deep™ mower deck, 42 in. 107 cm Accel Deep™ mower deck, 48 in. 122 cm |
|||
|---|---|---|---|---|
| Type | Side discharge | |||
| Mower deck material | 42A: 12 gauge 0.105 in. 2.7 mm 48A: 10 gauge 0.135 in. 3.4 mm |
|||
| Mower drive system | Electric motors |
| Type | ||||
|---|---|---|---|---|
| Drive |
| Wheelbase | 49.4 in. 1255 mm |
|||
|---|---|---|---|---|
| Overall length | 75.4 in. 1915 mm |
|||
| Width without mower | 43.3 in. 1100 mm |
|||
| Width with mower | 42A: 50.4 in. 1280 mm 48A: 62.6 in. 1590 mm |
|||
| Width with mower (deflector raised for storage) | 42A: 46.5 in. 1180 mm 48A: 52.8 in. 1340 mm |
|||
| Height | 43.3 in. 1100 mm |
|||
| Weight | 42A: 490 lb 222 kg 48A: 540 lb 245 kg |
| Rollover protective structure (ROPS) | No | |||
|---|---|---|---|---|
| Slope operating limit | 13 degrees; 10 degrees with Material Collection System | |||
| Operator presence system | Yes | |||
| Park brake interlock | Yes | |||
| Operator video | Yes, online |
| Note 1 | Mow 2 acres (42-in. [107-cm] mower deck) or 1.8 acres (48-in. [122-cm] mower deck) on a charge with confidence, 3.56 kilowatt-hour maximum (3.20 kilowatt-hour nominal) battery has up to 40 percent more capacity than competitor’s batteries | |||
|---|---|---|---|---|
| Note 2 | Smart charger is built into the mower, charge anywhere with a standard 120-volt outlet and grounded extension cord | |||
| Note 3 | Sealed battery meets IP66 rating, allowing you to wash the mower with a water hose | |||
| Warranty | 3 year or 200 hour bumper-to bumper; 5 year or 200 hour battery* (*Terms limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Mulching system | Optional MulchControl™ attachment | |||
|---|---|---|---|---|
| Rubber floor mat | Standard | |||
| Sun shade | ||||
| Mounted sprayer | ||||
| Protective cover | Optional | |||
| Light kit | Standard | |||
| Material collection system | 42A: Two-bag cut-and-throw MCS, 6.5 bu 229 L 48A: No material collection system |
| Manufacturing location | Greeneville, Tennessee, USA | |||
|---|---|---|---|---|
| Date collected | 2-Oct-2023 |
2Actual mowing area per charge will vary based on conditions and attachment usage.
3Term limited to 5 years from date of purchase or 200 hours of machine usage, whichever comes first. All our residential ZTrak™ Mowers come with a 3 year/200-hour bumper-to-bumper, machine warranty. For full details, see the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty.
