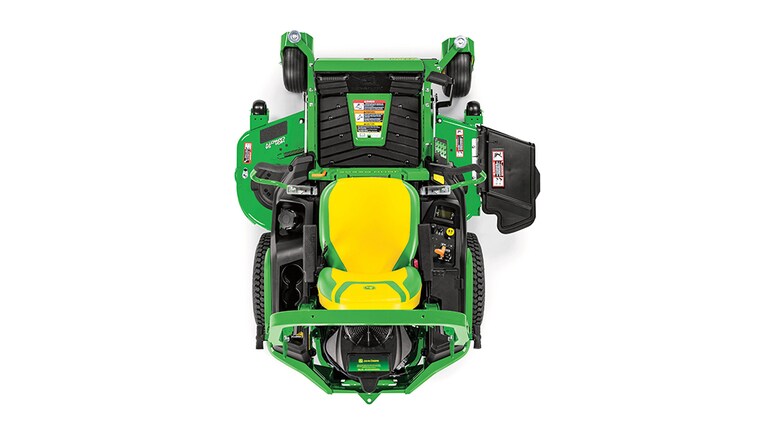

Operator station of Z545R
Color-coded controls are easy to identify (Z545R shown)
The operator station is designed to provide superior operator comfort for many different operators:
Comfortable seat with adjustable armrests
ComfortGlide™ suspension seat adjustment lever
The comfortable seat has two suspension springs, fore-aft seat adjustment and ComfortGlide suspension:
Long steel seat springs (left)
Long steel seat springs (right)
Foot pegs (Z545R with toe-board mat shown)
Foot pegs (standard on the Z530R and Z545R and available as an extra-cost kit on the Z515E and Z530M) provide you with different foot placement options.
Foot pegs are secured to the toe board in the horizontal position to provide more variability for foot placement. The pegs also act as handles to remove and replace the foot platform.
NOTE: Toe-board mat shown in photo is standard equipment on the Z530R and Z545R and can be ordered through Parts for the Z515E and Z530M.
Dual beverage holder
Storage compartment with standard cover
The dual beverage holder on the left fender and storage compartment on the right fender add convenience for the operator:
NOTE: A storage compartment cover is standard on the Z530R and Z545R.
12-V charge port
12-V outlet is located within the storage compartment for the convenience of connecting a variety of electrical and electronic equipment.
Advanced display includes fuel gauge (key switch on)
The control console is located to the right of the operator station and includes the following:
The advanced instrument display has the look and feel of a modern automobile with a power-up sequence that cycles lights and gauges to indicate they are working:
Fuel sight window
Fuel sight window and fuel fill cap
A conveniently located fuel-sight window allows the operator to view the fuel level when approaching the vehicle from the front:
Mower lift pedal and cut-height adjustment
Mower deck cut-height adjustment and transport lock
Mower deck cutting height can be adjusted from 1 in. (2.5 cm) to 4 in. (10.2 cm) in 0.25-in. (0.64-cm) increments for excellent cut quality and performance:
Motion-control levers in operating position
Motion-control levers in park position
Motion control levers are shaped and located for operator comfort and ease of control.
Premium control levers on the Z530R and Z545R are painted green and have a unique shape and size for more comfortable operation.
18-position control lever adjustment, low
18-position control lever adjustment, high
The motion-control levers can be adjusted to two different height settings and nine different fore-aft settings:
Tracking adjustment bolts
Tracking adjustment tool
Tracking adjustment can be made from the operator seat with the provided tool.
Park brake lever
Motion-control levers in park position
The park brake is conveniently located:
Brake-and-go logic:
Interlock switch is located under the seat
Safety interlocks help prevent operating in an unsafe way:
High capacity mower deck (front)
High capacity mower deck (left side)
High Capacity Mower Decks are a heavy-duty, 9-gauge, 0.15-in. (3.8-mm), forged-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Experience optimal performance and dispersion of clippings, even at faster mowing speeds:
Z530R and Z545R ZTrak™ Mowers are equipped with a 48-in. (122-cm), 54-in. (137-cm), or 60-in. (152-cm) High Capacity Mower Deck.
| High Capacity Mower Deck size | Model | Mulching (optional) | Material collection (optional) |
| 48 in. (122 cm) | Z545R | Dedicated mulching system | 6.5-bu (230-L) two-bag Power Flow™ system |
| 54 in. (137 cm) | Z530R, Z545R | MulchControl system | 6.5-bu (230-L) two-bag Power Flow system |
| 60 in. (152 cm) | Z530R, Z545R | MulchControl system | Not available |
Deep, flat-top deck (front view)
Deep, flat-top deck (left front view)
The mower deck has a deep-deck design:
Mower level adjusting points
Reinforced leading edge and trim side of mower deck
Steel reinforcing bars are welded to the front edge and trim side of the mower deck:
Deep mower deck spindle pocket with flip-up spindle cover
The deck has deep, strong spindle pockets to keep the blades aligned, even after years of tough operation:
Flip-up spindle covers make cleaning the spindle area convenient.
Right and left mower anti-scalp wheel and center rollers
Dual-captured side anti-scalp wheels and front rollers:
MulchControl with baffle closed
MulchControl with baffle open
The MulchControl attachment makes mulching more practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:
MulchControl is an innovative, simple design that is easy to use and maintain:
MulchControl handle (shown on similar Z700)
The optional MulchControl attachment comes with a handle on top of the mower deck that is used to open and close the discharge baffle:
MulchControl is well-suited to the following mowing situations:
MulchControl puts the operator in control of the clippings. The operator can have all the benefits of mulching with the ability to easily change to side-discharge or bagging when needed.
While in the side-discharge mode, MulchControl will still mulch about one-third of the material. Therefore, the side-discharge mode is essentially a partial mulch mode. This can be an advantage when side discharging or bagging, as it helps reduce the amount of material being discharged. Other times this could work as a disadvantage:
Rear bagger (right-rear view)
Rear bagger (right-front view)
The 6.5-bu (230-L) rear bagger efficiently collects material from a 48- or 54-in. (122- or 137-cm) Mower Deck:
Removing bag from 6.5-bu (230-L) hopper
Removing bag from 6.5-bu (230-L) hopper
The hopper design provides efficient bagging performance, clean operation, and easy-to-empty bags:
NOTE: Appropriate hopper with included attachment bar, Power Flow blower, chute and weights are required and ordered separately.
| Capacity | 6.5 bu (230 L) |
| Material: | |
| Hopper top | High impact polypropylene |
| Chute | Polyethylene |
| Blower housing | Nylon |
| Fan | Ultra-high molecular weight (UHMW) polyethylene |
| Bags | Polyester |
| Filling | Directly into bags for emptying on ground or in trailer or into plastic liners |
| Fan diameter | 13 in. (33 cm) |
| Fan width | 2.75 in. (7 cm) |
| Number of fan blades | Four |
NOTE: MulchControl attachments and MCS components are not included in base equipment for a Z500 Series machine and must be ordered separately.
V-twin engine
Convenient cover for air cleaner and cleanout port service
The Z530M and Z530R have a large 44.3-cu in. (726-cc) displacement engine with premium features that provide superior performance and reliability.
Experience plenty of power and torque to handle tough mulching, mowing, and bagging conditions with the 24-hp (17.9-kW) V-twin engine:
Engine easy access
The engine speed lever and choke control lever are separate controls:
The engine area is open for visibility to important service points, making it easy to inspect and clean the engine.
Fuel tank and fuel sight window
Fuel fill cap
The 4.5-gal. (17-L) fuel tank is easy to fill and has a sight-level window and dash-mounted gauge:
John Deere recommends the use of fuel stabilizer in gasoline. See Fuel-Protect for gasoline engines (8 oz [237 mL]) for more information.
Clean, open operator station

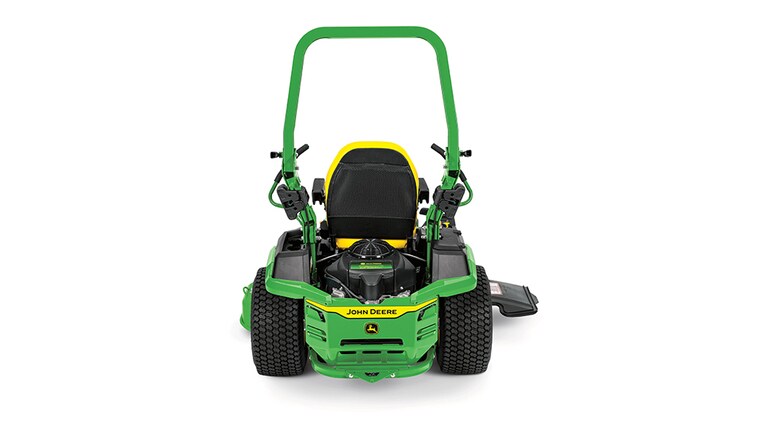

Standard folding ROPS
The spacious operator station has been designed for comfort, visibility, and ease of use:
The ROPS and seat belt work in conjunction to provide a protective zone around the operator:

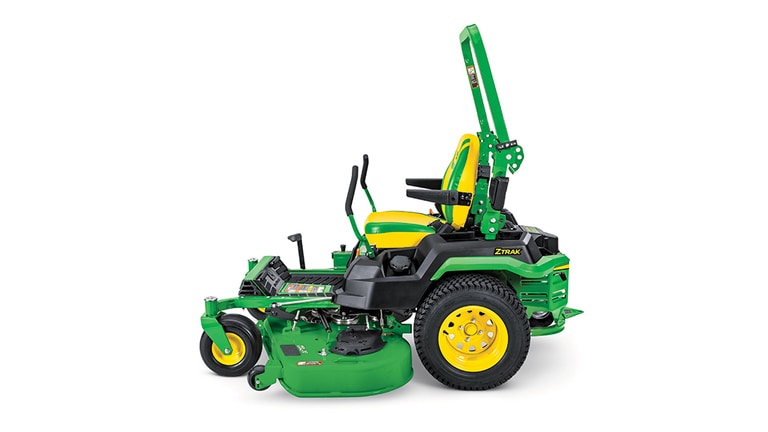

ROPS folded at intermediate position
ROPS folded down
Foldable ROPS and retractable seat belt are standard equipment:
| Model | Height at top of ROPS in fully raised position |
| Z515E, Z530R | 70.1 in. (178 cm) |
| Z530R, Z545R | 70.7 in. (179.6 cm) |
Premium seat design features of Z530R and Z545R
Premium motion-control levers of Z530R and Z545R
Green seat accents and the John Deere logo visually communicate a premium offering and give a distinctive appearance.
Green painted motion-control levers (versus black on the Z515E) blend with seat design.
Green fender trim of Z530R and Z545R
Styled rear wheels of Z530R and Z545R
Green fender trim adds style and keeps the machine cleaner by blocking some of the material thrown by the tire.
Rear wheel rims have an automotive look for overall enhanced machine appearance.
Black foot platform tunnel support of Z530R and Z545R
Foot platform tunnel support detail of Z530R and Z545R
Left and right tunnel supports enhance the appearance of the Z530R and Z545R and work in conjunction with the rubber-isolated floor platform to provide extra support and rattle-free operation.
Front and side lights (Z545R shown)
The attractive design includes a provision for light-emitting diode (LED) lighting:
NOTE: Lights are standard on the Z530R and Z545R and optional on the Z515E and Z530M.
Solid steel tube front frame
Strong rear frame for support and protection
A strong, welded steel frame provides solid, reliable support for the machine components and operator:
Rear hitch
Strong frame is designed to accommodate a rear hitch that can be used to pull a variety of lawn equipment:
NOTE: The rear hitch is standard on the Z530R and Z545R and optional on the Z515E and Z530M.
Large caster wheel
Caster wheel spindle housing
Large front caster wheels provide a smooth ride and level cut:
Caster wheels turn easily on two maintenance-free sealed ball bearings for both the spindles and the wheel axles:
Large diameter rear tire
Rear tires have high-quality tread and optimum size for superior traction and smooth ride:
Unitized hydrostatic transmission
Dual unitized transmissions efficiently power the ZTrak™ mower forward and reverse and provide steering capability:
Transmission expansion tank and tow-valve lever
Tow valve control lever
Tow-valve controls are provided for each transmission and are located on the transmission near the expansion tanks:
Steering levers in operating position
Steering levers in park position
Motion control levers are shaped and located for operator comfort and ease of control.
Premium control levers on the Z530R and Z545R are painted green and have a unique shape and size for more comfortable operation.
18-position control lever adjustment, low
18-position control lever adjustment, high
The motion-control levers can be adjusted to two different height settings and nine different fore-aft settings:
Tuff Torq is a trademark of Kanzaki Kokyukoki Mfg. Co., Ltd.
Service interval decal
A convenient service interval decal provides basic maintenance information:
Example product identification number (PIN) label with QR code
John Deere riding lawn mowers are supported by owner information web pages that include links to:
To speed access to owner information web pages, a QR code is printed onto a PIN label located under the seat on the battery cover. Since each vehicle model has its own web page, the links are specific to the owner’s model. The QR code also includes the vehicle’s unique PIN which allows for additional customization of the owner information web page in the future.
Z530M engine
Cleanout port and air filter access
The engine is easy to service and takes a minimal amount of time:
Engine oil fill/check and oil drain tube
Foot platform easily removed for access to mower
The footrest area is removable without tools to easily access the mower deck for service:
Flat-top deck and flip-up spindle cover
Mower deck leveling gauge and tracking wrench
Accel Deep™ Mower Decks have features that make them easy to service:
Tracking adjustment bolts
Tracking adjustment tool
Tracking adjustment can be made from the operator seat with the provided tool.
Limited bumper-to-bumper warranty for new turf and utility equipment (U.S. and Canada only):
MowerPlus home screen
MowerPlus maintenance screen
Keep a mower running its best and know how it mows with the John Deere MowerPlus app. Simply scan the mower’s barcode to get custom information about the mower.
To download the free MowerPlus app, visit the Apple® App Store® or Google Play™ store.
MowerPlus connectors (sold separately)
MowerPlus Hour Meter Connector
MowerPlus Deluxe Smart Connector, with a phone
Three MowerPlus connectors are available to transmit vehicle information to the MowerPlus app.
BUC10929 MowerPlus Deluxe Smart Connector is for use with:
BUC10537 MowerPlus Smart Connector is for use with:
All the MowerPlus connectors transmit engine hour information to the app, making it easy to track maintenance intervals. The MowerPlus Smart Connector and MowerPlus Deluxe Smart Connector also transmit the fuel level.
MowerPlus connectors require the MowerPlus app on a mobile device to use. The John Deere MowerPlus app and operating system requirements can be found in the mobile device’s app store. The MowerPlus app is only available in the English language, and it is not available in all countries.
Apple and App Store are trademarks of Apple, Inc. Google Play and Android are trademarks of Google LLC. iOS is a trademark of Cisco Technology, Inc. used under license by Apple Inc.
| Specs & Compare | ||||
|---|---|---|---|---|
| John Deere Z530R ZTrak™ Mower with 54-in. Deck |
| Engine power | 24 hp 17.9 kW |
|||
|---|---|---|---|---|
| Engine model number | FR730V | |||
| Forward speed | 0-9 mph 0-14.5 km/h |
|||
| Front caster tires | 13x6.5-6 | |||
| Drive tires | 23x10.5-12 | |||
| Seat back height | High back with armrests and ComfortGlide™, 22.5 in. 57.1 cm |
|||
| Width of cut | High capacity mower deck, 54 in. 137 cm High capacity mower deck, 60 in. 152 cm |
|||
| Mulching system | Optional MulchControl™ attachment, 54 in. 137 cm Optional MulchControl kit, 60 in. 152 cm |
|||
| Warranty | 4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) | |||
| Battery | ||||
| Charger |
| Power | 24 hp 17.9 kW |
|||
|---|---|---|---|---|
| Model number | FR730V | |||
| Displacement | 44.3 cu in. 726 cc |
|||
| Cylinders | V-twin | |||
| Lubrication | Full pressure with replaceable filter, capacity, 2 U.S. qt 1.9 L |
|||
| Type | Overhead valve | |||
| Battery | 12 V 300 CCA |
|||
| Choke/speed control | Separate control levers | |||
| Cooling method | Air | |||
| Fuel tank capacity | 4.5 U.S. gal. 17 L |
|||
| Fuel gauge | Electric gauge and fuel level sight line |
| Dual hydros | Tuff Torq TZT7-M with 1-in. (2.5-cm) axles | |||
|---|---|---|---|---|
| Hydraulic pumps | ||||
| Wheel motors | ||||
| Battery | ||||
| Charger | ||||
| Transmission |
| Forward speed | 0-9 mph 0-14.5 km/h |
|||
|---|---|---|---|---|
| Reverse speed | 0-4.5 mph 0-7.2 km/h |
|||
| Speed and direction control | Twin premium levers | |||
| Control adjustment | 2-height/9-fore-aft, 18 positions |
| Frame | Heavy-duty frame tubing | |||
|---|---|---|---|---|
| Primer/paint | E-coat/powder | |||
| Front caster tires | 13x6.5-6 | |||
| Front caster bearings | Sealed ball bearings | |||
| Drive tires | 23x10.5-12 | |||
| Hour meter | Yes | |||
| Service interval decal | Yes | |||
| Storage compartment | Yes and covered | |||
| Cup holder | Yes | |||
| Maximum towing capacity | 250 lb 113 kg |
| Seat back height | High back with armrests and ComfortGlide, 22.5 in. 57.1 cm |
|||
|---|---|---|---|---|
| Fore-aft adjustment | While seated, 3 in. 7.6 cm |
|||
| Seat suspension | Two springs and ComfortGlide |
| Type | Foot lift | |||
|---|---|---|---|---|
| Mower cut height | 1-4 in. 2.5-10.2 cm |
|||
| Cut height increments | 0.25 in. 0.64 cm |
|||
| Preset cut height | Yes |
| Width of cut | High capacity mower deck, 54 in. 137 cm High capacity mower deck, 60 in. 152 cm |
|||
|---|---|---|---|---|
| Type | High-capacity side discharge | |||
| Mower deck material | 9 gauge 0.150 in. 3.8 mm |
|||
| Mower drive system | V-belt |
| Type | Electric, 125 lb-ft 169.5 Nm |
|||
|---|---|---|---|---|
| Drive | V-belt |
| Wheelbase | 49.2 in. 1250 mm |
|||
|---|---|---|---|---|
| Overall length | 81.9 in. 2080 mm |
|||
| Width without mower | 48.7 in. 1237 mm |
|||
| Width with mower | 54 HC: 68.3 in. 1735 mm 60 HC: 73.5 in. 1867 mm |
|||
| Width with mower (deflector raised for storage) | 54 HC: 59.6 in. 1514 mm 60 HC: 65.6 in. 1667 mm |
|||
| Height | ROPS in folded position: 49.2 in. 1250 mm ROPS in raised position: 71.7 in. 1821 mm |
|||
| Weight | With mower and fuel, 54HC, 834 lb 379 kg With mower and fuel, 60HC, 842 lb 383 kg |
| Rollover protective structure (ROPS) | Yes | |||
|---|---|---|---|---|
| Slope operating limit | 15 degrees, 10 degrees with an MCS | |||
| Operator presence system | Yes | |||
| Park brake interlock | Yes | |||
| Operator video | Yes |
| Note 1 | Mower wash port makes cleaning the deck easier | |||
|---|---|---|---|---|
| Note 2 | Flip-up foot platform for easy service access | |||
| Note 3 | 18-position adjustable motion-control levers | |||
| Warranty | 4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Mulching system | Optional MulchControl attachment, 54 in. 137 cm Optional MulchControl kit, 60 in. 152 cm |
|||
|---|---|---|---|---|
| Rubber floor mat | Foot platform and toe board | |||
| Sun shade | Optional | |||
| Mounted sprayer | No | |||
| Protective cover | Yes | |||
| Light kit | 4-point LED Light kit | |||
| Material collection system | Power Flow rear bagger, 6.5 bu 230 L Not available on 60HC |
| Manufacturing location | Greeneville, Tennessee, USA | |||
|---|---|---|---|---|
| Date collected | 1-Dec-21 |
*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.
**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com.
Product features subject to change. Please contact your local dealer for more detailed information.
