Replacement Parts Guide

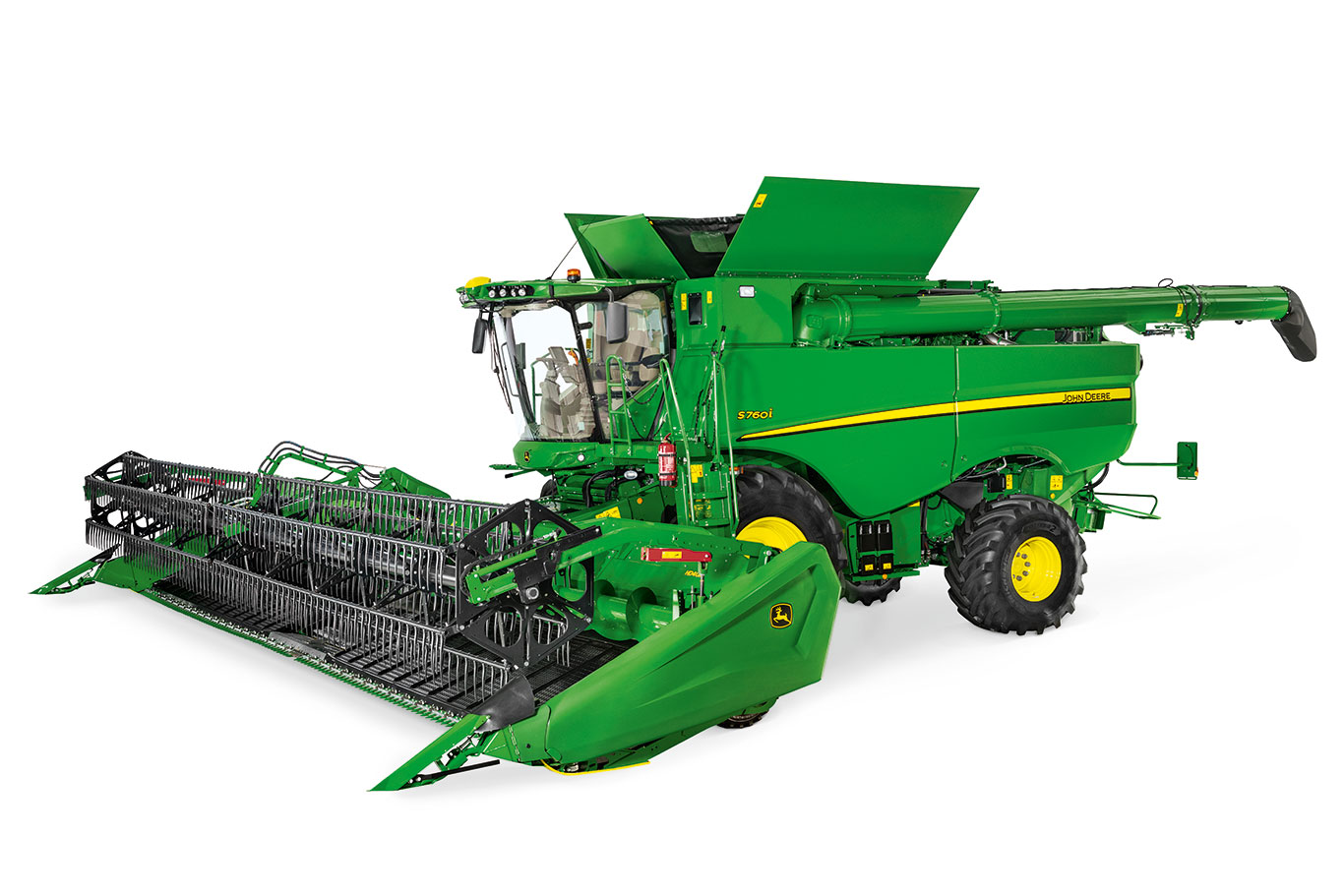

S760 Combine (110000 - )
Identify the parts you need using the chart below.
Select a part number to buy it from Shop.Deere.com, or you may contact your dealer to purchase.

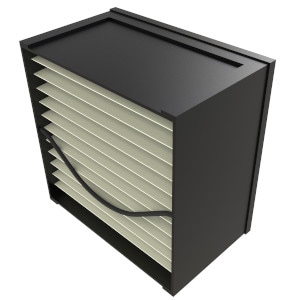

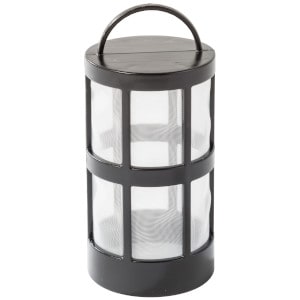

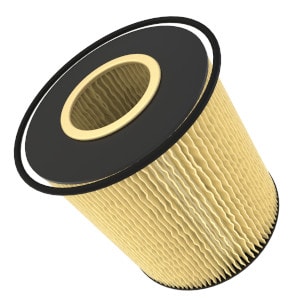

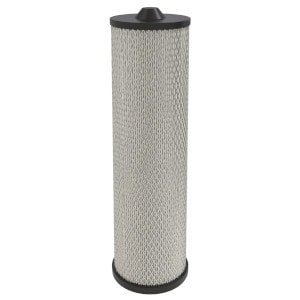

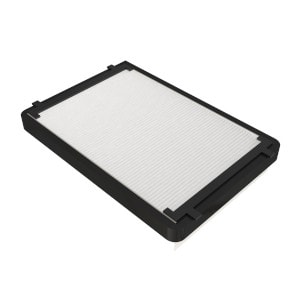

Maintenance Parts
0 - 250 Hours
Every 400 Hours
As Required

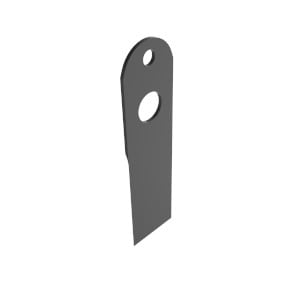

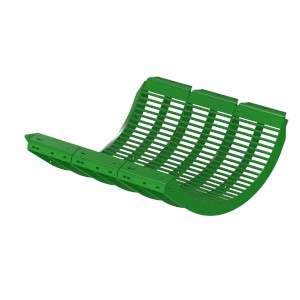

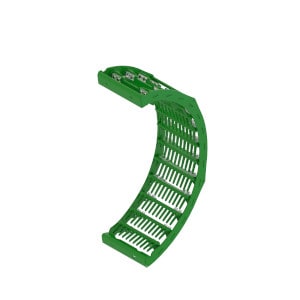

Wear Parts
Capacities
| Component | Oil Grade | Qty or capacity | Interval Text |
|---|---|---|---|
|
Fuel Tank |
|
950 L (250 gal) |
|
|
Cooling System (With Heater) |
John Deere COOL-GARD ™ II /John Deere COOL-GARD II PG |
53 L (14 gal) |
Tier 2/FT4 |
|
Engine Crankcase with Filter |
Plus-50™ II |
27.5 L (7.3 gal) |
Tier 2/FT4 |
|
Transmission (Mechanical Shift and Push Button Shift Machines) |
GL-5 |
9.6 L (10.1 gal) |
|
|
Engine Gearcase with Transfer (Mechanical Shift and |
Hy-Gard™ |
21.3 L (5.6 gal) |
|
|
Engine Gearcase with Transfer (ProDrive™ Machines) |
Hy-Gard™ |
51 L (13.5 gal) |
|
|
Final Drives |
GL-5 |
8 L (2 gal) |
|
|
Final Drives |
GL-5 |
23 L (6 gal) |
|
|
Grain Tank |
|
10572 L (2793 gal) |
|
|
Countershaft Drive Gearcase (Non-Multi-Speed) |
GL-5 |
23 L (6 gal) |
|
|
Heavy-Duty Feeder House Reverser Gearcase without |
ISO VG 460 Fully Synthetic |
2.3 L (2.4 gal) |
|
|
Heavy-Duty Feeder House Reverser Gearcase |
ISO VG 460 Fully Synthetic |
3.5 L (3.7 gal) |
|
|
Extra Heavy-Duty Feeder House Reverser Gearcase |
ISO VG 460 Fully Synthetic |
4.9 L (5.2 gal) |
|
|
Loading Auger Gearcase |
GL-5 |
3.8 L (4 gal) |
|
|
Two Speed Separator Drive Gearcase |
GL-5 |
4.7 L (5 gal) |
|
|
Diesel Exhaust Fluid (DEF) Tank (Final Tier 4/Stage V) |
John Deere™ Diesel Exhaust Fluid |
52.2 L (13.8 gal) |
|
|
Hydraulic/Hydrostatic Reservoir |
Hy-Gard™ |
31 L (8.2 gal) |
|
1See operator's manual for recommended oil type and oil viscosities based on operating temperatures.
