| Specs & Compare | ||||
|---|---|---|---|---|

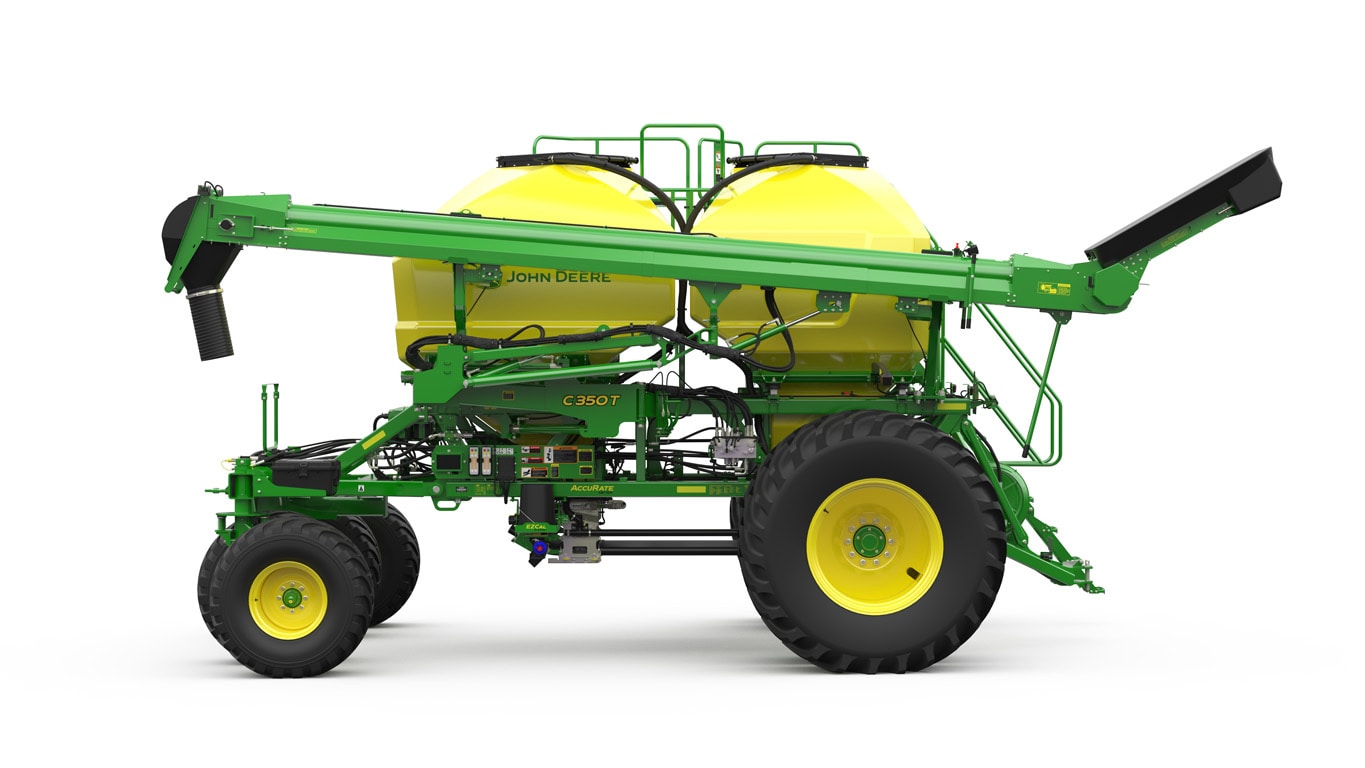

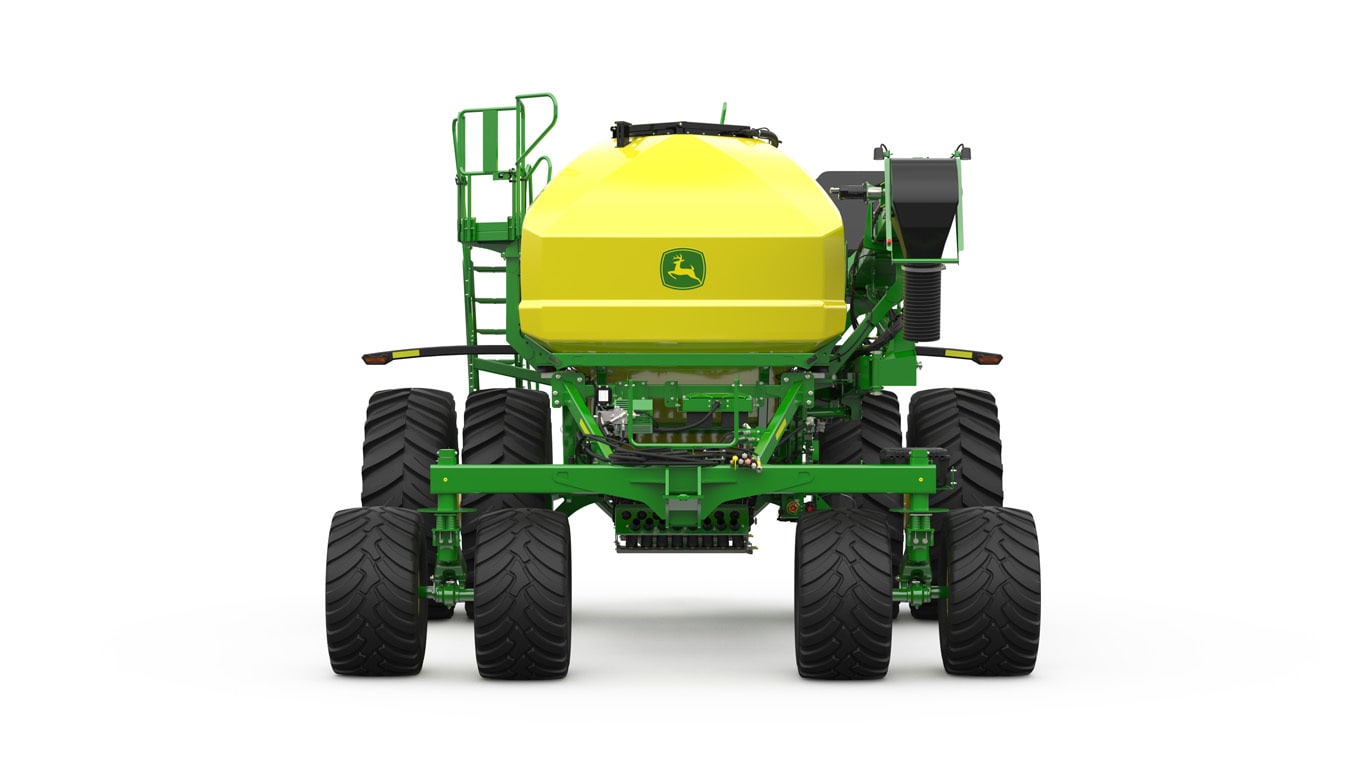

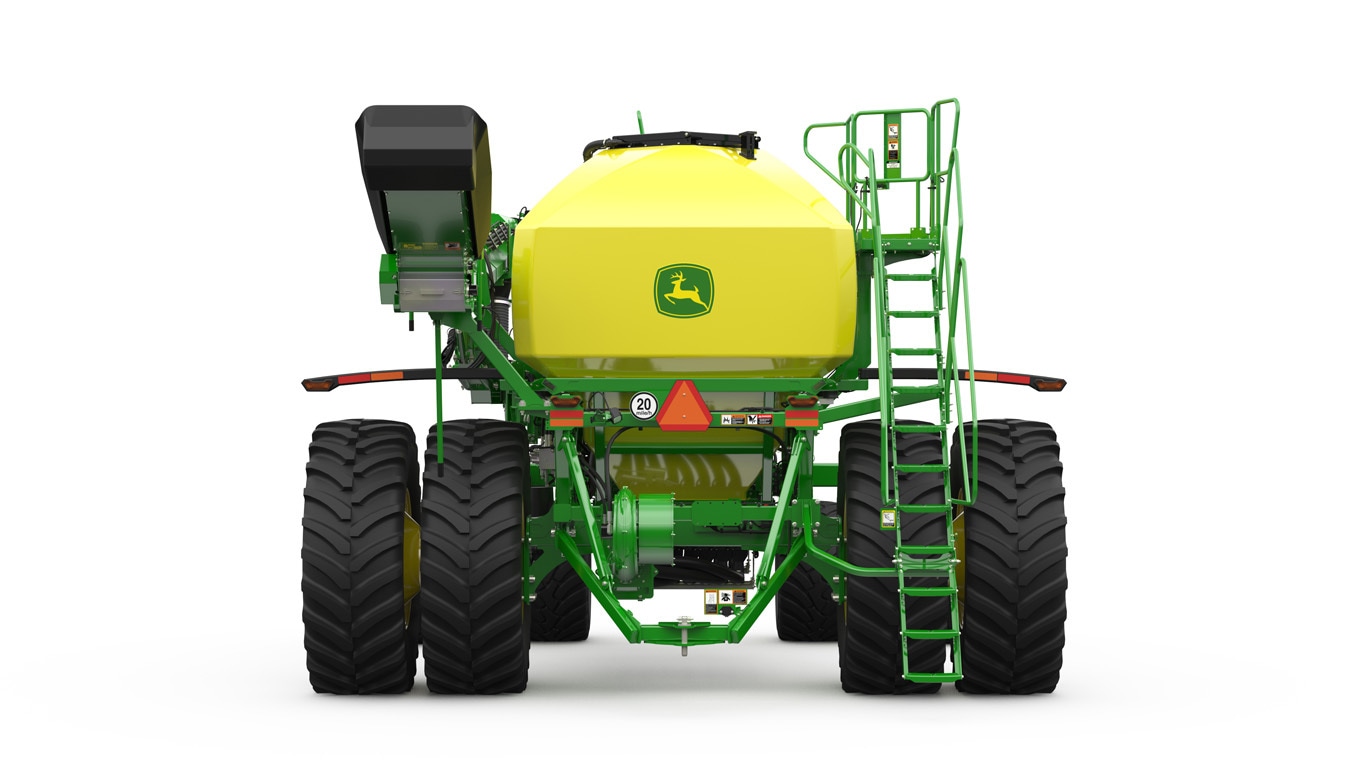

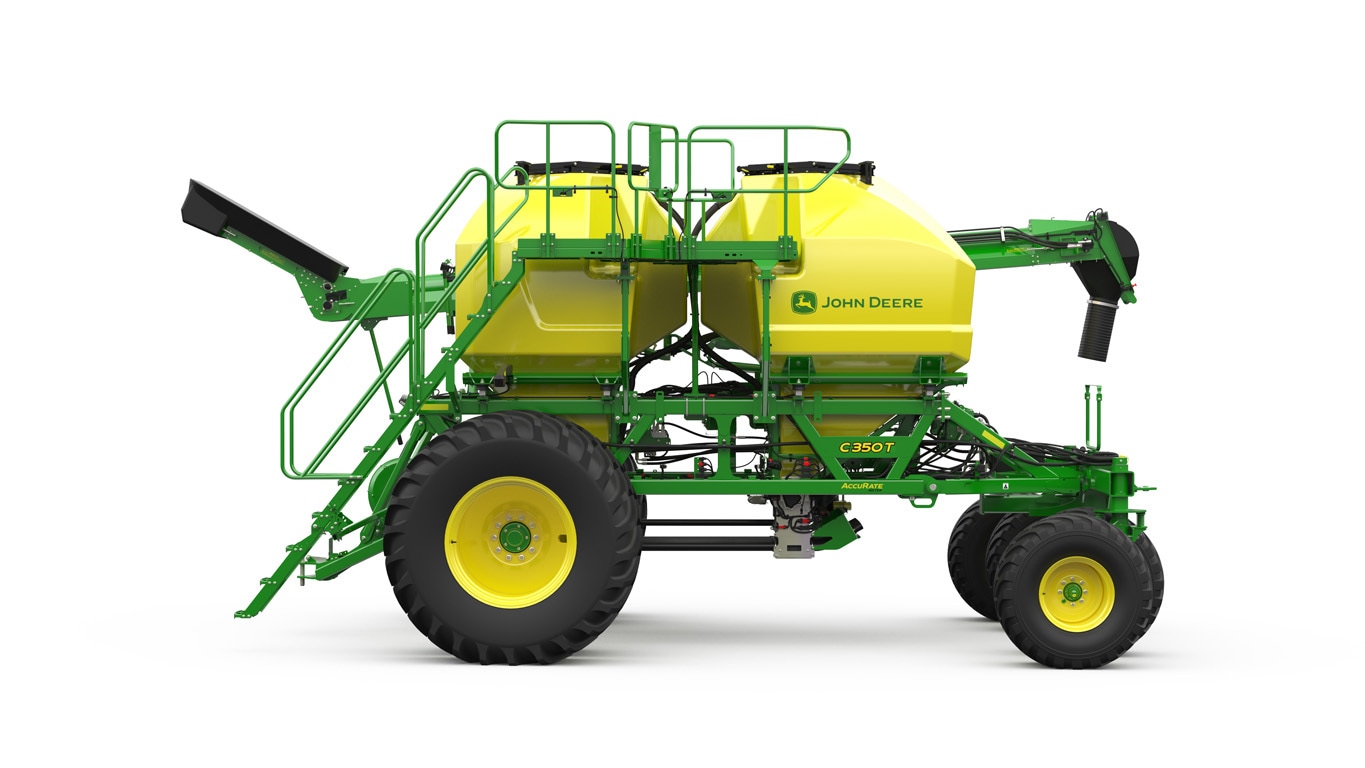

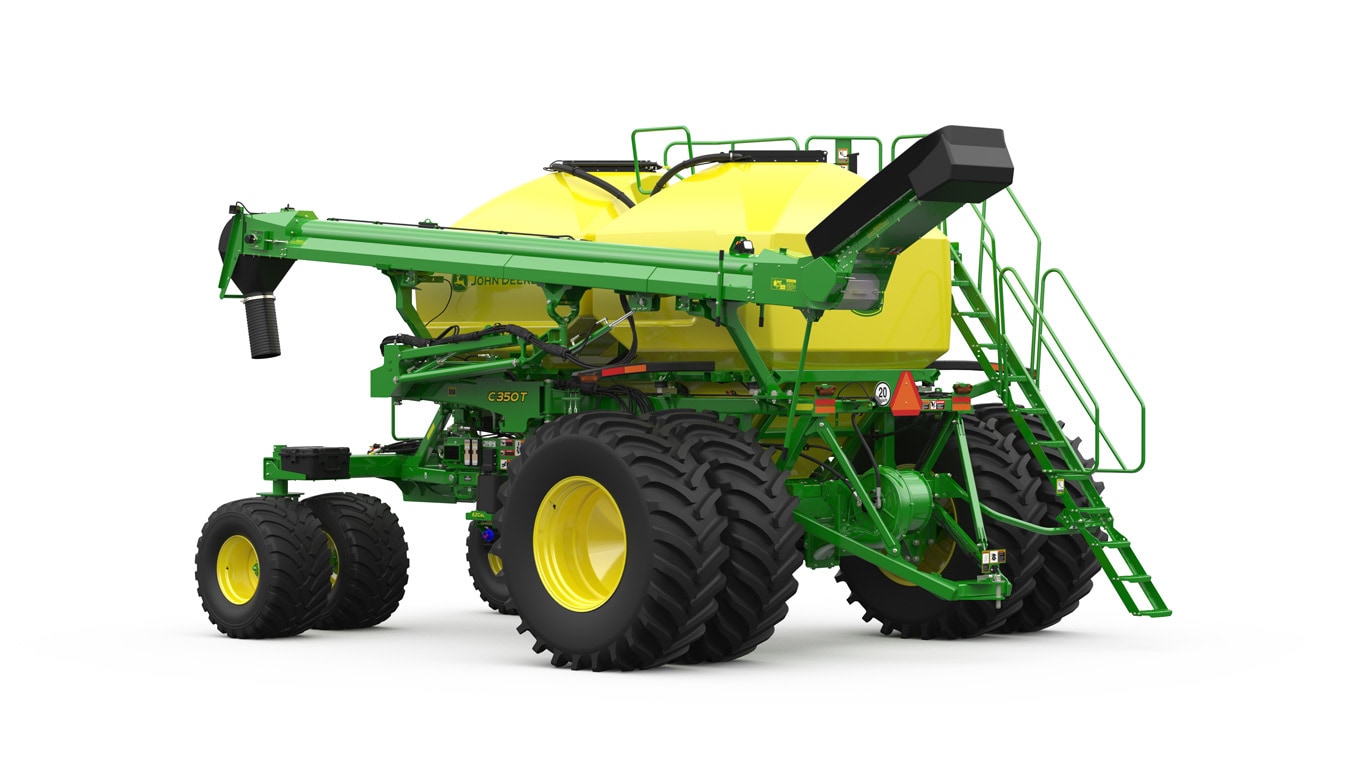

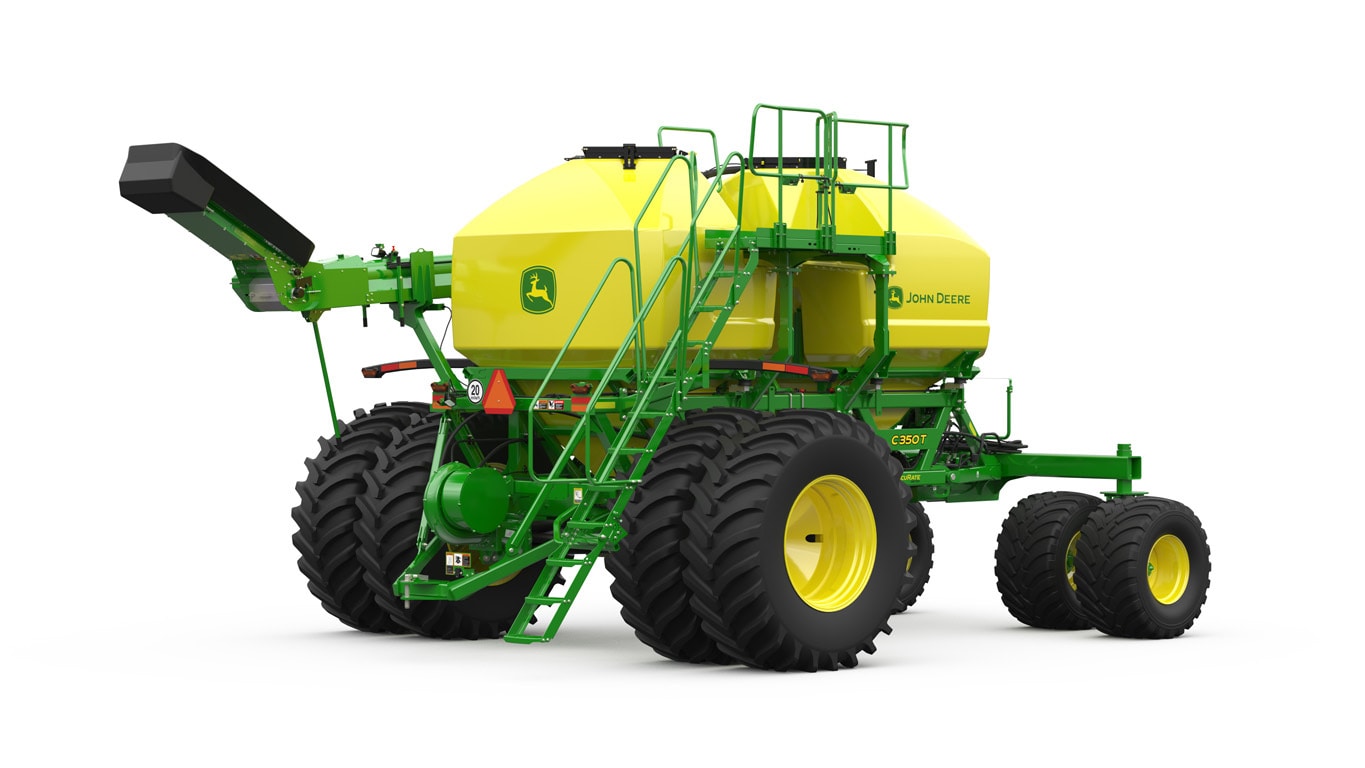

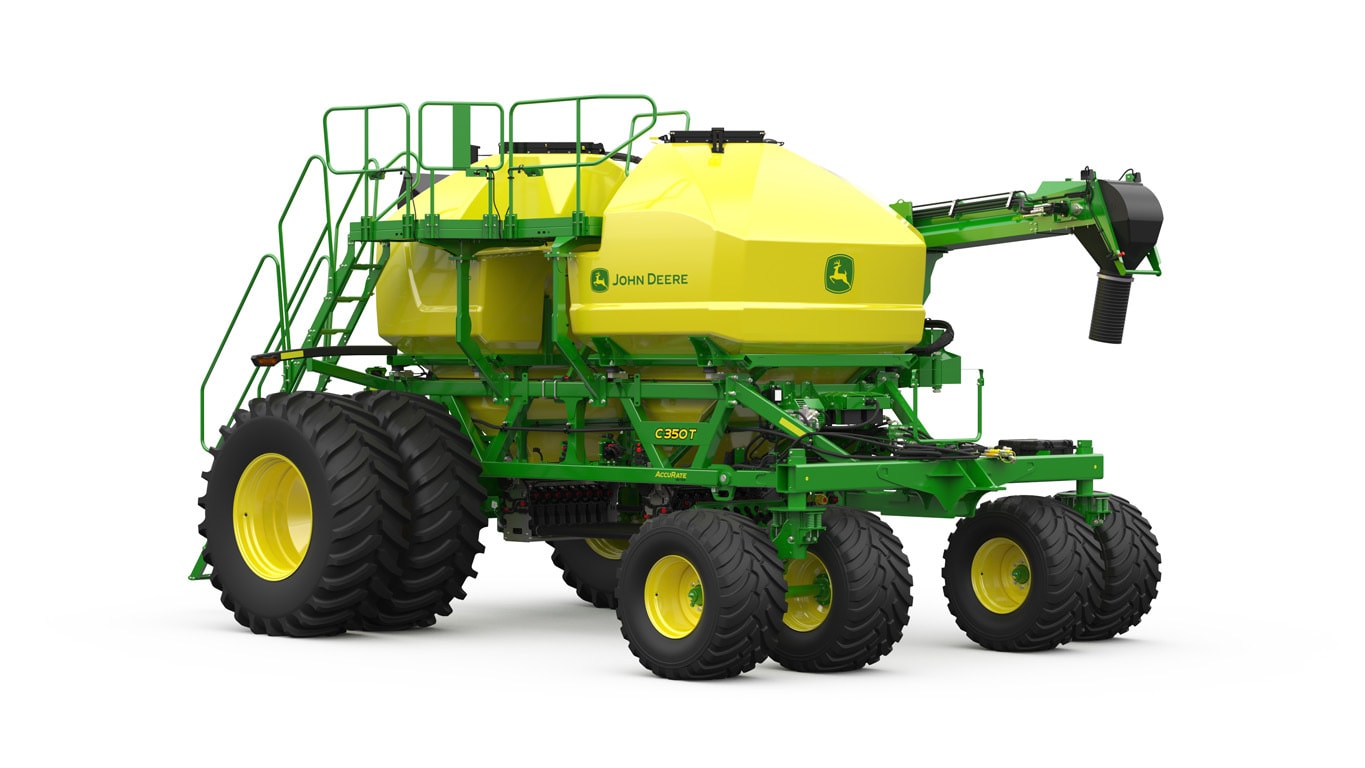

| John Deere C350T Trailing Air Cart |
| Tank splits | 5638.25 L 160 bu 6695.4 L 190 bu |
|||
|---|---|---|---|---|
| Number of meters | 6 or 8 per tank | |||
| Meter housing material | Stainless steel | |||
| Type | Individual motor control per primary | |||
| Blower options | Standard capacity | |||
| Number of Blowers | Single or dual | |||
| Height (Transport) | 4 m 13 ft 2 in. |
|||
| Length Overall | 8.27 m 27 ft 1 in. |
|||
| Width with high floatation tires | 5.34 m 17 ft 6 in. |
|||
| shipping weight - High flotation option | 9066 kg 19,987 lb |
| Total | 12,333.68 L 350 bu |
|||
|---|---|---|---|---|
| Number of tanks | Two | |||
| Tank splits | 5638.25 L 160 bu 6695.42 L 190 bu |
|||
| Liquid capable middle tank |
| Conveyor belt width | 40.6 cm 16 in. |
|||
|---|---|---|---|---|
| Conveyor tube diameter | 25.4 cm 10 in. |
|||
| Conveyor capacity (wheat) | 2325.8 L/min 66 bu/min |
|||
| Auger diameter | 25.4 cm 10 in. |
|||
| Auger capacity (wheat) | 1726.72 L/min 49 bu/min |
| Blower options | Standard capacity | |||
|---|---|---|---|---|
| Number of Blowers | Single or dual | |||
| Max meter delivery rate per blower - high capacity blower | ||||
| Max meter delivery rate per blower - standard capacity blower | 386.7 kg/ha 345 lb per acre |
|||
| Drive | Hydraulic, per blower: up to 98.4 L/min 26 gpm |
|||
| Product delivery hoses | 6.35 cm 2.5 in. |
| Number of meters | 6 or 8 per tank | |||
|---|---|---|---|---|
| Meter housing material | Stainless steel | |||
| Type | Individual motor control per primary | |||
| Drive | Electric: 56 V |
| Type |
|---|
| Height (Transport) | 4 m 13 ft 2 in. |
|||
|---|---|---|---|---|
| Height (Field) | 4.2 m 13 ft 9 in. |
|||
| Length Overall | 8.27 m 27 ft 1 in. |
|||
| Length (Hitch pin to axle) | 5.49 m 18 ft |
|||
| Width with base equipment tires | 4.2 m 13 ft 9 in. |
|||
| Width with high floatation tires | 5.34 m 17 ft 6 in. |
|||
| Width with 3M tire option | 3.75 m 12 ft 4 in. |
|||
| Ground Clearance | Empty: 68.8 cm 27 in. |
| Base equipment | 7396 kg 16,305 lb |
|||
|---|---|---|---|---|
| High flotation option | 9066 kg 19,987 lb |
|||
| 3M wheel tread option | 7217 kg 15,911 lb |
|||
| Row crop option | 8066 kg 17,782 lb |
| Front tires | Base equipment 21.5L-16.1 I-3T 8PR (Duals) High flotation option 650/50R22.5 885 I-3 163D (Duals) 3m Wheel tread option 650/50R22.5 885 I-3 163D (Singles) Row crop option 16.5L-16.1 I-3T 6PR (Duals) |
|||
|---|---|---|---|---|
| Rear tires | Base equipment 710/70R-38R1W (Singles) High flotation option 650/85R38 173B R-1W FS (Duals) 3m Wheel tread option 710/70R-38R1W (Singles) Row crop option 18.4R-42 R1 153A8 (Duals) |
| Date collected | 28-Feb-2024 |
|---|
1Based on seeding with an 8 primary run air cart and an 80-foot air seeder. Prescription zones would improve from 80-foot zones to 10-foot zones.
2Based on internal testing of a current production bag calibration on a 1910 air cart taking 10 minutes to calibrate compared to a new air cart taking 2 minutes and 15 seconds.
