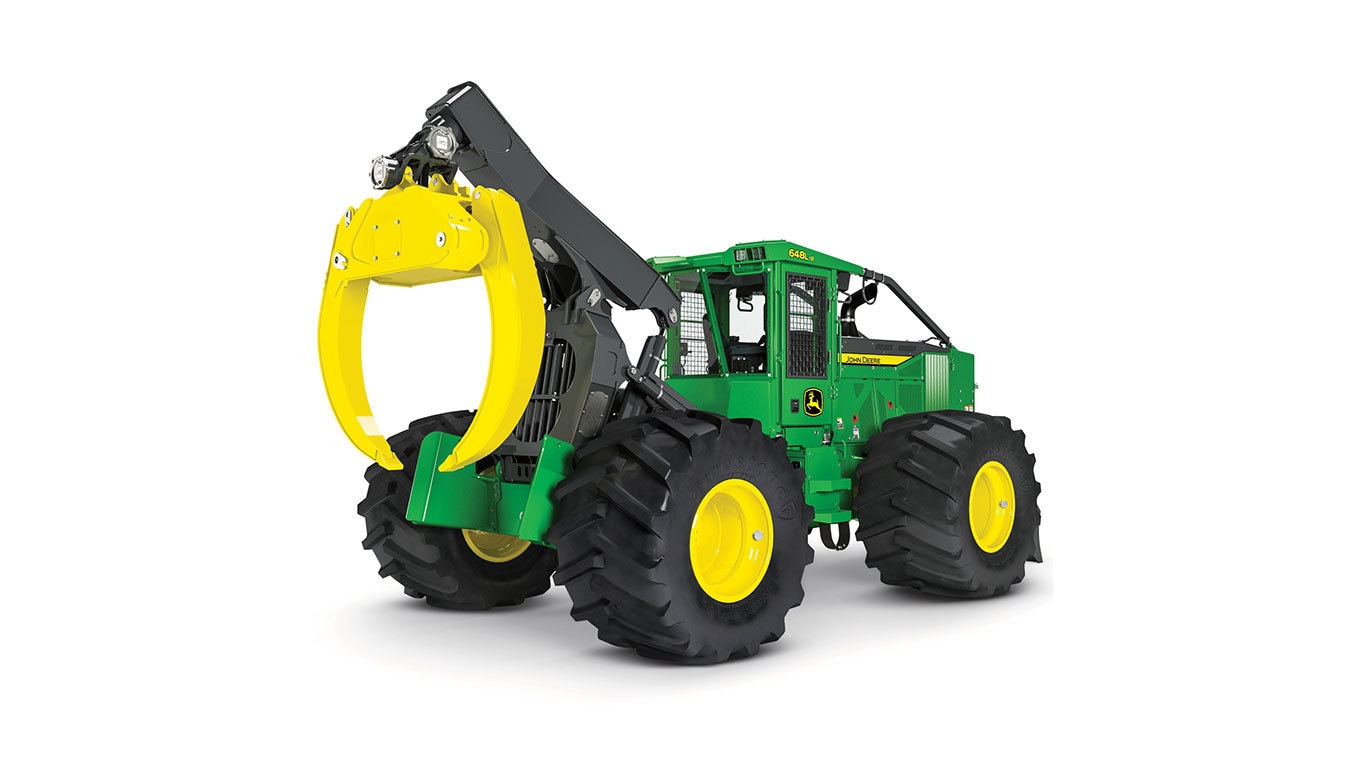

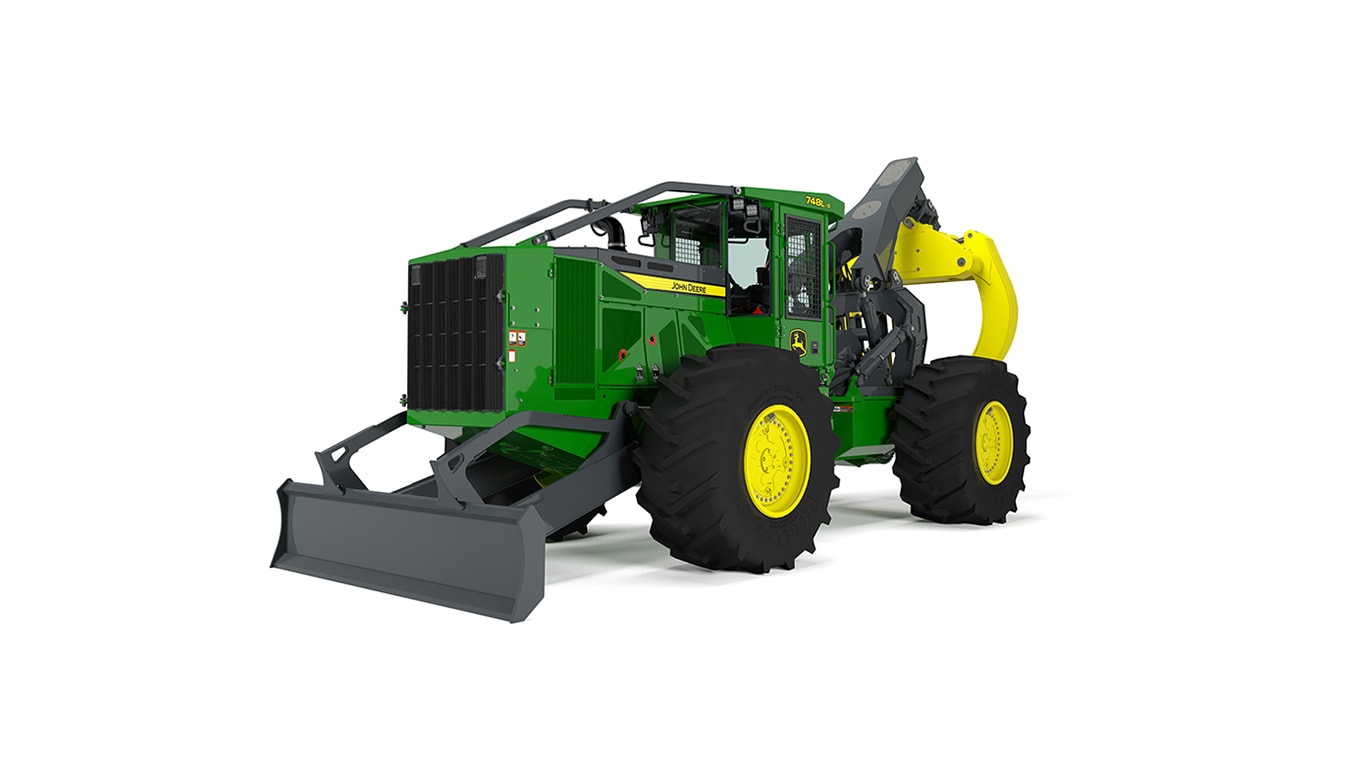

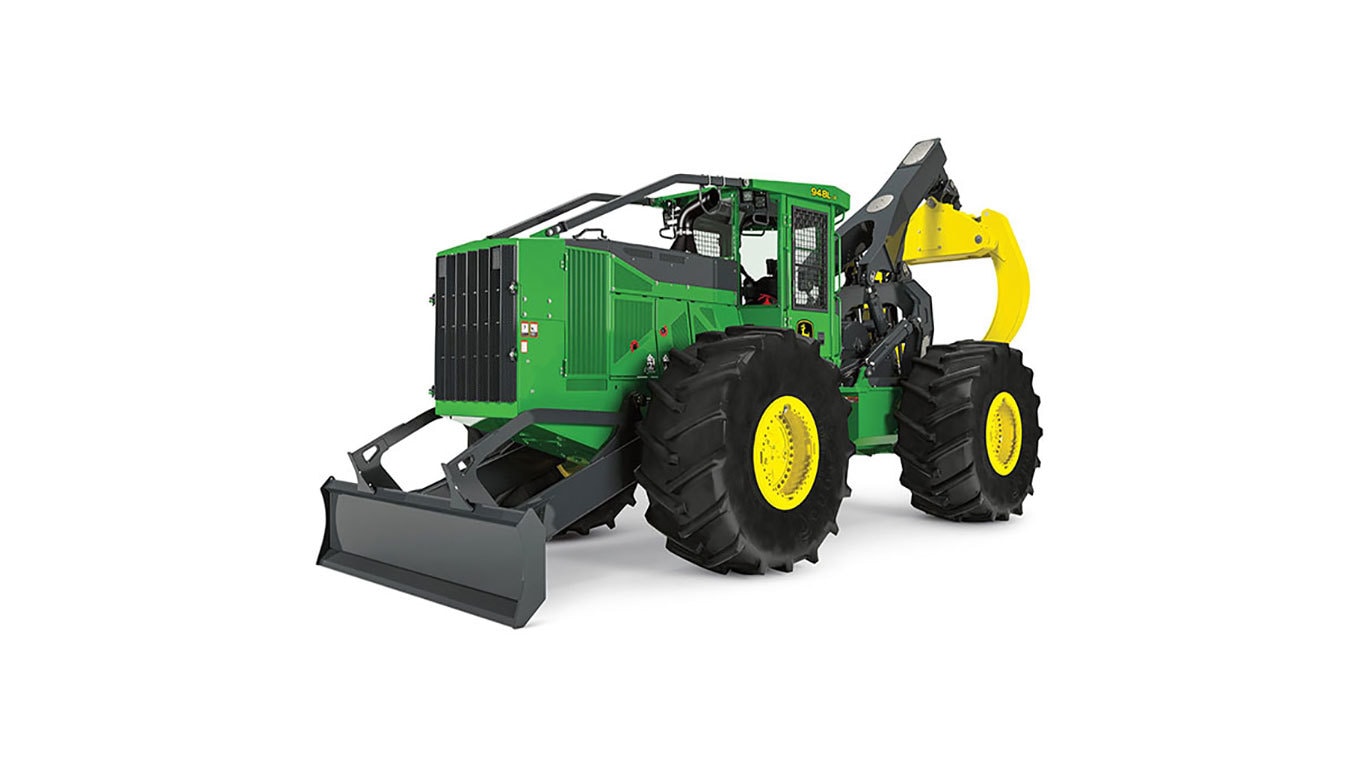

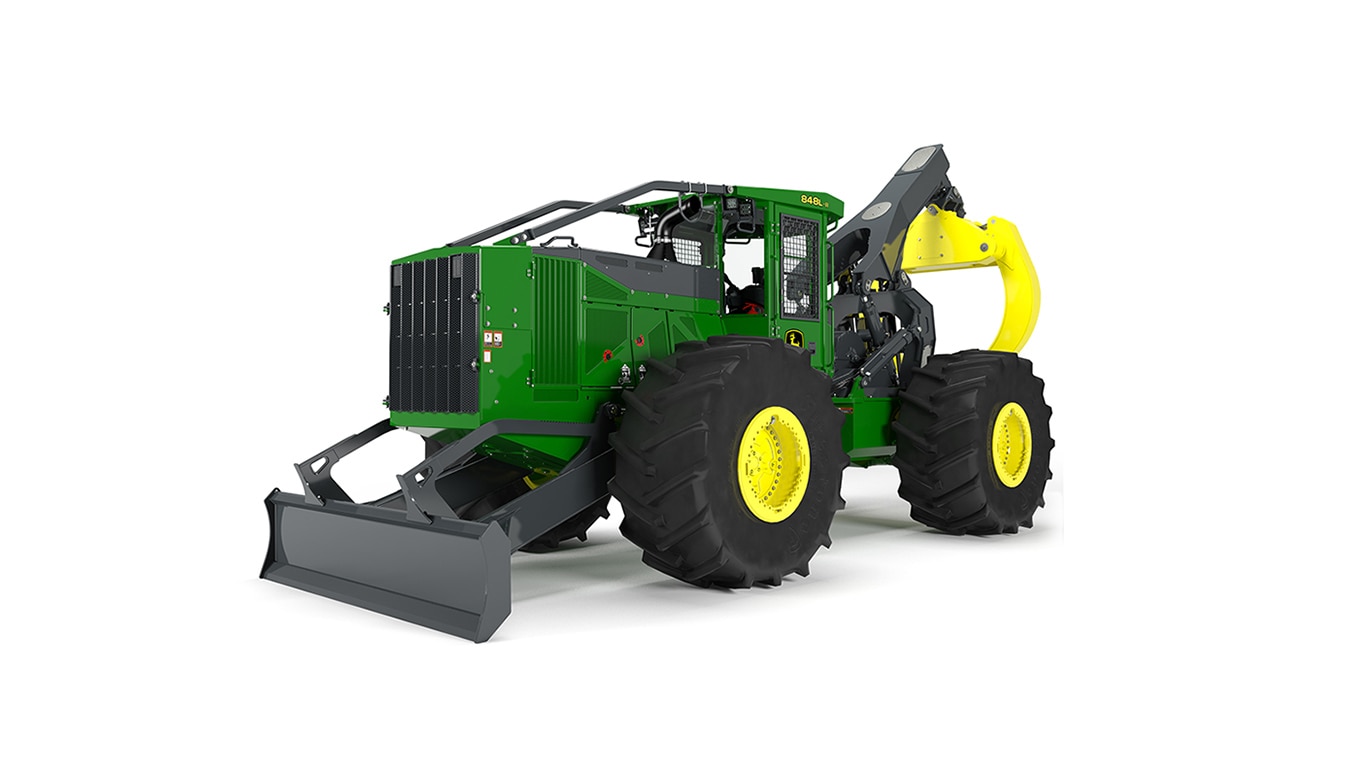

748L-IIGrapple Skidder
- Gross Power: 196 kW (263 hp)
- Gross Torque: 1141 Nm (841 ft.-lb.)
- Max. Grapple Capacity: 1.77 m2 (19.1 sq. ft.)
- Operating Weight: 19 713 kg (43,610 lb.)
Features
Expand All
Collapse All
Continuously Variable Transmission (CVT) used in L-II skidders
Mobile device using JDLink™
TimberMatic™ Maps monitor displaying live production data
Machine Health Monitoring Center
Removable engine panels and swing out coolers
Optional electric pump for filling hydraulic fluid
Fuel and diesel exhaust fluid (DEF) fills located on the same side of the machine. Grease banks are also located near the DEF fill.
240-degree rotating seat with electrohydraulic (EH) joystick controls
Overhead view of the operator station
Rear facing visibility on a 748L-II
Continuously Variable Transmission (CVT) offers the best of both worlds
Continuously Variable Transmission (CVT) used in L-II skidders
Overview
Offering loggers the best of both worlds, the Continuously Variable Transmission (CVT) combines the efficiency of the direct-drive transmission with the smoothness and ease of a hydrostatic drive.
Delivering efficient power to the ground, the CVT automatically senses the load before delivering more torque to maintain the operator's wanted speed.
The CVT also eliminates the need to shift gears, which shortens the learning curve for new operators, and helps the experienced pros maximize productivity.
Benefits
- Constant engine speed helps provide superb multifunction performance
- Easy to operate, especially for new operators
- Defined ground speed limiters allow you to control your operating speed
- No need to shift gears
Gain valuable insights with Precision Forestry solutions
Mobile device using JDLink™
TimberMatic™ Maps monitor displaying live production data
Machine Health Monitoring Center
Overview
Now included in base machine, the JDLink telematic system provides the foundation for John Deere’s Precision Forestry solutions. These systems help optimize your machine, your uptime, and your jobsites, which ultimately lead to improved production efficiency.
Benefits
- JDLink connectivity enables you to view several parameters of your machine, including its location, fuel level, average fuel burn rate, idle time, machine utilization, and much more
- John Deere Connected Support™ allows the dealer to provide remote diagnostics, rapid service response with the right part in hand, and parts availability; all to maximize machine uptime
- John Deere’s centralized Machine Health Monitoring Center analyzes data from thousands of connected machines, identifies trends, and develops recommended actions to help prevent downtime
- Optional TimberMatic Maps gives enhanced visibility to the jobsite, which streamlines communication and increases efficiency
- TimberManager™ provides remote visibility to your operation from any device, allowing you to make smart business decisions based on real-time production data
Increase uptime with easy serviceability
Removable engine panels and swing out coolers
Optional electric pump for filling hydraulic fluid
Fuel and diesel exhaust fluid (DEF) fills located on the same side of the machine. Grease banks are also located near the DEF fill.
- Diesel fill
- Grease banks
- DEF fill
Overview
Easy access to service components helps confirm daily checks and perform any scheduled maintenance, which ultimately minimize unexpected downtime and costly repairs down the road. The L-II lineup of skidders feature removable engine panels for wide-open access to filters and fluid level checks. Swing out cooler doors and an automatic reversing fan provide effortless cleaning of debris from the coolers. Fluid fills including fuel, DEF, and hydraulic oil can all be easily accessed from ground level, as well as daily greasing points.
Benefits
- Ground level daily maintenance
- Swing out coolers for quick and easy cleaning
- Detachable engine panels
- Remote diagnostics via John Deere Connected Support
- Wiring and hose routings are protected against debris intrusion
- Simplified routing of the electrical and hydraulic systems
- Extended filter-change interval for hydraulic filter service
More comfort for all day productivity
240-degree rotating seat with electrohydraulic (EH) joystick controls
Overhead view of the operator station
Rear facing visibility on a 748L-II
Overview
Designed by loggers for loggers, the quiet, spacious cab helps keep you more comfortable and productive – so you can boost your bottom line. The 4 m2 (43 sq ft) of window area, coupled with the 240-degree rotating seat, maximizes visibility to the task at hand while minimizing neck strain. Armrest-mounted electrohydraulic (EH) joysticks provide smooth and intuitive control of all machine functions at your fingertips. The EH joysticks also allow you to customize the button and lever layout to your preference and saves your settings when switching between operators.
Benefits
- Large windows provide clear visibility to the drag
- Rotating seat allows you to operate the machine while facing the front or rear
- Optional light-emitting diode (LED) lights allow you to start earlier and work later
- Customizable joystick patterns for multiple operators
- Optional heated seat with leather trim
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 748L-II Grapple Skidder |
DESCRIPTION
| Standard Arch Function | Dual |
|---|
DRIVELINE
| Engine Manufacturer | John Deere | |||
|---|---|---|---|---|
| Engine Model | PowerTech PSS 6.8L | |||
| Displacement, ltr (Inches³) | 6.8 (415) | |||
| Engine Output, kW (hp) | 196 (263) | |||
| Engine Torque, Nm (lbf / ft) | 1141 (841) | |||
| Transmission | Continuous Variable Transmission | |||
| Planetaries | Inboard | |||
| Service Brake Type | Inboard Wet discs | |||
| Parking Brake Type | Wet multi-disc in Transmission |
DIMENSIONS
| Overall Length, mm (inches) | 8384 (330) | |||
|---|---|---|---|---|
| Height Over Cab, mm (inches) | 3365 (132.5) | |||
| Overall Width, mm (inches) | 3239 (127.5) | |||
| Wheelbase, mm (inches) | 3925 (154.5) | |||
| Dozer Blade Height, mm (inches) | 687.6 (27.1) | |||
| Ground Clearance, mm (inches) | 557 (21.9) | |||
| Dozer Blade Width, mm (inches) | 2962.4 (116.6) | |||
| Dozer Blade - Dig Depth, mm (inches) | 359 (14.1) | |||
| Tong Opening At Tips, mm (inches) | 3251 (128) | |||
| Enclosure Area, m² (ft²) | 1.77 (19.1) | |||
| Steering Articulation Angle, ± Degrees | 45 |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 391.8 (103.5) | |||
|---|---|---|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 123.6 (32.6) | |||
| Alternator Output, Amp | 150 |
PERFORMANCE
| Travel Speed, kph (mph) | 24.74 (15.37) | |||
|---|---|---|---|---|
| Oscillation Point | Front axle | |||
| Oscillation Angle, ± Degrees | 15 | |||
| Rated Line Pull, kN (lbf) | 213.5 (47997) | |||
| Rated Line Speed, m/min (ft/min) | 20.1 (66) | |||
| System Voltage, V | 24 | |||
| Pump | Var. axial-piston |
WEIGHTS
| Operating Weight, kg (lbs) | 19713 (43610) |
|---|
TimberMatic™ Maps and TimberManager™
TimberMaticTM Maps and TimberManagerTM are map-based production-planning and -tracking systems that make up Precision Forestry. They allow contractors and operators alike to share real time production and location information – taking the guesswork out of effective decision-making.
