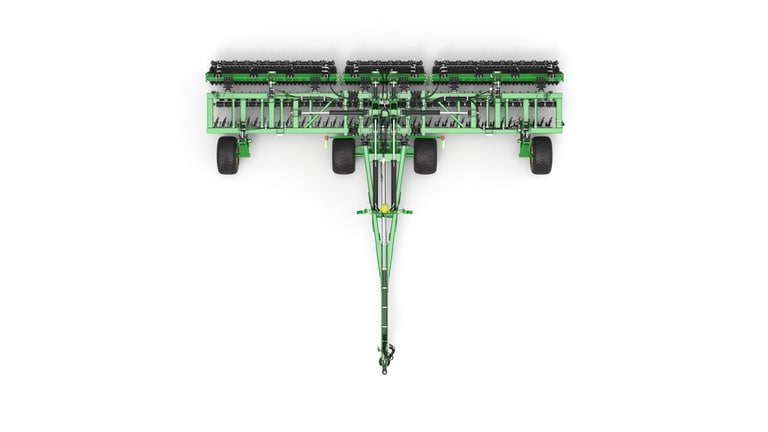

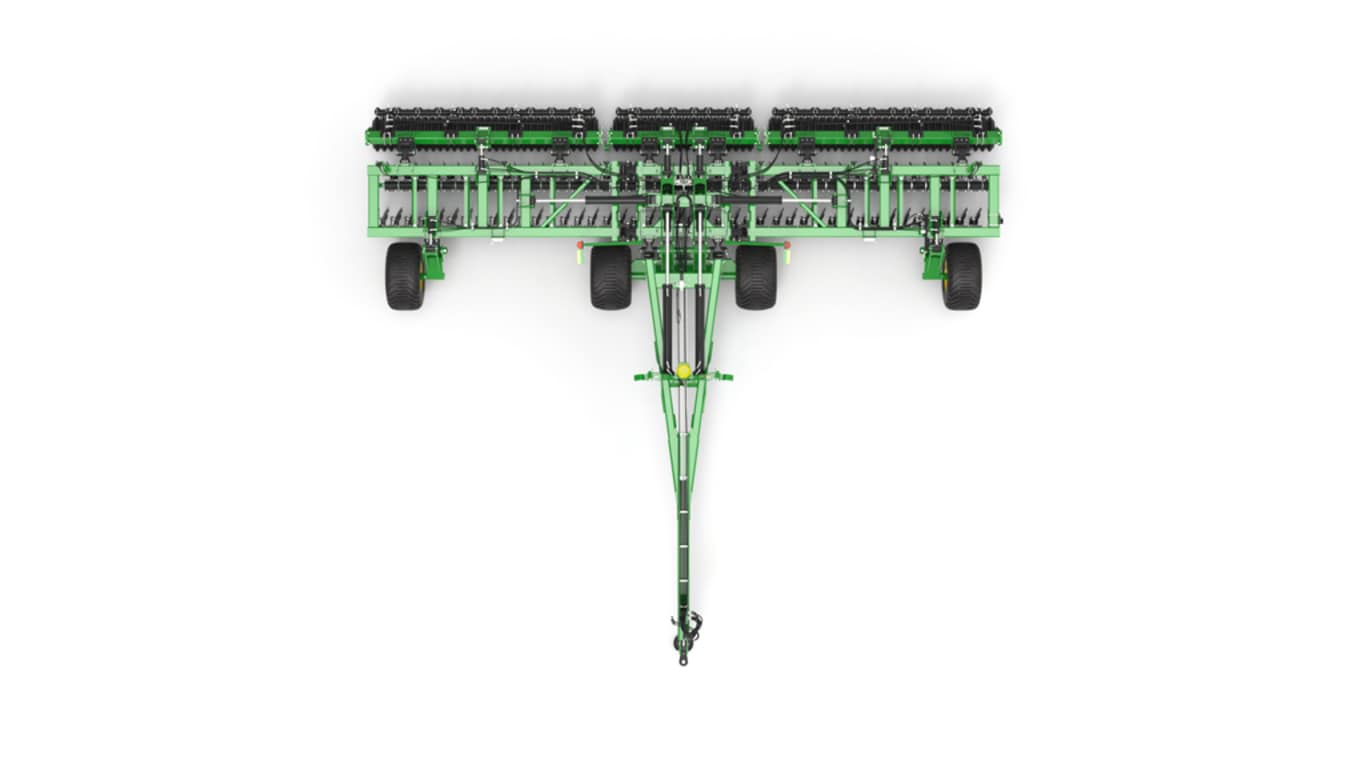

HSD Series
Starting in model year 2026, three-section 2680H’s will no longer be available to order.To replace this lineup, we will now offer the new HSD Series which is available in widths ranging from 25 to 45 ft. Integral three-point, drawn one-section, and drawn two-section 2680H models will still be available to order.
Integral three-point models |
Drawn one-section models |
Drawn two-section models |
· 8 ft, 4 in. · 10 ft. · 11 ft, 8 in. |
· 8 ft, 4 in. · 10 ft. · 11 ft, 8 in. |
· 15 ft, 11 in. · 17 ft, 7 in. · 20 ft, 11 in. · 24 ft, 4 in. |
MY25 2680H widths vs MY26 HSD Series widths
MY25 2680H widths (three-section) |
MY26 HSD Series widths (three-section) |
· 25 ft. · 30 ft. · 35 ft. · 40 ft. · 45 ft. |
· 25 ft. · 29 ft. · 32 ft. · 35 ft. · 39 ft. · 42 ft. · 45 ft. |
New pivot bushing design
The HSD Series features a new rear attachment pivot bushing design, as well as an increased frame tube size. This results in the field finish and residue management you’re used to, now backed by a three-year frame warranty.
New, larger frame design
Autonomous 8R and 2430 in the field
Technology should be simple to maximize full potential, autonomy shouldn’t be different. With autonomous farming solutions on the horizon, many customers are wondering what they should do to ensure the tillage equipment they are purchasing today will be READY to operate autonomously.
Autonomy Ready includes known and available integrated components, allowing customers to save time and money when adding the fully autonomous tillage solution hardware. The components included from the factory are:
Please reference the chart below for model availability.
Model |
Autonomy Ready Tillage (in-base) |
Applicable Machine Widths |
2430 |
X |
All widths, except 14 ft, 0 in. to 17 ft, 8 in models |
CC Series |
X |
All widths |
HSD Series |
X |
All widths |
2660VT |
X |
25 ft, 5 in. to 49 ft, 6 in. models |
2230 |
X |
Up to 64 ft |
*HSD Series does not include the Active feature, but is Autonomy ready
Universal StarFire™ 7500 receiver will need to be purchased separately for autonomous tillage operation.
As John Deere continues to develop the fully autonomous solution, additional requirements will be required. For the most up to date information on autonomy and additional key enablers, please visit the John Deere Autonomous Tillage Launch Center or John Deere Autonomy homepage. For more information on Autonomy Ready Large Tractors, please visit the Large Tractor Sales Manual.

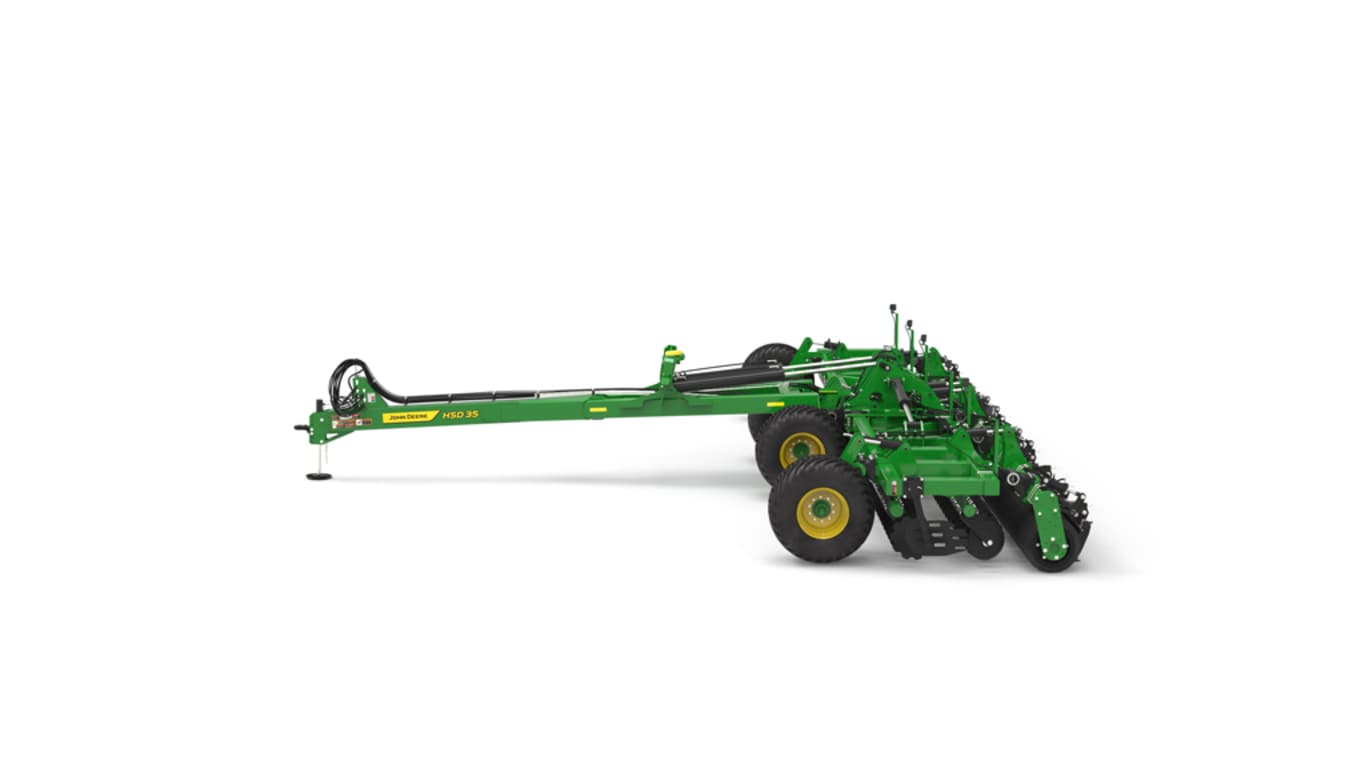

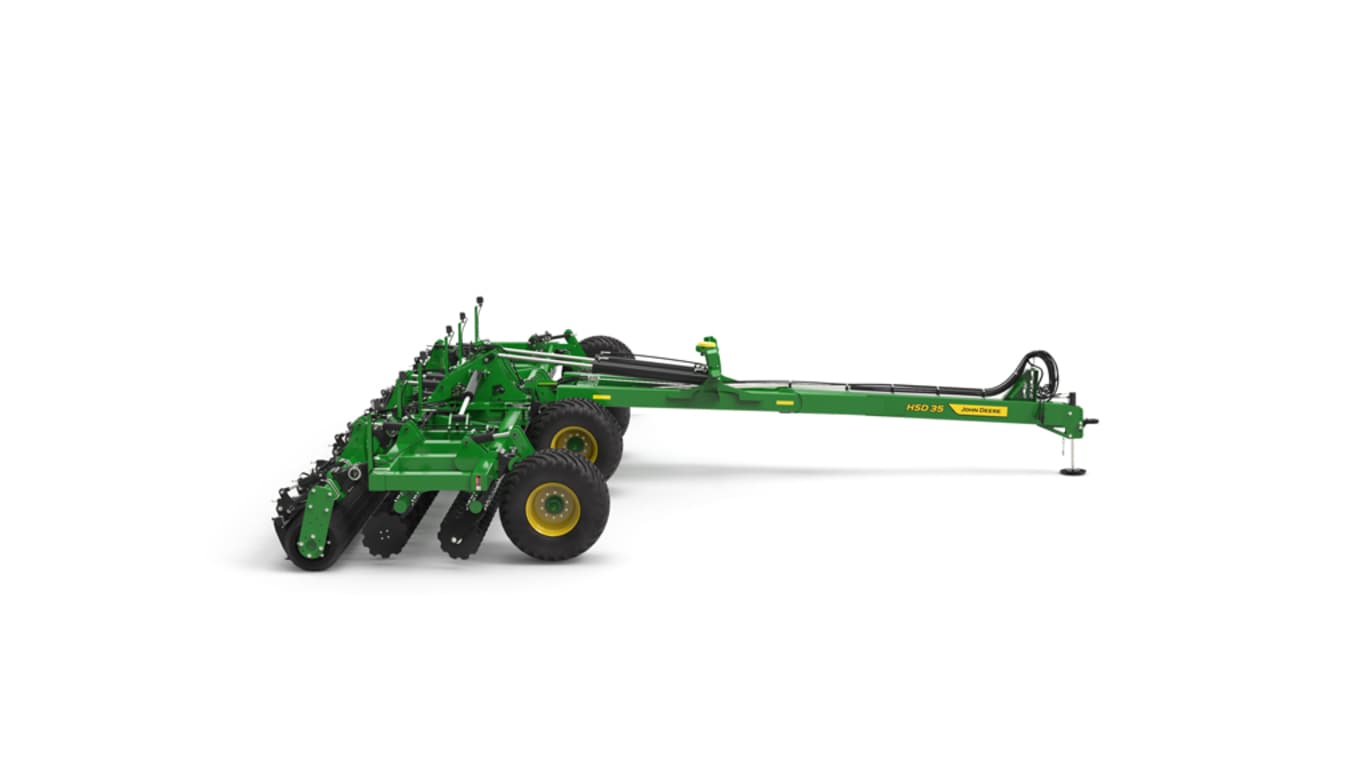

HSD Series machine in transport mode
The HSD Series offers expanded narrow transport offerings for maneuvering down narrow roads and bridges. This tool is available in seven configurations, four of which have a narrow transport width of 13 ft, 0 in.
| Transport Dimensions | |||||||
| Model | HSD25 | HSD29 | HSD32 | HSD35 | HSD39 | HSD42 | HAS45 |
| Transport width | 13 ft, 0 in. | 15 ft, 11 in. | |||||
| Transport length | 24 ft, 5 in. | 25 ft, 11 in. | 27 ft, 6 in. | 29 ft, 1 in. | 30 ft, 8 in. | 32 ft, 3 in. | |
| Transport height | 13 ft, 6 in. | ||||||
| Underframe Clearance | 1 ft, 10 in. | ||||||

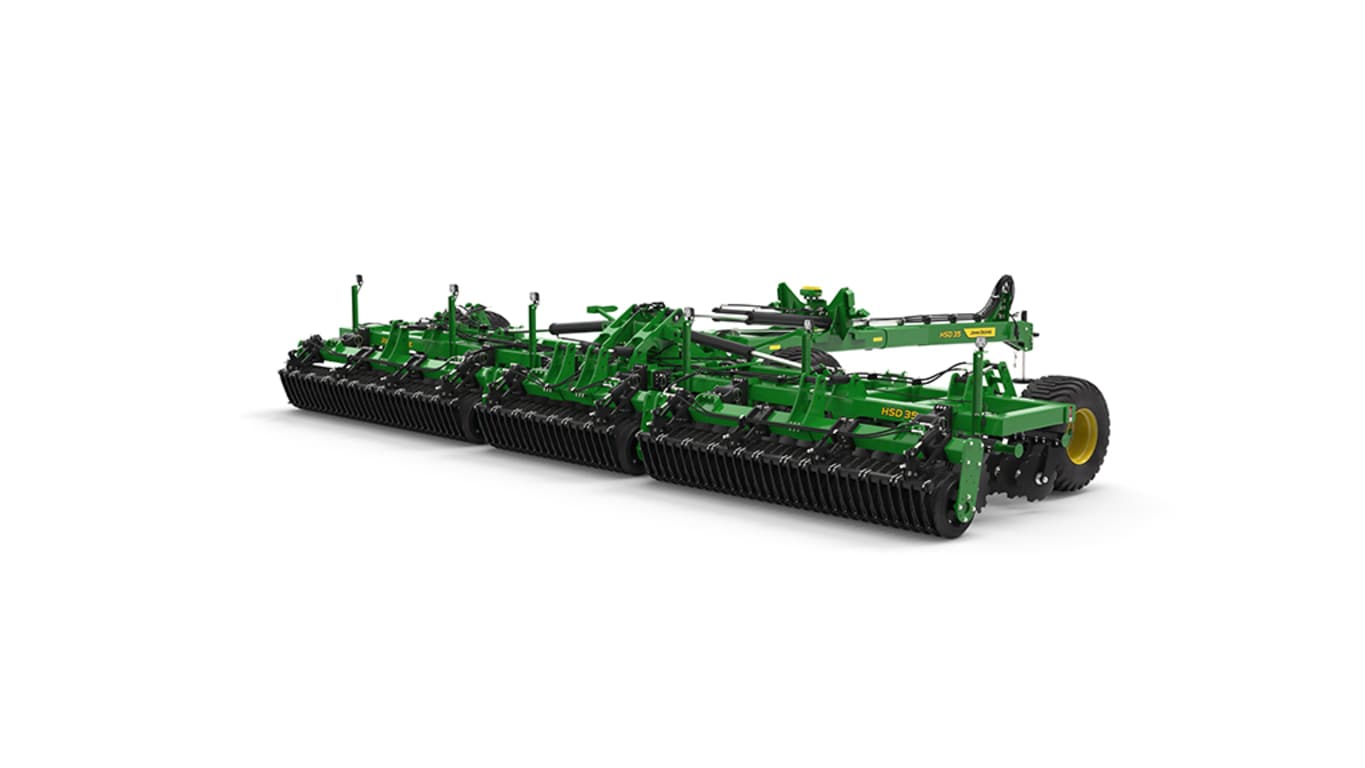

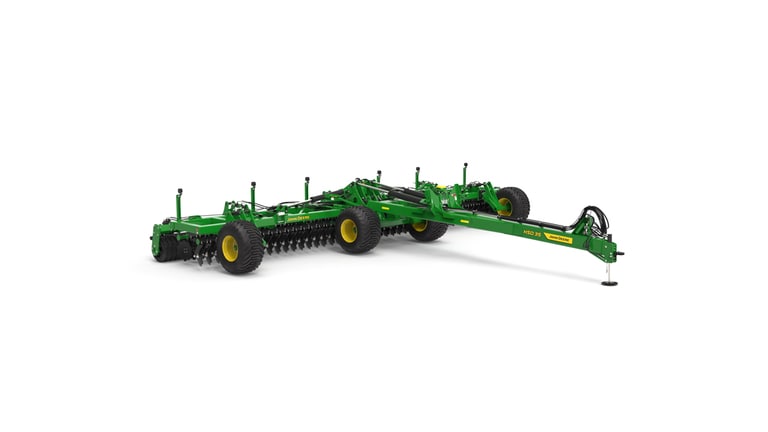

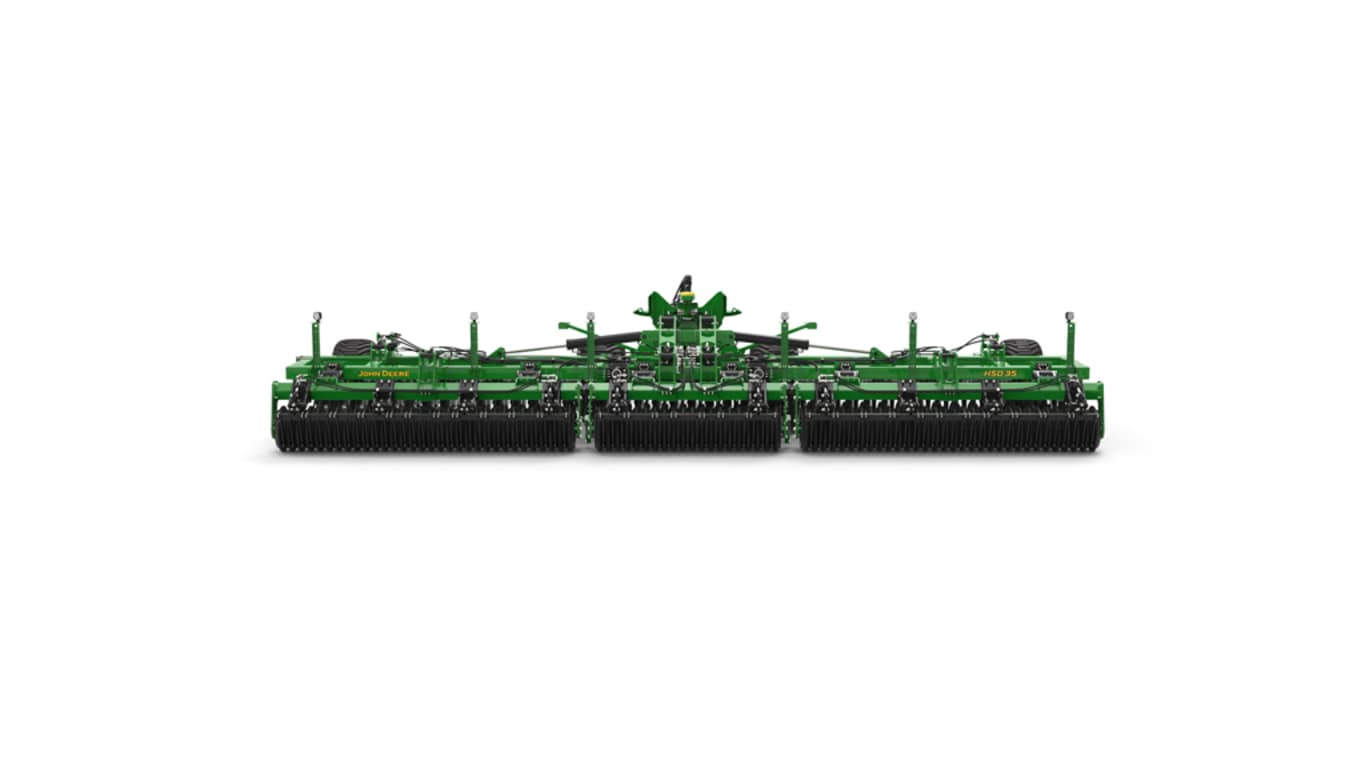

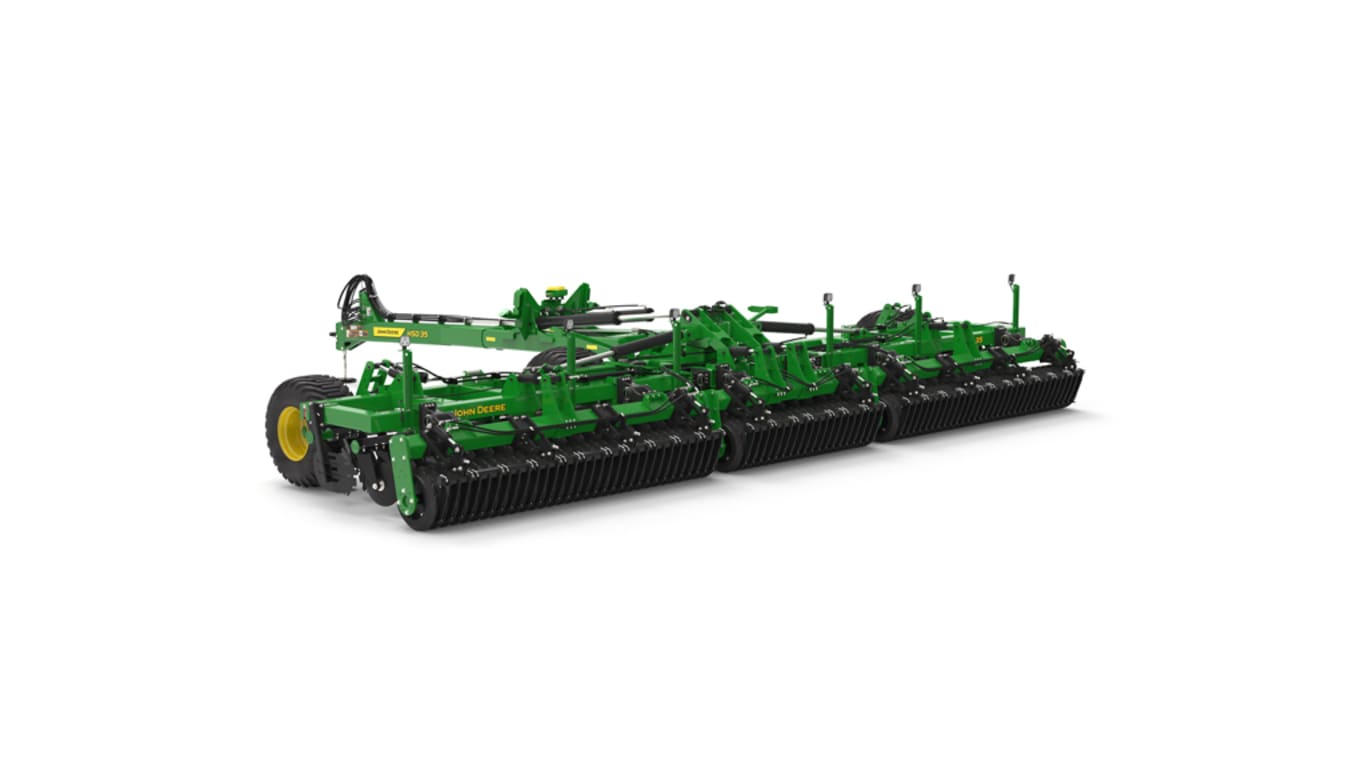

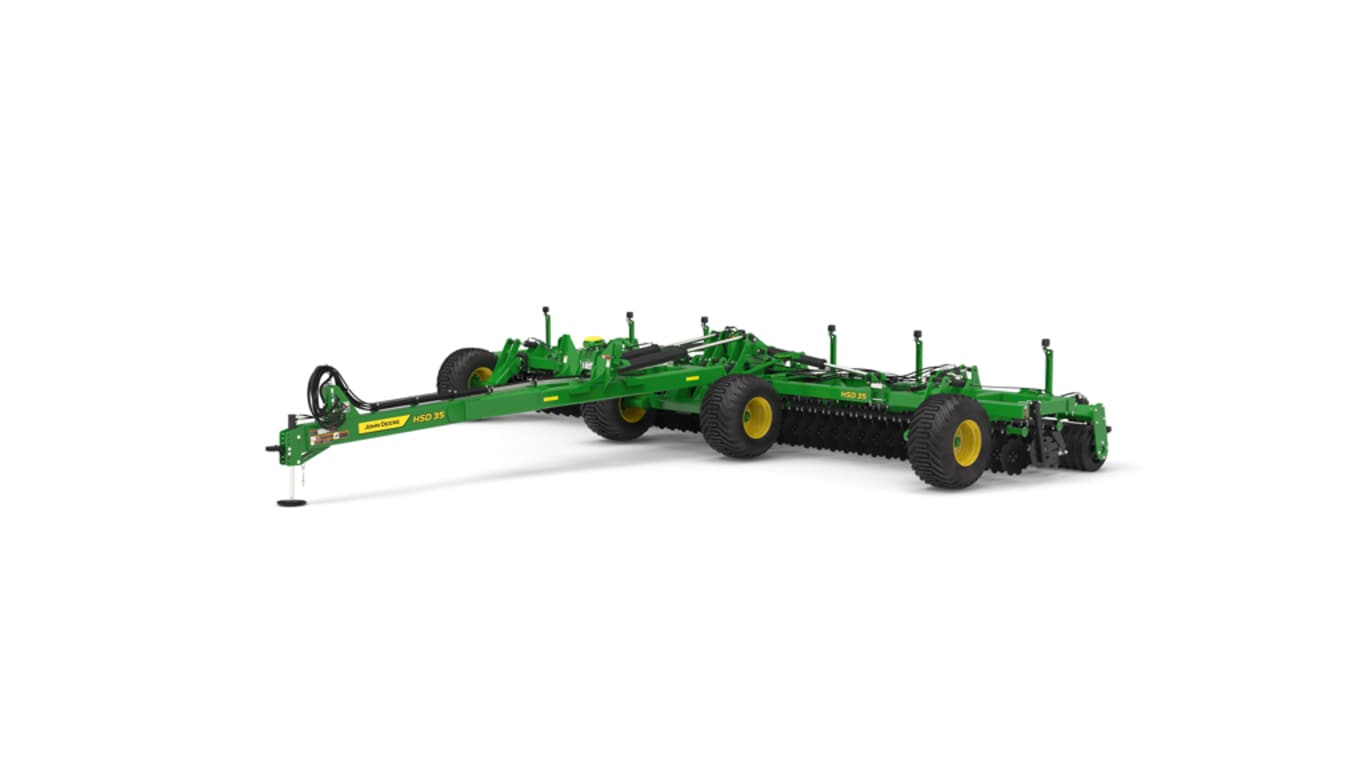

HSD Series machine
The HSD Series gives operators the ability to cover acres quickly, increasing their productivity. This two-season tool can operate up to 22.5 km/h (14 mph) in field.
This tool is available in seven configurations from 7.6 m to 13.7 m (25 ft to 45 ft). The HSD Series requires 34.25 kW/m (14 hp/ft), but in certain hilly, soft, or wet conditions it may require an additional 25 percent engine horsepower to maintain operating speeds at preferred working depth.
Working width |
Productivity per hour at 18.5 km/h (11.5 mph)* |
7.7 m (25 ft, 4 in.) |
14.0 ha (34.6 acres) |
8.7 m (28 ft, 8 in.) |
15.9 ha (39.3 acres) |
9.6 m (32 ft.) |
17.8 ha (43.9 acres) |
10.8 m (35 ft, 4 in.) |
19.6 ha (48.6 acres) |
11.8 m (38 ft, 8 in.) |
21.5 ha (53.2 acres) |
12.8 m (42 ft.) |
23.4 ha (57.8 acres) |
13.8 m (45 ft, 4 in.) |
25.3 ha (62.5 acres) |
*NOTE: Minimum overlap of 15.2 cm (6 in.).
Individually mounted blades
Rubber torsion elements
HSD Series features individually mounted blades. These blades, supported by rubber torsion elements, can travel up to 22.9 cm (9 in.) while passing over an obstruction, like a rock. This allows the rest of the tool to remain engaged and continue working, allowing for better ground contour.
Keep the tool engaged while passing over obstructions
To also follow ground contour, wings flex to stay engaged on hilly or terraced ground.
Wings follow the ground contour
Blades are also easy to replace. Rather than having to remove an entire gang, just replace an individual blade.
| Specifications | ||||
|---|---|---|---|---|
| John Deere HSD35 High Speed Disk |
| Working width | 3.56 m 11.67 ft |
|||
|---|---|---|---|---|
| Transport width | 3.83 m 12.58 ft |
|||
| Transport height | 3.07 m 10.08 ft |
|||
| Working depth | 5.1 to 15.2 cm 2 to 6 in. |
|||
| Blade spacing | 25.4 cm 10 in. |
|||
| Horsepower per ft | 10.4 kW or more 14 hp or more |
|||
| Operating speed | 16.1 to 22.5 km/h 10 to 14 mph |
| Working width | 3.56 m 11.67 ft |
|||
|---|---|---|---|---|
| Transport width | 3.83 m 12.58 ft |
|||
| Transport height | 3.07 m 10.08 ft |
|||
| Gang standards | ||||
| Gang angle | ||||
| Purpose | Primary/Secondary | |||
| Working depth | 5.1 to 15.2 cm 2 to 6 in. |
|||
| Weight per blade | 137 kg 302 lb |
|||
| Blade size | 50.8 cm 20 in. |
|||
| Blade spacing | 25.4 cm 10 in. |
|||
| Horsepower per ft | 10.4 kW or more 14 hp or more |
|||
| Operating speed | 16.1 to 22.5 km/h 10 to 14 mph |
|||
| Blade concavity | ||||
| Blade thickness |
| Front blades | 14 | |||
|---|---|---|---|---|
| Rear blades | 14 | |||
| Total | 28 |
| Main frame front | ||||
|---|---|---|---|---|
| Main frame rear | ||||
| 1st wing front | ||||
| 1st wing rear | ||||
| 2nd wing front | ||||
| 2nd wing rear | ||||
| Total |
| Date collected |
|---|
