3R Open-Operator Station Tractor
The bold styling of the tractor provides an attractive and functional appearance similar to that of the larger agricultural tractors. Benefits of this styling include:
The result gives the tractor a distinctive appearance and feel.
NOTE: If tractor is equipped with optional field-installed vertical exhaust, exhaust pipe must be removed before opening and closing the hood of the tractor.
Yanmar 3-Cylinder, TNV Series diesel engine
The Yanmar 3-cylinder, TNV series diesel engine features a high torque reserve that provides plenty of power under heavy loads.
This engine features lower levels of exhaust emissions and reduced noise levels. The engine meets all current Environmental Protection Agency (EPA) emission requirements for Final Tier 4 emission standards.
Model |
Number of |
Engine |
Rated rpm |
Gross engine |
Gross engine ps* |
PTO power* |
3033R |
3 |
1.642 L (100.2 cu in.) |
2600 |
23.7 kW (31.8 hp) |
32.2 |
17.2 kW (23 hp) |
3039R
The 1.568-L (95.7-cu in.), turbocharged, 3TNV86CT-MJTV Yanmar diesel engine provides 28.5 kW (38.2 hp) to the 3039R Tractor.
Model |
Number of |
Engine |
Rated rpm |
Gross engine |
Gross engine ps* |
PTO power* |
3039R |
3 |
1.568 L (95.7 cu in.) |
2600 |
28.5 kW (38.2 hp) |
38.7 |
22.2 kW (29.8 hp) |
*Engine hp (kW), gross SAE J1995: 38.2 (28.5) at 2600 rpm, PS
Displacement, cu in. (L): 95.7 (1.568)
3046R
The 1.568-L (95.7-cu in.), turbocharged, intercooled 3TNV86CHT-MJTV Yanmar diesel engine provides 33.3 kW (44.7 hp) to the 3046R Tractor.
Model |
Number of |
Engine |
Rated rpm |
Gross engine power* |
Gross engine ps* |
PTO power* |
3046R |
3 |
1.568 L (95.7 cu in.) |
2600 |
33.3 kW (44.7 hp) |
45.3 |
25.3 kW (33.9 hp) |
*Engine hp (kW), gross SAE J1995: 44.7 (33.3) at 2600 rpm, PS
Displacement, cu in. (L): 95.7 (1.568)
The engine uses latest technologies to optimize fuel economy, improve control and accuracy, and reduces environmental impact.
The common rail system (CRS) optimizes fuel economy and reduces operating costs compared to engines not using CRS technology. High pressure injection atomizes fuel into finer particles which burn more completely. It results in improved fuel economy and lower cost of operation.
The electronic control unit (ECU) provides optimum fuel control and accuracy. ECU monitors and controls the engine. It continuously monitors engine conditions and adjusts the fuel delivery accordingly to ensure optimum performance and emissions.
The new engine comes with an after treatment system. The system operates automatically. The exhaust filter consists of a diesel particulate filter (DPF) which captures particulate matter (PM) contained in the exhaust gas. Using a natural cleaning process, most of the PM trapped in the exhaust filter is eliminated by the heat of the exhaust stream generated by normal use. In situations of low temperature, engine speed or load factor, an active cleaning cycle is initiated. In this cleaning cycle, the exhaust gas temperature is raised by injecting additional fuel during the exhaust stroke of normal vehicle operation to the diesel oxidation catalyst (DOC).
After many hours of use, the exhaust filter may require an ash removal service.
Depending on the load that the tractor is under, as well as ambient temperature, humidity, and engine speed, the DPF may build up with particulate matter, thus requiring cleaning. Filter cleaning is determined by one of three conditions:
Once one of the three conditions has been met, filter cleaning will occur.
There are three different types of filter cleaning processes:
Passive filter cleaning
Passive filter cleaning occurs naturally when the engine is generating enough heat to oxidize particulate matter. This automatic process occurs continuously during normal operating conditions. No tractor icons or symbols appear on the display during passive filter cleaning.
NOTE: Passive filter cleaning requires no operator involvement, and there is no interruption to tractor operation.
Active filter cleaning
If conditions (temperature, load, or speed) for passive filter cleaning cannot be achieved, then PM is removed using active filter cleaner.
To achieve the required conditions, exhaust temperature management (ETM) manages the initiation and duration of active filter cleaning. ETM can adjust numerous engine parameters and/or inject a small quantity of fuel into the exhaust stream for a short duration. The fuel turns to vapor and chemically reacts with the catalysts in the DOC to create heat to oxidize PM.
It is important to note that at no time is the fuel in the DOC/DPF ignited, and there is no flame within the DOC/DPF.
Like passive filter cleaning, active filter cleaning requires no operator involvement, and there is no interruption to tractor operation.
Parked filter cleaning
In some instances where passive and active filter cleaning have not fully cleaned the PM from the system, a parked filter cleaning may need to take place. Most likely, the only time a parked filter cleaning will need to occur is when automatic filter cleaning has been disabled for an extended period of time and multiple warnings to engage filter cleaning were ignored or if the tractor has been used during light load conditions. Additionally, when the automatic filter cleaning process has been deliberately interrupted multiple times, or if active filter cleaning has failed numerous times due to a failed component, a parked filter cleaning may be requested. In these rare instances the operator will have to park the tractor and start the filter cleaning process.
The parked filter cleaning process needs to be activated based on usage and operation of the tractor. The process will take approximately 30 minutes. See operator’s manual for more details.
This system constantly monitors the soot level of the tractor, making sure the tractor is always in peak performance condition. This ensures high performance at all times.
NOTE: Number of hours since last regeneration and soot level percentage viewable on LCD display.
NOTE: When the tractor is in a filter cleaning process at low speed or while parked and running, the exhaust will be routed through the vertical exhaust outlet. In all other cases, the exhaust will be routed through the downward exhaust outlet. This ensures minimal heat impact to operator.
Dry-type air cleaner
Yanmar is a trademark of Yanmar Company Limited.
The 3R Series Tractor is available with an exclusive three-range electronic hydrostatic (eHydro) transmission.
Sauer-Danfoss® supplies both the pump and motor. This ensures that the components are matched to each other, providing maximum efficiency.
The electronic hydrostatic transmission is ideally suited for jobs where productivity is a must, such as loader or mower applications.
Twin Touch™ foot controls allow selecting both direction of travel and speed with a touch of the toe.
Key features of the eHydro transmission are:
Sauer-Danfoss eHydro transmission is used for reliable operation. Durability features include:
1) Large forged trunnion shaft with larger support bearings to reduce vibration and noise.
2) Center section made from durable cast aluminum, which is 10 percent stronger.
3) Transmission oil cooler cools transmission oil for longer transmission life.
Safety features of the eHydro transmission include:
Twin Touch foot controls
John Deere's Twin Touch foot controls offer several key advantages over competitive hydrostatic transmission (HST) tractor models.
Key advantages over competitive HST tractor models:
Integrated eHydro features
The eHydro convenience controls have been integrated into a single module. Combining features such as SpeedMatch™ cruise control, LoadMatch™ switch, MotionMatch, eThrottle, and automotive style cruise control pulls the maximum efficiency out of the eHydro transmission tractors. All these features are standard on the 3R models and deliver an easier and more comfortable user experience.
eHydro convenience control module
eThrottle indicator
The 3R Series Tractors come equipped with the eThrottle function. This feature is designed make the tractor quieter and use less fuel. With the simple push of a button, the engine speed is linked to the pedal position. The operator can keep the throttle essentially all the way in the low position. The engine rpms, as well as the tractor speed, increase together with the pedal position. This provides the operator with comfort and convenience as well as fuel economy.
Cruise control indicator
An automotive-style cruise control is standard equipment on the 3R Series Tractors. Cruise control is electronically engaged and disengaged and is located on the right-hand operator console.
MotionMatch indicator
Shorter accelerate and decelerate distances.
LoadMatch indicator
LoadMatch is an industry exclusive and a standard feature on the 3R Series Tractors.
If torque requirements increase significantly, the transmission will reduce the tractor's drive speed to compensate for the increased load on the transmission, maximizing torque to drive wheels and minimize stalls.
Controls automatically adjust LoadMatch compensation depending on the tractor’s application. PTO applications require less engine speed fluctuation, therefore adjusts the amount of droop depending on PTO speed. This adjustment increases efficiency and optimizes engine speed and torque output based on tractor application.
While typically left on, LoadMatch can be turned off with the right-hand console controls.
MotionMatch
MotionMatch, standard on the 3R Series Tractors, is located on the right-hand console. It offers seven settings for adjusting the rollout or decelerate when the pedal is released.
MotionMatch indicator
Longer accelerate and decelerate distances.
SpeedMatch indicator
SpeedMatch, standard on the 3R Series Tractors, further enhances the eHydro cruise control functions by allowing the operator to preset maximum speed. Once this feature is engaged, the operator must stroke the travel pedal fully to meet the operator preset speed. This function improves accuracy and safety, particularly at lower travel speed applications.
Rotary tilling or spraying applications are examples of where SpeedMatch can be applied. SpeedMatch will work in both the forward and reverse set speeds.
NOTE: Automotive-style cruise control and SpeedMatch can be used in conjunction with LoadMatch to maximize productivity.
Sauer-Danfoss is a trademark of Sauer-Danfoss, Inc.
The PowrReverser transmission, available on 3033R and 3039R Tractors, offers a hydraulically shifted forward-to-reverse transmission. This allows for clutchless shuttle shifting between forward and reverse with one lever for quick and easy direction change.
The 12x12 PowrReverser transmission's hydraulically actuated wet clutch takes the place of the dry-type traction clutch. Two multi-disk clutch packs (one forward and one reverse) are hydraulically actuated when the directional (reverser) lever is placed in either the forward or reverse position.
Each clutch pack consists of three large, 13-cm (5-in.) diameter clutch disks that are oil-cooled, allowing excellent heat dissipation and extended clutch life.
Forward/reverse clutches
Key features of the PowrReverser transmission are:
Helical-cut gears
NOTE: 3R Tractors with PowrReverser are not compatible with mid PTO. They are not compatible from the factory or field installed.
3R operator's station
The operator's station is designed for easy entry to/exit from the tractor.
Conveniently placed pedals, as well as repositioned operator controls, provide for a clean and flat platform design, giving the operator plenty of legroom.
Safety certified folding ROPS
Safety certified folding ROPS
Key features of the operator's station include:

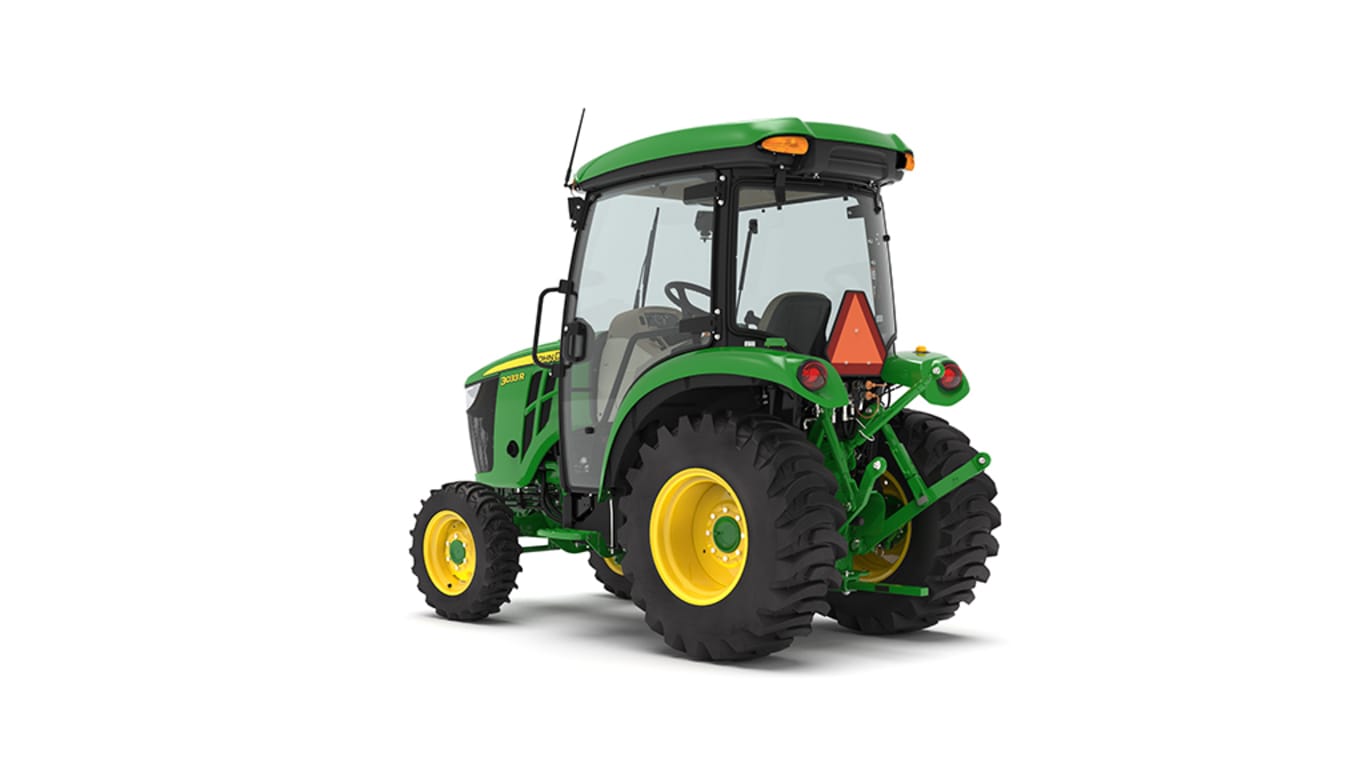

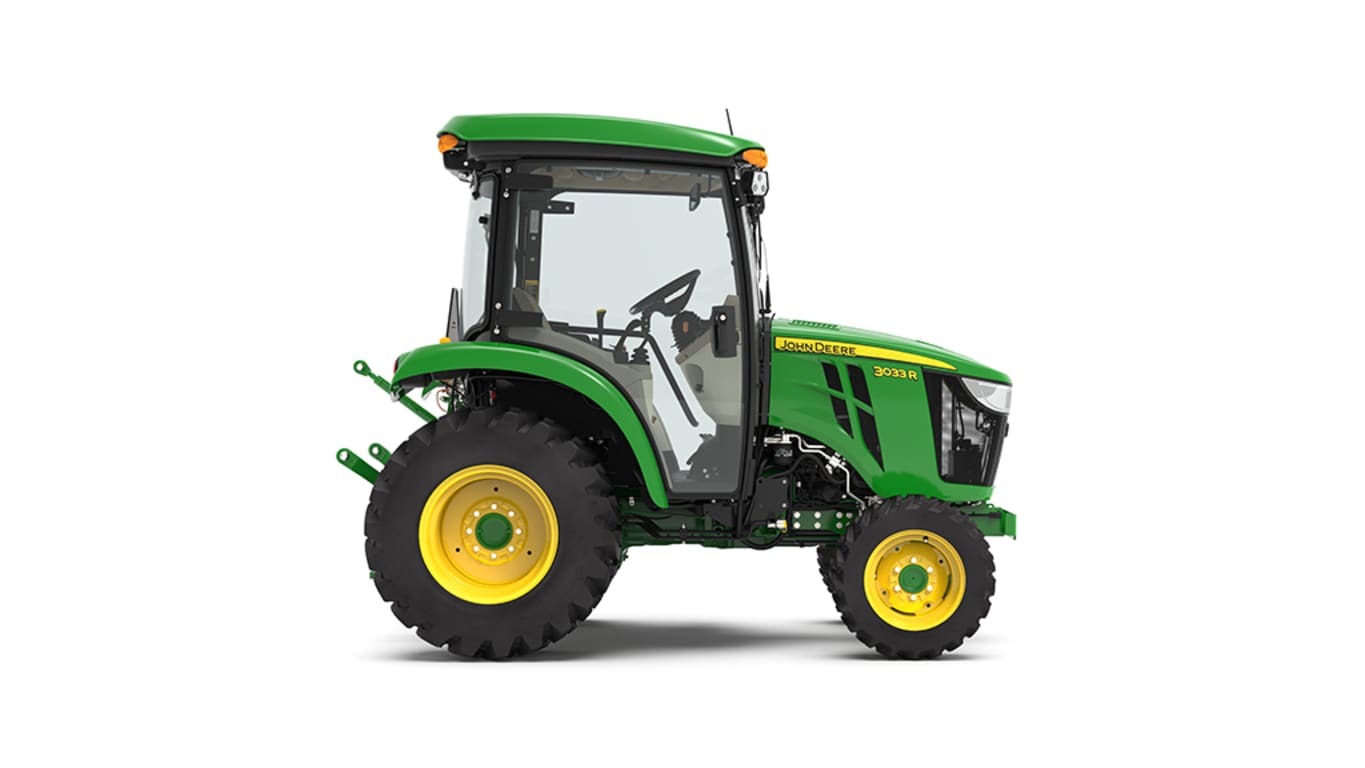

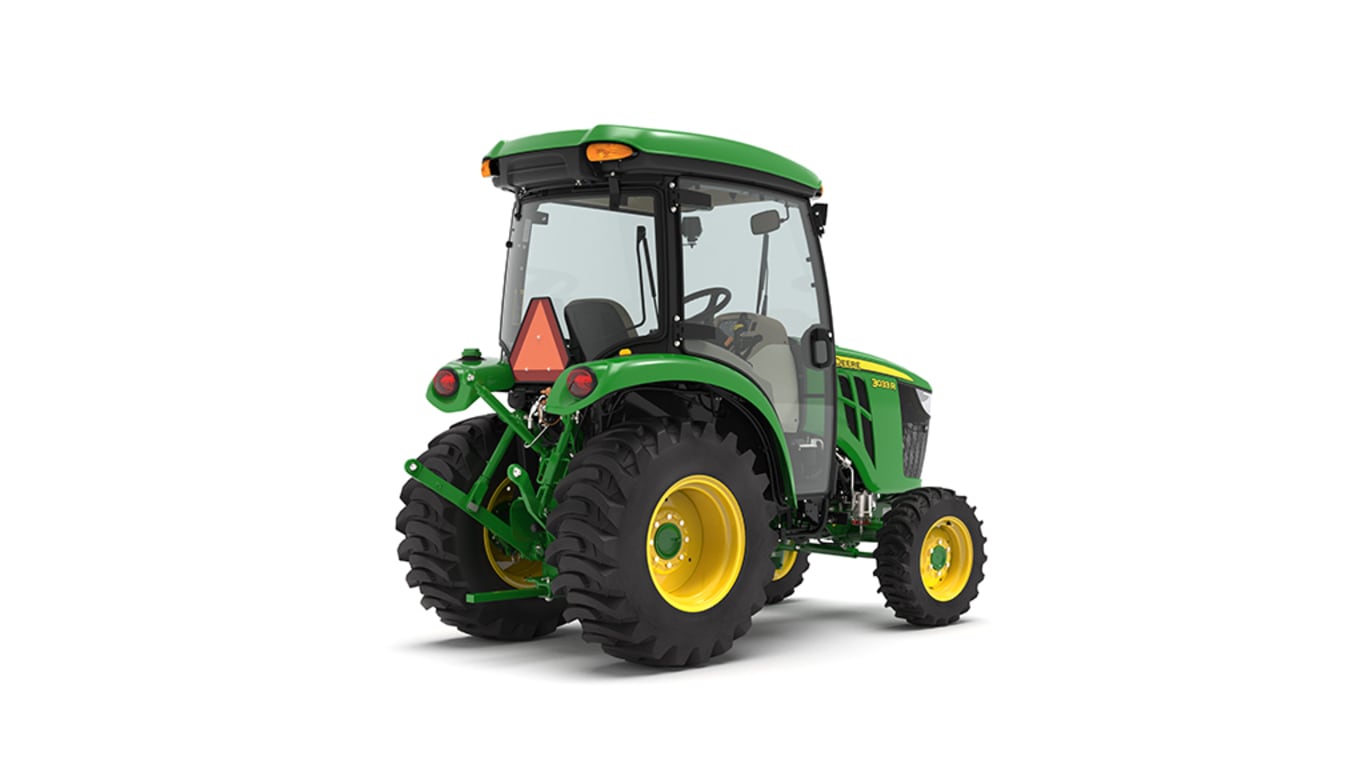

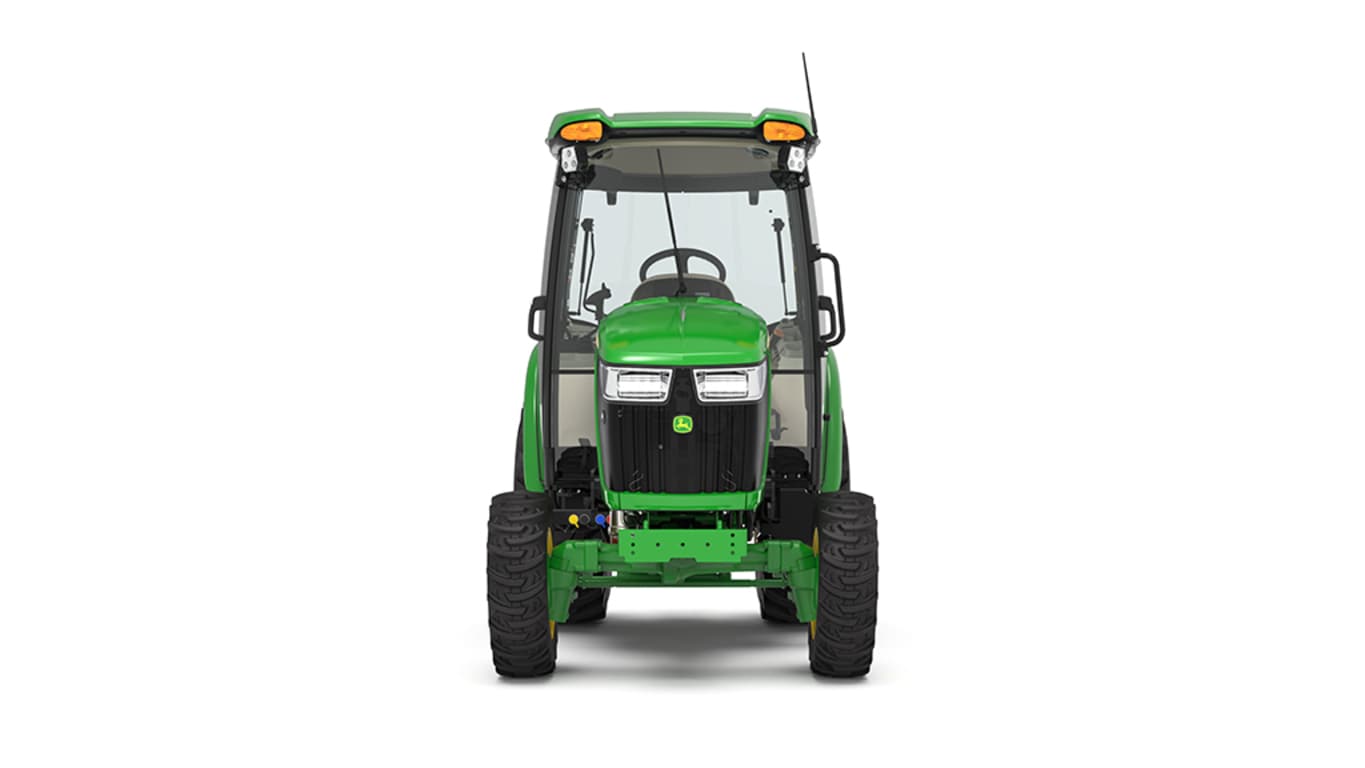

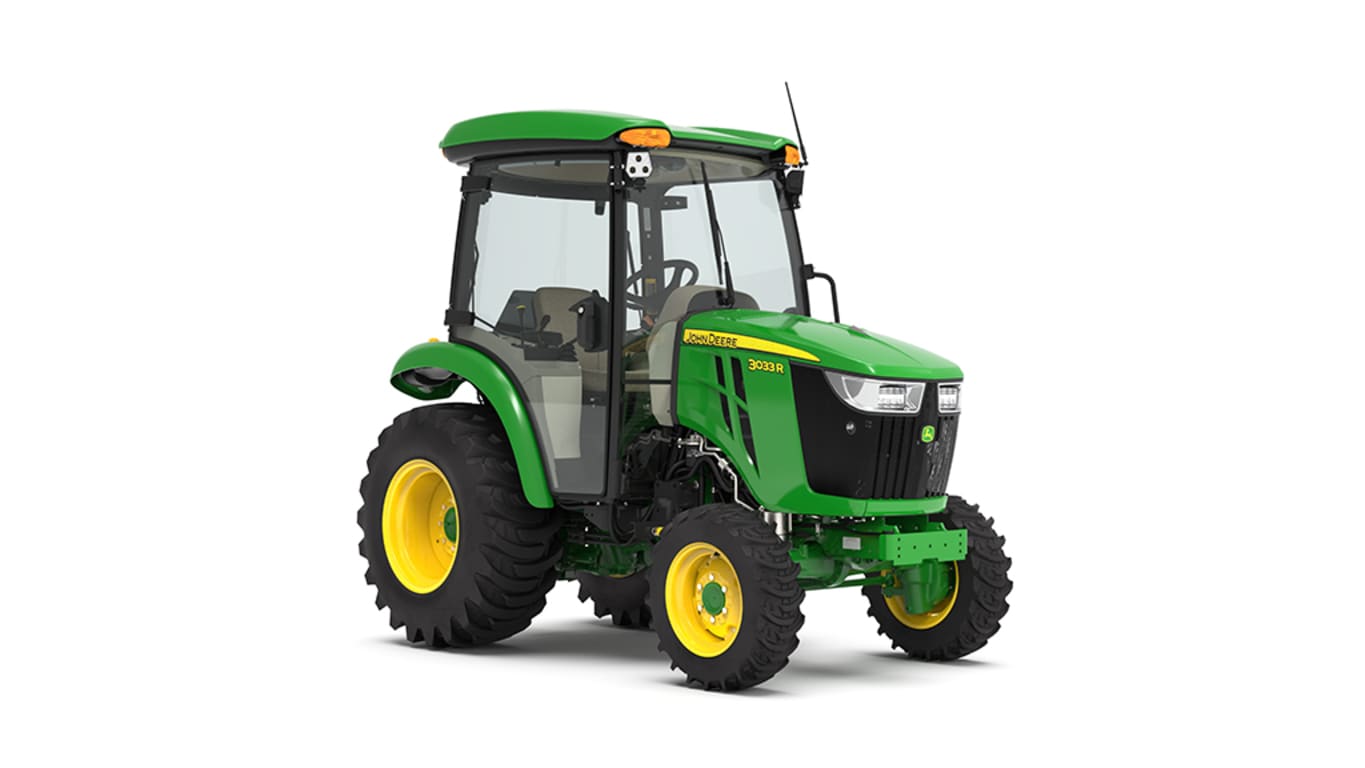

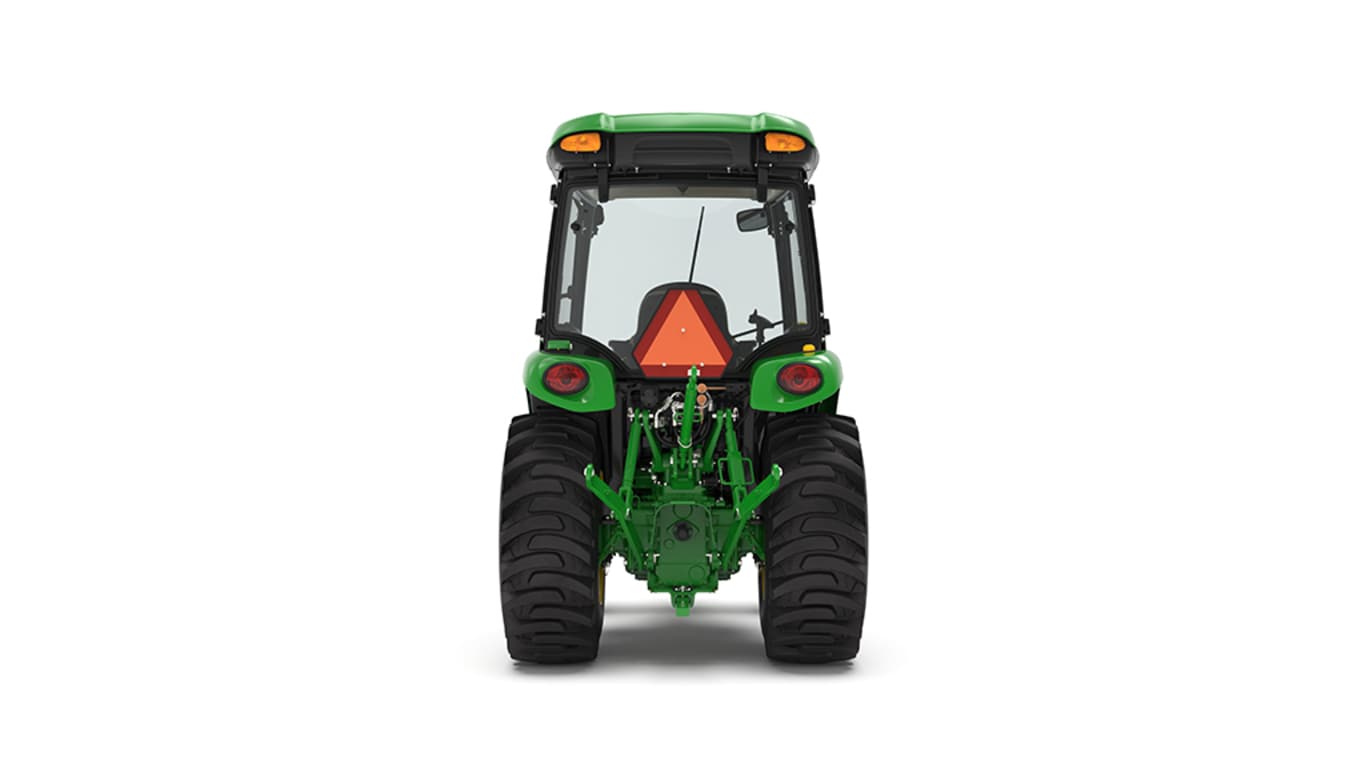

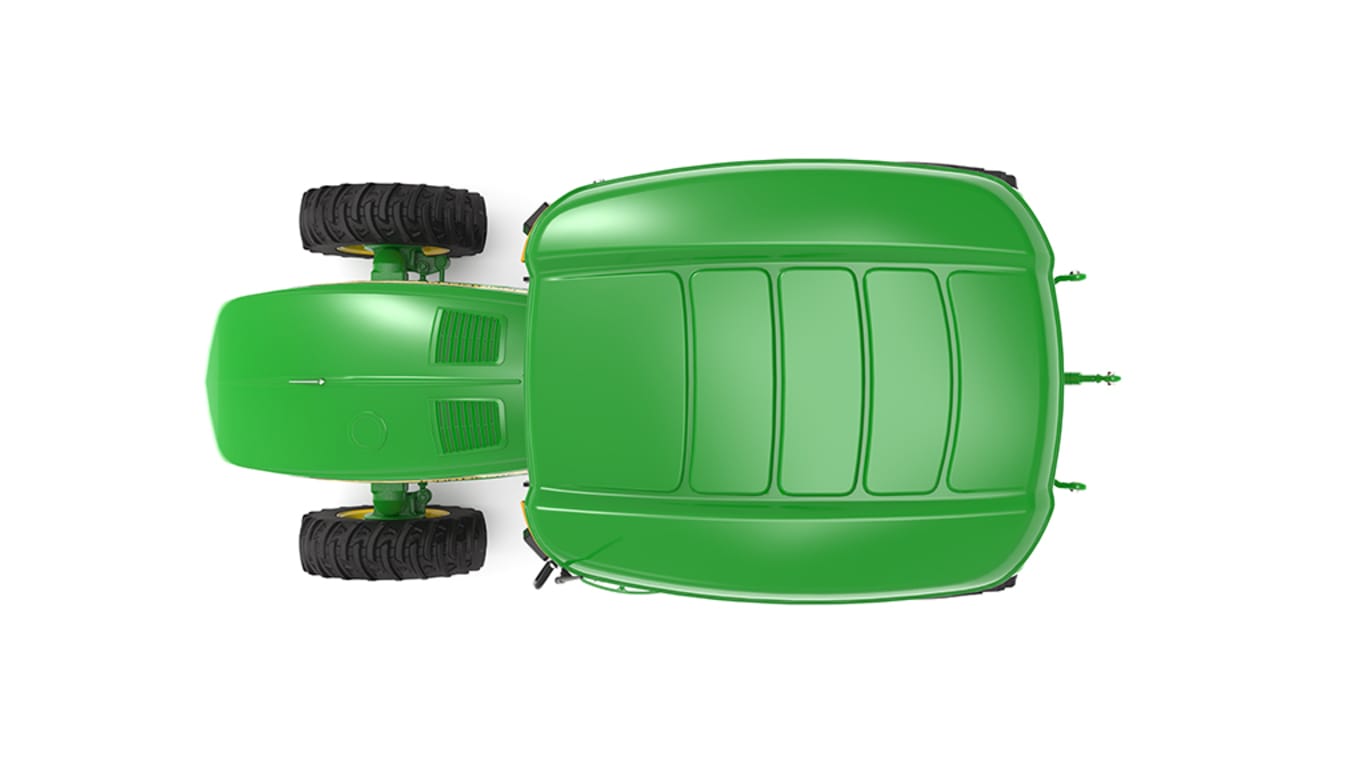

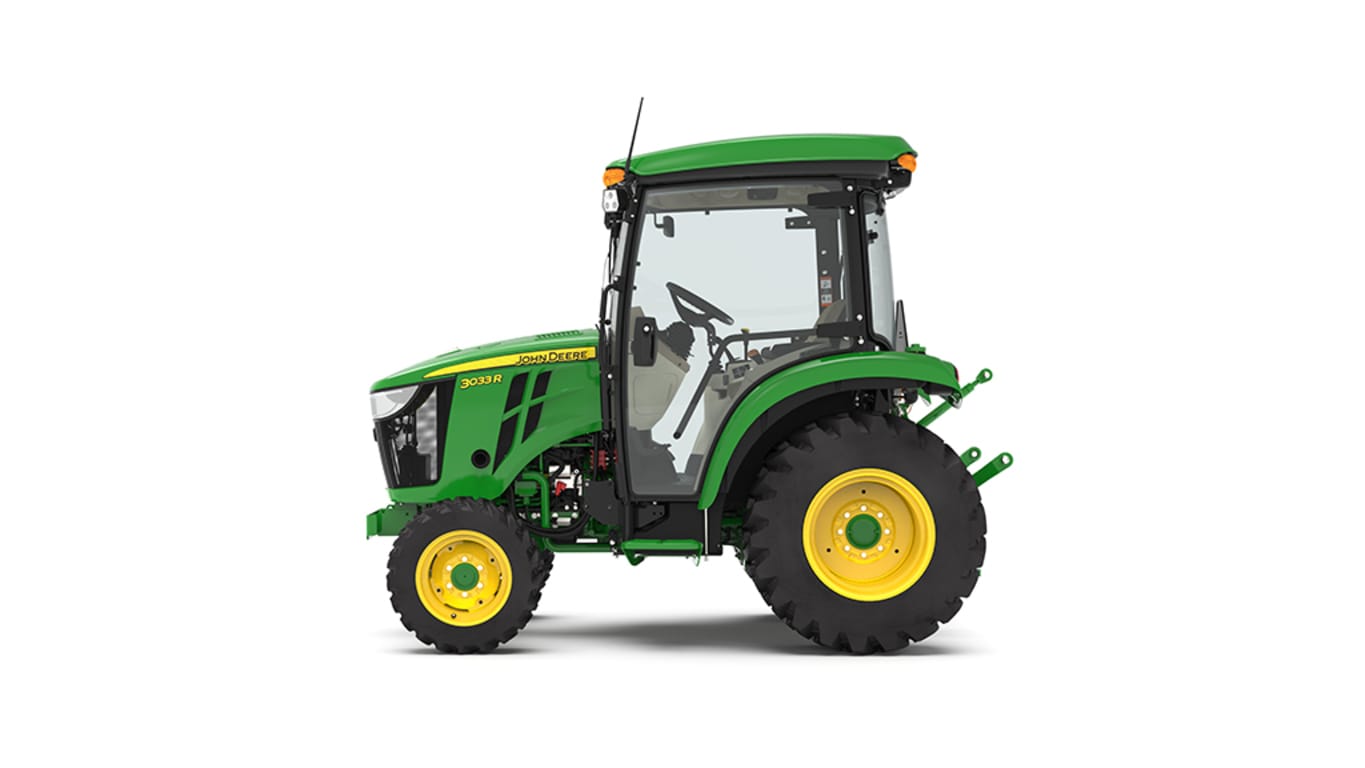

3R ComfortGard cab
John Deere ComfortGard cab tractors are some of the most comfortable, quiet, and easy-to-use cab tractors available anywhere. This premium solution was developed using extensive customer research and validation tools, and some of the most advanced design techniques available.
The following ComfortGard cab tractor models are available:
Cab tractors are designed for those operators who demand superior performance.
Whether doing loader work, front implement work (such as snow removal), mowing, tilling, rotary cutting, or light hay work, the cab tractors have the versatility and muscle to get the job done, all while protecting the operator from the elements.
State-of-the-art design
State-of-the-art design
Operators are sure to appreciate what this cab has to offer — beginning with an isolated cab. These cabs are designed with robust mounting points integrated into the rollover protective structure (ROPS) with a unique offset mounting design that provides an ultra-quiet ride.
The four-post ROPS design, carefully laid-out interior, and fuel tank located under the left rear side of the operator's platform provide a full 360 degrees of visibility.
Operators are well-protected from the elements with a high-performance climate-control system providing heating and air conditioning.
Superior operator comfort and visibility
Optional radio kit
Several features are integrated into the design of the cab that deliver superior operator comfort and visibility. These features include:
Right-hand control panel
Side-post mounting bosses
Optional lighting includes:
Jensen is a trademark of ASA Electronics Corporation. iPod is a trademark of Apple Inc. SiriusXM is a trademark of Sirius XM Radio Inc.
Installing rear window removable plug
Rear window removable plug installed
A deluxe cloth seat with retractable seat belt is in base cab equipment.
Optional lighting
Air-suspension seat
Two air-ride seat options are possible in 3R cab models. Both utilize the same suspension, which is designed to provide an air cushion for vertical-seat travel. This provides maximum operator comfort in any terrain. The two options are:
1. The optional factory-installed air-ride seat with a deluxe cloth two-piece seat with adjustable backrest and integrated armrests (for the 3039R and 3046R only).
Seat features:
2. The optional field-installed air suspension kit that requires the existing standard seat to be re-used when installed.
NOTE: The deluxe two-piece seat top can be ordered through Parts for customers who desire it.
Key benefits include:
Lighting equipment
The base lighting package for cab tractors includes:
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 3033R Compact Utility Tractor |
| Engine power (gross) | SAE J1995 rated power: 23.7 kW 31.8 hp 32.2 PS at 2600 rpm |
|||
|---|---|---|---|---|
| Power take-off (PTO) power | PowrReverser™ transmission: 19.5 kW 26.1 hp eHydro™ transmission: 17.2 kW 23 hp Per SAE J1995 |
|||
| Steering hydraulics | 23.5 L/min 6.2 gpm |
|||
| Implement hydraulics | 34.3 L/min 9.1 gpm |
|||
| Hitch type | Category 1 | |||
| Lift capacity, 24-in. behind link arms | 995 kg 2194 lb |
|||
| Standard transmission; forward/reverse | PowrReverser transmission | |||
| Cruise control | PowrReverser transmission: Not applicable eHydro transmission: Standard |
|||
| Approximate shipping weight (open-station; cab) | Open operator station (OOS): 1353 kg 2983 lb Cab: 1633 kg 3600 lb |
|||
| Wheelbase | 1727 mm 68 in. |
| Family | ||||
|---|---|---|---|---|
| Manufacturer | Yanmar® | |||
| Engine model | 3TNV88C-MJTV | |||
| Engine power (gross) | SAE J1995 rated power: 23.7 kW 31.8 hp 32.2 PS at 2600 rpm |
|||
| Power take-off (PTO) power | PowrReverser transmission: 19.5 kW 26.1 hp eHydro transmission: 17.2 kW 23 hp |
|||
| Rated engine speed | 2600 rpm | |||
| Type | Diesel | |||
| Injection pump type | High pressure common rail direct injection | |||
| Aspiration | Natural | |||
| Emissions compliance | Final Tier 4 | |||
| Cylinders/displacement | Three cylinders: 1.64 L 100 cu in. |
|||
| Number of cylinders | Three | |||
| Cylinder liners | Cast-in-block | |||
| Bore and stroke | 88x90 mm 3.46x3.54 in. |
|||
| Compression ratio | 19.1:1 | |||
| Lubrication | Pressurized | |||
| Cooling system | Liquid | |||
| Air cleaner | Dual element | |||
| Engine torque at rated speed | 87 Nm 64.2 lb-ft |
|||
| Fuel tank capacity | OOS: 37.4 L 10 U.S. gal. Cab eHydro transmission only: 47.6 L 12.6 U.S. gal. |
| Battery size | 500 CCA | |||
|---|---|---|---|---|
| Alternator (12-V) | 75 amp | |||
| Starter size | 1.4 kW 1.9 hp |
| Type | High pressure common rail direct injection | |||
|---|---|---|---|---|
| Fuel consumption |
| Standard transmission; forward/reverse | PowrReverser transmission; 12F/12R | |||
|---|---|---|---|---|
| Optional transmission; forward/reverse | eHydro transmission | |||
| Left-hand reverser | PowrReverser transmission only | |||
| Transmission gear ranges | PowrReverser transmission: 12F/12R eHydro transmission: three-range, infinitely variable |
|||
| Final drive | Spur gear | |||
| Brakes | Multi-plate wet disk | |||
| Steering | Hydrostatic power steering | |||
| Clutch, wet/dry | PowrReverser transmission: Wet disk | |||
| Clutch disk diameter wet clutch | ||||
| Axle capacity | Front 1450 kg 3197 lb Rear 1850 kg 4079 lb |
|||
| Creeper | ||||
| Cruise control | PowrReverser transmission: Not applicable eHydro transmission: Standard |
|||
| Differential lock | Yes | |||
| Drawbar maximum vertical load |
| Type | Open center | |||
|---|---|---|---|---|
| Pump rated output | Steering 23.5 L/min 6.2 gpm Implement 34.28 L/min 9.1 gpm 57.8 L/min 15.3 gpm |
|||
| Pump type | Single gear | |||
| Maximum operating pressure | 172 bar 2495 psi |
|||
| Draft control sensing | Position control | |||
| Remote control valves available | Up to six rear remotes |
| Type | Category 1 | |||
|---|---|---|---|---|
| Lift capacity, 24-in. behind link arms | 995 kg 2194 lb |
| Standard | Independent rear: 540 rpm | |||
|---|---|---|---|---|
| Optional | PowrReverser transmission: Mid - not applicable eHydro transmission: Mid - 2100 rpm |
|||
| Control | Lever and switch | |||
| Clutch | Wet disk | |||
| Brake (for mid and rear PTO) | Wet disk | |||
| Engagement method |
| Crankcase with filter | 4.3 L 4.5 gal. |
|||
|---|---|---|---|---|
| Transmission and hydraulic system | PowrReverser transmission: 24.6 L 6.5 U.S. gal. eHydro transmission: 26.5 L 7 gal. Cab eHydro transmission only: 26.5 L |
| Type | Spur gear | |||
|---|---|---|---|---|
| Differential lock |
| Rollover protective structure | Type Foldable |
|||
|---|---|---|---|---|
| Platform - flat/straddle | One-piece semi flat | |||
| Gear shift location - console/floor | PowrReverser transmission: Right-hand side eHydro transmission: Not applicable |
| Compliance | Complies with OSHA, SAE, and CSA standards for rollover protection | |||
|---|---|---|---|---|
| Visibility | 360 degree (angle) | |||
| Air conditioning, temperature differential | ||||
| Doors | Two | |||
| Noise rating | 80 dBA | |||
| Seat equipment | Scissor-link |
| Height | ||||
|---|---|---|---|---|
| Wheelbase | 1727 mile 68 in. |
|||
| Front axle clearance | Minimum: 171 mm 6.7 in. Maximum: 299 mm 11.8 in. |
|||
| Turning radius with brakes | 2.7 m 8.8 ft |
|||
| Turning radius without brakes | 2.8 m 9.2 |
|||
| Limited slip differential | ||||
| Approximate shipping weight (open-station; cab) | OOS: 1353 kg 2983 lb Cab: 1633 kg 3600 lb |
| Front | R1 Bar: 7-14 R3 Turf : 27x8.50-15 R3 Turf Special: 25/10.5LLx15 R4 Industrial: 25x8.5-14 or 27x8.5-15 |
|||
|---|---|---|---|---|
| Rear | R1 Bar: 11.2-24 R3 Turf: 41x14-20 R3 Turf Special: 41x18LL-16.1 R4 Industrial: 15-19.5 or 43x16-20 |
|||
| Front tread range | 1117 mm 44 in. |
|||
| Rear tread spacing | 1031 mm 40.6 in. |
| Toolbox | ||||
|---|---|---|---|---|
| Tilt steering wheel | ||||
| 12-V Outlet |
| Date collected |
|---|
*The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower will be less. Offers valid in the United States. Prices in U.S. dollars.
Images of equipment models may be digitally generated, are for illustration purposes only, and are subject to change. Equipment models shown are typically base models and may not reflect all features, options, or attachments. Equipment availability may be limited. See your John Deere dealer for additional information.
