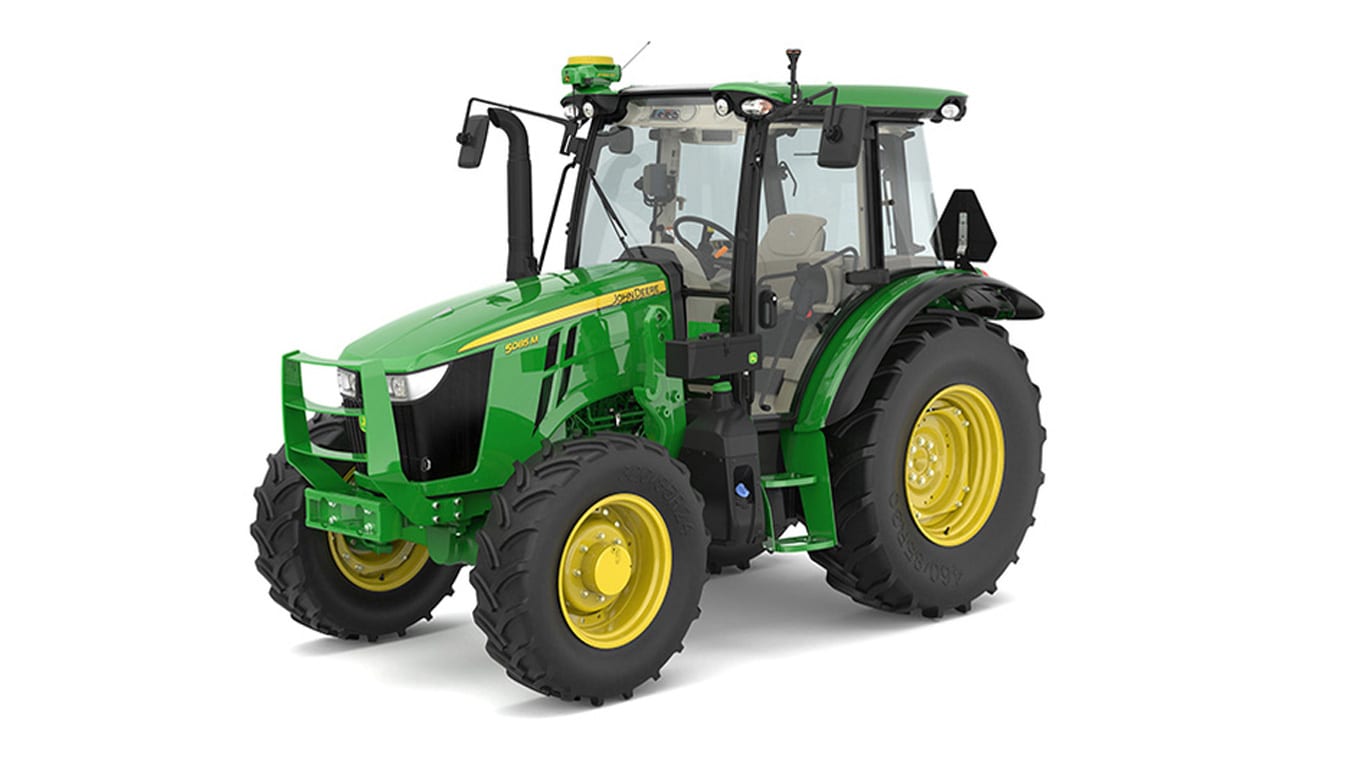

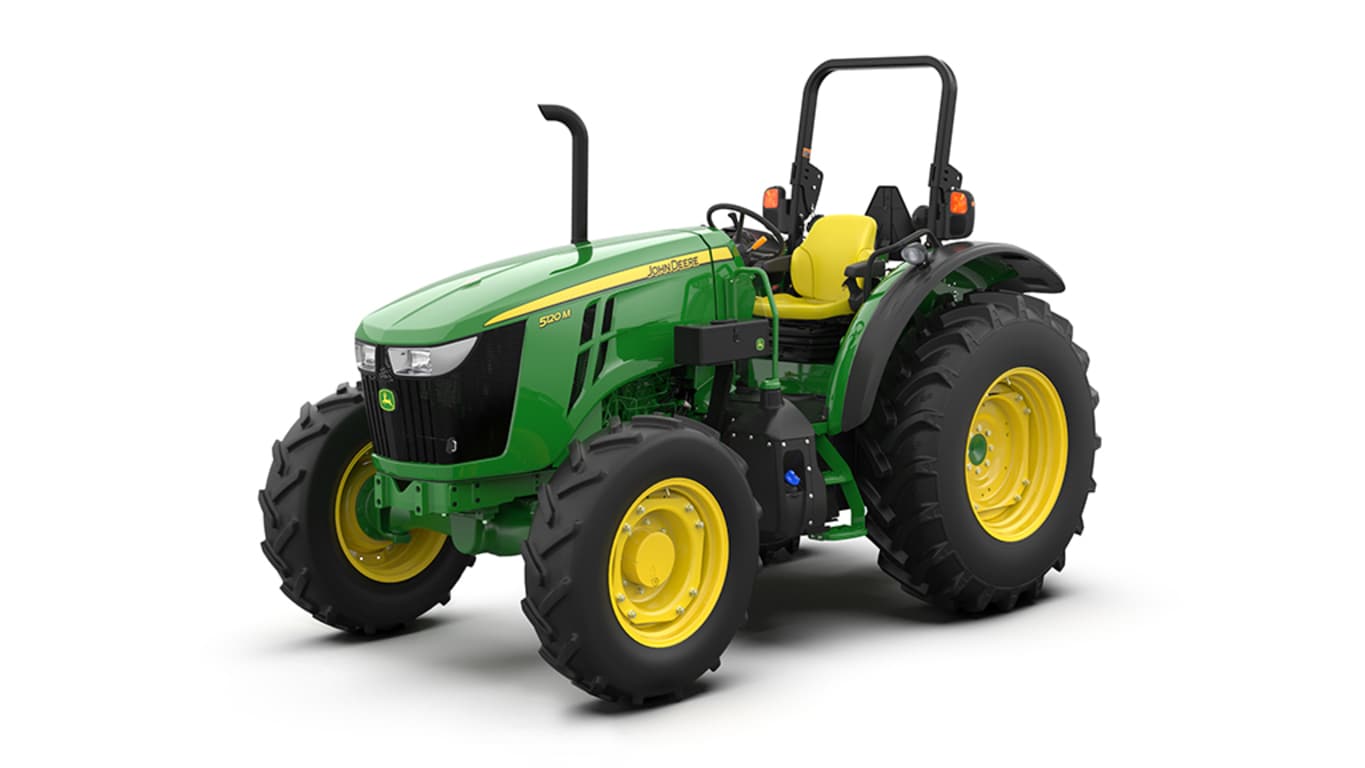

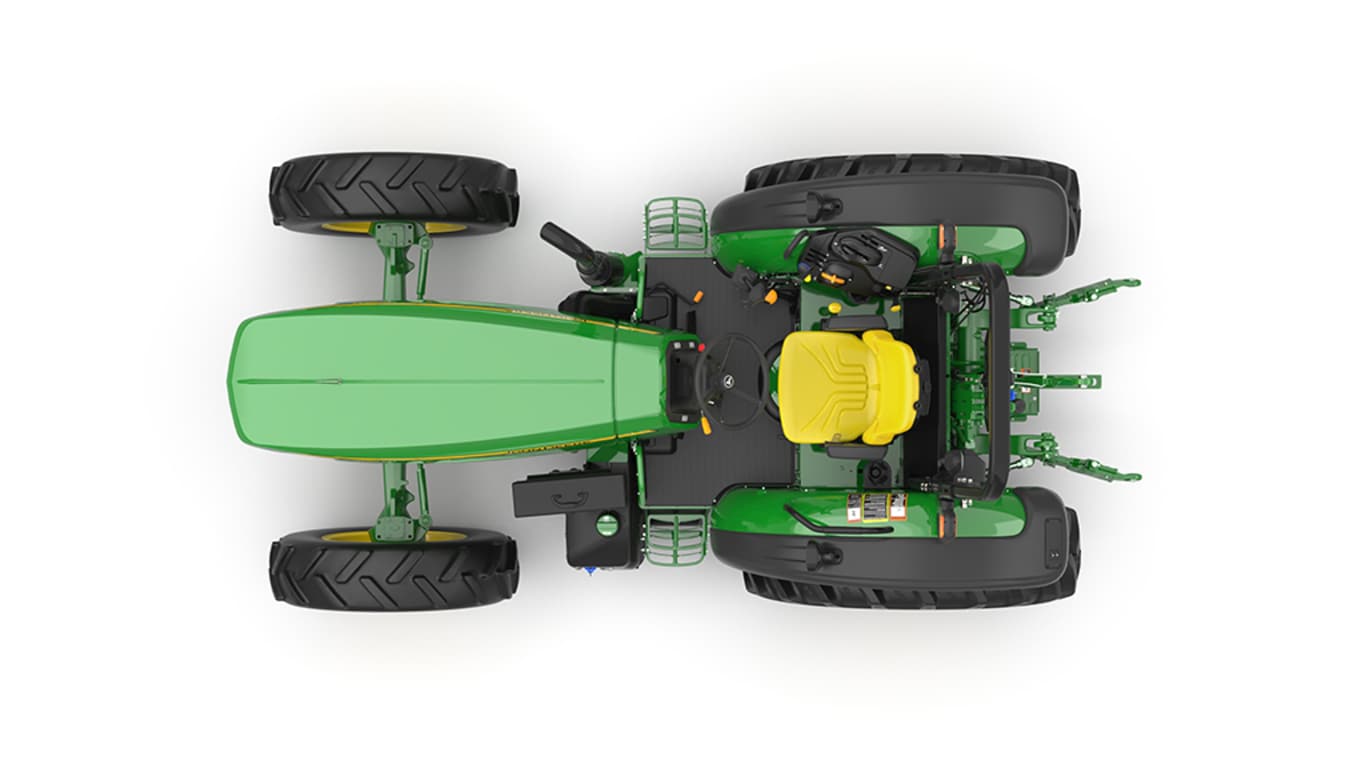

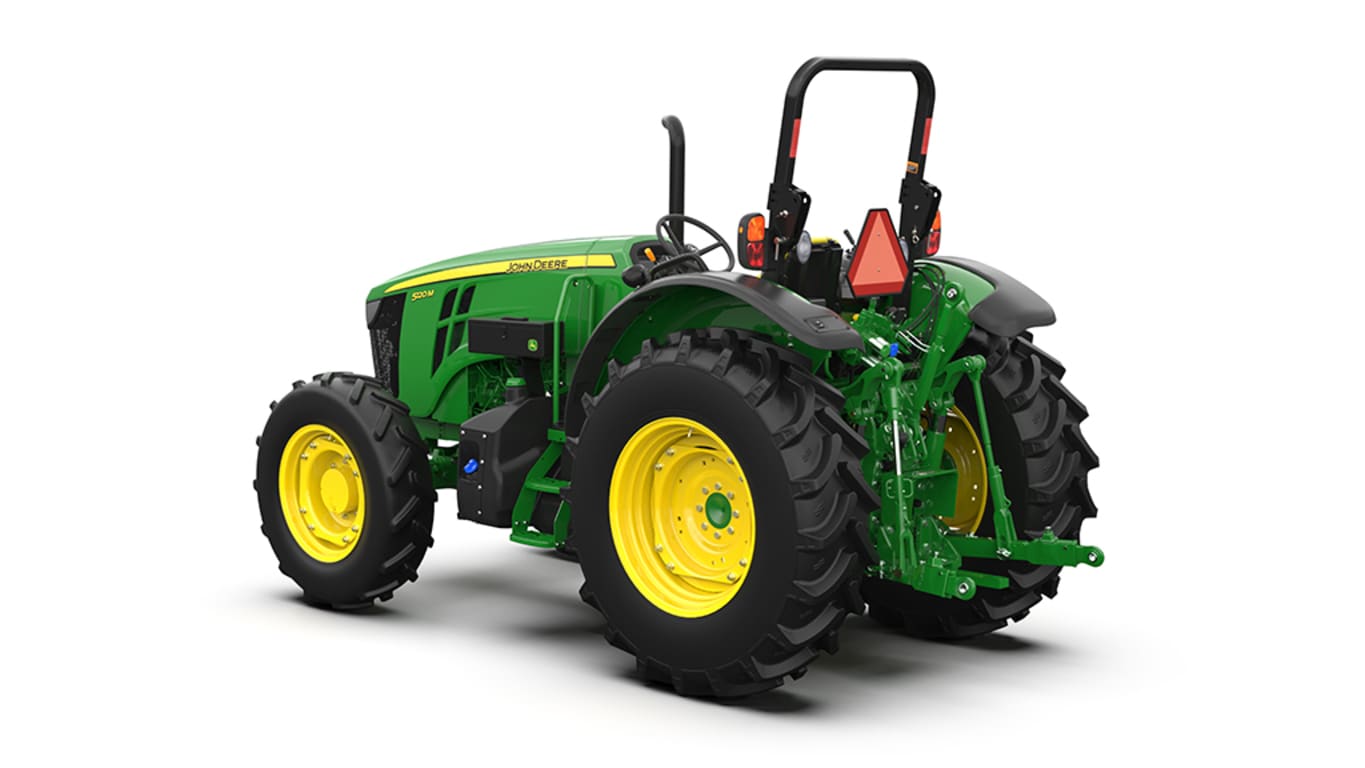

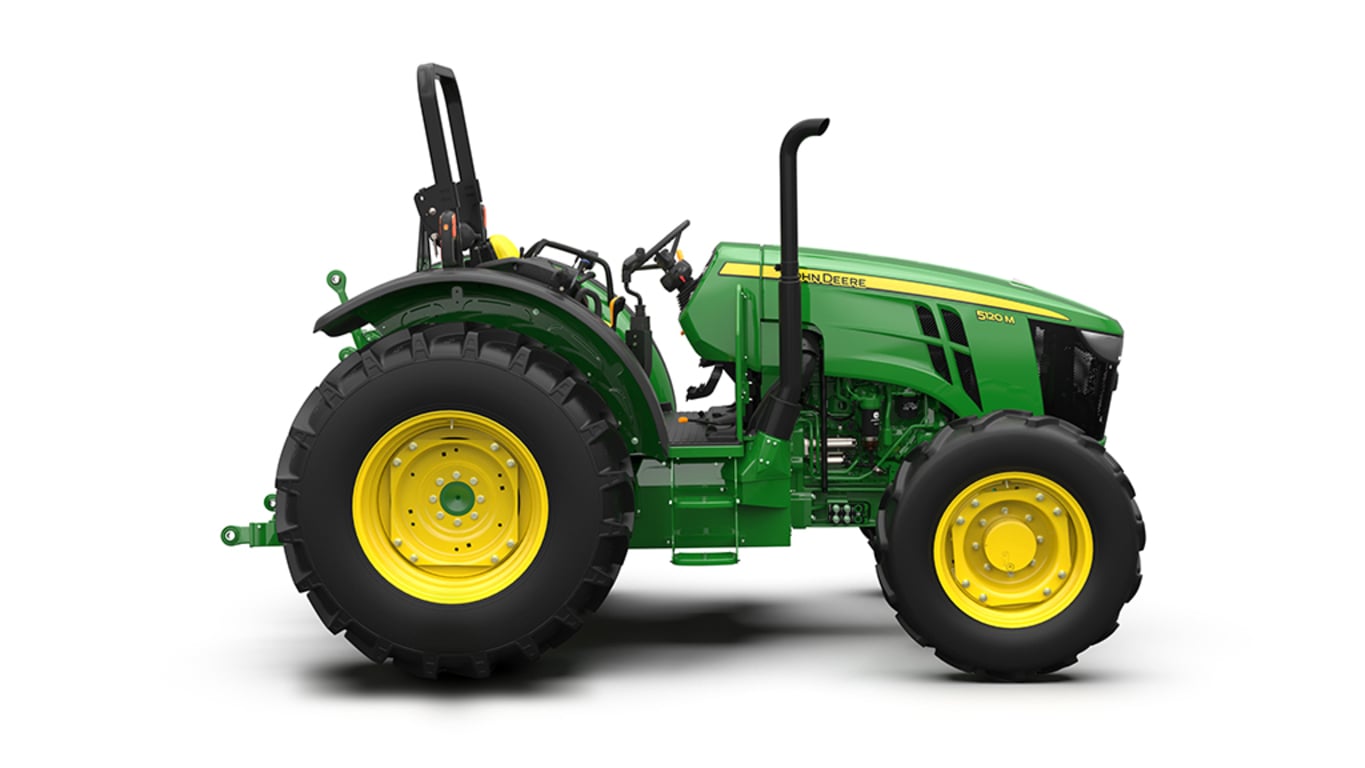

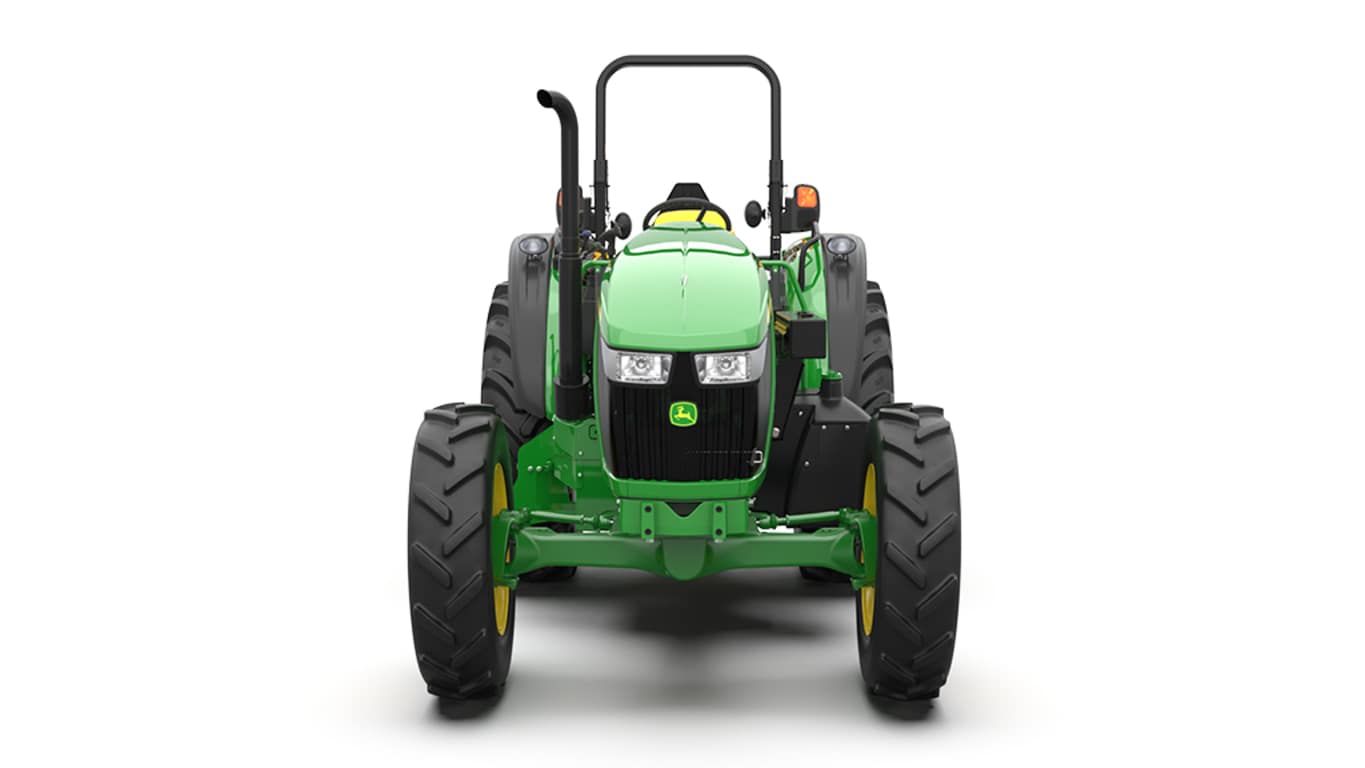

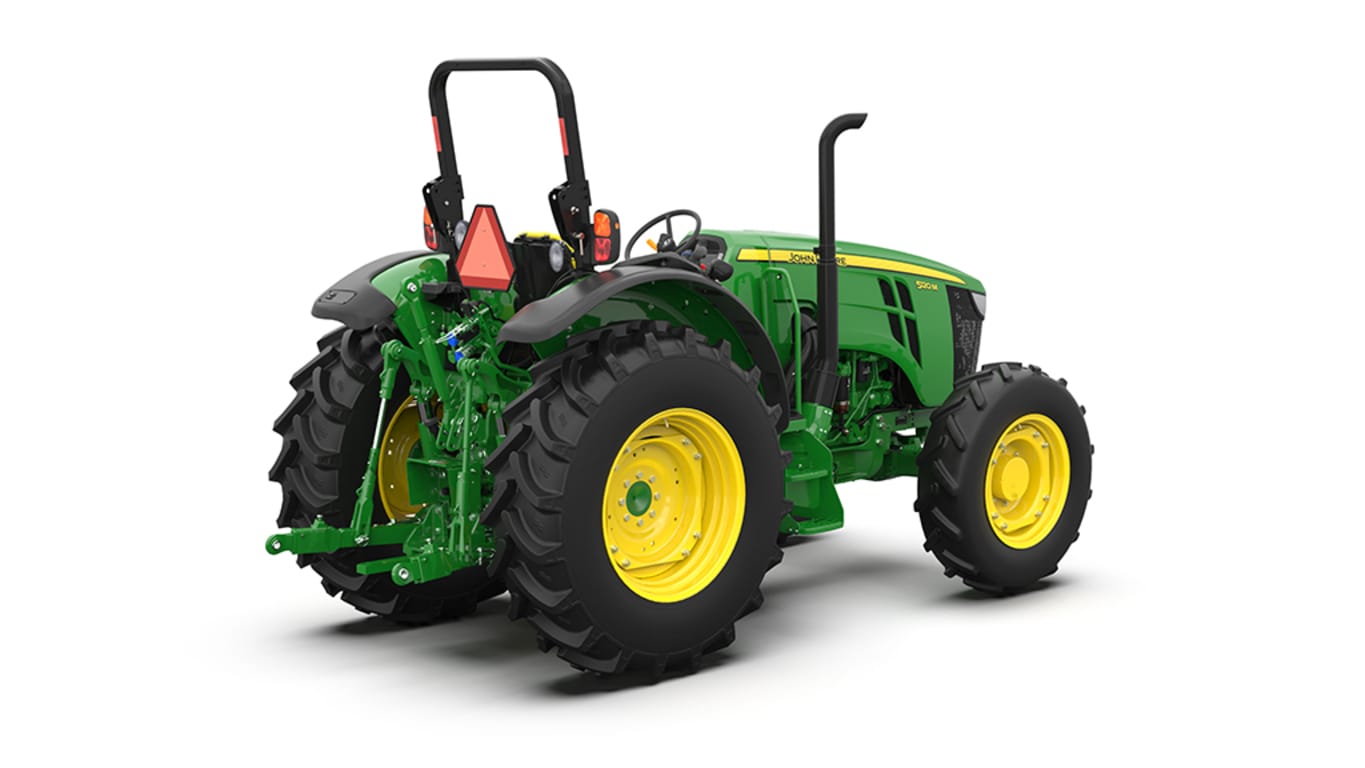

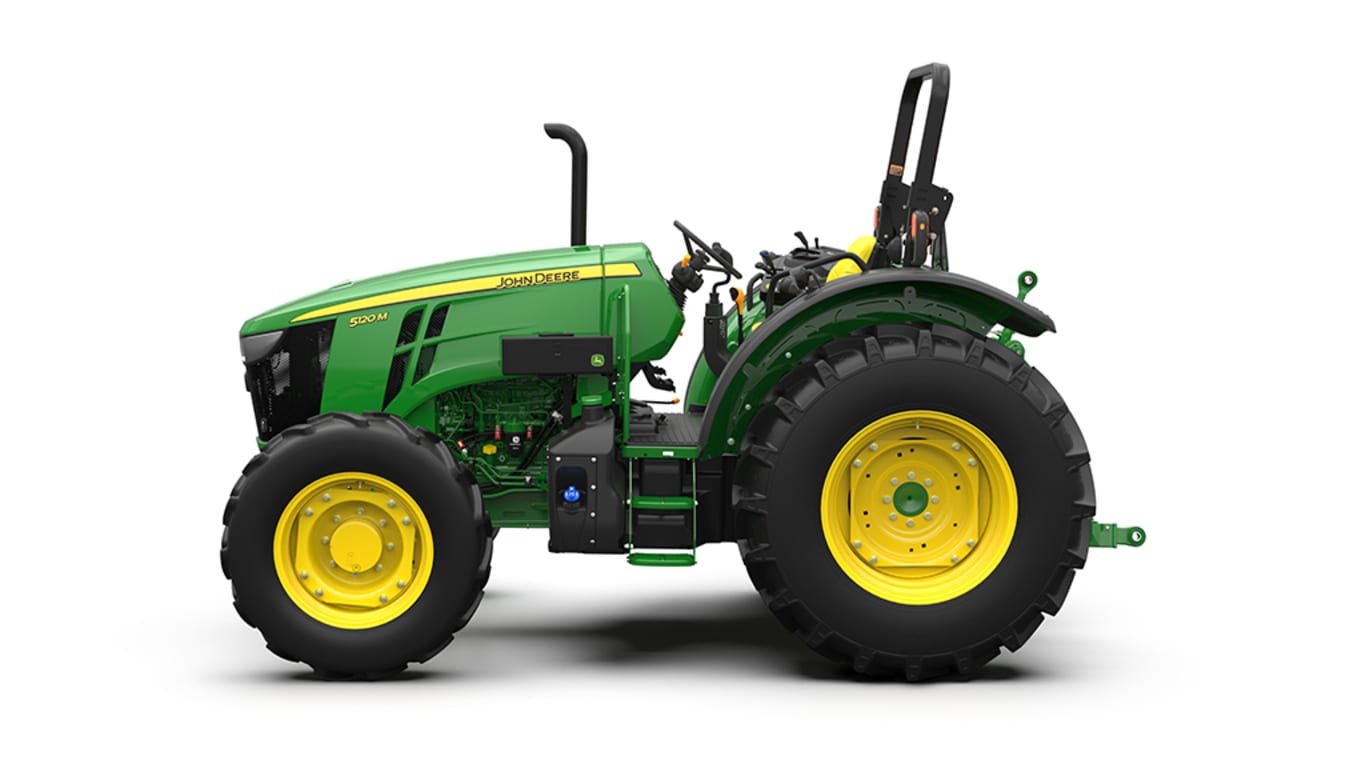

5120MUtility Tractor
- PowrReverser™, PowrQuad™ PLUS or Powr8™ transmission options
- Choose climate-controlled cab or open station
- Hitch lift capacity starting at 5,150 lb (2,336 kg) and optional up to 7,860 lb (3,565 kg)
Features
Expand All
Collapse All
Additional flexibility with bar axle on 5M adds to rear axle offerings
Bar axle shown with steel wheelt
Flange axle with steel wheel

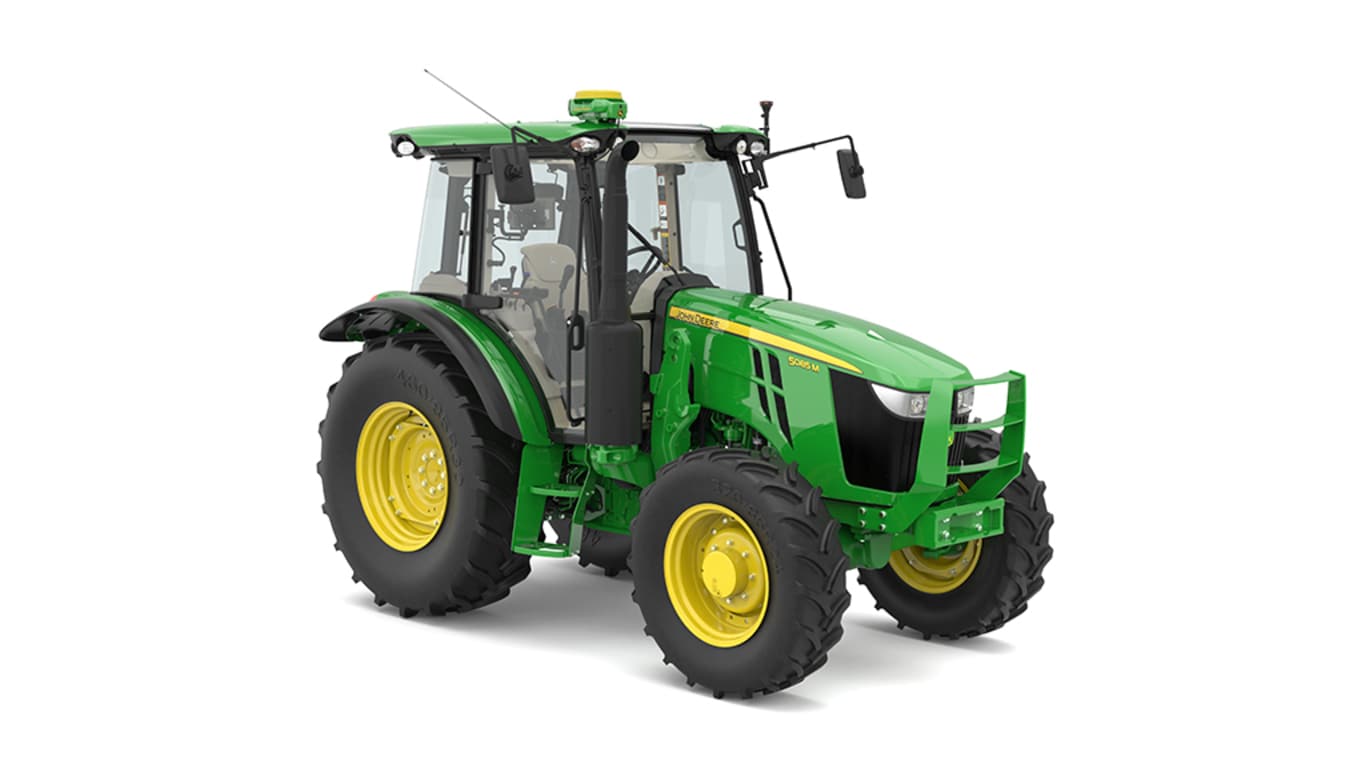

5M Tractor Premium Cab with panorama roof

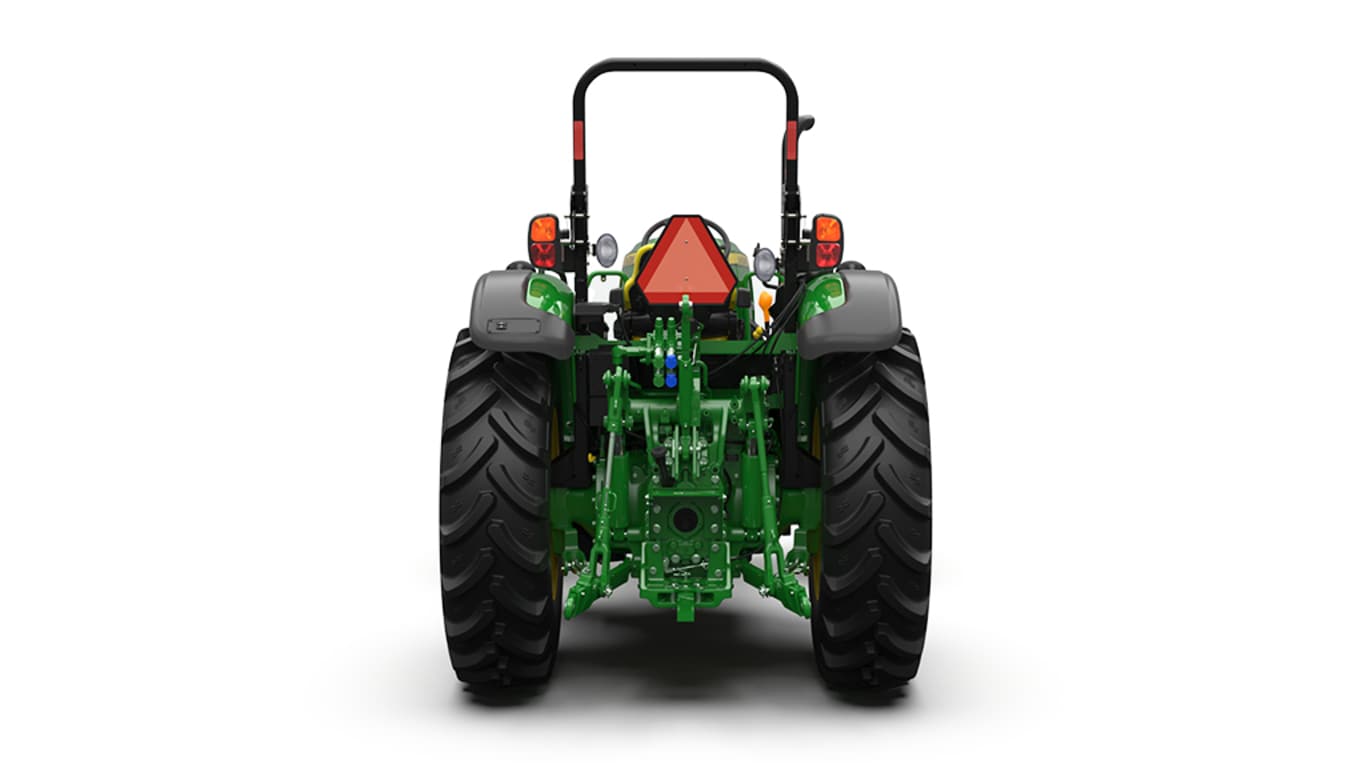

5M Tractor 3-point hitch
5M rear fender hitch controls
Rear quick hitch
Sideview of quick hitch shown on 5M
5M Tractor sway bars
Mowing with AutoTrac™
Spraying with AutoTrac™ Basic
Integrated declutch and gear buttons on single transmission control lever
Integrated declutch button on transmission control lever
Integrated gear buttons on transmission control lever
Hi-Lo selector on gear lever
Shuttle control knob
Gear and range shift levers (cab)t
Gear shift lever open operator’s station (OOS)
Range shift lever (OOS)
Left-hand reverser lever
Integrated declutch button on gear shifter
Creeper lever on 5MH only
Power bulge and torque curve
5M power curve summary
5M torque curve summary
Instrument cluster
Power take-off (PTO) target bars
5E 3-Cylinder Engine
Shielded for protection
Adjust to job with flexible wheel spacing
Additional flexibility with bar axle on 5M adds to rear axle offerings
Overview
Whether fitting down a row spacing, straddling a windrow, or a wide stance for stability mowing on hills – there is a 5M configuration to meet operator’s needs. The rack-and-pinion (better known as ‘bar’) axle joins the existing flange axle offerings of the 5M adding nearly 25.4 cm (10 in.) of tread width on rear axles and brings additional options such as cast wheels that unlock the compatibility for duals. This increased flexibility all comes in the same versatile 5M tractor.
Bar axle shown with steel wheelt
Flange axle with steel wheel
Consult the operator’s manual for specific wheel spacing configurations by tire offering.
Benefits
- 134.874 cm (53.1 in.) to 205.486 cm (80.9 in.) wheel tread range on flange axle configurations
- Up to 228.6 cm (90 in.) wheel tread range on bar axle configuration
- Find the fit with fixed flange axle or fine-tune with adjustable bar axle offerings
- Increased ballast options with cast wheel offerings for bar axles
- Increase flotation with duals compatible with cast wheels on bar axles
Both the bar and flange axles are proven designs used on tractors for years, but this is the first time that bar axles have been brought to the 5-Series lineup.
Premium cab for the ultimate operating experience
5M Tractor Premium Cab with panorama roof
Overview
Experience ultimate operator experience in comfort and convenience by upgrading to the Premium Cab on 5M tractors. Upgrading to the Premium Cab unlocks a fixed panorama roof ideal for loader work.
Benefits
- Improve upward visibility by 80 percent vs standard cab for easier bale stacking, pallet stacking, and dumping loads into walled trailers with the panorama roof
- Additional storage space with the rear floor mat behind the seat
- Excellent visibility to rear operations with the rearview mirror
- Shield the operator from the sun with an easy-to-use front sunshade
Features |
Standard Cab |
Premium Panorama Roof Cab |
Deluxe isolated cab with flat floor |
X |
X |
Tilt and telescopic steering column |
X |
X |
Convenience power outlet |
X |
X |
Air conditioning and heater |
X |
X |
Speedometer |
X |
X |
Beverage Holder |
X |
X |
Sun visor for front window |
X |
X |
Two-speed front windshield wiper and washer |
X |
X |
Two front/two rear roof-mounted worklights |
X |
X |
Two front/two rear roof-mounted warning lights |
X |
X |
Two fender-mounted taillights |
X |
X |
120Amp Alternator |
X |
X |
Convenience power outlet |
X |
X |
Monitor mounting bosses (two Sets) |
X |
X |
Swing-out rear window with two removable rear plugs for monitor |
X |
X |
Right-hand console light |
X |
X |
Radio preparation (with speakers, wiring) |
X |
X |
Rear window grab handle |
X |
X |
Bluetooth® ready |
X |
X |
Requires option code 3025 (Deluxe cornerpost exhaust). |
X |
X |
Fixed panorama roof with shade |
- |
X |
Radio (Bluetooth® Capable) |
- |
X |
Rear window wiper |
Option |
X |
Radio antenna |
- |
X |
Requires option code 4030 (ElectroHydraulic (EH) rear hitch) |
- |
X |
Requires option code 6040 (MFWD) |
- |
X |
Bluetooth is a trademark of Bluetooth SIG, Inc.
Heavy-duty 3-point hitch lift capacity for implement versatility
5M Tractor 3-point hitch
Overview
Heavy-duty 3-point hitch provides lift capacity and adjustability for implement versatility with Category 2 implements or adaptable to Category 1. Precisely raise and lower heavy implements such as planters, sprayers, and field cultivators, using the rockshaft control lever. The operator can also adjust the speed at which an implement is lowered by adjusting the rockshaft rate of drop.
Benefits
- Convenience hooking up implements with telescoping draft links, adjustable sway bars, and interchangeable hitch balls with the choice of either mechanical or electrohydraulic controls.
- Consistency when lowering hitch with depth stop on both mechanical and electrohydraulic hitch controls - each time the position control lever is pushed forward, it stops where the depth stop has been positioned. Useful when preparing a seedbed.
- Compatible with implements needed to perform multiple jobs. Increased lift capacity is available with optional larger cylinders. See Specifications for lift capacity by model.
- Convenience when leveling implements with right lift link being able to adjust without tools - lift links can be adjusted for lateral float to allow implements with gauge wheels or skids to follow the ground contour
Additional details
Mechanical or electrohydraulic hitch control operation
Raise and lower rear implements with precision with either the mechanical or electrohydraulic (EH) hitch control. The operator can also adjust the speed at which an implement is lowered by adjusting the rockshaft rate of drop.
The mechanical hitch control is paired with the tractors equipped with a PowrReverser™ transmission while the EH hitch control is paired with units equipped with a PowrQuad™ PLUS or Powr8™ transmission. Both control types enable the operator to adjust the speed at which an implement can be lowered by adjusting the rockshaft rate of drop. In addition to this feature, the EH hitch control adds repeatable movements by enabling the operator to set both an upper and lower limit.
The adjustable depth stop (found on both control types) provides consistency when lowering the hitch. Each time the position control lever is pushed forward, it stops where the depth stop has been positioned. This feature is a value to anyone who desires a consistent, level ground, like when preparing a seedbed.
The center link can be set in one of three positions to accurately set the implement position and draft sensing. The right lift link is adjustable without tools for added convenience when leveling implements.
Optional larger cylinders:
Transmission |
Cylinder diameter |
Lift capacity at 610-mm (24-in) behind lift point |
PowrReverser™ transmission models |
Two 65-mm (2.56-in.) cylinders |
See specifications for lift capacity. |
PowrReverser models with optional high-capacity hitch |
One 65-mm (2.56-in.) cylinder |
|
PowrQuad PLUS or Powr8 transmission models |
Two 75-mm (2.95-in.) cylinders |
|
PowrQuad PLUS or Powr8 models with optional high-capacity hitch |
Two 80-mm (3.15-in.) cylinders |
Rear fender hitch controls
5M rear fender hitch controls
Operators do not need to carry a tool to adjust the rear hitch. Operators can also raise and lower the 3-point hitch from outside of the tractor with the conveniently located rear fender hitch controls.
Rear quick hitch
Rear quick hitch
Sideview of quick hitch shown on 5M
An updated three-point quick hitch is offered on the 5M Tractors.
- This updated design is a break from the existing welded quick hitch as the frame is cast.
- The curved design eliminates the potential for contact with the rear fender and extensions.
- The quick hitch is available as a field kit option.
Sway bars
5M Tractor sway bars
Adjustable sway bars and telescoping draft links can be easily adjusted to adapt to a wide variety of implements. The right lift link also adjusts without tools for added convenience when leveling implements.
Focus on the job while AutoTrac™ guidance keeps on track
Mowing with AutoTrac™
Spraying with AutoTrac™ Basic
Manage in-field efficiency and reduce operator fatigue by engaging AutoTrac on your 5M or 5ML tractor. AutoTrac provides operators with a hands-free guidance solution with accuracy on a variety of field conditions. Reduce operator fatigue without the need for an additional display with AutoTrac Basic which provides straight line AutoTrac guidance in the digital dash display.
Enable the following benefits by equipping your tractor with AutoTrac, a 4240 Universal Display and a StarFire™ receiver:
- Simple and user friendly
- Reduces operator fatigue and error
- Saves time by eliminating implement overlap
- Optimizes machine efficiency
- Increase data driven decisions by documenting jobs
Potential jobs to use with AutoTrac:
- Cutting hay
- Over seeding
- Cultivation
- Disking
- Spraying
- Mowing
- Planting
- Fertilizer applications
- Pulling in irrigation pipe
- Cutting ditches
- Transplanting
- Harvesting
Learn more about the benefits of 4240 universal display and Gen5 universal display.
Learn more about the benefits of a StarFire 6000 receiver and StarFire 7000 receiver.
Take charge with PowrQuad™ PLUS and Powr8™ transmissions
Integrated declutch and gear buttons on single transmission control lever
Overview
A more productive transmission in a mid-spec utility tractor is found with PowrQuad PLUS and Powr8 transmissions which builds on the clutch less hydraulic shifting between forward and reverse of the PowrReverser™ transmissions with simple push-button gear shifting.
Benefits
- Ergonomically placed transmission control lever allows the operator to change gears and ranges using one lever
- Improved efficiencies by reducing steps to change gears by 35 percent
- Effortlessly switch directions with a small finger motion using the electrohydraulic fingertip directional lever
- Ideal for loader work and any applications that require frequent directional changes in tight spaces
- Eliminates wear on the clutch by automating gear shifts at the push of a button
Additional details
The PowrQuad™ transmission can be ordered with different options to meet customer needs:
|
PowrQuad™ PLUS 16F/16R |
Powr8™ 32F/16R |
Powr8™ 32F/16R with creeper |
5M Cab |
Option |
Option |
Option |
5ML Open Station |
Option on 5105ML and 5120ML Base on 5130ML |
Option on 5105ML and 5120ML Base on 5130ML |
Not Applicable |
5ML Cab |
Base |
Not Applicable |
Option |
PowrQuad/Powr8 transmissions include:
- Wet clutch
- Ergonomically mounted transmission lever controlling both gear and range changes
- Declutch button on the range lever for range shifting optionally without use of foot clutch
- Left-hand reverser for seamless directional changes
- Constant-mesh, helical-cut gears
- Pressure-lubricated top shaft
- Positive park pawl
- Three-speed PTO
- Neutral start switch
Integrated declutch button on transmission control lever
Integrated gear buttons on transmission control lever
Ranges on the transmission control can be selected by moving the controller in an H pattern. The lever selects ranges A, B, C, or D. Ranges are fully synchronized. That means when upshifting, operators can move between any range A-D without stopping the tractor.
Two buttons allow operators to gear up (rabbit) or gear down (turtle) within a range. A PowrQuad has 4 gear speeds per range while a Powr8 has 8 per forward range which is precisely how they got their names.
Increase speed control with PowrReverser™ Hi-Lo 32F/16R transmission
Hi-Lo selector on gear lever
Overview
For operators requiring more field speeds to achieve the most precise operating ranges, as well as for quickly moving from task to task with transport speeds of up to 40.23 km/h (25 mph), the PowrReverser™ Hi-Lo 32F/16R transmission is the ideal choice. This transmission provides 32F/16R speeds for the ultimate in speed selection.
Benefits
- Effortlessly switch directions with a small finger motion using the electrohydraulic fingertip directional lever
- Frees the right hand to operate other tractor controls, such as the loader, rear implements, or throttle, as the directional lever allows the operator to steer and shift direction with the left hand
- The control is located on the left side of the instrument console and selects forward, reverse, and neutral positions
- Clutch-less hydraulic shifting between forward and reverse
- Convenient push-button controls actuate the electrohydraulic hi-lo selector providing an extra 20% increase/decrease in speed for each forward gear
- Lower engine vibration, reduced noise, less wear and tear on the engine, reduced fuel consumption, and increased operator comfort from the standard economy PTO (E-PTO)
Additional details
32F/16R transmission includes:
- Hydraulic wet clutches (forward and reverse)
- Maximize durability and outlast the life of any dry clutch
- When tractors are run by multiple operators with a variety of experience levels, a wet clutch is the best way to maintain transmission integrity and performance while decreasing clutch replacement costs
- Platform-mounted shift levers (four gears, four ranges)
- Two platform-mounted levers offer easy and comfortable shifting for a pleasant operator experience
- The gear-shift lever is easy to reach, and the less-used range lever is shorter. Unique knobs make it easy to distinguish between the two
- Left-hand reverser
- Constant-mesh helical-cut gears
- Provide quieter operation and excellent reliability while the pressure-lubricated top shaft adds to the transmission durability
- Fully enclosed, rigid shift linkages for short throw and crisp shifts enable all operators to clearly know in what range and gear they are operating
- Pressure-lubricated top shaft
- Positive park pawl: provides positive park and eliminates the need for a hand brake
- Neutral start switch
The gear lever selects one of four speeds, all synchronized shifts for on-the-go shifting with the use of the clutch. This same lever is where the hi-lo control buttons are located which provide a single shift up/down in speed within each forward range. The rear lever selects ranges A, B, C, or D. All ranges are fully synchronized which means, when shifting, operators can move between any range A-D without stopping the tractor.
The hi-lo feature benefits operators who frequently transport their tractors from field to field or find themselves in bog-down situations during rear power take-off (PTO) work such as baling in variable sized windrows. Customers can push the rabbit button (high) without having to depress the clutch to get a 20 percent increase in speed. They can also push the turtle button (low) to get a 20 percent decrease in speed, similar to downshifting or engine braking without having to grab another gear.
Shuttle control knob
The 32F/16R transmission includes the infinitely variable shuttle control feature allowing fine-tuning of the speed of directional changes to the operator's preference or application demands. This dial adjusts the aggressiveness of the tractor’s directional change. Some prefer a quicker more precise change, whereas other operators are more comfortable with a slow roll out before moving in the opposite direction. This feature can be significant for precision work with pallet forks or changing to bale stacking applications.
The PowrReverser™ has a built-in engagement override valve for additional safety. This valve requires the clutch pedal to be depressed one time after each engine start before the transmission will begin to operate normally, giving the operator another opportunity to put all focus on the tractor.
NOTE: A neutral start switch requires the directional lever be in the neutral position to start the engine. NOTE: See PTO detailed feature for more information on E-PTO.
PowrReverser™ 16F/16R transmission
Overview
Ample speeds and ease of operation for demanding applications with the 16F/16R PowrReverser, providing 16 forward speeds and 16 reverse speeds. This transmission comes standard with a dual speed 540/540 Economy power take-off (PTO), and it is ideal for applications requiring frequent directional changes, such as loader work.
Benefits
- Effortlessly switch directions with a small finger motion using the electrohydraulic fingertip directional lever
- Frees the right hand to operate other tractor controls, such as the loader, rear implements, or throttle, as the directional lever allows the operator to steer and shift direction with the left hand
- Ideal for rear blading and any applications that require frequent directional changes in tight spaces
- Clutch-less hydraulic shifting between forward and reverse
- Lower engine vibration, reduced noise, less wear and tear on the engine, reduced fuel consumption, and increased operator comfort from the standard economy PTO (E-PTO)
Additional details
16F/16R transmission includes:
- Hydraulic wet clutches (forward and reverse)
- Maximize durability and outlast the life of any dry clutch
- When tractors are run by multiple operators with a variety of experience levels, a wet clutch is the best way to maintain transmission integrity and performance while decreasing clutch replacement costs
- Platform-mounted shift levers (four ranges, four gears)
- Two platform-mounted levers offer easy and comfortable shifting for a pleasant operator experience
- The gear-shift lever is easy to reach, and the less-used range lever is shorter. Unique knobs make it easy to distinguish between the two
- Left-hand reverser
- The control is located on the left side of the steering column and selects forward, reverse, and neutral positions
- Constant-mesh helical-cut gears
- Provide quieter operation and excellent reliability while the pressure-lubricated top shaft adds to the transmission durability
- Fully enclosed, rigid shift linkages for short throw and crisp shifts enable all operators to clearly know in what range and gear they are operating
- Pressure-lubricated top shaft
- Positive park pawl: provides positive park and eliminates the need for a hand brake
- Neutral start switch
Gear and range shift levers (cab)t
Gear shift lever open operator’s station (OOS)
Range shift lever (OOS)
The forward lever selects one of four speeds, all synchronized shifts for on-the-go shifting with the use of the clutch. The rear lever selects ranges A, B, C, or D. All ranges are fully synchronized. When upshifting, operators can move between ranges without stopping the tractor providing convenience for on-the-go shifting from field to transport.
Left-hand reverser lever
NOTE: A neutral start switch requires the directional lever be in the neutral position to start the engine.
Integrated declutch button on gear shifter
NOTE: The PowrReverser transmission is not available for the 5130M or 5130ML tractors.
The PowrReverser has a built-in engagement override valve for additional safety. This valve requires the clutch pedal to be depressed one time after each engine start before the transmission will begin to operate normally, giving the operator another opportunity to put all focus on the tractor.
See the PTO functional area for more information on E-PTO.
Creeper lever on 5MH only
The creeper gears are accessible by engaging the creeper lever into rabbit or turtle position. This provides 2 additional slow working ranges perfect for bedded crops.
See the PTO functional area for more information on E-PTO.
Power bulge and torque reserve pull through the tough spots
Power bulge and torque curve
Overview
When the tractor is under load, power bulge and torque rise work together to get through the tough spots without having to downshift.
As rpm drops, the only way to maintain or increase horsepower is to provide additional torque. Whether bailing wet hay or lifting a heavy load, the additional power allows the tractor to continue performing the job without stopping. The rated economy power take-off (EPTO) speed occurs near the peak torque rise providing power when operator need it in PTO applications.
Benefits
- Increased productivity in demanding conditions with more power when operator need it
- More lugging ability for quicker power recovery
- Additional torque provides force to remain horsepower as engine rpm drops below rated speed
Additional Details
Horsepower and torque are mathematically related.
5M 4-Cylinder tractors provide 4% power bulge. Note: There is no power bulge on 3-Cylinder tractors (5075M).
5M Power and Torque Curves
5M power curve summary
5M torque curve summary
Automotive-style light-emitting diode (LED) instrument cluster
Instrument cluster
Power take-off (PTO) target bars
Overview
Operators can view information in a crisp, vibrant, and useful array on the tractor instrument cluster.
Benefits
- Clear and bright indicators, warning lights, and gauges
- Provides operators with crucial onboard diagnostics through the roll-mode function
- Visibility of engine hours, ground speed, Hi-Lo indicator, forward, neutral, and reverse all at the same time
- Light-out indicator for trailer light, turn light, and hazard light bulbs
- Clearly presented PTO target bars to indicate the correct PTO speeds when operating the PTO
Additional details
There are daytime and nighttime modes which are based on the position of the light switch. The mode adjusts the backlight levels of the display for optimum visibility.
EPA Final Tier 4 (FT4) compliant engines with maximum fluid efficiency
5E 3-Cylinder Engine
Overview
The U.S. EPA and Environment Canada requires all off-road diesel engines with 18.6 kW (25 hp) or more to meet stringent FT4 emissions regulations.
5E 3-Cylinder models are equipped with powerful, reliable engine with no regen required while still meet the U.S. Environmental Protection Agency (EPA) Final Tier 4 (FT4) exhaust emissions regulations. The John Deere PowerTech™ 3029 EWR engine utilizes a diesel oxidation catalyst (DOC) and cooled exhaust gas recirculation (EGR) aftertreatment system – with no DEF fluid, no DPF, and no regen required, you can focus on completing your jobs while your tractor keeps providing the power you need.
- Provide excellent torque and fuel efficiency
- See over the hood with compact aftertreatment design
- Outstanding performance and durability
PowerTech EWL/EWR/EWX/PWL/PWS/PSS/PVS engine identification
NOTE: find a tractor’s 3 character engine identification by referencing the ‘engine description’ in specifications.
| EWL
 |
Aftertreatment
|
Turbocharger
|
|
Technology
|
Several defining features on 5 Series tractors maximize the performance and reliability of the emissions package. A completely shielded DOC/DPF not only protects essential components from damage, it also keeps out dirt and debris. The well-packaged and tightly organized circulation system means there is more room to work around the tractor.
Key components of the emissions system
Shielded for protection
Diesel oxidation catalyst (DOC), diesel particulate filter (DPF), and cooled exhaust gas recirculation (EGR) Deere has chosen to utilize an exhaust filter (DOC) and/or diesel particulate filter (DPF) to reduce particulate material so the engine can operate at a level which produces less nitrogen oxide (NOx). With less NOx created, it requires less DEF to treat or no DEF for 3-cylinder models. The result is improved total fluid economy (diesel and DEF). Some applications also reduce NOx using cooled exhaust gas recirculation (EGR) that allows a controlled amount of exhaust gas to be returned to the engine leading to lower combustion temperature for a cleaner, more efficient exhaust.
The engine is programmed to aggressively respond to changes in power needs, which can temporarily increase particulate matter. Since the exhaust filter removes particulate matter instead of the engine, the engine is left free to do what it is designed to do – deliver all ofthe power, torque, plus transient response needed at the exact moment needed.
Wastegate Turbocharger
Wastegate turbochargers are designed to develop more airflow at lower engine speeds to improve low-speed torque. The wastegate control device bleeds off a portion of the exhaust flow at higher engine speeds. Wastegate turbos deliver improved transient response and higher peak torque without compromising engine envelope size. They also provide the lowest installed cost across a given power range.
For more information regarding EPA regulations and the technology behind John Deere Integrated Emissions Control systems, please visit the following link: http://www.deere.com/wps/dcom/en_US/campaigns/ag_turf/emissions/final_tier_4.page or https://www.deere.ca/en/engines-and-drivetrain/final-tier-4/
Specifications
Add Model
| Specifications | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 5120M Utility Tractor |
Key Specs
| Engine description | John Deere PowerTech™ 4045 EWL | |||
|---|---|---|---|---|
| Engine displacement | 4 cylinder: 4.5 L 276 cu in. |
|||
| Rated engine power | At 2200 rpm: 88.5 kW 120 hp |
|||
| Maximum engine power | 92.1 kW 123.5 hp |
|||
| Rated PTO power (hp SAE) | At 2100 rpm: 77.2 kW 105 hp |
|||
| Maximum PTO power | ||||
| Transmission type | Standard: PowrReverser™ 16F/16R Optional: PowrReverser™ Hi-Lo 32F/16R PowrQuad™ PLUS 16F/16R Powr8™ 32F/16R Powr8™ 32F/16R with creeper |
|||
| Hydraulic pump rated output | PowrReverser™: 94 L/min 24.7 gpm PowrQuad™ PLUS/Powr8™: 97 L/min 25.6 gpm |
|||
| Rear hitch category (SAE designation) | Category 2; convertible to 1 | |||
| Base machine weight | ||||
| Maximum PTO power at rated engine speed with intellegent power management (IPM) | ||||
| Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628) | ||||
| Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628) |
Engine specifications
| Description | John Deere PowerTech™ 4045 EWL | |||
|---|---|---|---|---|
| Engine type | 4045HLV82 | |||
| Engine family | NJDXL04.5317 | |||
| Rated speed | 2200 rpm | |||
| Aspiration | Turbocharged/air-to-air aftercooled | |||
| Cylinders liners | Wet sleeved | |||
| Emission level | Final Tier 4 | |||
| After treatment type | DOC/SCR | |||
| Displacement | 4 cylinder: 4.5 L 276 cu in. |
Engine performance
| Rated power | At 2200 rpm: 88.5 kW 120 hp |
|||
|---|---|---|---|---|
| Rated PTO power (hp SAE) | At 2100 rpm: 77.2 kW 105 hp |
|||
| Maximum PTO power | ||||
| Intelligent Power Management (IPM) | ||||
| Power boost | At 1900 rpm: 4 percent | |||
| Maximum engine power | 92.1 kW 123.5 hp |
|||
| Engine peak torque | At 1600 rpm: 500 Nm 369 lb-ft |
|||
| Drawbar power | ||||
| PTO torque rise | At 1600 rpm: 30 percent | |||
| Fuel injection system and control | ||||
| Air cleaner type | ||||
| Maximum PTO power at rated engine speed with intellegent power management (IPM) | ||||
| Maximum engine torque (without power boost at 1.600 engine rpm) | ||||
| Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628) | ||||
| Maximum engine power with intelligent power management (IPM) | ||||
| Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628) |
Transmission
| Type | Standard: PowrReverser™ 16F/16R Optional: PowrReverser™ Hi-Lo 32F/16R PowrQuad™ PLUS 16F/16R Powr8™ 32F/16R Powr8™ 32F/16R with creeper |
|||
|---|---|---|---|---|
| Reverser | Left hand, electrohydraulic | |||
| Clutch; wet/dry | Wet | |||
| Creeper | Powr8™ 32F/16R with creeper | |||
| Integrated Electric Power Generation |
Hydraulic system
| Type | Open center | |||
|---|---|---|---|---|
| Pump rated output | PowrReverser™: 94 L/min 24.7 gpm PowrQuad™ PLUS/Powr8™: 97 L/min 25.6 gpm |
|||
| Available flow at a single rear SCV | PowrReverser™: 70 L/min 18.4 gpm PowrQuad™ PLUS/Powr8™: 73 L/min 19.3 gpm |
|||
| Available flow at front SCVs | ||||
| Number of rear selective control valves (SCVs) | Standard: Two Optional: Three |
|||
| Number of mid selective control valves (SCVs) | Standard: Two Optional: Up to Three |
|||
| Number of front selective control valves (SCVs) | ||||
| Joystick SCV control | Mechanical | |||
| Auxiliary hydraulic features | ||||
| SCV control | ||||
| Available oil flow at a single rear SCV (200 Type) | ||||
| Available oil flow at a single rear SCV (450 Type) | ||||
| Available oil flow at a single rear SCV (450E Type) |
Rear hitch
| Hitch draft control load sense type | Mechanical or Electrohydraulic | |||
|---|---|---|---|---|
| Remote control valves available | Standard: Two Optional: Three |
|||
| Hitch category (SAE designation) | Category 2; convertible to 1 | |||
| Maximum lift capacity behind lift points | Standard for PowrReverser™: 2336 kg 5150 lb Optional for PowrReverser™: 2699 kg 5950 lb Standard for PowrQuad™ PLUS/Powr8™: 3161 kg 6970 lb Optional for PowrQuad™ PLUS/Powr8™: 3565 kg 7860 lb |
|||
| Lift capacity at standard frame | ||||
| Sensing type | Lower link | |||
| Rear axle differential lock | Electrohydraulic | |||
| Maximum lift capacity directly at coupling points | ||||
| Rear hitch lift capacity (SAE designation) | ||||
| Throughout lift capacity, 610 mm behind the coupling points |
Drawbar
| Drawbar category | Category 2 | |||
|---|---|---|---|---|
| Maximum vertical load | Road/field use (250-mm extended): 1450 kg 3197 lb Field use (350-mm extended): 1200 kg 2646 lb Field use (400-mm extended): 1200 kg 2646 lb |
Rear power take-off (PTO)
| Type | Independent, 34.9 mm (1.375 in) Standard: 540/540 Economy (6 spline) Optional: 540/540E (6 spline) and 1000 rpm (21 spline) reversible shaft |
|||
|---|---|---|---|---|
| Engine rpm (at rated PTO speeds) | 540 at 2100 rpm 540E at 1645 rpm 1000 at 2100 rpm |
|||
| Economy PTO speeds | ||||
| Reverse PTO speeds | ||||
| Multispeed PTO option availability | ||||
| Ground speed PTO option availability | ||||
| PTO actuation | Electrohydraulic | |||
| Engine rpm at rated PTO speeds (540/1.000) | ||||
| Engine rpm at rated PTO speeds (540/540E/1.000) | ||||
| Engine rpm at rated PTO speeds (540E/1000/1.000E) |
Front hitch
| Category | Category 2 | |||
|---|---|---|---|---|
| Electric power | ||||
| Standard lift capacity | 1931 kg 4257 lb |
|||
| Front power take-off (PTO) | 1000 rpm (21 spline) 34.9 mm (1.375 in.) |
|||
| PTO speed | 1000 at 2200 |
Rear axle
| Type | Standard: Flange Optional: Rack-and-pinion (Bar) |
|||
|---|---|---|---|---|
| Final drive type | Inboard planetary | |||
| Differential controls | Electrohydraulic | |||
| Axle type | ||||
| Brakes, type and control | Hydraulic wet disc | |||
| Rear differential lock | ||||
| Load rating |
Front axle
| Type | Mechanical Front Wheel Drive (MFWD) | |||
|---|---|---|---|---|
| Front axle differential lock | ||||
| Load rating |
Tires
| Rear | MFWD: 18.4R30 (460/85R30) R1W Radial | |||
|---|---|---|---|---|
| Wheel tread range | MFWD: front: 1299-1997 mm 51.1-78.6 in. rear: 1350-2286 mm 53.1-90 in. |
|||
| Turning radius with brakes | MFWD: 3.85 m 12.6 ft |
|||
| Turning radius without brakes | MFWD: 4.0 m 13.1 ft |
|||
| Central Tire Inflation System (CTIS) | ||||
| Front |
Tracks
| Tread spacing | ||||
|---|---|---|---|---|
| Drive type | ||||
| Track width | ||||
| Mid-rollers |
Steering
| Type |
|---|
Brakes
| Primary brake (foot brake) | ||||
|---|---|---|---|---|
| Secondary brake | ||||
| Park lock | ||||
| MFWD braking | ||||
| Front axle brakes | ||||
| Auxiliary brakes | ||||
| Hydraulic trailer brakes | ||||
| Pneumatic trailer brakes |
Electrical system
| Alternator size | OOS: 90 amp Cab: 120 amp ISOBUS/GreenStar™ Ready: 200 amp |
|||
|---|---|---|---|---|
| Battery options | 12 V | |||
| Working lights | Standard: Halogen Optional: LED |
|||
| Type of bulb in headlight (Halogen, Zenon, LED) | Standard: Halogen Optional: LED |
|||
| Type of bulb in beacon (Halogen, Zenon, LED) | Optional: LED | |||
| dB(A) rating for backup alarm | ||||
| Total cold cranking amps |
Operator station
| Rollover protective structure, OOS | Rigid - foldable - telescopic Foldable, two-post Platform - flat/straddle Flat Gearshift location - console/floor Floor |
|||
|---|---|---|---|---|
| Seat | Standard: Mechanical Optional: Air Ride or Premium Air Ride |
|||
| Cab suspension | ||||
| Instructional seat | Optional | |||
| Display | PowrReverser™: Automotive-style light-emitting diode (LED) instrument cluster PowrQuad™ PLUS/Powr8™: Digital Dash Display with three liquid crystal displays (LCDs) |
|||
| Radio | Optional | |||
| Inner cab volume | ||||
| dB(A) rating | 78 dBA | |||
| Cab glass area | ||||
| Safety glass rating | ||||
| Front visibility |
Dimensions
| Wheelbase | 2350 mm 92.5 in. |
|||
|---|---|---|---|---|
| Overall width | ||||
| Overall length | OOS: 4081 mm 160 in. Cab: 4089 mm 161 in. |
|||
| Overall height | ||||
| Drawbar clearance | ||||
| Front axle center | ||||
| Approximate shipping weight, Open;Cab | OOS: 3975 kg 8765 lb Cab: 4175 kg 9185 lb |
Weight
| Base machine weight | ||||
|---|---|---|---|---|
| Maximum ballast level | ||||
| Maximum permissible weight |
Capacities
| Crankcase oil volume | ||||
|---|---|---|---|---|
| Fuel tank | Open: 142.7 L 37.7 U.S. gal. Cab: 165.4 L 43.7 U.S. gal. |
|||
| Diesel exhaust fluid (DEF) tank | 12.0 L 3.17 U.S. gal. |
|||
| Cooling system | ||||
| Transmission-hydraulic system |
Serviceability
| Interval for engine oil change | ||||
|---|---|---|---|---|
| Interval for hydraulic/transmission oil change | ||||
| Interval for engine coolant change |
Loaders
| Loader | ||||
|---|---|---|---|---|
| Lift capacity at full height | ||||
| Maximum lift height | ||||
| Leveling type |
Precision AG
| Guidance | Optional: AutoTrac™ with AutoTrac Basic | |||
|---|---|---|---|---|
| Telematic | ||||
| Remote diagnostics | ||||
| Connectivity |
Miscellaneous
| AutoTrac ready | Optional with PowrQuad™ PLUS/Powr8™ models | |||
|---|---|---|---|---|
| ISOBUS ready | Optional with PowrQuad™ PLUS/Powr8™ models | |||
| CommandCenter video inputs | ||||
| Immobilizer | ||||
| Side slope rating | ||||
| Uphill/downhill slope rating | ||||
| Country of manufacture | Pune, India |
Additional information
| Date collected | 6-Jan-2023 |
|---|
Shop and Buy
Maintenance and Support
You May Also Be Interested In
Images of equipment models may be digitally generated, are for illustration purposes only, and are subject to change. Equipment models shown are typically base models and may not reflect all features, options, or attachments. Equipment availability may be limited. See your John Deere dealer for additional information.
