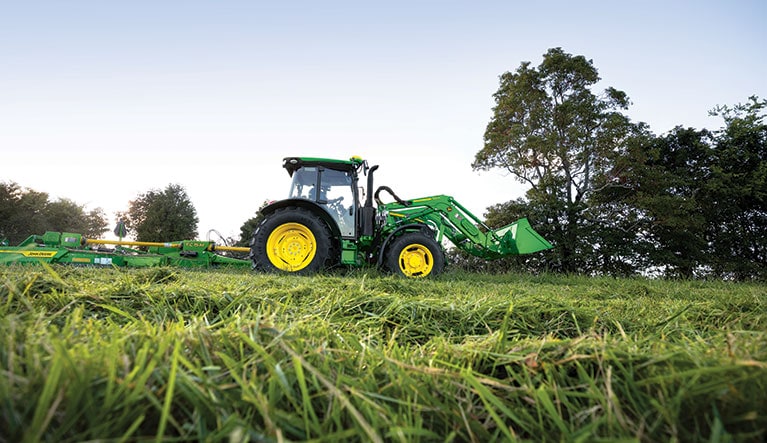

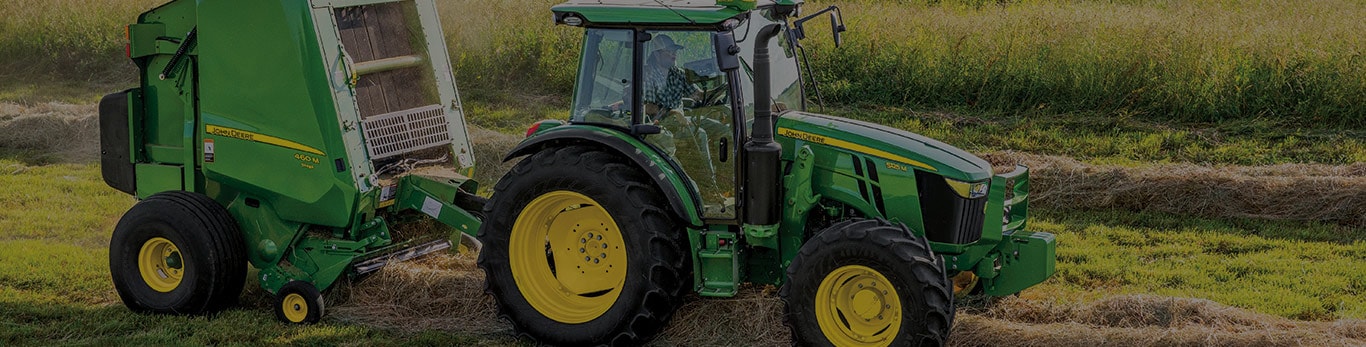

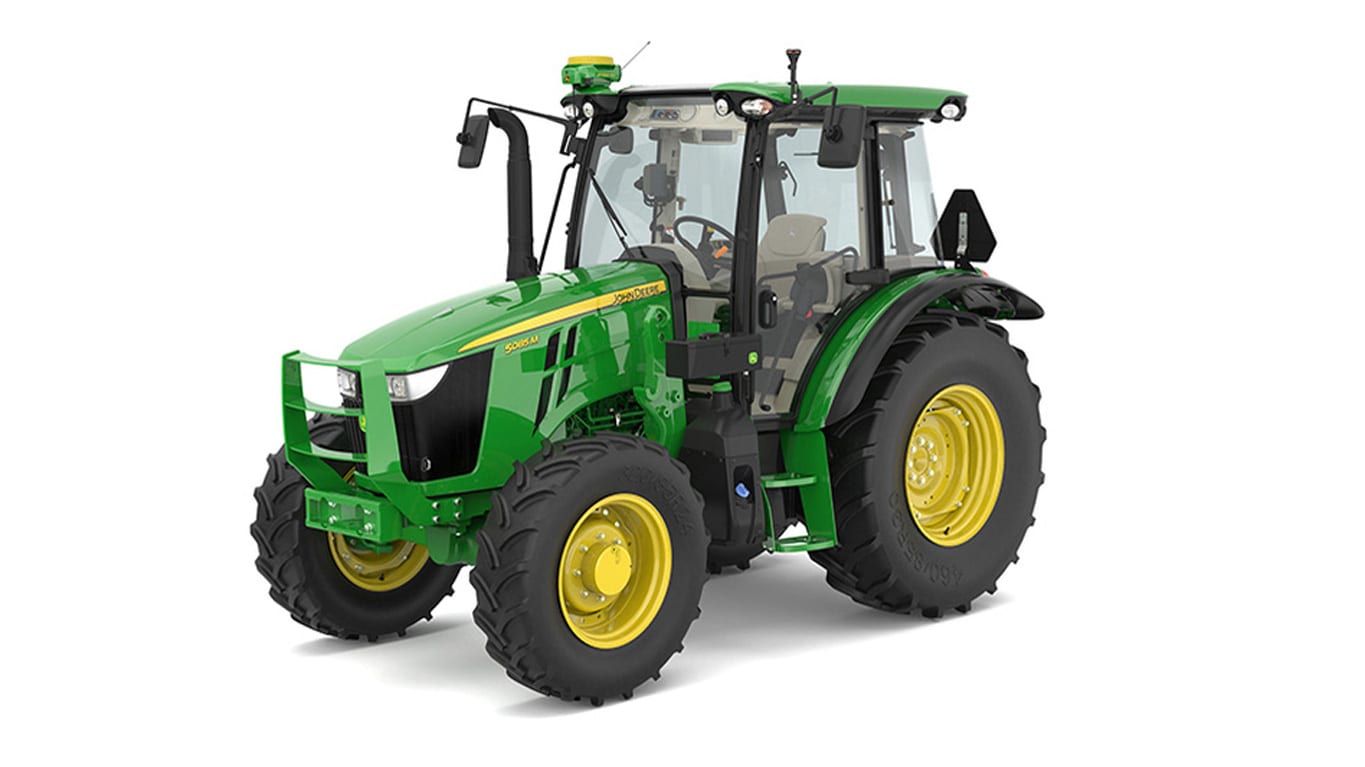

The redefined 5M tractors provide massive versatility to meet the needs of your operation. Choose from multiple transmission options, multiple cabs or open operator station models and multiple front axles. Now you can change the wheel spacing for a variety of applications or even add duals, providing you greater versatility in a mid-sized utility tractor.
Now you can feel more connected with what counts. JDLink™ helps you build an even stronger connection with your
land | equipment | fleet | herd | crop | dealership
Stay more connected with JDLink™. Being more connected will give you more control to:

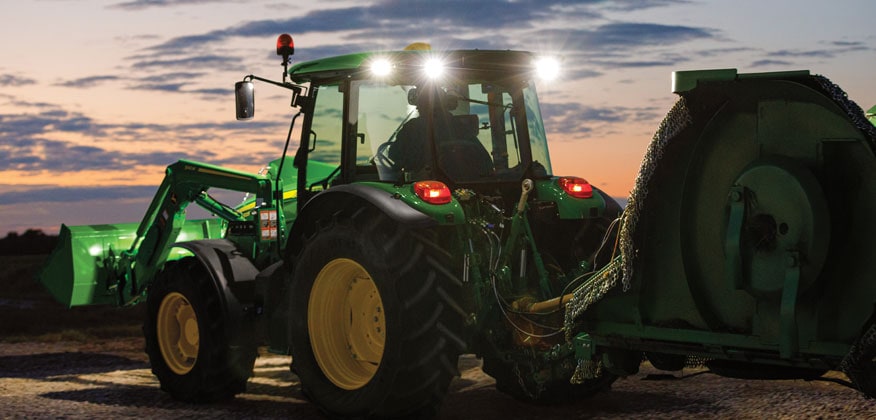

Select the 5M Tractor that best meets your needs, with more wheel options, lighting options, up to five different transmission options, two-wheel drive or Mechanical Front-Wheel Drive, open operator station or cab and 1000 rpm PTO available on more transmission options.
Pull heavier implements with up to 130 hp now available in the 5M lineup. All 4-Cylinder models of the 5M gain an additional 5 horsepower, and now feature the same proven engine as the larger 6M, while still maintaining the maneuverability and great visibility you've come to expect from the 5Ms.

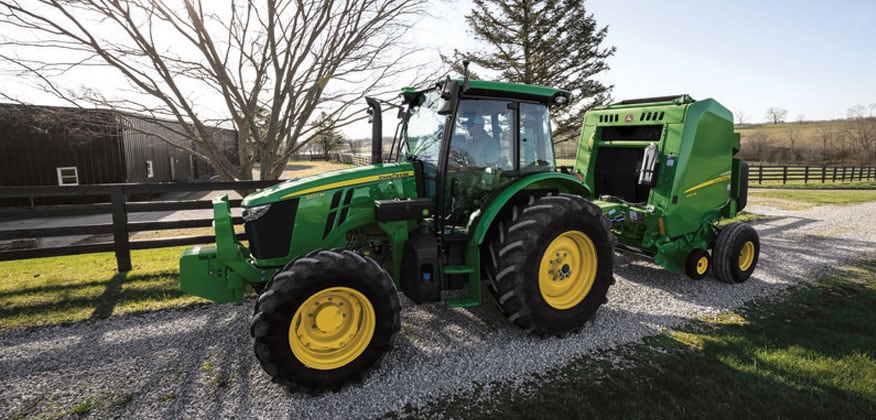

Get more flexible wheel spacing to better match windrow or row crop widths with a new bar axle option. Reduce compaction and get better stability on hills by adding duals with the bar axle option. Easily add wheel weight with a new cast wheel option, or stick with the proven flange axle and steel wheel options. The massive versatility of the 5M lets you choose what works best for you.

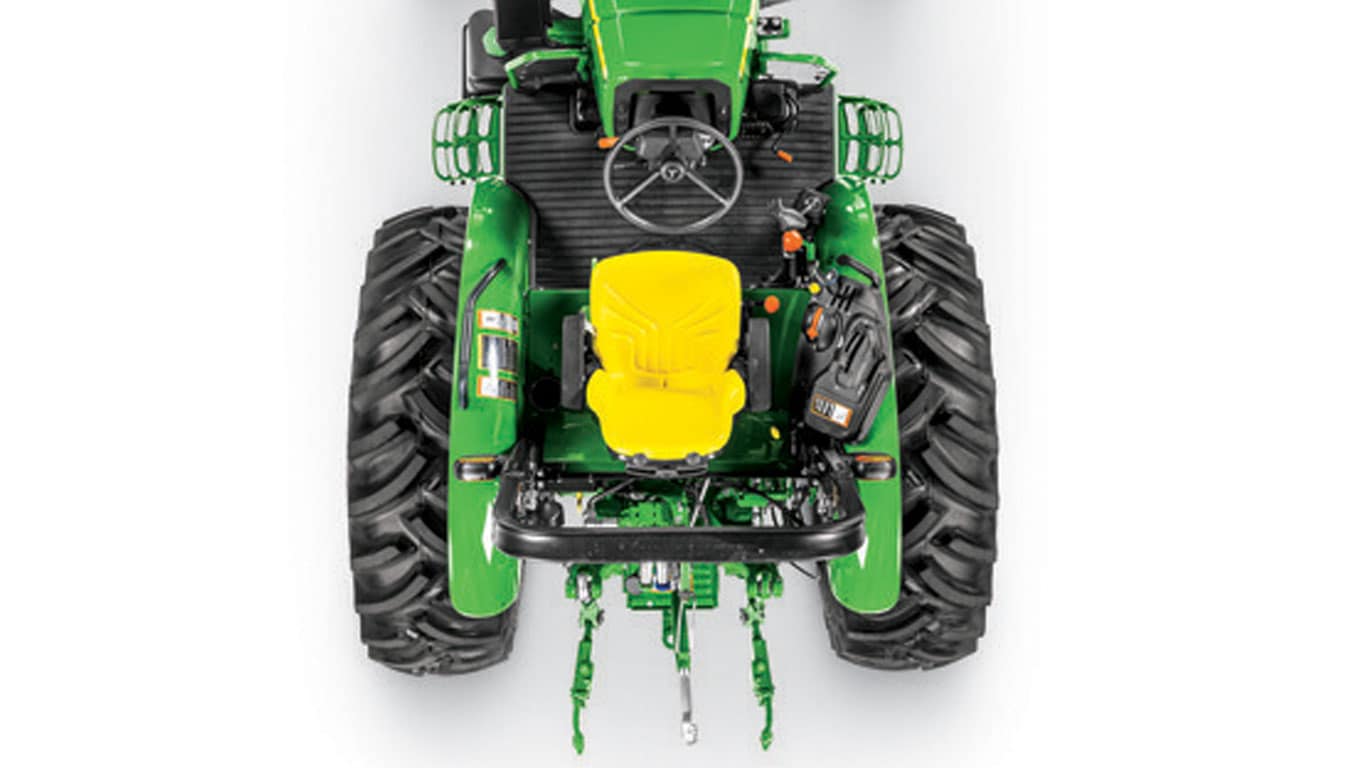

The isolated open operator station (OOS) options reduce noise and engine vibrations for the operator, compared to a fixed OOS. The most crucial operator controls are conveniently located within arms reach on the right-hand console. Electrohydraulic hitch controls on the right-hand console are easy to reach and operate. Improve consistency pass-by-pass and decrease the need to make repeated trips over the same ground with a depth stop wheel. Connect implements with precision and ease using the hitch lever control. The premium OOS also includes fender extensions with front work lights.
Effortlessly switch directions without manually clutching or braking thanks to the electrohydraulic Left Hand Reverser available on all 5M Tractors. Shift on-the-go and under load with the fully synchronized ranges and gears available on all 5Ms. Transport faster at up to 18 mph (30 km/h) on 2WDs with PowrReverser transmissions and 24 mph (40 km/h) on all MFWD models.
⠀
The two-lever shift strategy of the PowrReverser transmission works well for jobs without frequent shifting, for example, loader work, mowing or spraying. The PowrReverser comes standard with 16F/16R speeds with an optional Hi-Lo splitting each forward gear for a 32F/16R. Baling and headland turns get easier with a 20-percent increase or decrease in speed in each forward gear with the Hi-Lo push-button shifting.

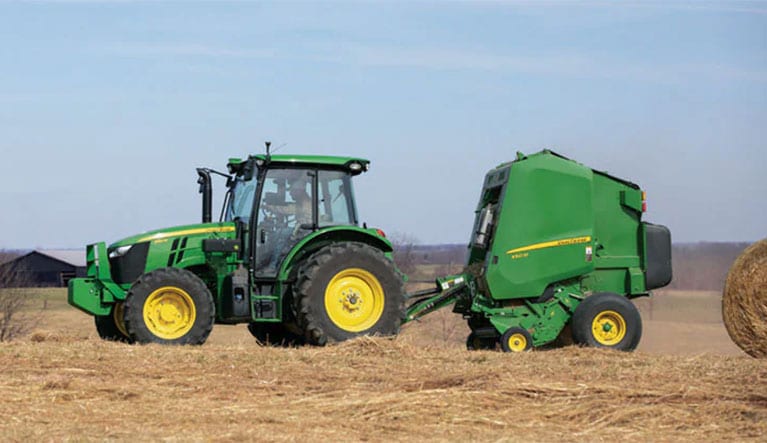

Ideal for baling, loader work and frequent transport, the PowerQuad PLUS gets the job done with a single range shift lever. Four manually shifted speeds with each range lets the PowrQuad PLUS offer 16F/16R speeds. A simple push of the de-clutch button lets you change ranges without using the foot clutch, and two additional buttons let you change gears up or down within a range.

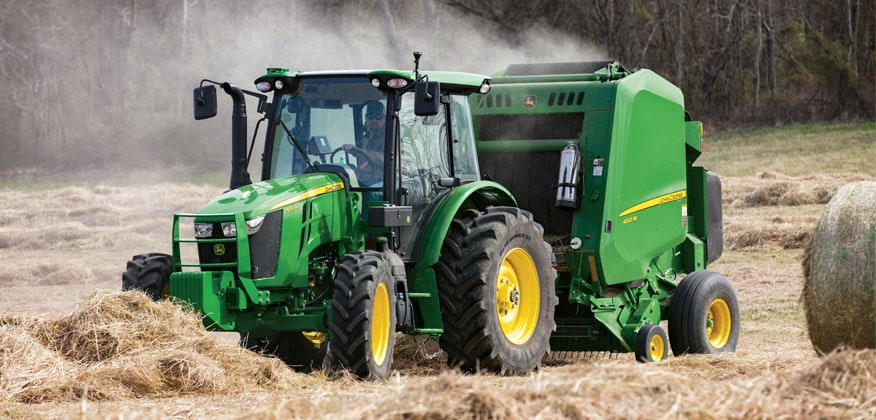

Baling, tillage and loader work are a breeze with the Powr8 transmission. Four manually shifted ranges and eight electronically shifted speeds is how the Powr8 earned its name, offering 32F/16R speeds. In addition to having eight speeds in each range, the Powr8 comes with ECO shift, reducing engine rpm in the two highest gears while still offering a top speed of 24 mph (40 km/h.) A creeper option is also available on the Powr8.
1Engine power PS (hp ISO) at max engine power speed (ECE-R120). John Deere Standard RES10080, SAE Standards J1995.
| Model | Engine HP¹ | PTO HP | Rated Flow | PTO Speed | 2WD or MFWD | Cab or Open Station |
|---|---|---|---|---|---|---|
|
75 hp (55.1 kW) @2200 rpm |
57.7 hp (43 kW) @2100 rpm |
24.7 gpm (94 I/m) |
540 at 2100 rpm 540E at 1645 rpm 1000 at 2100 rpm |
Both |
Both |
|
|
95 hp (70 kW) |
80 hp (58.8 kW) @2100 rpm |
PowrReverser PowrQuad PLUS/ Powr8 |
540 at 2100 rpm 540E at 1645 rpm 1000 at 2100 rpm |
PowrReverser PowrQuad PLUS/ Powr8 |
PowrReverser PowrQuad PLUS/ Powr8 |
|
|
105 hp (77 kW) |
90 hp (77.2 kW) @2100 rpm |
PowrReverser™: 24.7 gpm (94 l/min) PowrQuad™ PLUS/Powr8™: 25.6 gpm (97 l/min) |
540 at 2100 rpm 540E at 1645 rpm 1000 at 2100 rpm |
MFWD |
PowrReverser PowrQuad PLUS/ Powr8 |
|
|
120 hp (88 kW) |
105 hp (77.2 kW) @2100 rpm |
PowrReverser™: 24.7 gpm (94 l/min) PowrQuad™ PLUS/Powr8™: 25.6 gpm (97 l/min) |
540 rpm @ 2100 rpm 540E rpm @ 1645 rpm 1000 rpm @ 2100 rpm |
MFWD |
PowrReverser PowrQuad PLUS/ Powr8 |
|
|
130 hp (95 kW) |
115 hp (84.5 kW) @2100 rpm |
25.6 gpm (96.9 l/m) |
540 at 2100 rpm 540E at 1645 rpm 1000 at 2100 rpm |
MFWD |
Cab Only |
1Engine power PS (hp ISO) at max engine power speed (ECE-R120). John Deere Standard RES10080, SAE Standards J1995.
